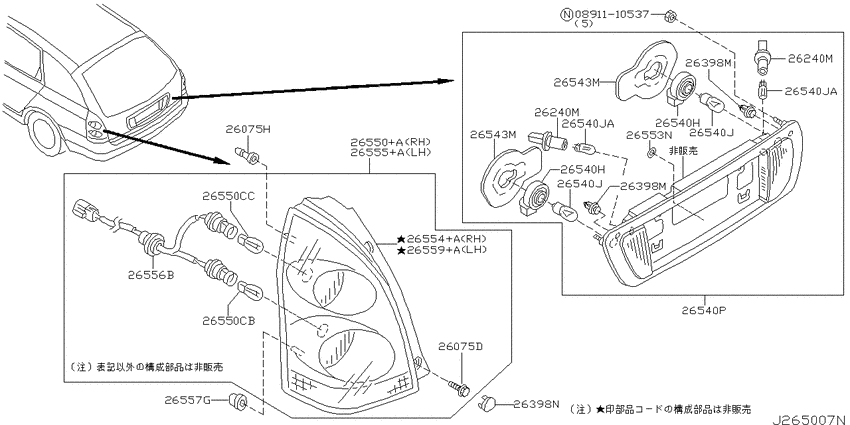

Rear combination lamp (2003-07-01 ~ ; ﾜｺﾞﾝ; W) Diagram Nissan PRIMERA
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- W20G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891110537
|
0891110537
0891110537 NUT |
0891110537 |
US $1.73 |
||
|
26075D
|
26075D
0145600031 SCREW0307--01 ~ ; W |
0145600031 |
from US $1.11 |
||
|
26075H
|
26075H
7684835F00 Grommet0307--01 ~ ; S +W |
7684835F00 |
from US $1.30 |
||
|
26240M
|
26240M
2624078C00 Harness Assy-Head Lamp0307--01 ~ ; W |
2624078C00 |
US $16.63 |
||
|
26240M
|
26240M
2624078C00 Harness Assy-Head Lamp0307--01 ~ ; W |
2624078C00 |
US $16.63 |
||
|
26398M
|
26398M
26398-65F00 Clip0307--01 ~ ; W; [B113] |
26398-65F00 |
US $3.02 |
||
|
26398M
|
26398M
26398-65F00 Clip0307--01 ~ ; W; [B113] |
26398-65F00 |
US $3.02 |
||
|
26398N
|
26398N
26398WF100 Cap-Bolt0307--01 ~ ; W |
26398WF100 |
US $6.34 |
||
|
26540H
|
26540H
26260-2L700 Socket Assy0307--01 ~ ; W |
26260-2L700 |
US $10.37 |
||
|
26540H
|
26540H
26260-2L700 Socket Assy0307--01 ~ ; W |
26260-2L700 |
US $10.37 |
||
|
26540J
|
26540J
2626189911 Bulb-Stop Lamp0307--01 ~ ; W; 12V-13W[B113] |
2626189911 |
US $2.88 |
||
|
26540J
|
26540J
2626189965 Bulb0307--01 ~ ; W; 12V-5W |
2626189965 |
from US $1.07 |
||
|
26540J
|
26540J
2626189911 Bulb-Stop Lamp0307--01 ~ ; W; 12V-13W[B113] |
2626189911 |
US $2.88 |
||
|
26540J
|
26540J
2626189965 Bulb0307--01 ~ ; W; 12V-5W |
2626189965 |
from US $1.07 |
||
|
26540JA
|
26540JA
2626189965 Bulb0307--01 ~ ; W; 12V-5W |
2626189965 |
from US $1.07 |
||
|
26540JA
|
26540JA
2626189965 Bulb0307--01 ~ ; W; 12V-5W |
2626189965 |
from US $1.07 |
||
|
26540P
|
26540P
26540-AU120 Lamp Assy-Back Up0307--01 ~ ; *W |
26540-AU120 |
US $553.66 |
||
|
26540P
|
26540P
26540-AU121 Lamp Assy-Back Up0307--01 ~ ; *W |
26540-AU121 |
US $553.66 |
||
|
26540P
|
26540P
26540AU160 Lamp Assy-Back Up0307--01 ~ ; W |
26540AU160 |
US $553.66 |
||
|
26540P
|
26540P
26540-AU161 Lamp Assy-Back Up0307--01 ~ ; W |
26540-AU161 |
US $553.66 |
||
|
26540P
|
26540P
26540-AU170 Lamp Assy-Back Up0307--01 ~ ; *W |
26540-AU170 |
US $553.66 |
||
|
26540P
|
26540P
26540-AU171 Lamp Assy-Back Up0307--01 ~ ; *W |
26540-AU171 |
US $553.66 |
||
|
26540P
|
26540P
26540AU172 Lamp Assy-Back Up0307--01 ~ ; *W |
26540AU172 |
US $553.66 |
||
|
26540P
|
26540P
26540-AU180 Lamp Assy-Back Up0307--01 ~ ; W |
26540-AU180 |
US $553.66 |
||
|
26540P
|
26540P
26540-AU181 Lamp Assy-Back Up0307--01 ~ ; W |
26540-AU181 |
US $553.66 |
||
|
26540P
|
26540P
26540-AU182 Lamp Assy-Back Up0307--01 ~ ; W |
26540-AU182 |
US $553.66 |
||
|
26543M
|
26543M
26553-AU100 Packing0307--01 ~ ; W |
26553-AU100 |
US $15.12 |
||
|
26543M
|
26543M
26553-AU100 Packing0307--01 ~ ; W |
26553-AU100 |
US $15.12 |
||
|
26550+A
|
26550+A
26550-1A160 Lamp Assy-Rear Combination, Rh0307--01 ~ ; *W.CVT; [K116] |
26550-1A160 |
US $304.44 |
||
|
26550+A
|
26550+A
26550AU125 Lamp Assy-Rear Combination, Rh0307--01 ~ ; W |
26550AU125 |
US $429.05 |
||
|
26550CB
|
26550CB
AY08000057 Bulb0307--01 ~ ; *W.CVT; 12V-21/5W(ICHIKOH) |
AY08000057 |
US $1.93 |
||
|
26550CC
|
26550CC
2626189949 Bulb0307--01 ~ ; *W.CVT; 12V-21W(ICHIKOH) |
2626189949 |
from US $1.74 |
||
|
26550CC
|
26550CC
AY08000056 Bulb0307--01 ~ ; *W.CVT; 12V-21W(TOSHIBA) |
AY08000056 |
US $2.59 |
||
|
26553N
|
26553N
26553D5500 Packing-Lamp0307--01 ~ ; W; [B113] |
26553D5500 |
US $3.74 |
||
|
26554+A
|
26554+A
26554-1A160 Body Assy-Combination Lamp, Rh0307--01 ~ ; *W.CVT; [K116] |
26554-1A160 |
US $272.16 |
||
|
26554+A
|
26554+A
26554AU100 Body Assy-Combination Lamp, Rh0307--01 ~ ; W |
26554AU100 |
US $390.82 |
||
|
26555+A
|
26555+A
26555-1A160 Lamp Assy-Rear Combination, Lh0307--01 ~ ; *W.CVT; [K116] |
26555-1A160 |
US $304.44 |
||
|
26555+A
|
26555+A
26555AU125 Lamp Assy-Rear Combination, Lh0307--01 ~ ; W |
26555AU125 |
US $429.05 |
||
|
26556B
|
26556B
26556-AU100 Socket Assy-Rear Combination Lamp, Lh0307--01 ~ ; W |
26556-AU100 |
US $42.48 |
||
|
26557G
|
26557G
265572U001 Grommet0307--01 ~ ; S +W |
265572U001 |
from US $1.67 |
||
|
26559+A
|
26559+A
26559-1A160 Body Assy-Combination Lamp, Lh0307--01 ~ ; *W.CVT; [K116] |
26559-1A160 |
US $272.16 |
||
|
26559+A
|
26559+A
26559AU100 Body Assy-Combination Lamp, Lh0307--01 ~ ; W |
26559AU100 |
US $390.82 |
