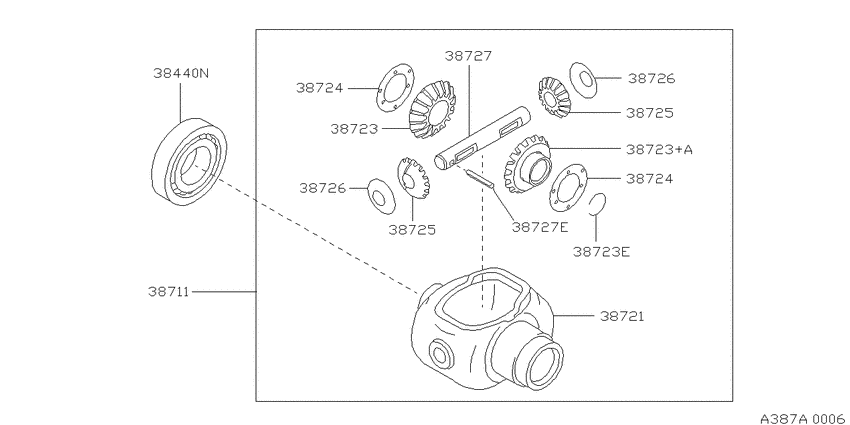

Front differential (transfer) (1997-09-01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4) Diagram Nissan PRIMERA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 4WD
- transmission
- MT.F5
- grade
- G/4
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38440N
|
38440N
38440-56E00
BEARING-DIFFERENTIAL SIDE
9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
38440-56E00 |
— | ||
|
38711
|
38711
38411-56E00
CASE COMPL-FRONT DIFFERENTIAL
9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
38411-56E00 |
— | ||
|
38721
|
38721
38421-56E00 CASE-FRONT DIFFERENTIAL9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
38421-56E00 |
US $159.84 |
||
|
38723
|
38723
38423-03E00 GEAR-SIDE9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ﾋﾀﾞﾘ ﾖｳ |
38423-03E00 |
US $41.76 |
||
|
38723
|
38723
38423-56E00 GEAR-SIDE,DIFFERENTIAL BEVEL9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ﾐｷﾞ ﾖｳ |
38423-56E00 |
US $42.19 |
||
|
38723
|
38723
3822556E00 CIRCLIP-SIDE GEAR9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
3822556E00 |
US $3.17 |
||
|
38723+A
|
38723+A
38423-56E00 GEAR-SIDE,DIFFERENTIAL BEVEL9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ﾐｷﾞ ﾖｳ |
38423-56E00 |
US $42.19 |
||
|
38723E
|
38723E
3822556E00 CIRCLIP-SIDE GEAR9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
3822556E00 |
US $3.17 |
||
|
38724
|
38724
38424-E3000 Washer-Thrust, Side Gear9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.75-0.80 |
38424-E3000 |
US $4.03 |
||
|
38724
|
38724
38424-E3001 Washer-Thrust, Side Gear9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.80-0.85 |
38424-E3001 |
US $4.03 |
||
|
38724
|
38724
38424-E3002 Washer-Thrust, Side Gear9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.85-0.90 |
38424-E3002 |
US $4.03 |
||
|
38724
|
38724
38424-E3003 Washer-Thrust, Side Gear9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.90-0.95 |
38424-E3003 |
US $4.03 |
||
|
38724
|
38724
38424-E3000 Washer-Thrust, Side Gear9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.75-0.80 |
38424-E3000 |
US $4.03 |
||
|
38724
|
38724
38424-E3001 Washer-Thrust, Side Gear9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.80-0.85 |
38424-E3001 |
US $4.03 |
||
|
38724
|
38724
38424-E3002 Washer-Thrust, Side Gear9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.85-0.90 |
38424-E3002 |
US $4.03 |
||
|
38724
|
38724
38424-E3003 Washer-Thrust, Side Gear9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.90-0.95 |
38424-E3003 |
US $4.03 |
||
|
38725
|
38725
38425-V5010 Pinion-Mate, Differential Bevel9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
38425-V5010 |
from US $34.37 |
||
|
38725
|
38725
38425-V5010 Pinion-Mate, Differential Bevel9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
38425-V5010 |
from US $34.37 |
||
|
38726
|
38726
38426-03E00 WASHER-THRUST,PINION MATE9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
38426-03E00 |
US $4.18 |
||
|
38726
|
38726
38426-03E00 WASHER-THRUST,PINION MATE9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
38426-03E00 |
US $4.18 |
||
|
38727
|
38727
38427-B4001 Shaft-Pinion Mate9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
38427-B4001 |
US $13.54 |
||
|
38727
|
38727
38428U1500 Pin-Lock, Pinion Shaft9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
38428U1500 |
from US $0.50 |
||
|
38727E
|
38727E
38428U1500 Pin-Lock, Pinion Shaft9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
38428U1500 |
from US $0.50 |
