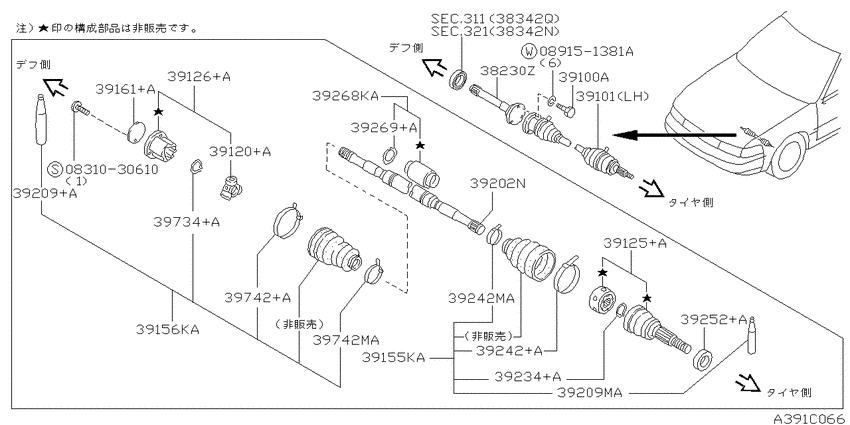

Front drive shaft (ff) (1999-08-01 ~ ; 左側; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4) Diagram Nissan PRIMERA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 4WD
- transmission
- MT.F5
- grade
- G/4
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831030610
|
0831030610
08310-30610
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-30610 |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
321
|
Transmission case & clutch release
321
|
||||
|
38230Z
|
38230Z
38230-64E00 SHAFT ASSY-SIDE,DIFFERENTIAL9709--01 ~ ; 4WD.SR20DE.MT.F5 |
38230-64E00 |
US $234.72 |
||
|
39100A
|
39100A
39106-64E00 BOLT9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
39106-64E00 |
US $2.45 |
||
| replacement | |||||
|
39100A
|
39100A
39106-64E0A Bolt9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
39106-64E0A |
US $2.45 |
||
|
39101
|
39101
39101-3J210 Shaft Assy-Front Drive, Lh9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 |
39101-3J210 |
US $1,063.42 |
||
|
39101
|
39101
39101-3J270 Shaft Assy-Front Drive, Lh9909--01 ~ ; 4WD.SR20DE.MT.F5; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39101-3J270 |
US $1,063.42 |
||
|
39120+A
|
39120+A
39720-10V10 Spider Assy-Slide Joint9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ﾎﾞ-ﾙ ｶﾞｲｹｲ D=34.10 |
39720-10V10 |
US $78.19 |
||
|
39120+A
|
39120+A
39720-10V11 Spider Assy-Slide Joint9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ﾎﾞ-ﾙ ｶﾞｲｹｲ D=34.17 |
39720-10V11 |
US $76.46 |
||
|
39120+A
|
39120+A
39720-10V12 Spider Assy-Slide Joint9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ﾎﾞ-ﾙ ｶﾞｲｹｲ D=34.24 |
39720-10V12 |
US $76.46 |
||
|
39125+A
|
39125+A
39211-65J10 Joint Assy-Outer9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
39211-65J10 |
US $501.26 |
||
|
39125+A
|
39125+A
39211-65J71 Joint Assy-Outer9909--01 ~ ; 4WD.SR20DE.MT.F5 |
39211-65J71 |
US $601.80 |
||
|
39126+A
|
39126+A
39711-64E00 JOINT ASSY-INNER9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
39711-64E00 |
US $259.20 |
||
|
39155KA
|
39155KA
392410M625
Repair Kit-Dust Boot, Outer
9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
392410M625 |
— | ||
| replacement | |||||
|
39155KA
|
39155KA
C9BDA-0M62H C9BDA0M62H9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
C9BDA-0M62H |
US $91.35 |
||
|
39155KA
|
39155KA
392418V125 Repair Kit-Dust Boot, Outer9909--01 ~ ; 4WD.SR20DE.MT.F5 |
392418V125 |
US $67.82 |
||
|
39156KA
|
39156KA
3974105U28 Repair Kit-Dust B00T, Inner9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
3974105U28 |
US $92.35 |
||
|
39161+A
|
39161+A
39715-64E00 PLUG9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
39715-64E00 |
US $9.65 |
||
|
39202N
|
39202N
39205-0E602 Shaft-Front Drive, Lh9709--01 ~ 9909--01; 4WD.SR20DE.MT.F5 |
39205-0E602 |
US $240.48 |
||
|
39202N
|
39202N
39205-0E682 Shaft-Front Drive, Lh9909--01 ~ ; 4WD.SR20DE.MT.F5 |
39205-0E682 |
US $305.86 |
||
|
39209+A
|
39209+A
39709-55E26 GREASE9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
39709-55E26 |
US $33.70 |
||
| replacement | |||||
|
39209+A
|
39209+A
C9709-2U626 Grease-Inner9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
C9709-2U626 |
US $36.72 |
||
|
39209MA
|
39209MA
39209-01A26
Grease-Outer
9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
39209-01A26 |
— | ||
| replacement | |||||
|
39209MA
|
39209MA
C9BDA-0M62H C9BDA0M62H9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
C9BDA-0M62H |
US $91.35 |
||
|
39209MA
|
39209MA
C92092U620 Grease-Outer9909--01 ~ ; 4WD.SR20DE.MT.F5; ﾀｲﾔ ｻｲﾄﾞ |
C92092U620 |
US $23.33 |
||
|
39234+A
|
39234+A
3923401E00 RING-SNAP,BEARING RACE9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
3923401E00 |
from US $1.22 |
||
|
39242+A
|
39242+A
3924201E00 BAND-BOOT,DRIVE SHAFT INNER9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
3924201E00 |
US $4.25 |
||
|
39242+A
|
39242+A
39242-8V000 Band-Boot, Drive Shaft Outer9909--01 ~ ; 4WD.SR20DE.MT.F5 |
39242-8V000 |
US $4.46 |
||
|
39242MA
|
39242MA
39242-01E12 BAND-RUBBER BOOT,SHAFT9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
39242-01E12 |
US $4.61 |
||
|
39242MA
|
39242MA
39242-8V010 Band-Boot, Drive Shaft9909--01 ~ ; 4WD.SR20DE.MT.F5 |
39242-8V010 |
US $4.46 |
||
|
39252+A
|
39252+A
3925206R06 Seal-Dust9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
3925206R06 |
US $39.74 |
||
|
39268KA
|
39268KA
39268-64E27 DAMPER KIT-DYNAMIC,FRONT DRIVE SHAFT9709--01 ~ ; 4WD.SR20DE.MT.F5 |
39268-64E27 |
US $43.92 |
||
|
39269+A
|
39269+A
3926911A10 Band-Damper9709--01 ~ ; 4WD.SR20DE.MT.F5 |
3926911A10 |
US $9.50 |
||
|
39734+A
|
39734+A
3970841W00 Ring-Snap, C9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
3970841W00 |
US $0.92 |
||
|
39742+A
|
39742+A
3924201E00 BAND-BOOT,DRIVE SHAFT INNER9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
3924201E00 |
US $4.25 |
||
|
39742MA
|
39742MA
39742W1205 Band-Dust Cover, Shaft9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
39742W1205 |
US $8.90 |
||
