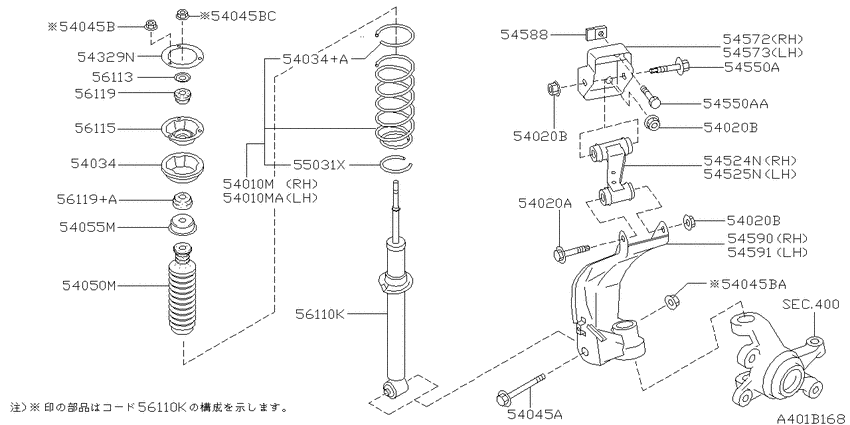

Front suspension (1997-09-01 ~ ; アーム&ショック アブソーバー; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4) Diagram Nissan PRIMERA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 4WD
- transmission
- MT.F5
- grade
- G/4
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
400
|
Front axle
400
|
||||
|
54010M
|
54010M
54010-0A565 Spring-Front9712--01 ~ 9809--01; *4WD.SR20DE.MT.F5; (ﾐｷﾞ ﾖｳ ｴｱﾛｽﾎﾟ-ﾂ ｽﾎﾟｲ ﾗ-ﾚｽﾏﾀﾊAJｾﾝﾖｳｽﾎﾟｲﾗ- |
54010-0A565 |
US $192.96 |
||
|
54010M
|
54010M
54010-0A569 Spring-Front9809--01 ~ 9908--01; *4WD.SR20DE.MT.F5; (ﾐｷﾞ ﾖｳ ｴｱﾛｽﾎﾟ-ﾂ ｽﾎﾟｲ ﾗ-ﾚｽ ﾏﾀﾊAJｾﾝﾖｳｽﾎﾟｲﾗ |
54010-0A569 |
US $192.96 |
||
|
54010M
|
54010M
54010-0A605 Spring-Front9908--01 ~ ; *4WD.SR20DE.MT.F5; ﾐｷﾞｶﾞﾜ[K116] |
54010-0A605 |
US $192.96 |
||
|
54010M
|
54010M
54010-65J15 Spring-Front9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5; ﾐｷﾞ ﾖｳ |
54010-65J15 |
US $175.68 |
||
|
54010M
|
54010M
54010-6J303 Spring-Front9908--01 ~ ; 4WD.SR20DE.MT.F5; ﾐｷﾞｶﾞﾜ |
54010-6J303 |
US $149.76 |
||
|
54010M
|
54010M
54010-0A566
Spring-Front
9712--01 ~ 9809--01; *4WD.SR20DE.MT.F5; (ﾋﾀﾞﾘﾖｳ ｴｱﾛｽﾎﾟ-ﾂ ｽﾎﾟｲ ﾗ-ﾚｽﾏﾀﾊAJｾﾝﾖｳｽﾎﾟｲﾗ- |
54010-0A566 |
— | ||
|
54010M
|
54010M
54010-0A570 Spring-Front9809--01 ~ 9908--01; *4WD.SR20DE.MT.F5; (ﾋﾀﾞﾘﾖｳ ｴｱﾛｽﾎﾟ-ﾂ ｽﾎﾟｲ ﾗ-ﾚｽ ﾏﾀﾊAJｾﾝﾖｳｽﾎﾟｲﾗ |
54010-0A570 |
US $192.96 |
||
|
54010M
|
54010M
54010-0A606 Spring-Front9908--01 ~ ; *4WD.SR20DE.MT.F5; ﾋﾀﾞﾘ[K116] |
54010-0A606 |
US $254.88 |
||
|
54010M
|
54010M
54010-65J13 Spring-Front9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5; ﾋﾀﾞﾘ ﾖｳ |
54010-65J13 |
US $175.68 |
||
|
54010M
|
54010M
54010-6J301 Spring-Front9908--01 ~ ; 4WD.SR20DE.MT.F5; ﾋﾀﾞﾘ |
54010-6J301 |
US $149.76 |
||
|
54010MA
|
54010MA
54010-0A566
Spring-Front
9712--01 ~ 9809--01; *4WD.SR20DE.MT.F5; (ﾋﾀﾞﾘﾖｳ ｴｱﾛｽﾎﾟ-ﾂ ｽﾎﾟｲ ﾗ-ﾚｽﾏﾀﾊAJｾﾝﾖｳｽﾎﾟｲﾗ- |
54010-0A566 |
— | ||
|
54010MA
|
54010MA
54010-0A570 Spring-Front9809--01 ~ 9908--01; *4WD.SR20DE.MT.F5; (ﾋﾀﾞﾘﾖｳ ｴｱﾛｽﾎﾟ-ﾂ ｽﾎﾟｲ ﾗ-ﾚｽ ﾏﾀﾊAJｾﾝﾖｳｽﾎﾟｲﾗ |
54010-0A570 |
US $192.96 |
||
|
54010MA
|
54010MA
54010-0A606 Spring-Front9908--01 ~ ; *4WD.SR20DE.MT.F5; ﾋﾀﾞﾘ[K116] |
54010-0A606 |
US $254.88 |
||
|
54010MA
|
54010MA
54010-65J13 Spring-Front9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5; ﾋﾀﾞﾘ ﾖｳ |
54010-65J13 |
US $175.68 |
||
|
54010MA
|
54010MA
54010-6J301 Spring-Front9908--01 ~ ; 4WD.SR20DE.MT.F5; ﾋﾀﾞﾘ |
54010-6J301 |
US $149.76 |
||
|
54020A
|
54020A
01125-02351 BOLT9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
01125-02351 |
US $6.05 |
||
|
54020B
|
54020B
0122500072 NUT9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
0122500072 |
US $1.05 |
||
|
54020B
|
54020B
0122500072 NUT9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
0122500072 |
US $1.05 |
||
|
54020B
|
54020B
0122500072 NUT9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
0122500072 |
US $1.05 |
||
|
54034
|
54034
540342J015 Seat-Rubber, Front Spring9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
540342J015 |
US $14.98 |
||
|
54034
|
54034
540342J010 Seat-Rubber, Front Spring9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
540342J010 |
from US $15.39 |
||
|
54034+A
|
54034+A
540342J010 Seat-Rubber, Front Spring9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
540342J010 |
from US $15.39 |
||
|
54045A
|
54045A
01125-02341 BOLT9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
01125-02341 |
US $3.31 |
||
|
54045A
|
54045A
54368-50J00 Bolt9809--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
54368-50J00 |
US $3.88 |
||
|
54045B
|
54045B
0122500102 NUT9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
0122500102 |
from US $0.57 |
||
|
54045B
|
54045B
0122500072 NUT9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
0122500072 |
US $1.05 |
||
|
54045B
|
54045B
0122300291 NUT9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
0122300291 |
from US $0.70 |
||
|
54045BA
|
54045BA
0122500072 NUT9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
0122500072 |
US $1.05 |
||
|
54045BC
|
54045BC
0122300291 NUT9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
0122300291 |
from US $0.70 |
||
|
54050M
|
54050M
552404J510 Bumper Assy-Bound9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
552404J510 |
US $36.58 |
||
|
54055M
|
54055M
55248-01U00
Cover-Bound Bumper, Rear
9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
55248-01U00 |
— | ||
| replacement | |||||
|
54055M
|
54055M
552482Y00A Cover-Bound Bumper, Rear9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
552482Y00A |
from US $6.66 |
||
|
54329N
|
54329N
543292J000 Spacer-Front Strut Insulator9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
543292J000 |
US $10.37 |
||
|
54524N
|
54524N
545243J201 Link Compl-Front Suspension, Upper Rh9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
545243J201 |
US $195.84 |
||
|
54525N
|
54525N
545253J201 Link Compl-Front Suspension, Upper Lh9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
545253J201 |
US $195.84 |
||
|
54550A
|
54550A
5455033P20 Bolt9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
5455033P20 |
US $10.12 |
||
|
54550A
|
54550A
54550-2J000 Bolt9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
54550-2J000 |
US $3.46 |
||
|
54550AA
|
54550AA
54550-2J000 Bolt9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
54550-2J000 |
US $3.46 |
||
|
54572
|
54572
54574-2J011
Bracket-Upper Link, Rh
9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
54574-2J011 |
— | ||
|
54573
|
54573
54575-2J011 Bracket-Upper Link, Lh9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
54575-2J011 |
US $37.44 |
||
|
54588
|
54588
54588-50J10 Nut9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
54588-50J10 |
US $2.45 |
||
|
54590
|
54590
54592-3J225 Extension Compl-Knuckle Arm Rh9709--01 ~ 9712--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
54592-3J225 |
US $135.07 |
||
|
54590
|
54590
54592-3J226 Extension Compl-Knuckle Arm Rh9712--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
54592-3J226 |
US $148.32 |
||
|
54591
|
54591
54593-3J225 Extension Compl-Knuckle Arm Lh9709--01 ~ 9712--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
54593-3J225 |
US $135.07 |
||
|
54591
|
54591
54593-3J226 Extension Compl-Knuckle Arm Lh9712--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
54593-3J226 |
US $148.32 |
||
|
55031X
|
55031X
55018AA100 Tube-Rear Spring9908--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
55018AA100 |
US $20.66 |
||
|
55031X
|
55031X
5503133P10 Tube-Rear Spring9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
5503133P10 |
US $12.05 |
||
|
56110K
|
56110K
56110-0A526
Absorber Kit-Shock, Front
9712--01 ~ 9809--01; *4WD.SR20DE.MT.F5 +*SR20DE.AT.F4; 'ｴｱﾛｽﾎﾟ-ﾂ ｽﾎﾟｲﾗ-ﾚｽﾏﾀﾊ AJｾﾝﾖｳｽﾎﾟｲﾗ-[K116] |
56110-0A526 |
— | ||
|
56110K
|
56110K
56110-3J227 Absorber Kit-Shock, Front9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｺｸｲﾝNO.56110-3J200 |
56110-3J227 |
US $207.36 |
||
|
56110K
|
56110K
56110-0A526
Absorber Kit-Shock, Front
9712--01 ~ 9809--01; *4WD.SR20DE.MT.F5 +*SR20DE.AT.F4; 'ｴｱﾛｽﾎﾟ-ﾂ ｽﾎﾟｲﾗ-ﾚｽﾏﾀﾊ AJｾﾝﾖｳｽﾎﾟｲﾗ-[K116] |
56110-0A526 |
— | ||
|
56110K
|
56110K
56110-3J227 Absorber Kit-Shock, Front9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｺｸｲﾝNO.56110-3J200 |
56110-3J227 |
US $207.36 |
||
|
56113
|
56113
56113-4U000 Washer-Special9908--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
56113-4U000 |
US $1.58 |
||
|
56113
|
56113
56113-73000
Washer-Special, Outer
9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
56113-73000 |
— | ||
| replacement | |||||
|
56113
|
56113
561134U00A Washer-Special9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
561134U00A |
from US $1.67 |
||
|
56113
|
56113
56113-60U05
Washer
9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
56113-60U05 |
— | ||
| replacement | |||||
|
56113
|
56113
5611360U0A Washer9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
5611360U0A |
from US $1.39 |
||
|
56115
|
56115
56115-2J001 Bracket-Front Shock Absorber9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
56115-2J001 |
US $19.87 |
||
|
56119
|
56119
5621771L00
Bush-Rubber
9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
5621771L00 |
— | ||
| replacement | |||||
|
56119
|
56119
5621733P00 Bush-Rubber9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
5621733P00 |
US $7.76 |
||
|
56119
|
56119
5621801U00 Bush-Rubber9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
5621801U00 |
US $7.20 |
||
|
56119+A
|
56119+A
5621801U00 Bush-Rubber9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
5621801U00 |
US $7.20 |
||
