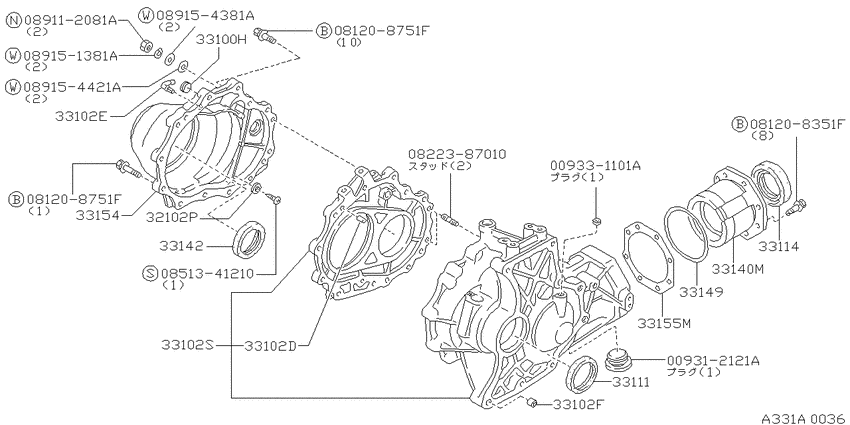

Transfer case (1997-09-01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4) Diagram Nissan PRIMERA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 4WD
- transmission
- MT.F5
- grade
- G/4
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.76 |
||
|
009331101A
|
009331101A
00933-1101A
PLUG
|
00933-1101A |
— | ||
|
081208351F
|
081208351F
08120-8351F
Bolt-hexagon
|
08120-8351F |
— | ||
|
081208751F
|
081208751F
08120-8751F
Bolt-hexagon
|
08120-8751F |
— | ||
|
081208751F
|
081208751F
08120-8751F
Bolt-hexagon
|
08120-8751F |
— | ||
|
0822387010
|
0822387010
08223-87010
STUD
|
08223-87010 |
— | ||
|
0851341210
|
0851341210
08513-41210
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-41210 |
— | ||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
089154421A
|
089154421A
089154421A Washer-Plain |
089154421A |
from US $0.52 |
||
|
32102P
|
32102P
32105-U8400 Magnet-Transfer9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
32105-U8400 |
US $2.45 |
||
|
33100H
|
33100H
01642-00111
PLUG-FILLER
9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
01642-00111 |
— | ||
|
33102D
|
33102D
32103-56E00 PIN9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
32103-56E00 |
US $4.61 |
||
|
33102E
|
33102E
38322-10R00 Breather9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
38322-10R00 |
US $5.76 |
||
|
33102F
|
33102F
1102221000 Dowel-Block To Transmission9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
1102221000 |
US $2.45 |
||
|
33102S
|
33102S
33101-56E05 CASE SET-TRANSFER9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
33101-56E05 |
US $590.47 |
||
|
33111
|
33111
3311156E00 SEAL-OIL,RING GEAR9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
3311156E00 |
from US $10.39 |
||
|
33114
|
33114
38189-10R00 Seal-Oil, Transfer Case9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
38189-10R00 |
US $11.66 |
||
|
33114
|
33114
3311456E00 SEAL-OIL,DRIVE SHAFT RH9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
3311456E00 |
US $10.08 |
||
|
33114
|
33114
33114-5V200 Seal-Oil, Drive Pinion9809--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
33114-5V200 |
US $12.24 |
||
|
33140M
|
33140M
33140-10R00 Sleeve-Pinion Shaft9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
33140-10R00 |
US $138.24 |
||
| replacement | |||||
|
33140M
|
33140M
33140-10R01 Sleeve-Pinion Shaft9709--01 ~ 9809--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
33140-10R01 |
US $138.53 |
||
|
33140M
|
33140M
33140-10R01 Sleeve-Pinion Shaft9809--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
33140-10R01 |
US $138.53 |
||
|
33142
|
33142
3314256E00 SEAL-OIL9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
3314256E00 |
from US $17.48 |
||
|
33149
|
33149
33149-10R00 Seal-O Ring, Pinion Shaft Sleeve9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
33149-10R00 |
US $7.06 |
||
| replacement | |||||
|
33149
|
33149
C3149-10R00
Seal-o ring,pinion shaft sleeve
9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
C3149-10R00 |
— | ||
|
33154
|
33154
33154-56E04 COVER-FRONT,TRANSFER CASE9709--01 ~ ; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4 |
33154-56E04 |
US $115.34 |
||
|
33155M
|
33155M
33155-10R00 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.40 |
33155-10R00 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R01 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.44 |
33155-10R01 |
US $7.92 |
||
|
33155M
|
33155M
33155-10R02 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.48 |
33155-10R02 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R03 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.52 |
33155-10R03 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R04 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.56 |
33155-10R04 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R05 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.60 |
33155-10R05 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R06 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.64 |
33155-10R06 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R07 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.68 |
33155-10R07 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R08 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.72 |
33155-10R08 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R09 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.76 |
33155-10R09 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R10 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.80 |
33155-10R10 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R11 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.84 |
33155-10R11 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R12 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.88 |
33155-10R12 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R13 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.92 |
33155-10R13 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R14 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=0.96 |
33155-10R14 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R15 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=1.00 |
33155-10R15 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R16 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=1.04 |
33155-10R16 |
US $9.07 |
||
|
33155M
|
33155M
3315510R17 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=1.08 |
3315510R17 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R18 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=1.12 |
33155-10R18 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R19 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=1.16 |
33155-10R19 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R20 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=1.20 |
33155-10R20 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R21 Shim-Adjust, Pinion Shaft Sleeve9709--01 ~ 9908--01; 4WD.SR20DE.MT.F5 +SR20DE.AT.F4; ｾﾝﾀｸ T=1.24 |
33155-10R21 |
US $9.07 |
||
