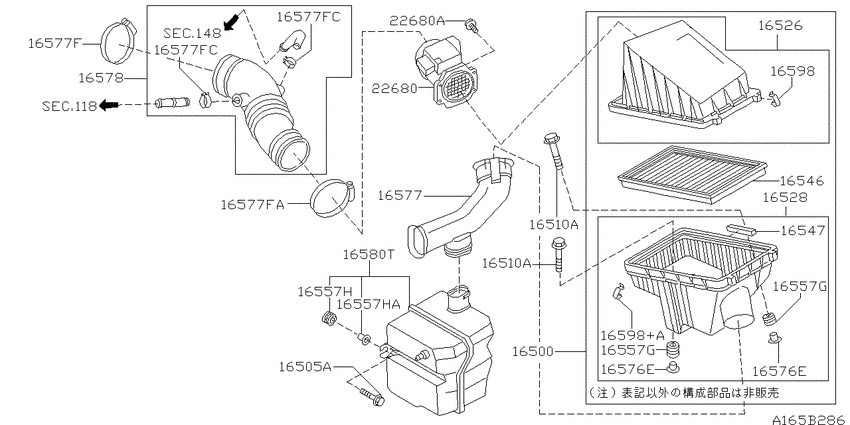

Air cleaner (1999-08-01 ~ ; ｴｱｸﾘｰﾅｰ; SR20DE.AT.CVT) Diagram Nissan PRIMERA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT.CVT
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
118
|
Crankcase ventilation
118
|
||||
|
118
|
Crankcase ventilation
118
|
||||
|
148
|
Secondary air system
148
|
||||
|
148
|
Secondary air system
148
|
||||
|
16500
|
16500
16500-4J600 Air Cleaner9709--01 ~ ; SR20DE.AT.CVT |
16500-4J600 |
US $318.60 |
||
|
16505A
|
16505A
01436-01681 BOLT9709--01 ~ ; SR20DE |
01436-01681 |
US $1.73 |
||
|
16510A
|
16510A
01436-01681 BOLT9709--01 ~ ; SR20DE |
01436-01681 |
US $1.73 |
||
|
16510A
|
16510A
01436-01681 BOLT9709--01 ~ ; SR20DE |
01436-01681 |
US $1.73 |
||
|
16526
|
16526
16526-5J000 Air Cleaner Cover9709--01 ~ ; SR20DE.AT.CVT |
16526-5J000 |
US $118.08 |
||
|
16528
|
16528
16528-4J600 Body Assy-Air Cleaner9709--01 ~ ; SR20DE.AT.CVT |
16528-4J600 |
US $161.28 |
||
|
16546
|
16546
AY120NS001
Element Assy-Air
9709--01 ~ ; SR20DE |
AY120NS001 |
— | ||
| replacements | |||||
|
16546
|
16546
AY120NS00101 Element Assy-Air9709--01 ~ ; SR20DE |
AY120NS00101 |
US $29.76 |
||
|
16546
|
16546
AY120-NS063 Element Assy-Air9709--01 ~ ; SR20DE |
AY120-NS063 |
US $24.74 |
||
|
16547
|
16547
16547-59J01 Packing9908--01 ~ ; SR20DE |
16547-59J01 |
US $7.78 |
||
|
16557G
|
16557G
16559-31U00 Mounting-Rubber9709--01 ~ ; SR20DE |
16559-31U00 |
from US $4.42 |
||
|
16557G
|
16557G
16559-31U00 Mounting-Rubber9709--01 ~ ; SR20DE |
16559-31U00 |
from US $4.42 |
||
|
16557H
|
16557H
16557-77A10 Mounting Rubber9709--01 ~ 9809--01; SR20DE |
16557-77A10 |
US $4.18 |
||
|
16557H
|
16557H
16559-2J200 Mounting-Rubber9809--01 ~ ; SR20DE |
16559-2J200 |
US $6.91 |
||
|
16557HA
|
16557HA
16559-2J200 Mounting-Rubber9809--01 ~ ; SR20DE |
16559-2J200 |
US $6.91 |
||
|
16576E
|
16576E
16566-60U00
Retainer
9709--01 ~ ; SR20DE |
16566-60U00 |
— | ||
| replacement | |||||
|
16576E
|
16576E
1656660U0A Retainer9709--01 ~ ; SR20DE |
1656660U0A |
US $7.03 |
||
|
16576E
|
16576E
16566-60U00
Retainer
9709--01 ~ ; SR20DE |
16566-60U00 |
— | ||
| replacement | |||||
|
16576E
|
16576E
1656660U0A Retainer9709--01 ~ ; SR20DE |
1656660U0A |
US $7.03 |
||
|
16577
|
16577
165542J201 Duct Assy-Air9709--01 ~ ; SR20DE |
165542J201 |
US $82.66 |
||
|
16577
|
16577
14464-45V15
Clamp-Hose
9709--01 ~ ; SR20DE |
14464-45V15 |
— | ||
| replacement | |||||
|
16577
|
16577
14464-45V1B Clamp-Hose9709--01 ~ ; SR20DE |
14464-45V1B |
US $11.79 |
||
|
16577
|
16577
01555-00571 CLAMP-HOSE9709--01 ~ ; SR20DE |
01555-00571 |
US $7.63 |
||
| replacement | |||||
|
16577
|
16577
0155501031 CLAMP-HOSE9709--01 ~ ; SR20DE |
0155501031 |
US $7.63 |
||
|
16577F
|
16577F
14464-45V15
Clamp-Hose
9709--01 ~ ; SR20DE |
14464-45V15 |
— | ||
| replacement | |||||
|
16577F
|
16577F
14464-45V1B Clamp-Hose9709--01 ~ ; SR20DE |
14464-45V1B |
US $11.79 |
||
|
16577F
|
16577F
01555-00571 CLAMP-HOSE9709--01 ~ ; SR20DE |
01555-00571 |
US $7.63 |
||
| replacement | |||||
|
16577F
|
16577F
0155501031 CLAMP-HOSE9709--01 ~ ; SR20DE |
0155501031 |
US $7.63 |
||
|
16577FA
|
16577FA
01555-00571 CLAMP-HOSE9709--01 ~ ; SR20DE |
01555-00571 |
US $7.63 |
||
| replacement | |||||
|
16577FA
|
16577FA
0155501031 CLAMP-HOSE9709--01 ~ ; SR20DE |
0155501031 |
US $7.63 |
||
|
16578
|
16578
165784J600 Duct-Air9709--01 ~ ; SR20DE.AT.CVT |
165784J600 |
US $109.87 |
||
|
16580T
|
16580T
16585-2J200 Resonator Assy9709--01 ~ ; SR20DE |
16585-2J200 |
US $91.01 |
||
|
16598
|
16598
16598-53J01 Clip9709--01 ~ ; SR20DE |
16598-53J01 |
US $4.32 |
||
| replacement | |||||
|
16598
|
16598
1659853J0A Clip9709--01 ~ ; SR20DE |
1659853J0A |
from US $3.05 |
||
|
16598
|
16598
16598-53J01 Clip9709--01 ~ 9908--01; SR20DE |
16598-53J01 |
US $4.32 |
||
| replacement | |||||
|
16598
|
16598
1659853J0A Clip9709--01 ~ 9908--01; SR20DE |
1659853J0A |
from US $3.05 |
||
|
16598
|
16598
16598-AD100 Clip0201--01 ~ ; SR20DE.AT.CVT |
16598-AD100 |
US $4.32 |
||
| replacement | |||||
|
16598
|
16598
16598-AD10A Clip0201--01 ~ ; SR20DE.AT.CVT |
16598-AD10A |
US $4.32 |
||
|
16598+A
|
16598+A
16598-53J01 Clip9709--01 ~ 9908--01; SR20DE |
16598-53J01 |
US $4.32 |
||
| replacement | |||||
|
16598+A
|
16598+A
1659853J0A Clip9709--01 ~ 9908--01; SR20DE |
1659853J0A |
from US $3.05 |
||
|
16598+A
|
16598+A
16598-AD100 Clip0201--01 ~ ; SR20DE.AT.CVT |
16598-AD100 |
US $4.32 |
||
| replacement | |||||
|
16598+A
|
16598+A
16598-AD10A Clip0201--01 ~ ; SR20DE.AT.CVT |
16598-AD10A |
US $4.32 |
||
|
22680
|
22680
226802J200 Mass Air Flow9709--01 ~ ; SR20DE |
226802J200 |
US $545.16 |
||
|
22680
|
22680
01436-01061 SCREW9709--01 ~ ; SR20DE |
01436-01061 |
US $2.36 |
||
|
22680A
|
22680A
01436-01061 SCREW9709--01 ~ ; SR20DE |
01436-01061 |
US $2.36 |
||
