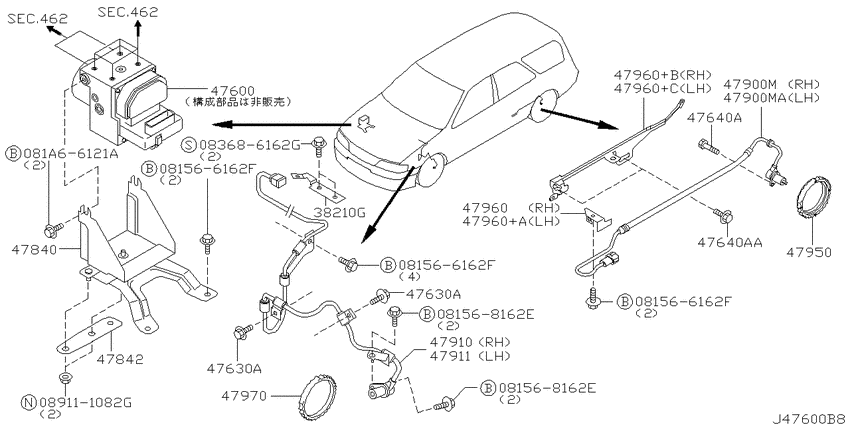

Anti skid control (2000-09-01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE)) Diagram Nissan PRIMERA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT.CVT
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081566162F
|
081566162F
081566162F Bolt-hexagon |
081566162F |
US $0.80 |
||
|
081566162F
|
081566162F
081566162F Bolt-hexagon |
081566162F |
US $0.80 |
||
|
081566162F
|
081566162F
081566162F Bolt-hexagon |
081566162F |
US $0.80 |
||
|
081568162E
|
081568162E
081568162E
BOLTHEXPP WW
|
081568162E |
— | ||
|
081568162E
|
081568162E
081568162E
BOLTHEXPP WW
|
081568162E |
— | ||
|
081A66121A
|
081A66121A
081A6-6121A BOLTFLANGEHEX |
081A6-6121A |
US $0.68 |
||
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
47600
|
47600
47600-5J000 Actuator Assy-Anti Skid9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
47600-5J000 |
US $1,582 |
||
|
47600
|
47600
47660-7J010 Actuator Assy-Anti Skid9809--01 ~ 9908--01; "W.(QG18DD+SR20VE) +W.SR20DE.AT.CVT |
47660-7J010 |
US $1,890 |
||
|
47600
|
47600
47660-7J076 Actuator Assy-Anti Skid9908--01 ~ 9909--01; "W.(QG18DD+SR20VE) +W.SR20DE.AT.CVT |
47660-7J076 |
US $1,890 |
||
|
47600
|
47600
47660-7J077 Actuator Assy-Anti Skid9909--01 ~ 0010--01; "W.(QG18DD+SR20VE) +W.SR20DE.AT.CVT |
47660-7J077 |
US $1,890 |
||
|
47600
|
47600
47660-7J078 Actuator Assy-Anti Skid0010--01 ~ ; "W.(QG18DD+SR20VE) +W.SR20DE.AT.CVT |
47660-7J078 |
US $1,890 |
||
|
47630A
|
47630A
54459-0M001 Bolt9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
54459-0M001 |
US $1.73 |
||
|
47630A
|
47630A
54459-0M001 Bolt9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
54459-0M001 |
US $1.73 |
||
|
47640A
|
47640A
54459-3M000 Bolt9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
54459-3M000 |
US $2.45 |
||
|
47640A
|
47640A
54459-0M001 Bolt9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
54459-0M001 |
US $1.73 |
||
|
47640AA
|
47640AA
54459-0M001 Bolt9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
54459-0M001 |
US $1.73 |
||
|
47840
|
47840
47840-5J000 Bracket-Actuator9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
47840-5J000 |
US $122.40 |
||
|
47840
|
47840
47840-6J000 Bracket-Actuator9809--01 ~ 0010--01; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE) |
47840-6J000 |
US $123.70 |
||
|
47840
|
47840
47840-6J010 Bracket-Actuator0010--01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE) |
47840-6J010 |
US $112.46 |
||
|
47842
|
47842
47842-62J00 Reinforce-Anti Skid9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
47842-62J00 |
US $8.21 |
||
|
47900M
|
47900M
47900-5J000 Sensor Assy-Anti Skid, Rear9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
47900-5J000 |
US $361.08 |
||
|
47900M
|
47900M
47900-5J060 Sensor Assy-Anti Skid, Rear0009--01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE) |
47900-5J060 |
US $331.34 |
||
|
47900M
|
47900M
47901-5J000 Sensor Assy-Anti Skid, Rear9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
47901-5J000 |
US $361.08 |
||
|
47900M
|
47900M
47901-5J060 Sensor Assy-Anti Skid, Rear0009--01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE) |
47901-5J060 |
US $331.34 |
||
|
47900MA
|
47900MA
47901-5J000 Sensor Assy-Anti Skid, Rear9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
47901-5J000 |
US $361.08 |
||
|
47900MA
|
47900MA
47901-5J060 Sensor Assy-Anti Skid, Rear0009--01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE) |
47901-5J060 |
US $331.34 |
||
|
47910
|
47910
47910-3J100 Sensor Assy-Anti Skid, Front Rh9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
47910-3J100 |
US $287.45 |
||
|
47911
|
47911
47911-3J100 Sensor Assy-Anti Skid, Front Lh9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
47911-3J100 |
US $287.45 |
||
|
47950
|
47950
47950-5J000 Sensor Rotor-Anti Skid Rear9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
47950-5J000 |
US $51.55 |
||
|
47960
|
47960
47960-5J065 Bracket-Skid Control0009--01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE); ﾐｷﾞｶﾞﾜ |
47960-5J065 |
US $2.45 |
||
|
47960
|
47960
47961-5J065 Bracket-Skid Control0009--01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE); ﾋﾀﾞﾘ |
47961-5J065 |
US $2.45 |
||
|
47960
|
47960
47960-4M470 Bracket-Skid Control0009--01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE); ﾐｷﾞｶﾞﾜ |
47960-4M470 |
US $5.62 |
||
|
47960
|
47960
47961-4M470 Bracket-Skid Control0009--01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE); ﾋﾀﾞﾘ |
47961-4M470 |
US $5.62 |
||
|
47960+A
|
47960+A
47961-5J065 Bracket-Skid Control0009--01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE); ﾋﾀﾞﾘ |
47961-5J065 |
US $2.45 |
||
|
47960+B
|
47960+B
47960-4M470 Bracket-Skid Control0009--01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE); ﾐｷﾞｶﾞﾜ |
47960-4M470 |
US $5.62 |
||
|
47960+C
|
47960+C
47961-4M470 Bracket-Skid Control0009--01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE); ﾋﾀﾞﾘ |
47961-4M470 |
US $5.62 |
||
|
47970
|
47970
47970-3J100 Sensor-Rotor, Anti Skid Front9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
47970-3J100 |
US $50.26 |
||
|
47970
|
47970
479705V000 Sensor-Rotor, Anti Skid Front9908--01 ~ ; &W.2WD.SR20DE +W.(QG18DE+QG18DD+SR20VE) |
479705V000 |
US $38.59 |
||
