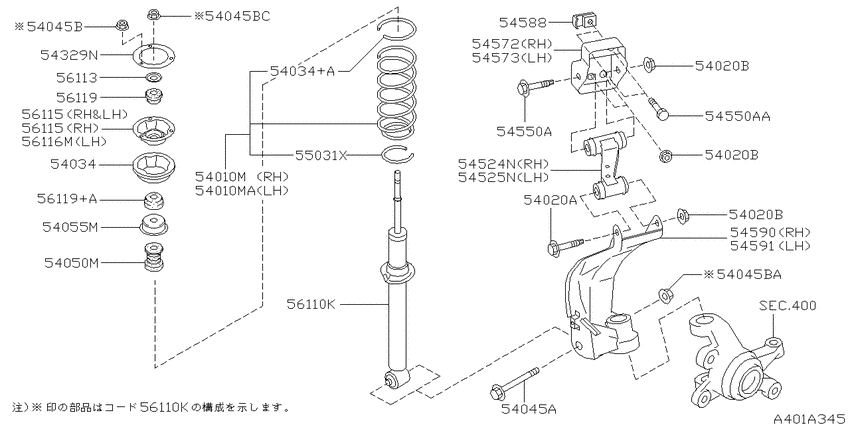

Front suspension (1997-09-01 ~ 1998-09-01; アーム&ショック アブソーバー; /2WD.SR20DE.MT.F5 +SR18DE +SR20DE.AT.CVT +SR20VE) Diagram Nissan PRIMERA
- Year
- 1997 - 1998
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 2WD
- transmission
- MT.F5
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
400
|
Front axle
400
|
||||
|
54010M
|
54010M
54010-50J65 Spring-Front9709--01 ~ 9809--01; SR18DE.MT.F5; ﾐｷﾞ ﾖｳ |
54010-50J65 |
US $175.68 |
||
|
54010M
|
54010M
54010-2J000 Spring-Front9709--01 ~ 9809--01; SR18DE.MT.F5; ﾋﾀﾞﾘ ﾖｳ |
54010-2J000 |
US $162.72 |
||
|
54010MA
|
54010MA
54010-2J000 Spring-Front9709--01 ~ 9809--01; SR18DE.MT.F5; ﾋﾀﾞﾘ ﾖｳ |
54010-2J000 |
US $162.72 |
||
|
54020A
|
54020A
01125-02351 BOLT9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
01125-02351 |
US $6.05 |
||
|
54020B
|
54020B
0122500072 NUT9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
0122500072 |
US $1.05 |
||
|
54020B
|
54020B
0122500072 NUT9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
0122500072 |
US $1.05 |
||
|
54020B
|
54020B
0122500072 NUT9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
0122500072 |
US $1.05 |
||
|
54034
|
54034
540342J015 Seat-Rubber, Front Spring9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
540342J015 |
US $14.98 |
||
|
54034
|
54034
540342J010 Seat-Rubber, Front Spring9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
540342J010 |
from US $15.37 |
||
|
54034+A
|
54034+A
540342J010 Seat-Rubber, Front Spring9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
540342J010 |
from US $15.37 |
||
|
54045A
|
54045A
01125-02341 BOLT9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
01125-02341 |
US $3.31 |
||
|
54045B
|
54045B
0122500102 NUT9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
0122500102 |
from US $0.54 |
||
|
54045B
|
54045B
0122500072 NUT9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
0122500072 |
US $1.05 |
||
|
54045B
|
54045B
0122300291 NUT9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
0122300291 |
from US $0.70 |
||
|
54045BA
|
54045BA
0122500072 NUT9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
0122500072 |
US $1.05 |
||
|
54045BC
|
54045BC
0122300291 NUT9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
0122300291 |
from US $0.70 |
||
|
54050M
|
54050M
54050-2J001 Bumper Assy-Bound9709--01 ~ 9809--01; SR18DE +SR20VE |
54050-2J001 |
US $33.84 |
||
|
54055M
|
54055M
55248-01U00
Cover-Bound Bumper, Rear
9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
55248-01U00 |
— | ||
| replacement | |||||
|
54055M
|
54055M
552482Y00A Cover-Bound Bumper, Rear9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
552482Y00A |
from US $6.66 |
||
|
54329N
|
54329N
543292J000 Spacer-Front Strut Insulator9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
543292J000 |
US $10.37 |
||
|
54524N
|
54524N
545242J001 Link Compl-Front Suspension, Upper Rh9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
545242J001 |
US $178.56 |
||
|
54525N
|
54525N
545252J001 Link Compl-Front Suspension, Upper Lh9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
545252J001 |
US $178.56 |
||
|
54550A
|
54550A
5455033P20 Bolt9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
5455033P20 |
US $10.12 |
||
|
54550A
|
54550A
54550-2J000 Bolt9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
54550-2J000 |
US $3.46 |
||
|
54550AA
|
54550AA
54550-2J000 Bolt9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
54550-2J000 |
US $3.46 |
||
|
54572
|
54572
54574-2J001 Bracket-Upper Link, Rh9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
54574-2J001 |
US $37.44 |
||
|
54573
|
54573
54575-2J001 Bracket-Upper Link, Lh9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
54575-2J001 |
US $37.44 |
||
|
54588
|
54588
54588-50J10 Nut9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
54588-50J10 |
US $2.45 |
||
|
54590
|
54590
54592-2J025 Extension Compl-Knuckle Arm Rh9709--01 ~ 9712--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
54592-2J025 |
US $237.60 |
||
|
54590
|
54590
54592-2J027 Extension Compl-Knuckle Arm Rh9712--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
54592-2J027 |
US $239.04 |
||
|
54591
|
54591
54593-2J025 Extension Compl-Knuckle Arm Lh9709--01 ~ 9712--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
54593-2J025 |
US $237.60 |
||
|
54591
|
54591
54593-2J027 Extension Compl-Knuckle Arm Lh9712--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
54593-2J027 |
US $239.04 |
||
|
55031X
|
55031X
5503133P10 Tube-Rear Spring9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
5503133P10 |
US $12.05 |
||
|
56110K
|
56110K
561104J525 Absorber Kit-Shock, Front9709--01 ~ 9809--01; '2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE; ｺｸｲﾝNO.56110-4J510 ｾﾝﾀｸ ﾕﾆｼｱ |
561104J525 |
US $241.12 |
||
|
56110K
|
56110K
56110-4J526 Absorber Kit-Shock, Front9709--01 ~ 9809--01; '2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE; ｺｸｲﾝNO.56110-4J510 ｾﾝﾀｸ ｶﾔﾊﾞ |
56110-4J526 |
US $223.20 |
||
|
56110K
|
56110K
561104J525 Absorber Kit-Shock, Front9709--01 ~ 9809--01; '2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE; ｺｸｲﾝNO.56110-4J510 ｾﾝﾀｸ ﾕﾆｼｱ |
561104J525 |
US $241.12 |
||
|
56110K
|
56110K
56110-4J526 Absorber Kit-Shock, Front9709--01 ~ 9809--01; '2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE; ｺｸｲﾝNO.56110-4J510 ｾﾝﾀｸ ｶﾔﾊﾞ |
56110-4J526 |
US $223.20 |
||
|
56113
|
56113
56113-73000
Washer-Special, Outer
9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
56113-73000 |
— | ||
| replacement | |||||
|
56113
|
56113
561134U00A Washer-Special9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
561134U00A |
from US $1.67 |
||
|
56113
|
56113
56113-60U05
Washer
9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
56113-60U05 |
— | ||
| replacement | |||||
|
56113
|
56113
5611360U0A Washer9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
5611360U0A |
from US $1.39 |
||
|
56113
|
56113
56113-73000
Washer-Special, Outer
9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
56113-73000 |
— | ||
| replacement | |||||
|
56113
|
56113
561134U00A Washer-Special9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
561134U00A |
from US $1.67 |
||
|
56115
|
56115
56115-2J001 Bracket-Front Shock Absorber9709--01 ~ 9809--01; '2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE; ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ |
56115-2J001 |
US $19.87 |
||
|
56115
|
56115
56115-2J001 Bracket-Front Shock Absorber9709--01 ~ 9809--01; '2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE; ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ |
56115-2J001 |
US $19.87 |
||
|
56119
|
56119
5621771L00
Bush-Rubber
9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
5621771L00 |
— | ||
| replacement | |||||
|
56119
|
56119
5621733P00 Bush-Rubber9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
5621733P00 |
US $7.76 |
||
|
56119
|
56119
5621801U00 Bush-Rubber9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
5621801U00 |
US $7.20 |
||
|
56119+A
|
56119+A
5621801U00 Bush-Rubber9709--01 ~ 9809--01; /2WD.SR20DE.MT.F5 +SR20DE.AT.CVT +SR18DE +SR20VE |
5621801U00 |
US $7.20 |
||
