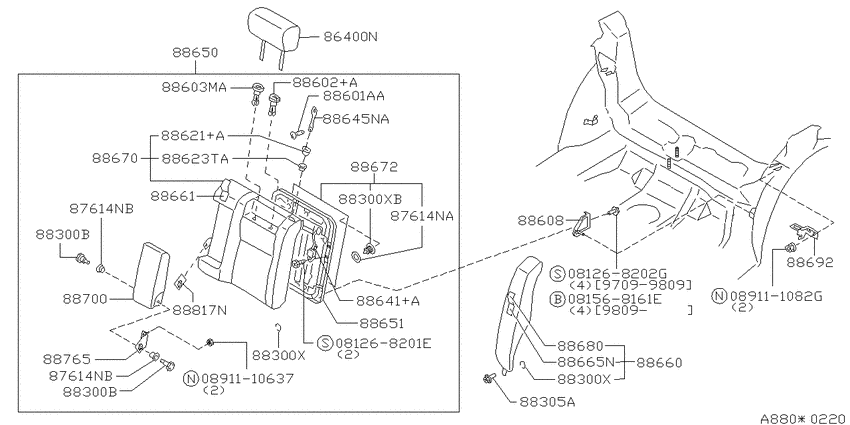

Rear seat (1997-09-01 ~ 1998-09-01; LHバック; W) Diagram Nissan PRIMERA
- Year
- 1997 - 1998
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268201E
|
081268201E
08126-8201E
Bolt-hexagon
|
08126-8201E |
— | ||
|
081268202G
|
081268202G
081268202G
Bolt-hexagon
|
081268202G |
— | ||
|
081568161E
|
081568161E
08156-8161E
ﾎﾞﾙﾄ
|
08156-8161E |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
86400N
|
86400N
86430-4J500 Headrest Assy-Rear Seat9709--01 ~ 9809--01; W.2WD.SR20DE +W.SR18DE; ﾌﾟﾘﾒ-ﾗ |
86430-4J500 |
US $283.68 |
||
|
86400N
|
86400N
86430-4J520 Headrest Assy-Rear Seat9709--01 ~ 9809--01; W.2WD.SR20DE +W.SR18DE; ﾌﾟﾘﾒ-ﾗｶﾐﾉ |
86430-4J520 |
US $283.68 |
||
|
87614NA
|
87614NA
88604-4J500 Bush-Rear Seat9709--01 ~ 9809--01; W |
88604-4J500 |
US $2.88 |
||
|
87614NB
|
87614NB
87614-51E00 BUSH-FRONT SEAT9709--01 ~ 9809--01; W |
87614-51E00 |
US $1.73 |
||
|
87614NB
|
87614NB
87614-51E00 BUSH-FRONT SEAT9709--01 ~ 9809--01; W |
87614-51E00 |
US $1.73 |
||
|
88300B
|
88300B
87615-K0100 Bolt-Special9709--01 ~ 9809--01; W |
87615-K0100 |
US $4.32 |
||
|
88300B
|
88300B
87615-K0100 Bolt-Special9709--01 ~ 9809--01; W |
87615-K0100 |
US $4.32 |
||
|
88300X
|
88300X
8690132200 Clip9709--01 ~ 9809--01; W |
8690132200 |
from US $0.22 |
||
|
88300X
|
88300X
01553-06431 CLIP-WIRING HARNESS9709--01 ~ 9809--01; W |
01553-06431 |
US $0.86 |
||
|
88300X
|
88300X
01553-06431 CLIP-WIRING HARNESS9709--01 ~ 9809--01; W |
01553-06431 |
US $0.86 |
||
|
88300X
|
88300X
8690132200 Clip9709--01 ~ 9809--01; W |
8690132200 |
from US $0.22 |
||
|
88300X
|
88300X
01553-06431 CLIP-WIRING HARNESS9709--01 ~ 9809--01; W |
01553-06431 |
US $0.86 |
||
|
88300X
|
88300X
01553-06431 CLIP-WIRING HARNESS9709--01 ~ 9809--01; W |
01553-06431 |
US $0.86 |
||
|
88300XB
|
88300XB
01553-06431 CLIP-WIRING HARNESS9709--01 ~ 9809--01; W |
01553-06431 |
US $0.86 |
||
|
88305A
|
88305A
01466-00061 SCREW9709--01 ~ 9809--01; W |
01466-00061 |
US $1.73 |
||
|
88601AA
|
88601AA
01136-00091 BOLT9709--01 ~ 9809--01; W |
01136-00091 |
US $2.45 |
||
|
88602+A
|
88602+A
876022J000 Holder Assy-Headrest, Lock9709--01 ~ 9809--01; W |
876022J000 |
from US $4.03 |
||
|
88603MA
|
88603MA
8760365F00 Holder Assy-Headrest, Free9709--01 ~ 9809--01; W |
8760365F00 |
from US $4.18 |
||
|
88608
|
88608
88608-4J500 Bracket Assy-Rear Seat Back, Side Lh9709--01 ~ 9809--01; W |
88608-4J500 |
US $40.90 |
||
|
88621+A
|
88621+A
88621-2J010 Finisher-Rear Seat Lock Knob9709--01 ~ 9809--01; W |
88621-2J010 |
US $3.60 |
||
|
88641+A
|
88641+A
88691-2L700 Lock Assy-Rear Seat9709--01 ~ 9809--01; W |
88691-2L700 |
US $65.66 |
||
|
88645NA
|
88645NA
88645-0M701 Knob-Lock, Rear Seat Back9709--01 ~ 9809--01; W |
88645-0M701 |
US $7.06 |
||
|
88650
|
88650
88650-4J500 Back Assy-Rear Seat, Lh9709--01 ~ 9809--01; W.2WD.SR20DE +W.SR18DE; ﾌﾟﾘﾒ-ﾗ[D105] |
88650-4J500 |
US $1,918 |
||
|
88650
|
88650
88650-4J520 Back Assy-Rear Seat, Lh9709--01 ~ 9809--01; W.2WD.SR20DE +W.SR18DE; ﾌﾟﾘﾒ-ﾗｶﾐﾉ[D105] |
88650-4J520 |
US $1,918 |
||
|
88651
|
88651
88651-4J500 Frame Assy-Rear Seat Back, Lh9709--01 ~ 9809--01; W |
88651-4J500 |
US $277.92 |
||
|
88660
|
88660
88660-4J500 Back Assy-Rear Seat, Side Lh9709--01 ~ 9809--01; W.2WD.SR20DE +W.SR18DE; ﾌﾟﾘﾒ-ﾗ[D105] |
88660-4J500 |
US $724.99 |
||
|
88660
|
88660
88660-4J520 Back Assy-Rear Seat, Side Lh9709--01 ~ 9809--01; W.2WD.SR20DE +W.SR18DE; ﾌﾟﾘﾒ-ﾗｶﾐﾉ[D105] |
88660-4J520 |
US $724.99 |
||
|
88661
|
88661
88661-4J500 Pad-Rear Seat Back, Lh9709--01 ~ 9809--01; W |
88661-4J500 |
US $218.88 |
||
|
88665N
|
88665N
88665-4J500 Pad & Frame Assy-Rear Seat Back, Side Lh9709--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
88665-4J500 |
US $237.60 |
||
|
88670
|
88670
88670-4J501 Trim Assy-Rear Seat Back, Lh9709--01 ~ 9809--01; W.2WD.SR20DE +W.SR18DE; ﾌﾟﾘﾒ-ﾗ[D105] |
88670-4J501 |
US $784.46 |
||
|
88670
|
88670
88670-4J521 Trim Assy-Rear Seat Back, Lh9709--01 ~ 9809--01; W.2WD.SR20DE +W.SR18DE; ﾌﾟﾘﾒ-ﾗｶﾐﾉ[D105] |
88670-4J521 |
US $784.46 |
||
|
88672
|
88672
88672-4J500 Carpet-Rear Seat Back, Lh9709--01 ~ 9805--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
88672-4J500 |
US $184.32 |
||
|
88672
|
88672
88672-4J510 Carpet-Rear Seat Back, Lh9805--01 ~ 9809--01; W.2WD.SR20DE +W.(SR18DE+SR20VE) |
88672-4J510 |
US $184.32 |
||
|
88680
|
88680
88680-4J500 Trim Assy-Rear Seat Back, Side Lh9709--01 ~ 9809--01; W.2WD.SR20DE +W.SR18DE; ﾌﾟﾘﾒ-ﾗ[D105] |
88680-4J500 |
US $290.28 |
||
|
88680
|
88680
88680-4J520 Trim Assy-Rear Seat Back, Side Lh9709--01 ~ 9809--01; W.2WD.SR20DE +W.SR18DE; ﾌﾟﾘﾒ-ﾗｶﾐﾉ[D105] |
88680-4J520 |
US $290.28 |
||
|
88692
|
88692
88692-4J500 Striker Assy-Rear Seat, Lh9709--01 ~ 9809--01; W |
88692-4J500 |
US $16.42 |
||
|
88700
|
88700
88700-5J200 Armrest Assy-Rear Seat9709--01 ~ 9809--01; W.2WD.SR20DE +W.SR18DE; ﾌﾟﾘﾒ-ﾗｶﾐﾉ |
88700-5J200 |
US $214.56 |
||
|
88700
|
88700
88700-5J210 Armrest Assy-Rear Seat9709--01 ~ 9809--01; W.2WD.SR20DE +W.SR18DE; ﾌﾟﾘﾒ-ﾗ |
88700-5J210 |
US $214.56 |
||
|
88765
|
88765
88765-2J015 Bracket Assy-Armrest, Lh9709--01 ~ 9809--01; W |
88765-2J015 |
US $14.40 |
||
|
88817N
|
88817N
88714-4J500 Cover-Armrest Bracket, Rh9709--01 ~ 9809--01; W |
88714-4J500 |
US $5.76 |
