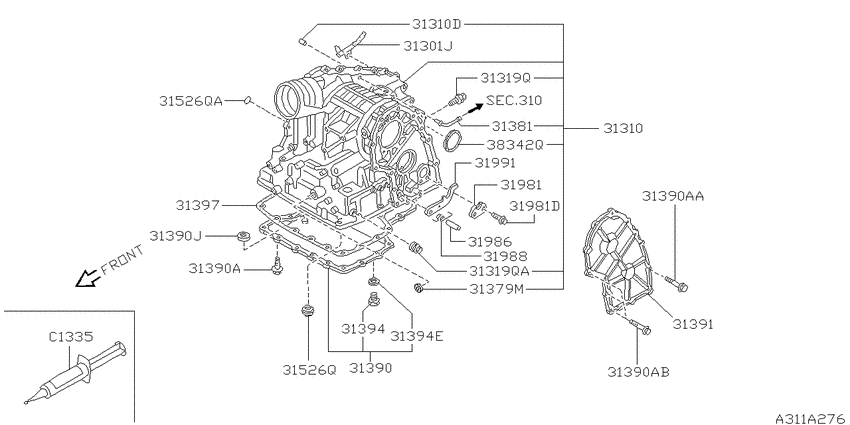

Torque converter,housing & case (1997-09-01 ~ 1998-09-01; ケース; AT.F4) Diagram Nissan PRIMERA
- Year
- 1997 - 1998
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
31301J
|
31301J
24210-31X02 Clip9709--01 ~ 9809--01; AT.F4 |
24210-31X02 |
US $5.47 |
||
|
31310
|
31310
31310-32X16 Case Assy-Automatic Transmission9709--01 ~ 9809--01; SR18DE.AT.F4 |
31310-32X16 |
US $549.41 |
||
|
31310
|
31310
31310-32X17 Case Assy-Automatic Transmission9709--01 ~ 9809--01; *SR18DE.AT.F4; ﾋﾞｽｶｽLSD ｼﾖｳ |
31310-32X17 |
US $549.41 |
||
|
31310
|
31310
32105-C6900 Pin9709--01 ~ 9809--01; AT.F4 |
32105-C6900 |
US $4.18 |
||
|
31310D
|
31310D
32105-C6900 Pin9709--01 ~ 9809--01; AT.F4 |
32105-C6900 |
US $4.18 |
||
|
31319Q
|
31319Q
31305-31X05 Plug-Thread9709--01 ~ 9809--01; SR18DE.AT.F4 |
31305-31X05 |
US $1.73 |
||
|
31319Q
|
31319Q
33312-33G00 Plug-Thread9709--01 ~ 9809--01; AT.F4 |
33312-33G00 |
US $2.45 |
||
|
31319QA
|
31319QA
33312-33G00 Plug-Thread9709--01 ~ 9809--01; AT.F4 |
33312-33G00 |
US $2.45 |
||
|
31379M
|
31379M
3137531X01 Seal-Oil9709--01 ~ 9809--01; AT.F4 |
3137531X01 |
from US $2.36 |
||
|
31381
|
31381
38352G5100 Breather-Air9709--01 ~ 9809--01; AT.F4 |
38352G5100 |
US $4.18 |
||
|
31390
|
31390
3139031X00 Pan Assy-Oil9709--01 ~ 9809--01; AT.F4 |
3139031X00 |
from US $30.91 |
||
|
31390
|
31390
31377-80X09 Bolt9709--01 ~ 9809--01; AT.F4 |
31377-80X09 |
US $1.73 |
||
|
31390
|
31390
31377-31X07 Bolt9709--01 ~ 9809--01; AT.F4 |
31377-31X07 |
US $3.46 |
||
|
31390
|
31390
31377-31X10 Bolt9709--01 ~ 9809--01; AT.F4 |
31377-31X10 |
US $1.73 |
||
|
31390
|
31390
31379-01X01 Magnet9709--01 ~ 9809--01; AT.F4 |
31379-01X01 |
US $7.20 |
||
|
31390A
|
31390A
31377-80X09 Bolt9709--01 ~ 9809--01; AT.F4 |
31377-80X09 |
US $1.73 |
||
|
31390A
|
31390A
31377-31X07 Bolt9709--01 ~ 9809--01; AT.F4 |
31377-31X07 |
US $3.46 |
||
|
31390A
|
31390A
31377-31X10 Bolt9709--01 ~ 9809--01; AT.F4 |
31377-31X10 |
US $1.73 |
||
|
31390AA
|
31390AA
31377-31X07 Bolt9709--01 ~ 9809--01; AT.F4 |
31377-31X07 |
US $3.46 |
||
|
31390AB
|
31390AB
31377-31X10 Bolt9709--01 ~ 9809--01; AT.F4 |
31377-31X10 |
US $1.73 |
||
|
31390J
|
31390J
31379-01X01 Magnet9709--01 ~ 9809--01; AT.F4 |
31379-01X01 |
US $7.20 |
||
|
31391
|
31391
31395-31X01 Cover-Side, Transmission Case9709--01 ~ 9809--01; AT.F4 |
31395-31X01 |
US $104.69 |
||
|
31394
|
31394
3137731X06 Plug-Drain9709--01 ~ 9809--01; AT.F4 |
3137731X06 |
from US $3.92 |
||
|
31394
|
31394
1102601M02 Washer-Drain Plug9709--01 ~ 9809--01; AT.F4 |
1102601M02 |
from US $2.44 |
||
|
31394E
|
31394E
1102601M02 Washer-Drain Plug9709--01 ~ 9809--01; AT.F4 |
1102601M02 |
from US $2.44 |
||
|
31397
|
31397
3139731X02 Gasket-Oil Pan9709--01 ~ 9809--01; AT.F4 |
3139731X02 |
from US $23.07 |
||
|
31397
|
31397
31397-32X86 Gasket & Seal Kit-Auto Transmission9709--01 ~ 9809--01; SR18DE.AT.F4 |
31397-32X86 |
US $266.40 |
||
| replacement | |||||
|
31397
|
31397
31397-33X92
Gasket & seal kit-auto transmission
9709--01 ~ 9809--01; SR18DE.AT.F4 |
31397-33X92 |
— | ||
|
31397
|
31397
31397-32X90 Gasket & Seal Kit-Auto Transmission9709--01 ~ 9809--01; *SR18DE.AT.F4; ﾋﾞｽｶｽLSD ｼﾖｳ |
31397-32X90 |
US $266.40 |
||
| replacement | |||||
|
31397
|
31397
31397-32X87 Gasket & Seal Kit-Auto Transmission9709--01 ~ 9809--01; *SR18DE.AT.F4; ﾋﾞｽｶｽLSD ｼﾖｳ |
31397-32X87 |
US $260.64 |
||
|
31526Q
|
31526Q
3152831X06 Seal-O Ring9709--01 ~ 9809--01; AT.F4 |
3152831X06 |
US $2.36 |
||
|
31526Q
|
31526Q
3152631X07 Seal-O Ring9709--01 ~ 9809--01; AT.F4 |
3152631X07 |
US $2.45 |
||
|
31526QA
|
31526QA
3152631X07 Seal-O Ring9709--01 ~ 9809--01; AT.F4 |
3152631X07 |
US $2.45 |
||
|
31981
|
31981
31981-31X01 Support-Parking Actuator9709--01 ~ 9809--01; AT.F4 |
31981-31X01 |
US $37.58 |
||
|
31981
|
31981
01125-00471 BOLT9709--01 ~ 9809--01; AT.F4 |
01125-00471 |
US $2.45 |
||
|
31981D
|
31981D
01125-00471 BOLT9709--01 ~ 9809--01; AT.F4 |
01125-00471 |
US $2.45 |
||
|
31986
|
31986
31986-31X00 Shaft-Parking Pawl9709--01 ~ 9809--01; AT.F4 |
31986-31X00 |
US $4.18 |
||
|
31988
|
31988
31988-31X02 Spring-Return Pawl9709--01 ~ 9809--01; AT.F4 |
31988-31X02 |
US $8.06 |
||
|
31991
|
31991
31991-31X02 Pawl-Parking9709--01 ~ 9809--01; AT.F4 |
31991-31X02 |
US $33.84 |
||
|
38342Q
|
38342Q
38342-31X00
Seal-Oil, Differential Converter Housing
9709--01 ~ 9809--01; SR18DE.AT.F4 |
38342-31X00 |
— | ||
| replacement | |||||
|
38342Q
|
38342Q
383428E000 SEAL-OIL,DIFFERENTIAL CONVERTER HOUSING9709--01 ~ 9809--01; SR18DE.AT.F4 |
383428E000 |
from US $4.23 |
||
|
38342Q
|
38342Q
38342-31X02
Seal-Oil, Differential Transmission Case
9709--01 ~ 9809--01; *SR18DE.AT.F4; ﾋﾞｽｶｽLSD ｼﾖｳ |
38342-31X02 |
— | ||
| replacement | |||||
|
38342Q
|
38342Q
383428E002 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE9709--01 ~ 9809--01; *SR18DE.AT.F4; ﾋﾞｽｶｽLSD ｼﾖｳ |
383428E002 |
US $14.74 |
||
|
C1335
|
C1335
C133531X25 Sealant-Fluid9709--01 ~ 9809--01; AT.F4 |
C133531X25 |
US $30.64 |
||
