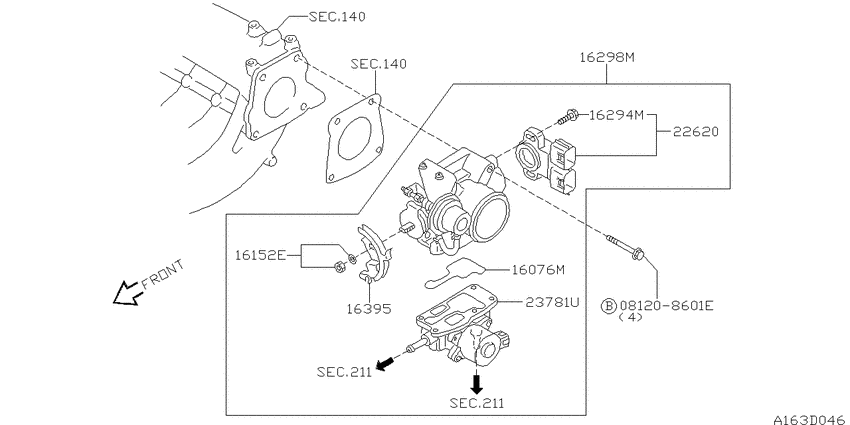

Throttle chamber (1998-09-01 ~ ; QG18DE) Diagram Nissan PRIMERA
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- MT.F5
- grade
- G
- body
- W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208601E
|
081208601E
08120-8601E
Bolt-hexagon
|
08120-8601E |
— | ||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
16076M
|
16076M
16618-4M500 Seal-O Ring9809--01 ~ ; QG18DE |
16618-4M500 |
US $3.74 |
||
|
16152E
|
16152E
16152-87Y10 Washer9809--01 ~ ; QG18DE |
16152-87Y10 |
US $4.32 |
||
|
16294M
|
16294M
16379-4M500 Screw-Adjusting9809--01 ~ ; QG18DE |
16379-4M500 |
US $7.92 |
||
|
16298M
|
16298M
16119-4M500 Chamber Assy-Throttle9809--01 ~ ; QG18DE |
16119-4M500 |
US $664.10 |
||
|
16395
|
16395
16134-4M400 Lever-Throttle9809--01 ~ ; QG18DE |
16134-4M400 |
US $19.73 |
||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
22620
|
22620
22620-4M501
Throttle Position Switch
9809--01 ~ ; QG18DE |
22620-4M501 |
— | ||
| replacement | |||||
|
22620
|
22620
226204M50A Throttle Position Switch9809--01 ~ ; QG18DE |
226204M50A |
from US $85.54 |
||
|
23781U
|
23781U
23781-4M500 Iacv-Aac Valve9809--01 ~ ; QG18DE |
23781-4M500 |
US $279.36 |
||
