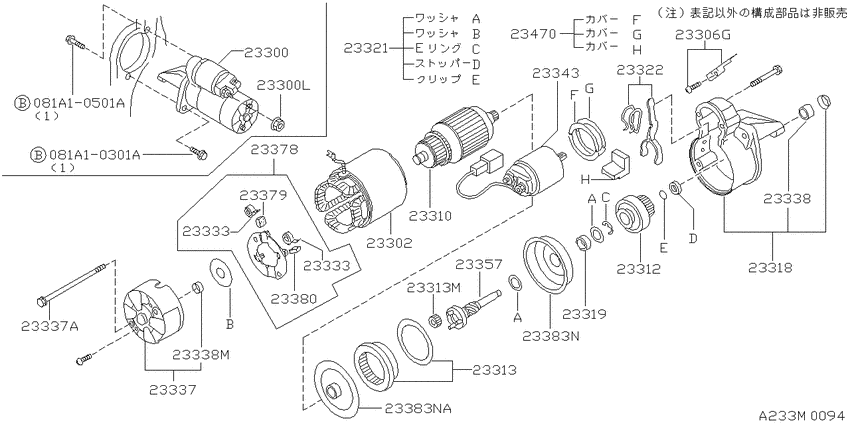

Starter motor (1998-09-01 ~ ; 日立; QG18DD) Diagram Nissan PRIMERA
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG18DD
- drive
- 2WD
- transmission
- AT.CVT
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A10301A
|
081A10301A
081A10301A ﾎﾞﾙﾄ |
081A10301A |
US $3.22 |
||
|
081A10501A
|
081A10501A
081A10501A ﾎﾞﾙﾄ |
081A10501A |
US $2.34 |
||
|
23300
|
23300
23300-6J901 Motor Assy-Starter9809--01 ~ 9908--01; QG18DD |
23300-6J901 |
US $1,001.11 |
||
|
23300
|
23300
0122100381 NUT9809--01 ~ ; QG18DD |
0122100381 |
US $7.91 |
||
|
23300L
|
23300L
0122100381 NUT9809--01 ~ ; QG18DD |
0122100381 |
US $7.91 |
||
|
23302
|
23302
23302-4J606 Yoke Assy9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23302-4J606 |
US $211.68 |
||
|
23306G
|
23306G
23347-73Y00 Plate-Connecting9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23347-73Y00 |
US $28.51 |
||
|
23310
|
23310
23310-4J606 Armature Assy9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23310-4J606 |
from US $272.82 |
||
|
23312
|
23312
23312-6J901 Pinion Assy9809--01 ~ 9908--01; QG18DD |
23312-6J901 |
US $128.16 |
||
|
23313
|
23313
23361-0M300 Gear9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23361-0M300 |
US $51.55 |
||
|
23313
|
23313
23367-31U01 Planet Gear9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23367-31U01 |
US $16.13 |
||
|
23313M
|
23313M
23367-31U01 Planet Gear9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23367-31U01 |
US $16.13 |
||
|
23318
|
23318
23318-6J901 Case Assy-Gear9809--01 ~ 9908--01; QG18DD |
23318-6J901 |
US $122.98 |
||
|
23319
|
23319
23319-97E00 METAL-GEAR CASE9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23319-97E00 |
US $11.66 |
||
|
23321
|
23321
233200M300 Washer Set-Thrust9809--01 ~ ; QG18DD; ﾋﾀﾁ |
233200M300 |
US $6.34 |
||
|
23322
|
23322
23322-4J606 Lever Set-Shift9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23322-4J606 |
from US $19.30 |
||
|
23333
|
23333
23333-1P100 Spring-Brush9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23333-1P100 |
US $6.34 |
||
|
23333
|
23333
23333-1P100 Spring-Brush9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23333-1P100 |
US $6.34 |
||
|
23337
|
23337
23337-4J606 Cover Assy-Rear9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23337-4J606 |
US $47.23 |
||
|
23337
|
23337
23340-M4900 Bolt-Through9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23338N3300 |
US $5.18 |
||
|
23338
|
23338
2333897E00 BEARING-REAR COVER9809--01 ~ ; QG18DD; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23338M
|
23338M
2333897E00 BEARING-REAR COVER9809--01 ~ ; QG18DD; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23343
|
23343
23343-6J900 Switch Assy-Magnetic9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23343-6J900 |
US $155.52 |
||
|
23357
|
23357
23357-0M300 Shaft-Pinion9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23357-0M300 |
US $164.16 |
||
|
23378
|
23378
23378-1E400 Holder Assy-Brush9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23378-1E400 |
US $54.43 |
||
| replacement | |||||
|
23378
|
23378
23378-AM60A Holder Assy-Brush9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23378-AM60A |
from US $54.43 |
||
|
23379
|
23379
23379-1P100 Brush-Minus9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23379-1P100 |
US $5.62 |
||
|
23380
|
23380
23380-1E400 Brush-Plus9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23380-1E400 |
US $15.98 |
||
|
23383N
|
23383N
23383-4J606 Bracket Assy-Center9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23383-4J606 |
US $26.78 |
||
| replacement | |||||
|
23383N
|
23383N
23383-AM60A Bracket Assy-Center9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23383-AM60A |
US $26.78 |
||
|
23383N
|
23383N
23383-4J607 Bracket Assy-Center9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23383-4J607 |
US $26.78 |
||
|
23383NA
|
23383NA
23383-4J607 Bracket Assy-Center9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23383-4J607 |
US $26.78 |
||
|
23470
|
23470
23470-4J606 Cover Set-Dust9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23470-4J606 |
US $10.08 |
||
| replacement | |||||
|
23470
|
23470
23470-AM60A Cover Set-Dust9809--01 ~ ; QG18DD; ﾋﾀﾁ |
23470-AM60A |
US $10.08 |
||
