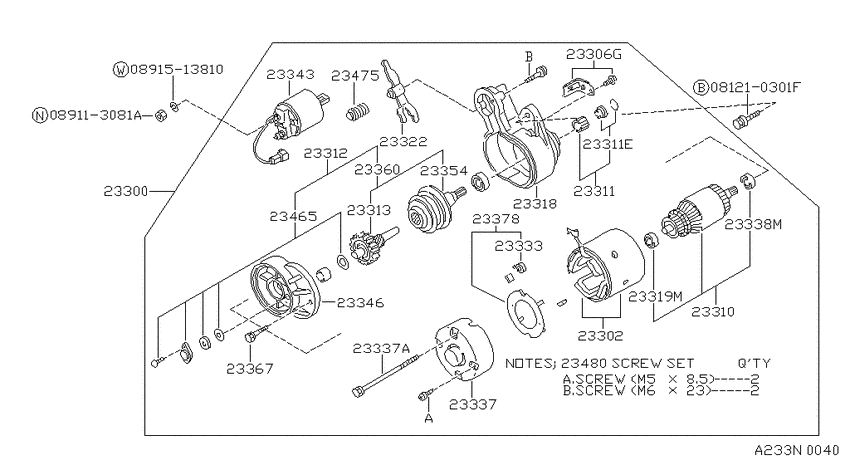

Starter motor (1988-07-01 ~ ; MITSUBISHI; FED.K.GA16.MT) Diagram Nissan PULSAR
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- GA16
- transmission
- F5
- body
- K
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210301F
|
081210301F
081210301F
Bolt-hexagon
|
081210301F |
— | ||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23300
|
23300
23300-84A11
Motor Assy-Starter
1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI M2T53882 |
23300-84A11 |
— | ||
| replacement | |||||
|
23300
|
23300
23300-70Y10
Motor assy-starter
1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI M2T53882 |
23300-70Y10 |
— | ||
|
23302
|
23302
23302-36A10 Yoke Assy1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23302-36A10 |
US $211.68 |
||
|
23306G
|
23306G
23347-84A11
Plate-Connecting
1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23347-84A11 |
— | ||
|
23310
|
23310
23310-U7510
Armature Assy
1988-07-01 ~ 1989-09-01; FED.K.GA16.MT; MITSUBISHI |
23310-U7510 |
— | ||
|
23310
|
23310
23310-U7511 Armature Assy1989-09-01 ~ ; FED.K.GA16.MT; , |
23310-U7511 |
US $389.40 |
||
| replacement | |||||
|
23310
|
23310
23310-U7512 Armature Assy1989-09-01 ~ ; FED.K.GA16.MT; , |
23310-U7512 |
US $463.03 |
||
|
23311
|
23311
23357-36A10 Shaft-Pinion1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23357-36A10 |
US $30.10 |
||
|
23311
|
23311
23359-N5911 Ring-Snap1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23359-N5911 |
US $7.34 |
||
|
23311E
|
23311E
23359-N5911 Ring-Snap1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23359-N5911 |
US $7.34 |
||
|
23312
|
23312
23312-36A10 Pinion Assy1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23312-36A10 |
US $145.44 |
||
|
23313
|
23313
23361-N5910 Gear1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23361-N5910 |
US $27.94 |
||
|
23318
|
23318
23318-84A11
Case Assy-Gear
1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23318-84A11 |
— | ||
|
23319M
|
23319M
23319W1710 Bearing-Gear Case1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23319W1710 |
US $15.98 |
||
|
23322
|
23322
23322-N5910 Lever Set-Shift1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23322-N5910 |
US $9.36 |
||
|
23333
|
23333
23333M1510 Spring-Brush1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23333M1510 |
US $2.74 |
||
|
23337
|
23337
23337-N5910 Cover Assy-Rear1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23337-N5910 |
US $33.55 |
||
|
23337
|
23337
23340-U7510 Bolt-Through1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23340-U7510 |
US $4.18 |
||
|
23337A
|
23337A
23340-U7510 Bolt-Through1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23340-U7510 |
US $4.18 |
||
|
23338M
|
23338M
23338W1710 Bearing-Rear Cover1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23338W1710 |
US $17.86 |
||
|
23343
|
23343
23343-84A11
Switch Assy-Magnetic
1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23343-84A11 |
— | ||
|
23346
|
23346
23346-84A11
Housing-Center
1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23346-84A11 |
— | ||
|
23354
|
23354
23354-36A10 Clutch Assy1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23354-36A10 |
US $122.69 |
||
|
23360
|
23360
23360-36A10 Gear & Shaft Set1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23360-36A10 |
US $285.12 |
||
|
23367
|
23367
23340-36A10 Bolt-Through1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23340-36A10 |
US $5.18 |
||
| replacement | |||||
|
23367
|
23367
23340-4W01B Bolt-Through1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23340-4W01B |
US $4.03 |
||
|
23378
|
23378
23378N5911 Holder Assy-Brush1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23378N5911 |
US $35.71 |
||
|
23465
|
23465
23465-N5910 Stopper Set-Pinion1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23465-N5910 |
US $7.34 |
||
|
23475
|
23475
23475-E3010 Spring Set1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23475-E3010 |
US $5.18 |
||
| replacement | |||||
|
23475
|
23475
23475-L1110
Spring set
1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23475-L1110 |
— | ||
|
23480
|
23480
23480-M0110 Screw Set1988-07-01 ~ ; FED.K.GA16.MT; MITSUBISHI |
23480-M0110 |
US $9.36 |
||
