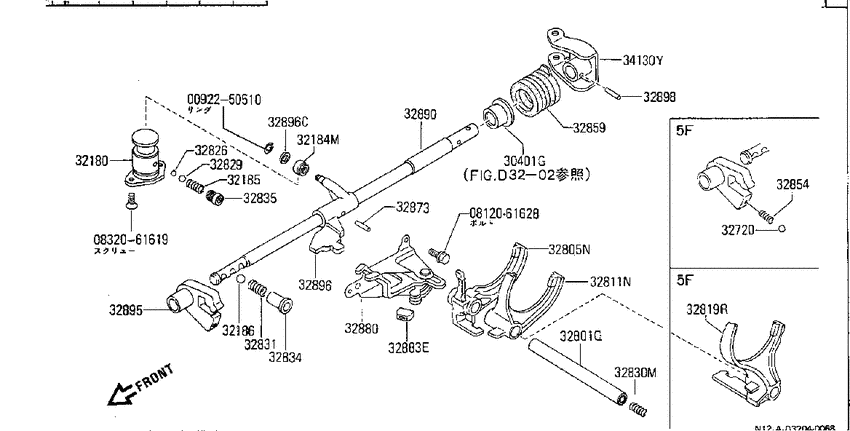

shift control (1982-05-01 ~ ; MT) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CD17
- transmission
- F5
- grade
- L
- body
- 5HB
- other
- P#
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250510
|
0092250510
00922-50510 RING-RETAINING |
00922-50510 |
US $2.21 |
||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
0832061619
|
0832061619
08320-61619
Bolt
|
08320-61619 |
— | ||
|
30401G
|
30401G
32858-M8001 Seal-Oil, Striking Rod8205--01 ~ ; MT |
32858-M8001 |
from US $6.66 |
||
|
32180
|
32180
32180-M8801 Checking Assy-Reverse8205--01 ~ 8303--01; (E15S,E15E,CD17).5F |
32180-M8801 |
US $27.65 |
||
|
32180
|
32180
32180-M8802 Checking Assy-Reverse8303--01 ~ 8305--01; (E15S,E15E,CD17).5F |
32180-M8802 |
US $27.65 |
||
|
32185
|
32185
32187-M8001 Spring-Reverse Checking8205--01 ~ ; MT |
32187-M8001 |
US $0.86 |
||
|
32186
|
32186
32186-M8000 Ball-Check8205--01 ~ ; MT |
32186-M8000 |
US $0.86 |
||
|
32720
|
32720
32720-36900 Ball-Steel8405--01 ~ ; (E15,CD17).MT |
32720-36900 |
US $0.82 |
||
|
32801Q
|
32801Q
32801-M8802 Shaft-Fork8205--01 ~ ; (E15S,E15E,CD17).5F |
32801-M8802 |
US $19.44 |
||
|
32805N
|
32805N
32805-50A00 Fork-Shift, 1St & 2Nd8605--01 ~ ; /(E13,E15S,E15E).MT CD17.MT |
32805-50A00 |
US $28.51 |
||
| replacement | |||||
|
32805N
|
32805N
3280550A01 Fork-Shift, 1St & 2Nd8605--01 ~ ; /(E13,E15S,E15E).MT CD17.MT |
3280550A01 |
from US $28.51 |
||
|
32805N
|
32805N
32805-M8001 Fork-Shift, 1St & 2Nd8205--01 ~ 8605--01; (E13,E15S,E15E).MT CD17.MT |
32805-M8001 |
US $42.62 |
||
|
32811N
|
32811N
32811-M8001 Fork-Shift, 3Rd & 4Th8205--01 ~ ; (E13,E15S,E15E).MT CD17.MT |
32811-M8001 |
US $42.62 |
||
| replacement | |||||
|
32811N
|
32811N
3281144B00 Fork-Shift, 3Rd & 4Th8205--01 ~ ; (E13,E15S,E15E).MT CD17.MT |
3281144B00 |
US $42.62 |
||
|
32819R
|
32819R
32819-M8801 Fork-Shift, 5Th8205--01 ~ ; (E15S,E15E,CD17).5F |
32819-M8801 |
US $42.62 |
||
| replacement | |||||
|
32819R
|
32819R
32819-44B00 Fork-Shift, 5Th8205--01 ~ ; (E15S,E15E,CD17).5F |
32819-44B00 |
from US $42.62 |
||
|
32826
|
32826
32720-36900 Ball-Steel8205--01 ~ ; MT |
32720-36900 |
US $0.82 |
||
|
32829
|
32829
32829-26760 Ball-Check8205--01 ~ ; MT |
32829-26760 |
from US $0.74 |
||
|
32830M
|
32830M
32829-M8000 Spring-Support Fork Shaft8205--01 ~ ; MT |
32829-M8000 |
US $0.86 |
||
|
32831
|
32831
32831-M8004 Spring-Check Ball8305--01 ~ ; CD17.MT |
32831-M8004 |
US $1.73 |
||
|
32834
|
32834
32834-M8001 Plug-Check Ball8205--01 ~ ; MT |
32834-M8001 |
US $5.18 |
||
|
32835
|
32835
32188-M8001 Plug-Checking Ball8205--01 ~ ; MT; ｾﾝﾀｸ L=13.3 |
32188-M8001 |
US $2.45 |
||
|
32835
|
32835
32188-M8002 Plug-Checking Ball8205--01 ~ ; MT; ｾﾝﾀｸ L=12.1 |
32188-M8002 |
US $2.45 |
||
|
32835
|
32835
32188-M8003 Plug-Checking Ball8205--01 ~ ; MT; ｾﾝﾀｸ L=12.7 |
32188-M8003 |
US $4.18 |
||
|
32835
|
32835
32188-M8004 Plug-Checking Ball8205--01 ~ ; MT; ｾﾝﾀｸ L=13.9 |
32188-M8004 |
US $4.18 |
||
| replacement | |||||
|
32835
|
32835
32188-M800D Plug-Checking Ball8205--01 ~ ; MT; ｾﾝﾀｸ L=13.9 |
32188-M800D |
US $2.45 |
||
|
32854
|
32854
32852-M8000 Spring-Return Check8205--01 ~ ; (E15,CD17).MT |
32852-M8000 |
US $0.86 |
||
|
32859
|
32859
32859-M8002 Boot-Rod, Striking8205--01 ~ ; MT |
32859-M8002 |
from US $2.91 |
||
|
32873
|
32873
32917M3000 Pin-Withdrawal Lever8205--01 ~ ; MT |
32917M3000 |
from US $1 |
||
|
32880
|
32880
32880-M8802 Lever Assy-Select8205--01 ~ 8307--01; (E15S,E15E,CD17).5F |
32880-M8802 |
US $88.56 |
||
|
32880
|
32880
32880-M8803 Lever Assy-Select8307--01 ~ ; (E15S,E15E,CD17).5F |
32880-M8803 |
US $88.56 |
||
|
32883E
|
32883E
32886-M8001 Cap-Shifter8205--01 ~ ; MT |
32886-M8001 |
US $2.45 |
||
|
32890
|
32890
32892-M8005 Rod-Striking8205--01 ~ 8305--01; MT |
32892-M8005 |
US $38.30 |
||
|
32890
|
32890
32892-M8006 Rod-Striking8305--01 ~ ; MT |
32892-M8006 |
US $38.30 |
||
|
32895
|
32895
32895-M8801 Inter Lock-Striking8205--01 ~ ; F5 |
32895-M8801 |
US $27.65 |
||
|
32896
|
32896
32897-M8000 Lever-Striking8205--01 ~ 8502--01; MT |
32897-M8000 |
US $44.50 |
||
|
32896
|
32896
32897-M8001 Lever-Striking8502--01 ~ ; MT |
32897-M8001 |
US $44.50 |
||
|
32896
|
32896
32898-M8003 Washer-Striking Lever8205--01 ~ ; MT |
32898-M8003 |
US $2.45 |
||
|
32896C
|
32896C
32898-M8003 Washer-Striking Lever8205--01 ~ ; MT |
32898-M8003 |
US $2.45 |
||
|
32898
|
32898
34133M8000 Pin-Retaining8205--01 ~ ; MT |
34133M8000 |
from US $4.03 |
||
|
34130Y
|
34130Y
34130-15M00 Yoke Assy-Striking8305--01 ~ ; CD17.MT |
34130-15M00 |
US $20.45 |
||
