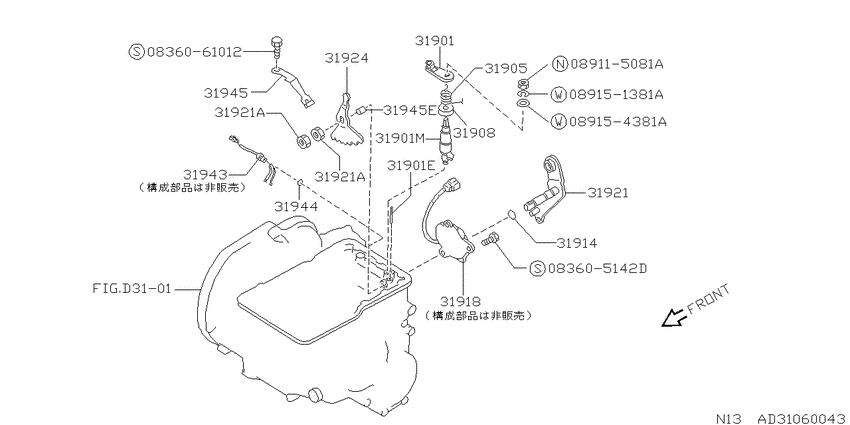

control Switch (1988-04-01 ~ 1989-08-01; (GA15E+GA15S+CA16D).AT.F4) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1988 - 1989
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- S/E
- body
- S
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083605142D
|
083605142D
08360-5142D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-5142D |
— | ||
|
0836061012
|
0836061012
0836061012
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836061012 |
— | ||
|
089115081A
|
089115081A
08911-5081A
NUT
|
08911-5081A |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
31901
|
31901
31901-31X00 Lever-Throttle8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31901-31X00 |
US $6.19 |
||
|
31901
|
31901
31931-21X01 Lever-Throttle8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4 |
31931-21X01 |
US $4.18 |
||
|
31901
|
31901
3192621X00 Pin-Spring8804--01 ~ 8908--01; (GA15S+GA15E+GA16D).AT.F4; |
3192621X00 |
US $0.86 |
||
|
31901
|
31901
31307-31X00 Plug8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31307-31X00 |
US $6.19 |
||
|
31901
|
31901
31901-21X00 Shaft-Throttle8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4 |
31901-21X00 |
US $13.82 |
||
|
31901
|
31901
31906-31X01 Shaft-Throttle8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31906-31X01 |
US $17.71 |
||
|
31901E
|
31901E
3192621X00 Pin-Spring8804--01 ~ 8908--01; (GA15S+GA15E+GA16D).AT.F4; |
3192621X00 |
US $0.86 |
||
|
31901M
|
31901M
31901-21X00 Shaft-Throttle8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4 |
31901-21X00 |
US $13.82 |
||
|
31901M
|
31901M
31906-31X01 Shaft-Throttle8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31906-31X01 |
US $17.71 |
||
|
31905
|
31905
31905-21X03 Spring-Return8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4 |
31905-21X03 |
US $1.73 |
||
|
31905
|
31905
31905-31X02 Spring-Return8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31905-31X02 |
US $1.73 |
||
|
31908
|
31908
31908-21X00 Cap-Throttle Shaft8804--01 ~ ; RL4F02A |
31908-21X00 |
US $7.92 |
||
|
31914
|
31914
31914-01X00 Seal-O Ring8804--01 ~ ; RL4F02A; |
31914-01X00 |
US $2.45 |
||
|
31918
|
31918
31918-21X08 Switch Assy-Pnp(Inhibitor)8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4 |
31918-21X08 |
US $92.16 |
||
|
31918
|
31918
31918-31X05 Switch Assy-Pnp(Inhibitor)8908--01 ~ 9007--01; (GA15S+GA15E).AT.F4 |
31918-31X05 |
US $92.16 |
||
|
31918
|
31918
31918-31X08 Switch Assy-Pnp(Inhibitor)9007--01 ~ ; (GA15S+GA15E).AT.F4; |
31918-31X08 |
US $92.16 |
||
|
31921
|
31921
31920-21X05 Shaft Assy-Manual8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
31920-21X05 |
US $23.76 |
||
|
31921
|
31921
31920-31X05 Shaft Assy-Manual8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31920-31X05 |
US $24.62 |
||
|
31921
|
31921
31929-21X01 Nut8804--01 ~ ; RL4F02A; |
31929-21X01 |
US $0.86 |
||
|
31921
|
31921
3229214600 Pin-Retaining8908--01 ~ ; GA15#.AT.F4 RL4F03A |
3229214600 |
from US $0.82 |
||
|
31921A
|
31921A
31929-21X01 Nut8804--01 ~ ; RL4F02A; |
31929-21X01 |
US $0.86 |
||
|
31921A
|
31921A
31929-21X01 Nut8804--01 ~ ; RL4F02A; |
31929-21X01 |
US $0.86 |
||
|
31924
|
31924
31924-31X01 Plate Assy-Manual8908--01 ~ 9004--01; (GA15S+GA15E).AT.F4 |
31924-31X01 |
US $22.32 |
||
|
31924
|
31924
31924-31X02 Plate Assy-Manual9004--01 ~ ; (GA15S+GA15E).AT.F4; |
31924-31X02 |
US $22.32 |
||
|
31924
|
31924
31925-21X00 Plate Assy-Manual8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
31925-21X00 |
US $10.22 |
||
|
31943
|
31943
31943-21X11 Terminal Assy8804--01 ~ 8805--01; (GA15#+CA16D).AT.F4; |
31943-21X11 |
US $110.59 |
||
|
31944
|
31944
31526-27X00 Seal-O Ring, Terminal8804--01 ~ ; RL4F02A; |
31526-27X00 |
US $4.18 |
||
|
31945
|
31945
31945-21X01 Spring-Detent8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
31945-21X01 |
US $6.91 |
||
|
31945
|
31945
31945-31X00 Spring-Detent8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31945-31X00 |
US $6.19 |
||
|
31945
|
31945
31437-21X02 Spacer9102--01 ~ ; (GA15#+CA16D).AT.F4 |
31437-21X02 |
US $8.06 |
||
|
31945E
|
31945E
31437-21X02 Spacer9102--01 ~ ; (GA15#+CA16D).AT.F4 |
31437-21X02 |
US $8.06 |
