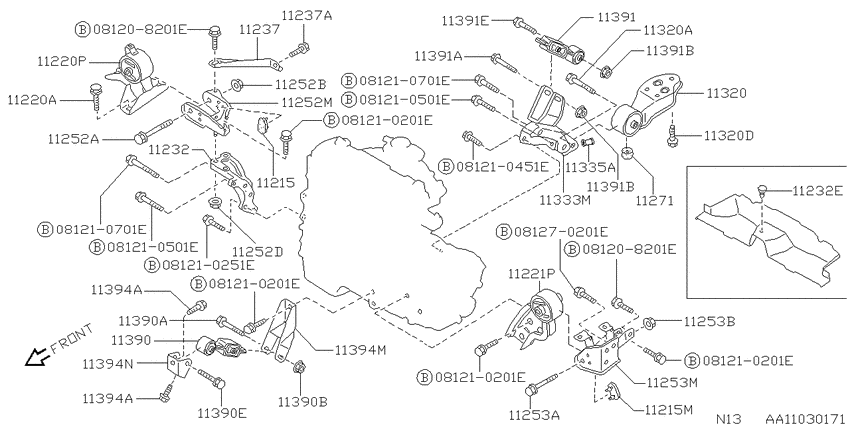

engine & transmission mounting (1988-04-01 ~ ; GA15S.AT.F3.2WD) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- GA15S
- drive
- 2WD
- transmission
- AT
- grade
- M1
- body
- 3HB
- transmission/shift type
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210451E
|
081210451E
08121-0451E
Bolt-hexagon
|
08121-0451E |
— | ||
|
081210501E
|
081210501E
08121-0501E
Bolt-hexagon
|
08121-0501E |
— | ||
|
081210501E
|
081210501E
08121-0501E
Bolt-hexagon
|
08121-0501E |
— | ||
|
081210701E
|
081210701E
081210701E
Bolt-hexagon
|
081210701E |
— | ||
|
081210701E
|
081210701E
081210701E
Bolt-hexagon
|
081210701E |
— | ||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
11215
|
11215
11215-50A15 Stopper-Engine Mounting8804--01 ~ ; (E13S+GA15#+CD17).AT |
11215-50A15 |
US $20.92 |
||
|
11215
|
11215
11215-50A06 Stopper-Engine Mounting8804--01 ~ 8905--01; 4E13S+GA15#.MT.2WD GA15S.AT.F3.2WD CA16D.MT+4WD |
11215-50A06 |
US $11.81 |
||
|
11215M
|
11215M
11215-50A06 Stopper-Engine Mounting8804--01 ~ 8905--01; 4E13S+GA15#.MT.2WD GA15S.AT.F3.2WD CA16D.MT+4WD |
11215-50A06 |
US $11.81 |
||
|
11220A
|
11220A
01125-00651 BOLT8804--01 ~ ; S+HB |
01125-00651 |
US $3.46 |
||
|
11220P
|
11220P
11210-77A10 Insulator-Engine Mounting, Rh8804--01 ~ ; GA15S.AT.F3.2WD |
11210-77A10 |
US $133.34 |
||
|
11221P
|
11221P
11220-50A11 Insulator-Engine Mounting, Lh8804--01 ~ ; (E13S+GA15S).AT.F3.2WD |
11220-50A11 |
US $81.94 |
||
|
11232
|
11232
11231-77A00 Bracket-Engine Mounting, Rh8804--01 ~ ; GA15# |
11231-77A00 |
US $84.82 |
||
|
11232
|
11232
01658-00251 PLUG-BLIND,ENGINE MOUNTING8605--01 ~ 8708--01; ALL |
01658-00251 |
from US $0.52 |
||
|
11232
|
11232
0165801501 PLUG8708--01 ~ ; ALL; |
0165801501 |
US $3.06 |
||
|
11232E
|
11232E
01658-00251 PLUG-BLIND,ENGINE MOUNTING8605--01 ~ 8708--01; ALL |
01658-00251 |
from US $0.52 |
||
|
11232E
|
11232E
0165801501 PLUG8708--01 ~ ; ALL; |
0165801501 |
US $3.06 |
||
|
11237
|
11237
11237-77A00 Stay-Engine Mounting, Rh8804--01 ~ ; GA15# |
11237-77A00 |
US $41.47 |
||
|
11237
|
11237
01121-03651 BOLT8804--01 ~ ; GA15# |
01121-03651 |
US $2.45 |
||
|
11237A
|
11237A
01121-03651 BOLT8804--01 ~ ; GA15# |
01121-03651 |
US $2.45 |
||
|
11252A
|
11252A
01125-00991 BOLT8804--01 ~ ; S+HB |
01125-00991 |
US $4.30 |
||
|
11252B
|
11252B
0122500062 NUT8804--01 ~ ; S+HB |
0122500062 |
from US $1.67 |
||
|
11252D
|
11252D
0122500062 NUT8804--01 ~ ; GA15#+CA16D |
0122500062 |
from US $1.67 |
||
|
11252M
|
11252M
11252-77A00 Support-Engine Mounting, Rh8804--01 ~ ; GA15# |
11252-77A00 |
US $82.80 |
||
|
11253A
|
11253A
01125-00631
BOLT
8804--01 ~ 8908--01; 4E13S+GA15#.MT.2WD GA15S.AT.F3.2WD CA16D.MT+4WD |
01125-00631 |
— | ||
|
11253B
|
11253B
0122500062 NUT8804--01 ~ 8908--01; 4E13S+GA15#.MT.2WD GA15S.AT.F3.2WD CA16D.MT+4WD |
0122500062 |
from US $1.67 |
||
|
11253M
|
11253M
11253-50A16
Bracket-Engine Mounting, Lh
8804--01 ~ 8908--01; AT.F3 |
11253-50A16 |
— | ||
|
11271
|
11271
11271-52A00
Insulator-Engine Mounting
8804--01 ~ 8908--01; #(GA15#+CA16D).MT.2WDGA15S.AT.F3.2WD |
11271-52A00 |
— | ||
|
11320
|
11320
11320-77A10 Insulator-Engine Mounting, Rear8804--01 ~ ; GA15S.AT.F3.2WD |
11320-77A10 |
US $109.58 |
||
|
11320
|
11320
01125-01011 BOLT8605--01 ~ 8804--01; 2WD |
01125-01011 |
US $2.21 |
||
|
11320
|
11320
01125-01081 BOLT8605--01 ~ ; 2WD |
01125-01081 |
US $2.45 |
||
|
11320A
|
11320A
01125-01011 BOLT8605--01 ~ 8804--01; 2WD |
01125-01011 |
US $2.21 |
||
|
11320D
|
11320D
01125-01081 BOLT8605--01 ~ ; 2WD |
01125-01081 |
US $2.45 |
||
|
11333M
|
11333M
11332-50A13 Bracket-Engine Mounting, Rear8804--01 ~ ; (E13S+GA15S).AT.F3. 2WD |
11332-50A13 |
US $148.30 |
||
|
11335A
|
11335A
20621-50A10 Piece-Distance8804--01 ~ ; E13S.AT.F3.2WD GA15S.2WD |
20621-50A10 |
US $8.35 |
||
|
11390
|
11390
11350-50A15 Buffer Assy-Engine Mounting8605--01 ~ ; AT; ﾌﾛﾝﾄ ﾖｳ |
11350-50A15 |
US $46.72 |
||
|
11390
|
11390
01125-01031 BOLT8605--01 ~ ; S+HB |
01125-01031 |
US $3.06 |
||
|
11390
|
11390
0122500062 NUT8605--01 ~ ; S+HB |
0122500062 |
from US $1.67 |
||
|
11390
|
11390
01125-00881
BOLT
8605--01 ~ ; S+HB |
01125-00881 |
— | ||
|
11390A
|
11390A
01125-01031 BOLT8605--01 ~ ; S+HB |
01125-01031 |
US $3.06 |
||
|
11390B
|
11390B
0122500062 NUT8605--01 ~ ; S+HB |
0122500062 |
from US $1.67 |
||
|
11390E
|
11390E
01125-00881
BOLT
8605--01 ~ ; S+HB |
01125-00881 |
— | ||
|
11394A
|
11394A
01121-01671 BOLT8605--01 ~ ; S+HB |
01121-01671 |
US $2.45 |
||
|
11394A
|
11394A
01121-01671 BOLT8605--01 ~ ; S+HB |
01121-01671 |
US $2.45 |
||
|
11394M
|
11394M
11356-77A00 Bracket-Buffer, Front8804--01 ~ ; ((GA15E+GA15S).AT.2WD(GA15E+GA15S).MT.2WD |
11356-77A00 |
US $31.82 |
||
|
11394N
|
11394N
11355-50A00 Support-Buffer, Front8605--01 ~ ; 2WD |
11355-50A00 |
US $12.10 |
