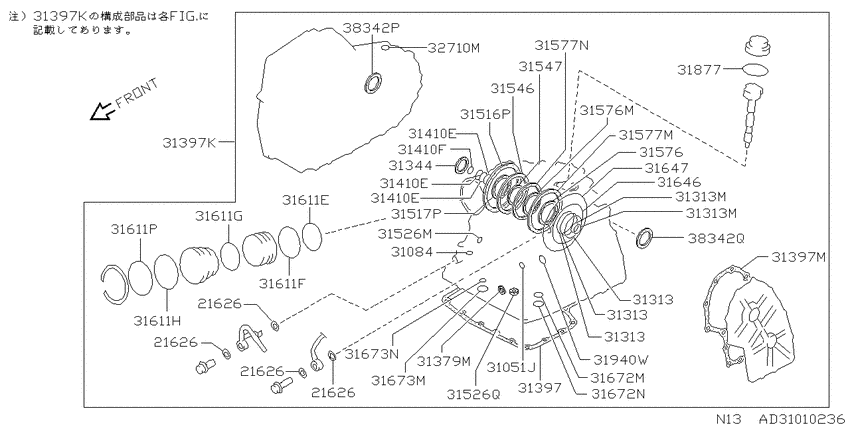

AT transmission & transaxle assembly (1989-08-01 ~ ; ガスケット&シールキット; (GA15E+GA15S).AT.F4) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1988 - 1989
- Sales region
- Japan
- Engine
- GA15S
- drive
- 2WD
- transmission
- AT
- grade
- J1
- body
- 5HB
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21626
|
21626
21626-P2600 Washer-Seal8605--01 ~ 8804--01; AT |
21626-P2600 |
US $1.73 |
||
|
21626
|
21626
21626-P2600 Washer-Seal8605--01 ~ 8804--01; AT |
21626-P2600 |
US $1.73 |
||
|
21626
|
21626
21626-P2600 Washer-Seal8605--01 ~ 8804--01; AT |
21626-P2600 |
US $1.73 |
||
|
21626
|
21626
21626-P2600 Washer-Seal8605--01 ~ 8804--01; AT |
21626-P2600 |
US $1.73 |
||
|
31051J
|
31051J
31052-01X00
Seal-O Ring
8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31052-01X00 |
— | ||
| replacement | |||||
|
31051J
|
31051J
C105201X00
ｼ-ﾙ,ｵ- ﾘﾝｸﾞ
8908--01 ~ ; GA15#.AT.F4 RL4F03A |
C105201X00 |
— | ||
|
31084
|
31084
31084-21X01 Seal-O Ring8804--01 ~ 8908--01; (GA15#+CA16D).AT.F4 .2WD |
31084-21X01 |
US $2.45 |
||
|
31084
|
31084
31084M7500 Seal-O Ring8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31084M7500 |
US $1.15 |
||
|
31313
|
31313
31313-21X01 Seal-Ring, Bearing Retainer8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4 |
31313-21X01 |
US $10.51 |
||
|
31313
|
31313
31525-31X03 Seal-Ring, Bearing Retainer8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31525-31X03 |
US $10.80 |
||
|
31313
|
31313
31525-31X04 Seal-Ring, Bearing Retainer8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31525-31X04 |
US $10.80 |
||
|
31313
|
31313
31313-21X01 Seal-Ring, Bearing Retainer8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4 |
31313-21X01 |
US $10.51 |
||
|
31313
|
31313
31525-31X03 Seal-Ring, Bearing Retainer8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31525-31X03 |
US $10.80 |
||
|
31313
|
31313
31525-31X04 Seal-Ring, Bearing Retainer8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31525-31X04 |
US $10.80 |
||
|
31313
|
31313
31313-21X01 Seal-Ring, Bearing Retainer8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4 |
31313-21X01 |
US $10.51 |
||
|
31313
|
31313
31525-31X03 Seal-Ring, Bearing Retainer8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31525-31X03 |
US $10.80 |
||
|
31313
|
31313
31525-31X04 Seal-Ring, Bearing Retainer8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31525-31X04 |
US $10.80 |
||
|
31313M
|
31313M
31525-31X04 Seal-Ring, Bearing Retainer8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31525-31X04 |
US $10.80 |
||
|
31313M
|
31313M
31525-31X04 Seal-Ring, Bearing Retainer8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31525-31X04 |
US $10.80 |
||
|
31344
|
31344
31375-31X00
Seal-Oil Pump Housing
8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31375-31X00 |
— | ||
| replacement | |||||
|
31344
|
31344
3137531X03 Seal-Oil Pump Housing8908--01 ~ ; GA15#.AT.F4 RL4F03A |
3137531X03 |
from US $3.43 |
||
|
31344
|
31344
3134421X00 Seal-Oil Pump Housing8804--01 ~ ; RL4F02A; |
3134421X00 |
from US $4.66 |
||
|
31379M
|
31379M
3137531X01 Seal-Oil8908--01 ~ ; GA15#.AT.F4 RL4F03A |
3137531X01 |
from US $2.36 |
||
|
31397
|
31397
31397-31X01 Gasket-Oil Pan8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31397-31X01 |
US $24.19 |
||
|
31397
|
31397
31397-21X85 Gasket & Seal Kit-Auto Transmission8804--01 ~ 8908--01; GA15#.AT.F4.2WD |
31397-21X85 |
US $254.88 |
||
|
31397
|
31397
31397-31X25 Gasket & Seal Kit-Auto Transmission8908--01 ~ ; GA15#.AT.F4 |
31397-31X25 |
US $266.40 |
||
| replacement | |||||
|
31397
|
31397
C1397-31X2E
Gasket & seal kit-auto transmission
8908--01 ~ ; GA15#.AT.F4 |
C1397-31X2E |
— | ||
|
31397
|
31397
31397-21X00
Gasket-Side Cover
8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
31397-21X00 |
— | ||
|
31397K
|
31397K
31397-21X85 Gasket & Seal Kit-Auto Transmission8804--01 ~ 8908--01; GA15#.AT.F4.2WD |
31397-21X85 |
US $254.88 |
||
|
31397K
|
31397K
31397-31X25 Gasket & Seal Kit-Auto Transmission8908--01 ~ ; GA15#.AT.F4 |
31397-31X25 |
US $266.40 |
||
| replacement | |||||
|
31397K
|
31397K
C1397-31X2E
Gasket & seal kit-auto transmission
8908--01 ~ ; GA15#.AT.F4 |
C1397-31X2E |
— | ||
|
31397M
|
31397M
31397-21X00
Gasket-Side Cover
8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
31397-21X00 |
— | ||
|
31410E
|
31410E
31525-31X02 Seal-O Ring8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31525-31X02 |
US $10.80 |
||
|
31410E
|
31410E
31525-31X02 Seal-O Ring8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31525-31X02 |
US $10.80 |
||
|
31410E
|
31410E
31525-31X02 Seal-O Ring8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31525-31X02 |
US $10.80 |
||
|
31410F
|
31410F
31526-31X01 Seal-O Ring8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31526-31X01 |
US $4.18 |
||
|
31516P
|
31516P
31528-21X10 Seal-Lip8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31528-21X10 |
US $8.78 |
||
|
31517P
|
31517P
31527-31X00 Seal-Lathe Cut Ring8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31527-31X00 |
US $4.18 |
||
|
31526M
|
31526M
3152631X07 Seal-O Ring8908--01 ~ ; GA15#.AT.F4 RL4F03A |
3152631X07 |
US $2.45 |
||
|
31526Q
|
31526Q
3152831X06 Seal-O Ring8908--01 ~ ; GA15#.AT.F4 RL4F03A; |
3152831X06 |
US $2.36 |
||
|
31546
|
31546
31527-21X01
Seal-Lathe Cut Ring
8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
31527-21X01 |
— | ||
| replacement | |||||
|
31546
|
31546
C152721X01 ｼ-ﾙ,ﾘﾂﾌﾟ8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
C152721X01 |
US $10.12 |
||
|
31546
|
31546
31528-31X01 Seal-Lip8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31528-31X01 |
US $10.80 |
||
|
31547
|
31547
31527-31X01 Seal-Lathe Cut Ring8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31527-31X01 |
US $6.19 |
||
| replacement | |||||
|
31547
|
31547
C1527-31X01
Seal-lathe cut ring
8908--01 ~ ; (GA15S+GA15E).AT.F4 |
C1527-31X01 |
— | ||
|
31547
|
31547
3154721X00 Seal-Lathe Cut Ring8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
3154721X00 |
from US $5.76 |
||
|
31576
|
31576
31527-31X02 Seal-Lathe Cut Ring8908--01 ~ ; (GA15S+GA15E).AT.F4; |
31527-31X02 |
US $9.07 |
||
|
31576
|
31576
31576-21X00 Seal-Lathe Cut Ring8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4 |
31576-21X00 |
US $8.93 |
||
|
31576
|
31576
31527-31X03 Seal-Lathe Cut Ring8908--01 ~ ; GA15#.AT.F4 RL4F03A; |
31527-31X03 |
US $9.07 |
||
|
31576M
|
31576M
31527-31X03 Seal-Lathe Cut Ring8908--01 ~ ; GA15#.AT.F4 RL4F03A; |
31527-31X03 |
US $9.07 |
||
|
31577M
|
31577M
31528-31X02 Seal-Lip8908--01 ~ ; GA15#.AT.F4 RL4F03A; |
31528-31X02 |
US $8.06 |
||
|
31577N
|
31577N
31528-31X03 Seal-Lip8908--01 ~ ; GA15#.AT.F4 RL4F03A; |
31528-31X03 |
US $8.06 |
||
|
31611E
|
31611E
3152631X02 Seal-O Ring, Band Servo8908--01 ~ ; (GA15S+GA15E).AT.F4 |
3152631X02 |
US $4.18 |
||
|
31611E
|
31611E
31612-21X01 Seal-O Ring, Band Servo8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
31612-21X01 |
US $5.18 |
||
|
31611F
|
31611F
31526-31X03 Seal-O Ring, Band Servo8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31526-31X03 |
from US $4.18 |
||
|
31611F
|
31611F
31613-21X10 Seal-O Ring, Band Servo8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
31613-21X10 |
US $5.18 |
||
|
31611G
|
31611G
3152631X04 Seal-O Ring, Band Servo8908--01 ~ ; (GA15S+GA15E).AT.F4 |
3152631X04 |
US $4.18 |
||
|
31611G
|
31611G
31614-21X10 Seal-O Ring, Band Servo8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
31614-21X10 |
US $5.18 |
||
|
31611H
|
31611H
3152631X05 Seal-O Ring, Band Servo8908--01 ~ ; GA15#.AT.F4 RL4F03A |
3152631X05 |
US $4.18 |
||
|
31611P
|
31611P
3152631X06 Seal-O Ring, Band Servo8908--01 ~ ; GA15#.AT.F4 RL4F03A |
3152631X06 |
US $4.18 |
||
|
31646
|
31646
31527-31X04 Seal-Lathe Cut Ring8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31527-31X04 |
US $8.06 |
||
| replacement | |||||
|
31646
|
31646
C1527-31X04
Seal-lathe cut ring
8908--01 ~ ; (GA15S+GA15E).AT.F4 |
C1527-31X04 |
— | ||
|
31646
|
31646
31646-21X00 Seal-Lathe Cut Ring8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
31646-21X00 |
US $11.95 |
||
|
31647
|
31647
31528-31X04 Seal-O Ring8908--01 ~ ; (GA15S+GA15E).AT.F4 |
31528-31X04 |
US $8.06 |
||
|
31647
|
31647
31647-21X00 Seal-O Ring8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
31647-21X00 |
US $10.08 |
||
|
31672M
|
31672M
31526-31X08 Seal-O Ring8908--01 ~ ; GA15#.AT.F4 RL4F03A |
31526-31X08 |
US $4.18 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator8804--01 ~ 8806--01; RL4F02A; |
3167221X00 |
US $4.99 |
||
|
31672N
|
31672N
3167221X00 Seal-O Ring, Accumulator8908--01 ~ ; GA15#.AT.F4 RL4F03A |
3167221X00 |
US $4.99 |
||
|
31673M
|
31673M
31526-41X02 Seal-O Ring8908--01 ~ ; (GA15S+GA15E).AT.F4; |
31526-41X02 |
US $2.36 |
||
|
31673M
|
31673M
3167321X00 Seal-O Ring, Accumulator8804--01 ~ 8908--01; (GA15S+GA15E+CA16D).AT.F4; |
3167321X00 |
US $4.85 |
||
|
31673N
|
31673N
31526-41X03 Seal-O Ring8908--01 ~ ; GA15#.AT.F4 RL4F03A; |
31526-41X03 |
US $2.36 |
||
|
31877
|
31877
3152631X10 Seal-Ring, Governor8908--01 ~ ; GA15#.AT.F4 RL4F03A |
3152631X10 |
US $3.89 |
||
|
31877
|
31877
31877-21X00 Gasket-Governor Cap8804--01 ~ ; RL4F02A; |
31877-21X00 |
US $1.73 |
||
|
31940W
|
31940W
3152641X09 Seal-O Ring8908--01 ~ ; GA15#.AT.F4 RL4F03A |
3152641X09 |
US $2.36 |
||
|
32710M
|
32710M
32710M8000 Seal-O Ring, Speedometer Pinion8804--01 ~ ; (E13S+GA15S).AT.2WD CD17.AT; |
32710M8000 |
US $2.78 |
||
|
38342P
|
38342P
3834203E00 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE8804--01 ~ 8908--01; GA15#.AT.F4.2WD; |
3834203E00 |
US $10.04 |
||
|
38342P
|
38342P
38342-31X00
Seal-Oil, Differential Converter Housing
8908--01 ~ ; GA15#.AT.F4 RL4F03A |
38342-31X00 |
— | ||
| replacement | |||||
|
38342P
|
38342P
383428E000 SEAL-OIL,DIFFERENTIAL CONVERTER HOUSING8908--01 ~ ; GA15#.AT.F4 RL4F03A |
383428E000 |
from US $4.23 |
||
|
38342Q
|
38342Q
38342-21X01 Seal-Oil, Differential Transmission Case8804--01 ~ 8908--01; GA15#.AT.F4.2WD |
38342-21X01 |
US $6.91 |
||
|
38342Q
|
38342Q
38342-31X00
Seal-Oil, Differential Converter Housing
8908--01 ~ ; GA15#.AT.F4 RL4F03A |
38342-31X00 |
— | ||
| replacement | |||||
|
38342Q
|
38342Q
383428E000 SEAL-OIL,DIFFERENTIAL CONVERTER HOUSING8908--01 ~ ; GA15#.AT.F4 RL4F03A |
383428E000 |
from US $4.23 |
||
