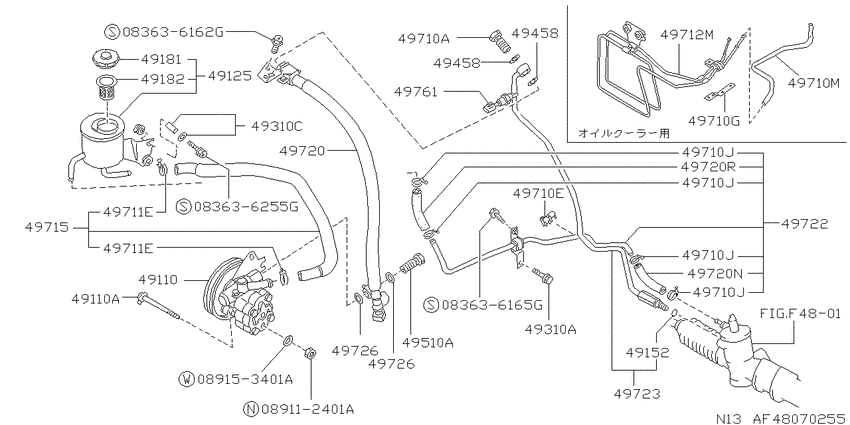

power steering control (1988-04-01 ~ ; パイピング部品; GA15#) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- GA15S
- drive
- 4WD
- transmission
- AT
- grade
- J1
- body
- S
- transmission/shift type
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636255G
|
083636255G
08363-6255G
SCREWMACHINE
|
08363-6255G |
— | ||
|
089112401A
|
089112401A
089112401A Nut |
089112401A |
from US $2.21 |
||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
49110
|
49110
49110-77A00 Pump Assy-Power Steering8804--01 ~ ; GA15# |
49110-77A00 |
US $1,353.70 |
||
|
49110
|
49110
49149-77A00 Bolt8804--01 ~ ; GA15# |
49149-77A00 |
US $4.32 |
||
|
49110
|
49110
4959150L27 Seal Kit-Power Steering Pump8804--01 ~ ; GA15# |
4959150L27 |
US $15.25 |
||
|
49110A
|
49110A
49149-77A00 Bolt8804--01 ~ ; GA15# |
49149-77A00 |
US $4.32 |
||
|
49125
|
49125
49180-55M00 Tank Assy-Reservoir8804--01 ~ ; GA15#+CA16D |
49180-55M00 |
US $185.76 |
||
|
49152
|
49152
4974501E00 SEAL-O RING8804--01 ~ ; GA15#; |
4974501E00 |
US $2.78 |
||
|
49181
|
49181
49181-W1700
Cap Assy-Pump
8804--01 ~ 8905--01; GA15#+CA16D+CD17; |
49181-W1700 |
— | ||
| replacement | |||||
|
49181
|
49181
49181W1705 Cap Assy-Pump8804--01 ~ 8905--01; GA15#+CA16D+CD17; |
49181W1705 |
from US $14.42 |
||
|
49181
|
49181
49181W1705 Cap Assy-Pump8905--01 ~ ; GA15S +GA15E +CA16D; |
49181W1705 |
from US $14.42 |
||
|
49182
|
49182
49182-42L00 Filter Assy-Pump8804--01 ~ ; GA15#+CA16D+CD17; |
49182-42L00 |
US $5.55 |
||
|
49310A
|
49310A
01466-00121 SCREW8804--01 ~ ; GA15#+CA16D |
01466-00121 |
US $1.73 |
||
|
49310C
|
49310C
49728-55S00
Collar
8804--01 ~ ; $E13S.3HB.M1N GA15#+CA16D+CD17; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49728-55S00 |
— | ||
| replacement | |||||
|
49310C
|
49310C
49728-55S0A Collar-Insulator8804--01 ~ ; $E13S.3HB.M1N GA15#+CA16D+CD17; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49728-55S0A |
US $2.64 |
||
|
49458
|
49458
4972650W00 Seal-O Ring8804--01 ~ ; GA15#+CA16D+CD17 |
4972650W00 |
from US $1.94 |
||
|
49458
|
49458
4972650W00 Seal-O Ring8804--01 ~ ; GA15#+CA16D+CD17 |
4972650W00 |
from US $1.94 |
||
|
49510A
|
49510A
0161900011 BOLT8804--01 ~ ; GA15# |
0161900011 |
from US $3.76 |
||
|
49710A
|
49710A
49738-V5000 Bolt-Connector8804--01 ~ ; GA15#+CA16D+CD17 |
49738-V5000 |
US $5.47 |
||
| replacement | |||||
|
49710A
|
49710A
49738V500A Bolt8804--01 ~ ; GA15#+CA16D+CD17 |
49738V500A |
US $5.33 |
||
|
49710G
|
49710G
49730-77A11 Bracket-Hose8804--01 ~ ; GA15#.AT.4WD; ｵｲﾙ ｸ-ﾗ- ﾖｳ |
49730-77A11 |
US $16.27 |
||
|
49710J
|
49710J
0155500691 CLAMP8705--01 ~ ; E13S.3HB.M1N GA15# +CA16D; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500691 |
from US $2.11 |
||
|
49710J
|
49710J
0155500691 CLAMP8705--01 ~ ; E13S.3HB.M1N GA15# +CA16D; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500691 |
from US $2.11 |
||
|
49710J
|
49710J
0155500691 CLAMP8705--01 ~ ; E13S.3HB.M1N GA15# +CA16D; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500691 |
from US $2.11 |
||
|
49710J
|
49710J
0155500691 CLAMP8705--01 ~ ; E13S.3HB.M1N GA15# +CA16D; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500691 |
from US $2.11 |
||
|
49710M
|
49710M
49721-77A01 Hose-Tube To Pump8804--01 ~ ; GA15#.AT.4WD; ｵｲﾙ ｸ-ﾗ- ﾖｳ |
49721-77A01 |
US $33.26 |
||
|
49711E
|
49711E
01555-00241 CLIP8804--01 ~ ; GA15#+CA16D+CD17; |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
49711E
|
49711E
0155500861 CLIP8804--01 ~ ; GA15#+CA16D+CD17; |
0155500861 |
US $2.45 |
||
|
49711E
|
49711E
01555-00241 CLIP8804--01 ~ ; GA15#+CA16D+CD17; |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
49711E
|
49711E
0155500861 CLIP8804--01 ~ ; GA15#+CA16D+CD17; |
0155500861 |
US $2.45 |
||
|
49712M
|
49712M
49790-91M00 Tube Assy-Power Steering8804--01 ~ ; GA15#.AT.4WD; ｵｲﾙ ｸ-ﾗ- ﾖｳ |
49790-91M00 |
US $62.35 |
||
|
49715
|
49715
49717-77A00 Hose-Pump To Reservoir Tank8804--01 ~ ; GA15# |
49717-77A00 |
US $78.05 |
||
|
49720
|
49720
49720-88M00 Hose Assy-Pressure, Power Steering8804--01 ~ ; GA15# |
49720-88M00 |
US $283.68 |
||
|
49720
|
49720
49725-83A10 Hose-Return, Power Steering8804--01 ~ ; GA15#.4WD |
49725-83A10 |
US $36.43 |
||
|
49720
|
49720
49725-77A11 Hose-Return Power Steering8804--01 ~ ; GA15#.AT.4WD; ｵｲﾙ ｸ-ﾗ- ﾖｳ |
49725-77A11 |
US $26.35 |
||
|
49720N
|
49720N
49725-83A10 Hose-Return, Power Steering8804--01 ~ ; GA15#.4WD |
49725-83A10 |
US $36.43 |
||
|
49720R
|
49720R
49725-77A11 Hose-Return Power Steering8804--01 ~ ; GA15#.AT.4WD; ｵｲﾙ ｸ-ﾗ- ﾖｳ |
49725-77A11 |
US $26.35 |
||
|
49722
|
49722
49721-83A01 Hose Assy-Power Steering8804--01 ~ ; GA15#.AT.4WD |
49721-83A01 |
US $72.72 |
||
|
49722
|
49722
49721-83A11 Hose Assy-Power Steering8804--01 ~ ; *AT.4WD; ｱﾝﾁ ｽｷﾂﾄﾞ ﾖｳ |
49721-83A11 |
US $72.72 |
||
|
49723
|
49723
49713-83A10 Hose Assy-Power Steering8808--01 ~ ; *4WD; ｱﾝﾁ ｽｷﾂﾄﾞ ﾖｳ |
49713-83A10 |
US $138.24 |
||
|
49723
|
49723
49713-91M00 Hose Assy-Power Steering8804--01 ~ ; GA15#.4WD |
49713-91M00 |
US $139.25 |
||
|
49723
|
49723
49713-91M10 Hose Assy-Power Steering8804--01 ~ 8808--01; *4WD; ｱﾝﾁ ｽｷﾂﾄﾞ ﾖｳ |
49713-91M10 |
US $139.25 |
||
|
49726
|
49726
49726Y0100 Washer-Copper8804--01 ~ ; GA15#+CA16D+CD17 |
49726Y0100 |
from US $1.74 |
||
|
49726
|
49726
49726Y0100 Washer-Copper8804--01 ~ ; GA15#+CA16D+CD17 |
49726Y0100 |
from US $1.74 |
||
|
49761
|
49761
49761V5400 Switch-Pressure, Power Steering8804--01 ~ ; 3HB.E13S.M1N GA15# |
49761V5400 |
US $59.04 |
||
