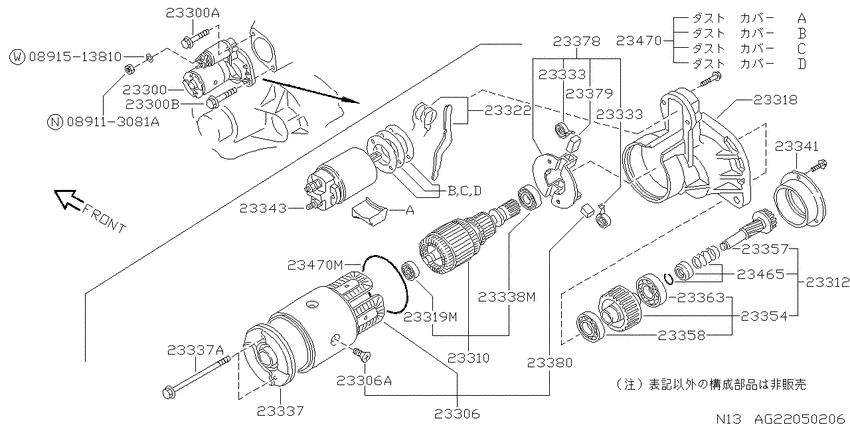

Starter motor (1988-04-01 ~ ; (日立 *=寒冷地仕様; GA15#.AT.2WD GA15#.4WD) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- GA15S
- drive
- 4WD
- transmission
- AT
- grade
- J1
- body
- S
- transmission/shift type
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23300
|
23300
23300-77A01 Motor Assy-Starter8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ S114-517C |
23300-77A01 |
US $768.89 |
||
|
23300
|
23300
08121-0701F Bolt-hexagon8804--01 ~ ; GA15#.4WD; M10 X 70 |
08121-0701F |
US $2.45 |
||
|
23300
|
23300
081210351F Bolt-hexagon8804--01 ~ ; GA15#.4WD; M10 X 35 |
081210351F |
US $2.91 |
||
|
23300A
|
23300A
08121-0701F Bolt-hexagon8804--01 ~ ; GA15#.4WD; M10 X 70 |
08121-0701F |
US $2.45 |
||
|
23300B
|
23300B
081210351F Bolt-hexagon8804--01 ~ ; GA15#.4WD; M10 X 35 |
081210351F |
US $2.91 |
||
|
23310
|
23310
23310-77A00 Armature Assy8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23310-77A00 |
US $318.60 |
||
|
23312
|
23312
23312-77A00 Pinion Assy8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23312-77A00 |
US $342.67 |
||
|
23318
|
23318
23318-77A00 Case Assy-Gear8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23318-77A00 |
US $133.78 |
||
|
23322
|
23322
23322-42L60 Lever Set-Shift8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23322-42L60 |
US $13.10 |
||
|
23333
|
23333
23333-42L71 Spring8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23333-42L71 |
US $4.03 |
||
|
23333
|
23333
23333-42L71 Spring8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23333-42L71 |
US $4.03 |
||
|
23337
|
23337
23337-77A00 Cover Assy-Rear8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23337-77A00 |
US $51.55 |
||
|
23337
|
23337
23340N5900 Bolt-Through8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23340N5900 |
US $4.61 |
||
|
23337A
|
23337A
23340N5900 Bolt-Through8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23340N5900 |
US $4.61 |
||
|
23343
|
23343
23343-77A01 Switch Assy-Magnetic8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23343-77A01 |
US $168.48 |
||
|
23357
|
23357
23357-42L60 Shaft-Pinion8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23357-42L60 |
US $134.35 |
||
|
23378
|
23378
23378-77A01 Holder Assy-Brush8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23378-77A01 |
US $44.35 |
||
|
23379
|
23379
23379-M8001 Brush-Minus8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23379-M8001 |
US $6.19 |
||
|
23380
|
23380
23380-77A01 Brush-Plus8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23380-77A01 |
US $9.94 |
||
|
23465
|
23465
23465-80W00 Stopper Set-Pinion8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23465-80W00 |
US $7.49 |
||
|
23470
|
23470
23470-77A00 Cover Set-Dust8804--01 ~ ; GA15#.AT+4WD; ﾋﾀﾁ |
23470-77A00 |
US $11.23 |
