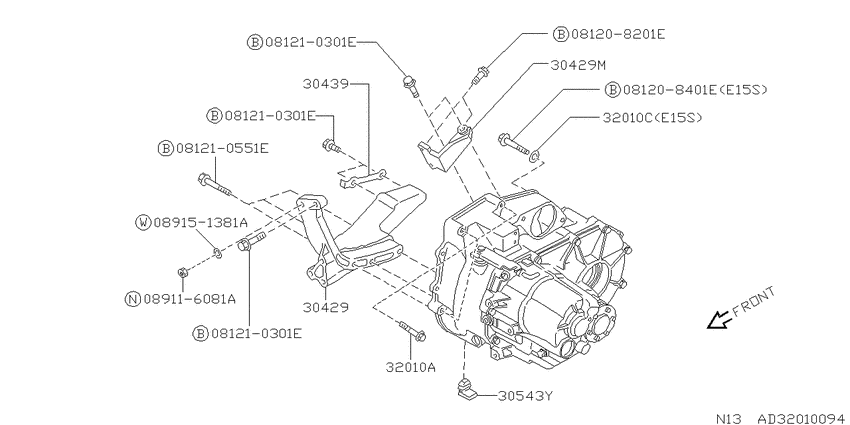

Transmission & transaxle assembly (1986-05-01 ~ 1988-04-01; $トランスミッション フィックスパーツ; 4WD.E15S.MT.F5 +4WD.E15E.MT.F5) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- E15E
- drive
- 4WD
- transmission
- MT
- grade
- J1
- body
- S
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208401E
|
081208401E
08120-8401E
Bolt-hexagon
|
08120-8401E |
— | ||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
US $3.06 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
US $3.06 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
US $3.06 |
||
|
081210551E
|
081210551E
081210551E
Bolt-hexagon
|
081210551E |
— | ||
|
089116081A
|
089116081A
089116081A
NUT
|
089116081A |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
30429
|
30429
30431-70A00 Gusset-Transmission To Engine8701--01 ~ 8804--01; E15#.MT.4WD; ﾌﾛﾝﾄ ﾖｳ |
30431-70A00 |
US $122.11 |
||
|
30429
|
30429
30441-70A00 Gusset-Transmission To Engine8701--01 ~ 8804--01; E15#.MT.4WD; ﾄﾗﾝｽﾌｱ- ﾖｳ |
30441-70A00 |
US $26.21 |
||
|
30429M
|
30429M
30441-70A00 Gusset-Transmission To Engine8701--01 ~ 8804--01; E15#.MT.4WD; ﾄﾗﾝｽﾌｱ- ﾖｳ |
30441-70A00 |
US $26.21 |
||
|
30439
|
30439
30439-06R00 Shim-Adjust, Gusset8701--01 ~ 8804--01; E15#.MT.4WD; ｾﾝﾀｸ T=0.69 |
30439-06R00 |
US $20.74 |
||
|
30439
|
30439
30439-06R01 Shim-Adjust, Gusset8701--01 ~ 8804--01; E15#.MT.4WD; ｾﾝﾀｸ T=0.79 |
30439-06R01 |
US $20.74 |
||
|
30439
|
30439
30439-06R02 Shim-Adjust, Gusset8701--01 ~ 8804--01; E15#.MT.4WD; ｾﾝﾀｸ T=0.89 |
30439-06R02 |
US $20.74 |
||
|
30439
|
30439
30439-06R03 Shim-Adjust, Gusset8701--01 ~ 8804--01; E15#.MT.4WD; ｾﾝﾀｸ T=0.99 |
30439-06R03 |
US $20.74 |
||
|
30439
|
30439
30439-06R04 Shim-Adjust, Gusset8701--01 ~ 8804--01; E15#.MT.4WD; ｾﾝﾀｸ T=1.09 |
30439-06R04 |
US $20.74 |
||
|
30439
|
30439
30439-06R05 Shim-Adjust, Gusset8701--01 ~ 8804--01; E15#.MT.4WD; ｾﾝﾀｸ T=1.19 |
30439-06R05 |
US $20.74 |
||
|
30543Y
|
30543Y
30543-06R00 Grommet-Clutch Housing8701--01 ~ 8804--01; E15#.MT.4WD |
30543-06R00 |
US $6.34 |
||
|
32010A
|
32010A
01121-00891 BOLT8605--01 ~ 8804--01; (E13S+E15#).MT |
01121-00891 |
US $2.45 |
