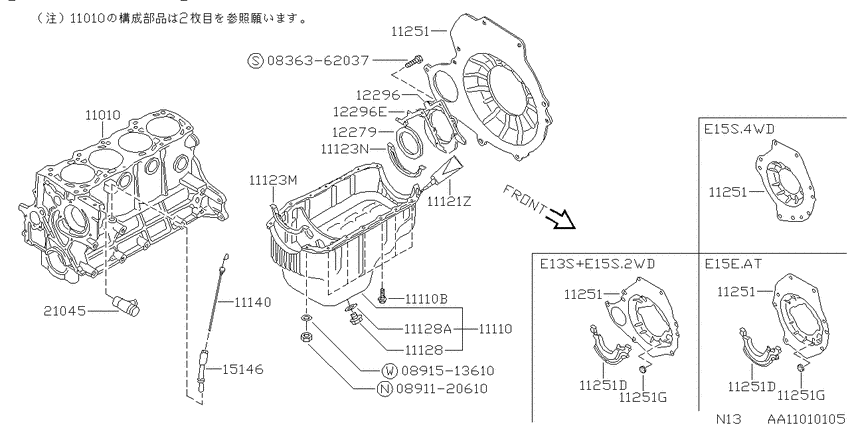

Cylinder - block & ｵｲﾙﾊﾟﾝ (1986-05-01 ~ ; アッセンブリー; E13S) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Engine
- E13S
- drive
- 2WD
- transmission
- AT
- grade
- M1
- body
- 3HB
- transmission/shift type
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836362037
|
0836362037
08363-62037
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62037 |
— | ||
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
11010
|
11010
11010-50A00 Block Assy-Cylinder8605--01 ~ 8608--01; E13S |
11010-50A00 |
US $2,268 |
||
|
11010
|
11010
11010-50A01 Block Assy-Cylinder8608--01 ~ ; E13S |
11010-50A01 |
US $2,268 |
||
|
11010
|
11010
1105301M00 Dowel-Block To Head8605--01 ~ 8804--01; E13S+E15S+E15E |
1105301M00 |
from US $1.39 |
||
|
11010
|
11010
30412H1001 Dowel-Block8605--01 ~ 8804--01; E13S+E15S+E15E |
30412H1001 |
from US $0.48 |
||
|
11010
|
11010
1104673402 Dowel-Water Pump8605--01 ~ 8804--01; E13S+E15S+E15E |
1104673402 |
from US $0.54 |
||
|
11010
|
11010
11010-50A00 Block Assy-Cylinder8605--01 ~ 8608--01; E13S |
11010-50A00 |
US $2,268 |
||
|
11010
|
11010
11010-50A01 Block Assy-Cylinder8608--01 ~ ; E13S |
11010-50A01 |
US $2,268 |
||
|
11010
|
11010
1105301M00 Dowel-Block To Head8605--01 ~ 8804--01; E13S+E15S+E15E |
1105301M00 |
from US $1.39 |
||
|
11010
|
11010
30412H1001 Dowel-Block8605--01 ~ 8804--01; E13S+E15S+E15E |
30412H1001 |
from US $0.48 |
||
|
11010
|
11010
1104673402 Dowel-Water Pump8605--01 ~ 8804--01; E13S+E15S+E15E |
1104673402 |
from US $0.54 |
||
|
11110
|
11110
11110-50A00 Pan Assy-Oil8605--01 ~ 8804--01; (E13S+E15S+E15E).2WD |
11110-50A00 |
US $151.20 |
||
|
11110
|
11110
01151-00022 STUD8605--01 ~ 8804--01; E13S+E15S+E15E |
01151-00022 |
US $2.45 |
||
|
11110
|
11110
01121-02791 BOLT8605--01 ~ 8612--01; E13S+E15S+E15E |
01121-02791 |
US $2.45 |
||
|
11110
|
11110
01121-03121 BOLT8612--01 ~ 8804--01; E13S+E15S+E15E |
01121-03121 |
US $2.45 |
||
|
11110B
|
11110B
01121-02791 BOLT8605--01 ~ 8612--01; E13S+E15S+E15E |
01121-02791 |
US $2.45 |
||
|
11110B
|
11110B
01121-03121 BOLT8612--01 ~ 8804--01; E13S+E15S+E15E |
01121-03121 |
US $2.45 |
||
|
11121Z
|
11121Z
KP510-00150 Gasket-Liquid8605--01 ~ 8804--01; E13S+E15S+E15E; [K504] |
KP510-00150 |
US $29.51 |
||
|
11123M
|
11123M
11130-50A00 Seal-Oil Pan, Front8605--01 ~ 8804--01; E13S+E15S+E15E |
11130-50A00 |
from US $2.28 |
||
|
11123N
|
11123N
11131-50A00 Seal-Oil Pan, Rear8605--01 ~ 8804--01; E13S+E15S+E15E |
11131-50A00 |
US $3.32 |
||
|
11128
|
11128
11128-01M00 Plug-Drain8605--01 ~ 8804--01; E13S+E15S+E15E |
11128-01M00 |
US $1.87 |
||
| replacement | |||||
|
11128
|
11128
1112801M0B Plug-Drain8605--01 ~ 8804--01; E13S+E15S+E15E |
1112801M0B |
from US $2.50 |
||
|
11128
|
11128
1102601M02 Washer-Drain Plug8605--01 ~ 8804--01; E13S+E15S+E15E |
1102601M02 |
from US $0.91 |
||
|
11128A
|
11128A
1102601M02 Washer-Drain Plug8605--01 ~ 8804--01; E13S+E15S+E15E |
1102601M02 |
from US $0.91 |
||
|
11140
|
11140
11140-01M08 Gauge-Oil Level8605--01 ~ 8804--01; E13S+E15S |
11140-01M08 |
US $10.37 |
||
| replacement | |||||
|
11140
|
11140
11140-01M09 Gauge-Oil Level8605--01 ~ 8804--01; E13S+E15S |
11140-01M09 |
US $11.52 |
||
|
11140
|
11140
11140-01M09 Gauge-Oil Level8809--01 ~ ; E13S |
11140-01M09 |
US $11.52 |
||
|
11251
|
11251
30411-12M14 Plate-Engine, Rear8605--01 ~ 8804--01; (E13S+E15S).2WD.AT |
30411-12M14 |
US $44.78 |
||
|
11251
|
11251
30412-12M11
Rubber-Engine Rear Plate
8605--01 ~ 8804--01; (E13S+E15S+E15E).AT |
30412-12M11 |
— | ||
|
11251
|
11251
30412-12M13 Plug-Rubber, Rear Plate8605--01 ~ 8804--01; (E13S+E15S+E15E).AT |
30412-12M13 |
US $7.06 |
||
|
11251
|
11251
30411-12M14 Plate-Engine, Rear8605--01 ~ 8804--01; (E13S+E15S).2WD.AT |
30411-12M14 |
US $44.78 |
||
|
11251
|
11251
30412-12M11
Rubber-Engine Rear Plate
8605--01 ~ 8804--01; (E13S+E15S+E15E).AT |
30412-12M11 |
— | ||
|
11251
|
11251
30412-12M13 Plug-Rubber, Rear Plate8605--01 ~ 8804--01; (E13S+E15S+E15E).AT |
30412-12M13 |
US $7.06 |
||
|
11251
|
11251
30411-12M14 Plate-Engine, Rear8605--01 ~ 8804--01; (E13S+E15S).2WD.AT |
30411-12M14 |
US $44.78 |
||
|
11251
|
11251
30412-12M11
Rubber-Engine Rear Plate
8605--01 ~ 8804--01; (E13S+E15S+E15E).AT |
30412-12M11 |
— | ||
|
11251
|
11251
30412-12M13 Plug-Rubber, Rear Plate8605--01 ~ 8804--01; (E13S+E15S+E15E).AT |
30412-12M13 |
US $7.06 |
||
|
11251
|
11251
30411-12M14 Plate-Engine, Rear8605--01 ~ 8804--01; (E13S+E15S).2WD.AT |
30411-12M14 |
US $44.78 |
||
|
11251
|
11251
30412-12M11
Rubber-Engine Rear Plate
8605--01 ~ 8804--01; (E13S+E15S+E15E).AT |
30412-12M11 |
— | ||
|
11251
|
11251
30412-12M13 Plug-Rubber, Rear Plate8605--01 ~ 8804--01; (E13S+E15S+E15E).AT |
30412-12M13 |
US $7.06 |
||
|
11251D
|
11251D
30412-12M11
Rubber-Engine Rear Plate
8605--01 ~ 8804--01; (E13S+E15S+E15E).AT |
30412-12M11 |
— | ||
|
11251D
|
11251D
30412-12M11
Rubber-Engine Rear Plate
8605--01 ~ 8804--01; (E13S+E15S+E15E).AT |
30412-12M11 |
— | ||
|
11251G
|
11251G
30412-12M13 Plug-Rubber, Rear Plate8605--01 ~ 8804--01; (E13S+E15S+E15E).AT |
30412-12M13 |
US $7.06 |
||
|
11251G
|
11251G
30412-12M13 Plug-Rubber, Rear Plate8605--01 ~ 8804--01; (E13S+E15S+E15E).AT |
30412-12M13 |
US $7.06 |
||
|
12279
|
12279
12279-01M00
Seal-Oil, Crankshaft Rear
8605--01 ~ 8804--01; E13S+E15S+E15E |
12279-01M00 |
— | ||
| replacements | |||||
|
12279
|
12279
12279-5L300 Seal-Oil, Crankshaft Rear8605--01 ~ 8804--01; E13S+E15S+E15E |
12279-5L300 |
US $30.30 |
||
|
12279
|
12279
122795L310 Seal-Oil, Crankshaft Rear8605--01 ~ 8804--01; E13S+E15S+E15E |
122795L310 |
from US $17.71 |
||
|
12296
|
12296
1113601M00 Retainer-Oil Seal, Rear8605--01 ~ 8804--01; E13S+E15S+E15E |
1113601M00 |
US $22.75 |
||
|
12296
|
12296
11137-01M00 Gasket-Retainer8605--01 ~ 8804--01; E13S+E15S+E15E |
11137-01M00 |
US $6.48 |
||
| replacement | |||||
|
12296
|
12296
11137-01M01 Gasket-Retainer8605--01 ~ 8804--01; E13S+E15S+E15E |
11137-01M01 |
US $6.48 |
||
|
12296E
|
12296E
11137-01M00 Gasket-Retainer8605--01 ~ 8804--01; E13S+E15S+E15E |
11137-01M00 |
US $6.48 |
||
| replacement | |||||
|
12296E
|
12296E
11137-01M01 Gasket-Retainer8605--01 ~ 8804--01; E13S+E15S+E15E |
11137-01M01 |
US $6.48 |
||
|
15146
|
15146
15146-01M01 Guide-Oil Level Gauge8605--01 ~ 8804--01; E13S+E15S |
15146-01M01 |
US $18.29 |
||
| replacement | |||||
|
15146
|
15146
15146-01M0A
Guide-oil level gauge
8605--01 ~ 8804--01; E13S+E15S |
15146-01M0A |
— | ||
|
21045
|
21045
21045-50A00 Pipe-Suction, Water Pump8605--01 ~ 8710--01; E13S+E15S+E15E |
21045-50A00 |
US $12.24 |
||
|
21045
|
21045
2104550A05 Pipe-Suction, Water Pump8710--01 ~ 8804--01; E13S+E15S+E15E |
2104550A05 |
US $14.83 |
||
