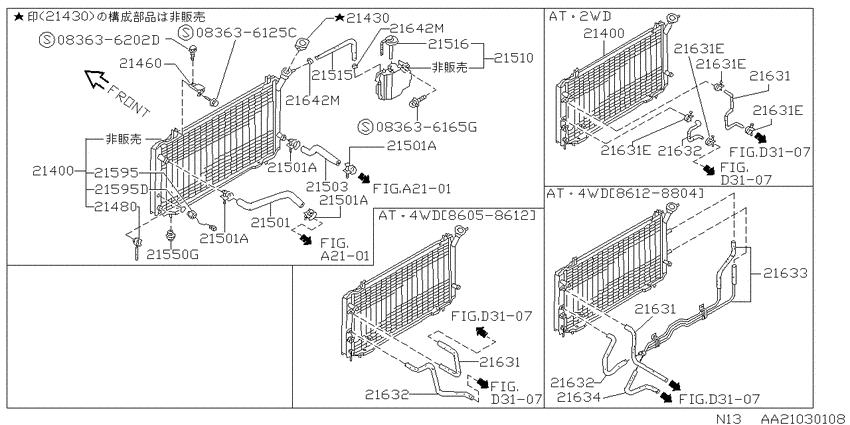

radiator (1986-05-01 ~ ; ラジエーター; E13S.AT) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Engine
- E13S
- drive
- 2WD
- transmission
- AT
- grade
- M1
- body
- 3HB
- transmission/shift type
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636125C
|
083636125C
08363-6125C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6125C |
— | ||
| replacement | |||||
|
083636125C
|
083636125C
08360-6125C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6125C |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636202D
|
083636202D
08363-6202D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6202D |
— | ||
|
21400
|
21400
21460-52A00 Radiator Assy8605--01 ~ ; E13S.AT; [B517] |
21460-52A00 |
US $790.13 |
||
|
21400
|
21400
21460-52A00 Radiator Assy8605--01 ~ ; E13S.AT; [B517] |
21460-52A00 |
US $790.13 |
||
|
21430
|
21430
21430-01F00
Cap Assy-Radiator
8605--01 ~ 8805--01; ALL |
21430-01F00 |
— | ||
| replacement | |||||
|
21430
|
21430
21430-7999C Cap Assy-Radiator8605--01 ~ 8805--01; ALL |
21430-7999C |
from US $10.18 |
||
|
21430
|
21430
2143001F01
Cap Assy-Radiator
8805--01 ~ ; E13S +GA15S +GA15E +CA16D +CD17; |
2143001F01 |
— | ||
| replacements | |||||
|
21430
|
21430
214307995B
Cap Assy-Filler
8805--01 ~ ; E13S +GA15S +GA15E +CA16D +CD17; |
214307995B |
— | ||
|
21430
|
21430
21430-7999C Cap Assy-Radiator8805--01 ~ ; E13S +GA15S +GA15E +CA16D +CD17; |
21430-7999C |
from US $10.18 |
||
|
21460
|
21460
21521-50M00
Mounting Rubber-Radiator
8605--01 ~ 8805--01; ALL; ｳｴｶﾞﾜ |
21521-50M00 |
— | ||
|
21480
|
21480
21440-01E00 COCK-WATER DRAIN8605--01 ~ ; E13S |
21440-01E00 |
US $8.78 |
||
|
21501
|
21501
2150152A00 Hose-Radiator, Upper8605--01 ~ ; E13S.AT; [B517] |
2150152A00 |
US $28.37 |
||
|
21501
|
21501
01555-00281
CLAMP-HOSE
8605--01 ~ ; E13S |
01555-00281 |
— | ||
| replacement | |||||
|
21501
|
21501
0155501181 CLIP8605--01 ~ ; E13S |
0155501181 |
US $3.06 |
||
|
21501A
|
21501A
01555-00281
CLAMP-HOSE
8605--01 ~ ; E13S |
01555-00281 |
— | ||
| replacement | |||||
|
21501A
|
21501A
0155501181 CLIP8605--01 ~ ; E13S |
0155501181 |
US $3.06 |
||
|
21501A
|
21501A
01555-00281
CLAMP-HOSE
8605--01 ~ ; E13S |
01555-00281 |
— | ||
| replacement | |||||
|
21501A
|
21501A
0155501181 CLIP8605--01 ~ ; E13S |
0155501181 |
US $3.06 |
||
|
21501A
|
21501A
01555-00281
CLAMP-HOSE
8605--01 ~ ; E13S |
01555-00281 |
— | ||
| replacement | |||||
|
21501A
|
21501A
0155501181 CLIP8605--01 ~ ; E13S |
0155501181 |
US $3.06 |
||
|
21501A
|
21501A
01555-00281
CLAMP-HOSE
8605--01 ~ ; E13S |
01555-00281 |
— | ||
| replacement | |||||
|
21501A
|
21501A
0155501181 CLIP8605--01 ~ ; E13S |
0155501181 |
US $3.06 |
||
|
21503
|
21503
2150352A10 Hose-Radiator, Lower8605--01 ~ ; E13S.AT; [B517] |
2150352A10 |
US $22.61 |
||
|
21510
|
21510
21710-50M01
Tank Assy-Reserve
8605--01 ~ 8807--01; E13S |
21710-50M01 |
— | ||
|
21510
|
21510
21710-50M02 Tank Assy-Reserve8807--01 ~ ; E13S |
21710-50M02 |
US $103.82 |
||
|
21510
|
21510
B1710-50M01 Tank Assy-Reserve8605--01 ~ 8807--01; E13S |
B1710-50M01 |
US $103.82 |
||
|
21515
|
21515
21741-50A00 Hose-Reserve Tank8605--01 ~ 8804--01; E13S+E15S+E15E |
21741-50A00 |
US $16.56 |
||
| replacement | |||||
|
21515
|
21515
2174106J00 Hose-Reserve Tank8605--01 ~ 8804--01; E13S+E15S+E15E |
2174106J00 |
US $22.31 |
||
|
21516
|
21516
21712-50M00
Cap-Reservoir Tank
8605--01 ~ 8805--01; ALL |
21712-50M00 |
— | ||
| replacement | |||||
|
21516
|
21516
2171250M01 Cap-Reservoir Tank8605--01 ~ 8805--01; ALL |
2171250M01 |
from US $5.35 |
||
|
21516
|
21516
2171250M01 Cap-Reservoir Tank8805--01 ~ ; E13S +GA15S +GA15E +CA16D +CD17; |
2171250M01 |
from US $5.35 |
||
|
21550G
|
21550G
21507-51A02
Spacer-Radiator Mounting
8605--01 ~ ; E13S.AT; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ |
21507-51A02 |
— | ||
|
21595
|
21595
21595-50A00 Switch-Thermometer8605--01 ~ ; E13S; |
21595-50A00 |
US $125.14 |
||
|
21595
|
21595
21596Q1410 O Ring8605--01 ~ ; ALL; O ﾘﾝｸﾞ |
21596Q1410 |
US $7.20 |
||
|
21595D
|
21595D
21596Q1410 O Ring8605--01 ~ ; ALL; O ﾘﾝｸﾞ |
21596Q1410 |
US $7.20 |
||
|
21631
|
21631
21631-50M00 Hose-Auto Transmission Oil Cooler8605--01 ~ 8703--01; (E13S+CD17).AT E15S.AT.2WD |
21631-50M00 |
US $52.27 |
||
| replacement | |||||
|
21631
|
21631
B163150M10
ﾎ-ｽ
8605--01 ~ 8703--01; (E13S+CD17).AT E15S.AT.2WD |
B163150M10 |
— | ||
|
21631
|
21631
21631-50M10 Hose-Auto Transmission Oil Cooler8703--01 ~ ; (E13S+CD17).AT; |
21631-50M10 |
US $40.32 |
||
| replacement | |||||
|
21631
|
21631
B163150M10
ﾎ-ｽ
8703--01 ~ ; (E13S+CD17).AT; |
B163150M10 |
— | ||
|
21631
|
21631
01555-00043
CLAMP-HOSE
8704--01 ~ 8811--01; AT; |
01555-00043 |
— | ||
| replacement | |||||
|
21631
|
21631
0155800451 CLAMP-HOSE8704--01 ~ 8811--01; AT; |
0155800451 |
from US $4.16 |
||
|
21631
|
21631
01555-00451 CLAMP-HOSE8605--01 ~ 8704--01; AT |
01555-00451 |
US $2.45 |
||
| replacement | |||||
|
21631
|
21631
0155501061
ｸﾗﾝﾌﾟ
8605--01 ~ 8704--01; AT |
0155501061 |
— | ||
|
21631
|
21631
01556-00061 CLAMP-HOSE8811--01 ~ 8908--01; AT; |
01556-00061 |
US $7.92 |
||
|
21631
|
21631
21631-50M00 Hose-Auto Transmission Oil Cooler8605--01 ~ 8703--01; (E13S+CD17).AT E15S.AT.2WD |
21631-50M00 |
US $52.27 |
||
| replacement | |||||
|
21631
|
21631
B163150M10
ﾎ-ｽ
8605--01 ~ 8703--01; (E13S+CD17).AT E15S.AT.2WD |
B163150M10 |
— | ||
|
21631
|
21631
21631-50M10 Hose-Auto Transmission Oil Cooler8703--01 ~ ; (E13S+CD17).AT; |
21631-50M10 |
US $40.32 |
||
| replacement | |||||
|
21631
|
21631
B163150M10
ﾎ-ｽ
8703--01 ~ ; (E13S+CD17).AT; |
B163150M10 |
— | ||
|
21631
|
21631
01555-00043
CLAMP-HOSE
8704--01 ~ 8811--01; AT; |
01555-00043 |
— | ||
| replacement | |||||
|
21631
|
21631
0155800451 CLAMP-HOSE8704--01 ~ 8811--01; AT; |
0155800451 |
from US $4.16 |
||
|
21631
|
21631
01555-00451 CLAMP-HOSE8605--01 ~ 8704--01; AT |
01555-00451 |
US $2.45 |
||
| replacement | |||||
|
21631
|
21631
0155501061
ｸﾗﾝﾌﾟ
8605--01 ~ 8704--01; AT |
0155501061 |
— | ||
|
21631
|
21631
01556-00061 CLAMP-HOSE8811--01 ~ 8908--01; AT; |
01556-00061 |
US $7.92 |
||
|
21631
|
21631
21631-50M00 Hose-Auto Transmission Oil Cooler8605--01 ~ 8703--01; (E13S+CD17).AT E15S.AT.2WD |
21631-50M00 |
US $52.27 |
||
| replacement | |||||
|
21631
|
21631
B163150M10
ﾎ-ｽ
8605--01 ~ 8703--01; (E13S+CD17).AT E15S.AT.2WD |
B163150M10 |
— | ||
|
21631
|
21631
21631-50M10 Hose-Auto Transmission Oil Cooler8703--01 ~ ; (E13S+CD17).AT; |
21631-50M10 |
US $40.32 |
||
| replacement | |||||
|
21631
|
21631
B163150M10
ﾎ-ｽ
8703--01 ~ ; (E13S+CD17).AT; |
B163150M10 |
— | ||
|
21631
|
21631
01555-00043
CLAMP-HOSE
8704--01 ~ 8811--01; AT; |
01555-00043 |
— | ||
| replacement | |||||
|
21631
|
21631
0155800451 CLAMP-HOSE8704--01 ~ 8811--01; AT; |
0155800451 |
from US $4.16 |
||
|
21631
|
21631
01555-00451 CLAMP-HOSE8605--01 ~ 8704--01; AT |
01555-00451 |
US $2.45 |
||
| replacement | |||||
|
21631
|
21631
0155501061
ｸﾗﾝﾌﾟ
8605--01 ~ 8704--01; AT |
0155501061 |
— | ||
|
21631
|
21631
01556-00061 CLAMP-HOSE8811--01 ~ 8908--01; AT; |
01556-00061 |
US $7.92 |
||
|
21631E
|
21631E
01555-00043
CLAMP-HOSE
8704--01 ~ 8811--01; AT; |
01555-00043 |
— | ||
| replacement | |||||
|
21631E
|
21631E
0155800451 CLAMP-HOSE8704--01 ~ 8811--01; AT; |
0155800451 |
from US $4.16 |
||
|
21631E
|
21631E
01555-00451 CLAMP-HOSE8605--01 ~ 8704--01; AT |
01555-00451 |
US $2.45 |
||
| replacement | |||||
|
21631E
|
21631E
0155501061
ｸﾗﾝﾌﾟ
8605--01 ~ 8704--01; AT |
0155501061 |
— | ||
|
21631E
|
21631E
01556-00061 CLAMP-HOSE8811--01 ~ 8908--01; AT; |
01556-00061 |
US $7.92 |
||
|
21631E
|
21631E
01555-00043
CLAMP-HOSE
8704--01 ~ 8811--01; AT; |
01555-00043 |
— | ||
| replacement | |||||
|
21631E
|
21631E
0155800451 CLAMP-HOSE8704--01 ~ 8811--01; AT; |
0155800451 |
from US $4.16 |
||
|
21631E
|
21631E
01555-00451 CLAMP-HOSE8605--01 ~ 8704--01; AT |
01555-00451 |
US $2.45 |
||
| replacement | |||||
|
21631E
|
21631E
0155501061
ｸﾗﾝﾌﾟ
8605--01 ~ 8704--01; AT |
0155501061 |
— | ||
|
21631E
|
21631E
01556-00061 CLAMP-HOSE8811--01 ~ 8908--01; AT; |
01556-00061 |
US $7.92 |
||
|
21631E
|
21631E
01555-00043
CLAMP-HOSE
8704--01 ~ 8811--01; AT; |
01555-00043 |
— | ||
| replacement | |||||
|
21631E
|
21631E
0155800451 CLAMP-HOSE8704--01 ~ 8811--01; AT; |
0155800451 |
from US $4.16 |
||
|
21631E
|
21631E
01555-00451 CLAMP-HOSE8605--01 ~ 8704--01; AT |
01555-00451 |
US $2.45 |
||
| replacement | |||||
|
21631E
|
21631E
0155501061
ｸﾗﾝﾌﾟ
8605--01 ~ 8704--01; AT |
0155501061 |
— | ||
|
21631E
|
21631E
01556-00061 CLAMP-HOSE8811--01 ~ 8908--01; AT; |
01556-00061 |
US $7.92 |
||
|
21631E
|
21631E
01555-00043
CLAMP-HOSE
8704--01 ~ 8811--01; AT; |
01555-00043 |
— | ||
| replacement | |||||
|
21631E
|
21631E
0155800451 CLAMP-HOSE8704--01 ~ 8811--01; AT; |
0155800451 |
from US $4.16 |
||
|
21631E
|
21631E
01555-00451 CLAMP-HOSE8605--01 ~ 8704--01; AT |
01555-00451 |
US $2.45 |
||
| replacement | |||||
|
21631E
|
21631E
0155501061
ｸﾗﾝﾌﾟ
8605--01 ~ 8704--01; AT |
0155501061 |
— | ||
|
21631E
|
21631E
01556-00061 CLAMP-HOSE8811--01 ~ 8908--01; AT; |
01556-00061 |
US $7.92 |
||
|
21632
|
21632
21632-50M00 Hose-Oil Cooler, Auto Transmission Oil8605--01 ~ 8703--01; (E13S+CD17).AT E15S.AT.2WD |
21632-50M00 |
US $53.42 |
||
| replacement | |||||
|
21632
|
21632
B163250M11
ﾎ-ｽ
8605--01 ~ 8703--01; (E13S+CD17).AT E15S.AT.2WD |
B163250M11 |
— | ||
|
21632
|
21632
21632-50M10 Hose-Oil Cooler, Auto Transmission Oil8703--01 ~ ; (E13S+CD17).AT; |
21632-50M10 |
US $33.55 |
||
|
21632
|
21632
21632-50M00 Hose-Oil Cooler, Auto Transmission Oil8605--01 ~ 8703--01; (E13S+CD17).AT E15S.AT.2WD |
21632-50M00 |
US $53.42 |
||
| replacement | |||||
|
21632
|
21632
B163250M11
ﾎ-ｽ
8605--01 ~ 8703--01; (E13S+CD17).AT E15S.AT.2WD |
B163250M11 |
— | ||
|
21632
|
21632
21632-50M10 Hose-Oil Cooler, Auto Transmission Oil8703--01 ~ ; (E13S+CD17).AT; |
21632-50M10 |
US $33.55 |
||
|
21632
|
21632
21632-50M00 Hose-Oil Cooler, Auto Transmission Oil8605--01 ~ 8703--01; (E13S+CD17).AT E15S.AT.2WD |
21632-50M00 |
US $53.42 |
||
| replacement | |||||
|
21632
|
21632
B163250M11
ﾎ-ｽ
8605--01 ~ 8703--01; (E13S+CD17).AT E15S.AT.2WD |
B163250M11 |
— | ||
|
21632
|
21632
21632-50M10 Hose-Oil Cooler, Auto Transmission Oil8703--01 ~ ; (E13S+CD17).AT; |
21632-50M10 |
US $33.55 |
||
|
21642M
|
21642M
2175001E00 CLAMP-BREATHER HOSE8605--01 ~ ; ALL |
2175001E00 |
US $2.74 |
||
| replacement | |||||
|
21642M
|
21642M
2175001E0A Clamp8605--01 ~ ; ALL |
2175001E0A |
US $3.06 |
||
|
21642M
|
21642M
2175001E00 CLAMP-BREATHER HOSE8605--01 ~ ; ALL |
2175001E00 |
US $2.74 |
||
| replacement | |||||
|
21642M
|
21642M
2175001E0A Clamp8605--01 ~ ; ALL |
2175001E0A |
US $3.06 |
||
