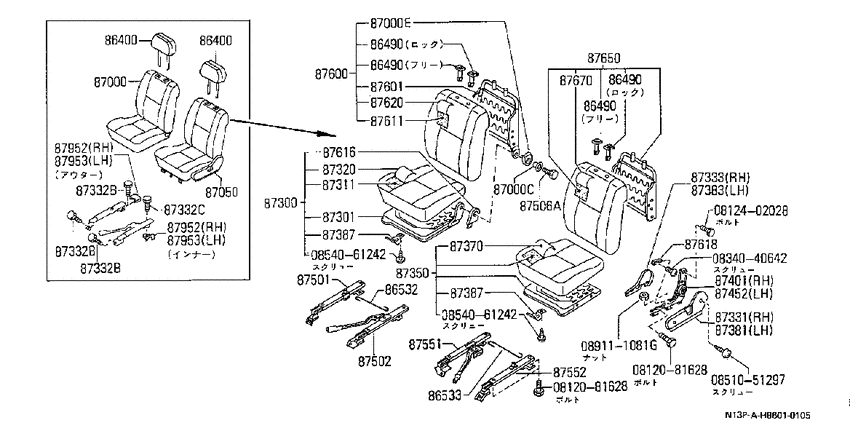

Front seat (1986-10-01 ~ ; P#.3HB.L) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- GA15S
- drive
- 2WD
- transmission
- AT
- grade
- L
- body
- 3HB
- other
- P#
- transmission/shift type
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812081628
|
0812081628
08120-81628
Bolt-hexagon
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E Bolt-hexagon |
081208161E |
from US $0.59 |
||
|
0812081628
|
0812081628
08120-81628
Bolt-hexagon
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E Bolt-hexagon |
081208161E |
from US $0.59 |
||
|
0812402028
|
0812402028
08124-02028
Bolt-hexagon
|
08124-02028 |
— | ||
|
0834040642
|
0834040642
0834040642
ｽｸﾘﾕ-,ﾏｼﾝ
|
0834040642 |
— | ||
|
0851051297
|
0851051297
08510-51297
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-51297 |
— | ||
|
0854061242
|
0854061242
08540-61242
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-61242 |
— | ||
|
0854061242
|
0854061242
08540-61242
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-61242 |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
86400
|
86400
86400-50A02 Head Rest Assy-Front Seat8610--01 ~ 8809--01; P#.3HB.L N#.S.FC; (K) |
86400-50A02 |
US $116.35 |
||
|
86400
|
86400
86400-50A02 Head Rest Assy-Front Seat8610--01 ~ 8809--01; P#.3HB.L N#.S.FC; (K) |
86400-50A02 |
US $116.35 |
||
|
86490
|
86490
87602-50A02 Stopper Assy-Head Rest8610--01 ~ 8809--01; 1P#.(L+F+X) N#.S.(FC+FL+GF#) N#.3HB.SL; (K) ﾛﾂｸ ﾀｲﾌﾟ |
87602-50A02 |
US $4.61 |
||
|
86490
|
86490
87603-F6102 Stopper Assy-Head Rest8610--01 ~ 8809--01; 1P#.(L+F+X) N#.S.(FC+FL+GF#) N#.3HB.SL; (K) ﾌﾘ- ﾀｲﾌﾟ |
87603-F6102 |
US $4.61 |
||
|
86490
|
86490
87602-50A02 Stopper Assy-Head Rest8610--01 ~ 8809--01; 1P#.(L+F+X) N#.S.(FC+FL+GF#) N#.3HB.SL; (K) ﾛﾂｸ ﾀｲﾌﾟ |
87602-50A02 |
US $4.61 |
||
|
86490
|
86490
87603-F6102 Stopper Assy-Head Rest8610--01 ~ 8809--01; 1P#.(L+F+X) N#.S.(FC+FL+GF#) N#.3HB.SL; (K) ﾌﾘ- ﾀｲﾌﾟ |
87603-F6102 |
US $4.61 |
||
|
86490
|
86490
87602-50A02 Stopper Assy-Head Rest8610--01 ~ 8809--01; 1P#.(L+F+X) N#.S.(FC+FL+GF#) N#.3HB.SL; (K) ﾛﾂｸ ﾀｲﾌﾟ |
87602-50A02 |
US $4.61 |
||
|
86490
|
86490
87603-F6102 Stopper Assy-Head Rest8610--01 ~ 8809--01; 1P#.(L+F+X) N#.S.(FC+FL+GF#) N#.3HB.SL; (K) ﾌﾘ- ﾀｲﾌﾟ |
87603-F6102 |
US $4.61 |
||
|
86490
|
86490
87602-50A02 Stopper Assy-Head Rest8610--01 ~ 8809--01; 1P#.(L+F+X) N#.S.(FC+FL+GF#) N#.3HB.SL; (K) ﾛﾂｸ ﾀｲﾌﾟ |
87602-50A02 |
US $4.61 |
||
|
86490
|
86490
87603-F6102 Stopper Assy-Head Rest8610--01 ~ 8809--01; 1P#.(L+F+X) N#.S.(FC+FL+GF#) N#.3HB.SL; (K) ﾌﾘ- ﾀｲﾌﾟ |
87603-F6102 |
US $4.61 |
||
|
86532
|
86532
87532-50A00 Wire-Release, Seat Slide Rh8610--01 ~ ; P#.3HB.L N#.S.FC |
87532-50A00 |
US $3.02 |
||
|
86533
|
86533
87532-50A00 Wire-Release, Seat Slide Rh8610--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL) |
87532-50A00 |
US $3.02 |
||
|
87000
|
87000
87000-51M02 ｼ-ﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ rh8610--01 ~ 8809--01; P#.3HB.L N#.S.FC; (K)[D105] |
87000-51M02 |
US $1,974 |
||
|
87000
|
87000
87000-90M22 ｼ-ﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ rh8809--01 ~ ; P#.3HB.L N#.S.FC; (K) [D105] |
87000-90M22 |
US $1,974 |
||
|
87000
|
87000
87614-K0100 Bush-Rear Seat8610--01 ~ ; ALL |
87614-K0100 |
US $1.73 |
||
|
87000
|
87000
87616-50A00 Cover-Seat Back8610--01 ~ ; 2WD |
87616-50A00 |
US $3.17 |
||
|
87000C
|
87000C
87614-K0100 Bush-Rear Seat8610--01 ~ ; ALL |
87614-K0100 |
US $1.73 |
||
|
87000E
|
87000E
87616-50A00 Cover-Seat Back8610--01 ~ ; 2WD |
87616-50A00 |
US $3.17 |
||
|
87050
|
87050
87050-51M02 ｼ-ﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ lh8610--01 ~ 8809--01; P#.3HB.L N#.S.FC; (K)[D105] |
87050-51M02 |
US $1,974 |
||
|
87050
|
87050
87050-90M22 ｼ-ﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ lh8809--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL); (K) [D105] |
87050-90M22 |
US $1,974 |
||
|
87300
|
87300
87300-51M02 ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ rh8610--01 ~ 8809--01; P#.3HB.L N#.S.FC; (K)[D105] |
87300-51M02 |
US $1,060.58 |
||
|
87300
|
87300
87300-90M22 ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ rh8809--01 ~ ; P#.3HB.L N#.S.FC; (K) [D105] |
87300-90M22 |
US $1,009.61 |
||
|
87301
|
87301
87301-50A00 Frame Assy-Cushion, Front Seat Rh8610--01 ~ ; P#.3HB.L N#.S.FC |
87301-50A00 |
US $135.22 |
||
|
87311
|
87311
87311-50A00 Pad Assy-Cushion, Front Seat Rh8610--01 ~ ; P#.3HB.L N#.S.FC |
87311-50A00 |
US $107.28 |
||
|
87320
|
87320
87320-51M02
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ｸﾂｼﾖﾝ rh
8610--01 ~ 8809--01; P#.3HB.L N#.S.FC; (K)[D105] |
87320-51M02 |
— | ||
|
87320
|
87320
87320-90M22
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ｸﾂｼﾖﾝ rh
8809--01 ~ ; P#.3HB.L N#.S.FC; (K) [D105] |
87320-90M22 |
— | ||
|
87331
|
87331
87330-50A02 Finisher Assy-Seat8610--01 ~ ; P#.3HB.L N#.S.FC; (K) |
87330-50A02 |
US $15.26 |
||
|
87332B
|
87332B
01141-00211
Bolt
8610--01 ~ ; ALL |
01141-00211 |
— | ||
|
87332B
|
87332B
01141-00211
Bolt
8610--01 ~ ; ALL |
01141-00211 |
— | ||
|
87332B
|
87332B
01141-00211
Bolt
8610--01 ~ ; ALL |
01141-00211 |
— | ||
|
87332C
|
87332C
01141-00261 BOLT8610--01 ~ ; ALL |
01141-00261 |
US $4.16 |
||
|
87333
|
87333
8740650A00 Finisher-Device, Rh Seat Inside8610--01 ~ ; LP#.S.GT# P#.3HB.(L+GT#) N#.S.(FC+SSS) N#.3HB.(SF#+SSS) |
8740650A00 |
US $9.94 |
||
|
87350
|
87350
87350-51M02
ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ lh
8610--01 ~ 8809--01; P#.3HB.L N#.S.FC; (K)[D105] |
87350-51M02 |
— | ||
|
87350
|
87350
87350-90M22
ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ lh
8809--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL); (K) [D105] |
87350-90M22 |
— | ||
|
87370
|
87370
87370-51M02
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ｸﾂｼﾖﾝ lh
8610--01 ~ 8809--01; P#.3HB.L N#.S.FC; (K)[D105] |
87370-51M02 |
— | ||
|
87370
|
87370
87370-90M22
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ｸﾂｼﾖﾝ lh
8809--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL); (K) [D105] |
87370-90M22 |
— | ||
|
87381
|
87381
87380-50A02 Finisher Assy-Cushion, Front Seat Lh8610--01 ~ ; EP#.S.(F+X) P#.3HB.(L+F+X) N#.S.(FC+FL+GF#) N#.3HB.SL; (K) |
87380-50A02 |
US $15.26 |
||
|
87383
|
87383
87456-50A00
Finisher-Device, Lh Seat Inside
8610--01 ~ ; ALL |
87456-50A00 |
— | ||
|
87387
|
87387
87335-D1200 Protector-Front Seat8610--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL); |
87335-D1200 |
US $2.02 |
||
|
87387
|
87387
87335-D1200 Protector-Front Seat8610--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL); |
87335-D1200 |
US $2.02 |
||
|
87401
|
87401
87401-50A00 Device-Reclining, Front Seat Rh Outer8610--01 ~ ; LP#.S.GT# P#.3HB.(L+GT#) N#.S.(FC+SSS) N#.3HB.(SF#+SSS) |
87401-50A00 |
US $192.96 |
||
|
87452
|
87452
87451-50A00 Device-Reclining, Front Seat Lh Inner8610--01 ~ ; ,P#.S P#.3HB.L N#.S |
87451-50A00 |
US $192.96 |
||
|
87501
|
87501
87501-50A00 Slide Assy-Rh Seat, Outside8610--01 ~ ; P#.3HB.L N#.S.FC |
87501-50A00 |
US $56.16 |
||
|
87502
|
87502
87502-50A00 Slide-Rh Seat, Inside8610--01 ~ ; P#.3HB.L N#.S.FC |
87502-50A00 |
US $56.16 |
||
|
87506A
|
87506A
87615-50A00 Bolt-Special8610--01 ~ ; ALL |
87615-50A00 |
US $1.73 |
||
|
87551
|
87551
87552-50A00 Slide-Lh Seat, Inside8610--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL) |
87552-50A00 |
US $56.16 |
||
|
87552
|
87552
87551-50A00 Slide Assy-Lh Seat, Outside8610--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL) |
87551-50A00 |
US $56.16 |
||
|
87600
|
87600
87600-51M02
ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ rh
8610--01 ~ 8809--01; P#.3HB.L N#.S.FC; (K)[D105] |
87600-51M02 |
— | ||
|
87600
|
87600
87600-90M22
ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ rh
8809--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL); (K) [D105] |
87600-90M22 |
— | ||
|
87601
|
87601
87601-50A00 Frame Assy-Back, Front Seat Rh8610--01 ~ ; EP#.S.F P#.3HB.(L+F) N#.S.(FC+FL) N#.3HB.SL |
87601-50A00 |
US $136.94 |
||
|
87611
|
87611
87611-50A00 Pad Assy-Back, Front Seat, Rh8610--01 ~ ; EP#.S.F P#.3HB.(L+F) N#.S.(FC+FL) N#.3HB.SL |
87611-50A00 |
US $107.28 |
||
|
87616
|
87616
87316-50A00 Cover-Hinge, Front Cushion Rh8610--01 ~ ; P#.3HB.L N#.S.FC; ﾐｷﾞ |
87316-50A00 |
US $2.02 |
||
|
87616
|
87616
87366-50A00 Cover-Hinge, Front Cushion Lh8610--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL); ﾋﾀﾞﾘ |
87366-50A00 |
US $2.02 |
||
|
87618
|
87618
87418-01G01 ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ8809--01 ~ ; ALL; (B) ﾐｷﾞ |
87418-01G01 |
US $4.46 |
||
|
87618
|
87618
87418-50A02 Knob-Reclining Device Lever, Rh8610--01 ~ 8809--01; EP#.S.(F+X) P#.3HB.(L+F+X) N#.S.(FC+FL+GF#) N#.3HB.SL; (K) ﾐｷﾞ |
87418-50A02 |
US $2.16 |
||
|
87618
|
87618
87418-50A03 Knob-Reclining Device Lever, Rh8809--01 ~ ; ALL; (G) ﾐｷﾞ |
87418-50A03 |
US $2.02 |
||
|
87618
|
87618
87468-01G01 ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ8809--01 ~ ; ALL; (B) ﾋﾀﾞﾘ |
87468-01G01 |
US $2.16 |
||
|
87618
|
87618
87468-50A02 Knob-Reclining Device Lever, Lh8610--01 ~ 8809--01; LP#.S.(F+X) P#.3HB.(L+F+X) N#.3HB.SL N#.S.(FC+FL+GF#); (K) ﾋﾀﾞﾘ |
87468-50A02 |
US $2.16 |
||
|
87618
|
87618
87468-50A03 Knob-Reclining Device Lever, Lh8809--01 ~ ; ALL; (G) ﾋﾀﾞﾘ |
87468-50A03 |
US $2.02 |
||
|
87620
|
87620
87620-51M02
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ﾊﾞﾂｸ rh
8610--01 ~ 8809--01; P#.3HB.L N#.S.FC; (K)[D105] |
87620-51M02 |
— | ||
|
87620
|
87620
87620-90M22
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ﾊﾞﾂｸ rh
8809--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL); (K) [D105] |
87620-90M22 |
— | ||
|
87650
|
87650
87650-51M02
ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ lh
8610--01 ~ 8809--01; P#.3HB.L N#.S.FC; (K)[D105] |
87650-51M02 |
— | ||
|
87650
|
87650
87650-90M22
ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ lh
8809--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL); (K) [D105] |
87650-90M22 |
— | ||
|
87670
|
87670
87670-51M02
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ﾊﾞﾂｸ lh
8610--01 ~ 8809--01; P#.3HB.L N#.S.FC; (K)[D105] |
87670-51M02 |
— | ||
|
87670
|
87670
87670-90M22
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ﾊﾞﾂｸ lh
8809--01 ~ ; 4P#.S.F P#.3HB.L N#.S.(FC+FL); (K) [D105] |
87670-90M22 |
— | ||
|
87952
|
87952
87508-50A00 ｶﾊﾞ-,ｽﾗｲﾄﾞ ﾚ-ﾙ rh8610--01 ~ 8809--01; ALL; ｲﾝﾅ- ﾖｳ |
87508-50A00 |
US $5.18 |
||
|
87952
|
87952
87508-50A00 ｶﾊﾞ-,ｽﾗｲﾄﾞ ﾚ-ﾙ rh8610--01 ~ 8809--01; ALL; ｲﾝﾅ- ﾖｳ |
87508-50A00 |
US $5.18 |
||
|
87953
|
87953
87558-50A00 ｶﾊﾞ-,ｽﾗｲﾄﾞ ﾚ-ﾙ lh8610--01 ~ 8809--01; ALL; ｲﾝﾅ- ﾖｳ |
87558-50A00 |
US $5.18 |
||
|
87953
|
87953
87558-50A00 ｶﾊﾞ-,ｽﾗｲﾄﾞ ﾚ-ﾙ lh8610--01 ~ 8809--01; ALL; ｲﾝﾅ- ﾖｳ |
87558-50A00 |
US $5.18 |
||
