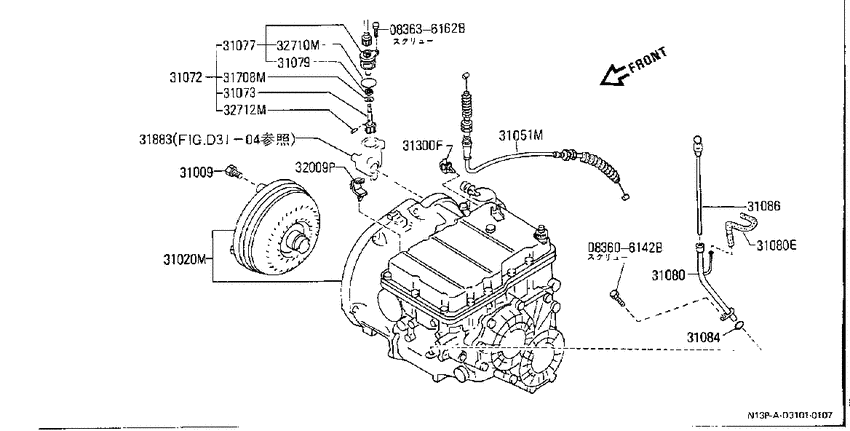

AT transmission & transaxle assembly (1988-09-01 ~ 1989-05-01; $アッセンブリー&フィッティングパーツ; (GA15E+GA15S+CA16D).AT.F4) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- SF
- body
- 3HB
- other
- N#
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083606142B
|
083606142B
08360-6142B
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6142B |
— | ||
|
083636162B
|
083636162B
083636162B
ｽｸﾘﾕ-,ﾏｼﾝ
|
083636162B |
— | ||
|
31009
|
31009
31009-01X00 Bolt-Self Lock8610--01 ~ ; AT |
31009-01X00 |
US $4.18 |
||
|
31020M
|
31020M
31020-21X77 Transaxle Assy-Automatic8809--01 ~ 8905--01; GA15E.AT; RL4F02A |
31020-21X77 |
US $4,704 |
||
|
31020M
|
31020M
31020-31X01 Transaxle Assy-Automatic8905--01 ~ ; GA15E.AT.F4; RL4F03A |
31020-31X01 |
US $4,704 |
||
|
31051M
|
31051M
31051-82A01 Wire Assy-Throttle8809--01 ~ 8905--01; GA15E.AT |
31051-82A01 |
US $33.84 |
||
|
31072
|
31072
32702-21X12 Pinion Assy-Speedometer8809--01 ~ 8905--01; AT.F4; 32T |
32702-21X12 |
US $27.65 |
||
|
31072
|
31072
3270283M16 Pinion Assy-Speedometer8905--01 ~ ; GA15#.AT.2WD CD17.AT; 36T |
3270283M16 |
US $27.65 |
||
|
31073
|
31073
32703-04E32 PINION-SPEEDOMETER8809--01 ~ 8905--01; AT.F4; 32T |
32703-04E32 |
US $25.49 |
||
|
31073
|
31073
32703-M8036 Pinion-Speedometer8905--01 ~ ; GA15#.AT.2WD CD17.AT; 36T |
32703-M8036 |
US $10.37 |
||
|
31077
|
31077
32707-21X00 Sleeve Assy-Speedometer Pinion8809--01 ~ 8905--01; AT.F4; |
32707-21X00 |
US $17.57 |
||
|
31077
|
31077
32707-83M00 Sleeve Assy-Speedometer Pinion8905--01 ~ ; GA15#.AT.2WD CD17.AT; |
32707-83M00 |
US $15.70 |
||
|
31079
|
31079
3270958S00 Seal-Oil, Speedometer Pinion8610--01 ~ 8809--01; AT |
3270958S00 |
US $0.91 |
||
|
31080
|
31080
31080-78A00 Pipe Assy-Oil Charging8809--01 ~ 8905--01; GA15#.AT.F4 |
31080-78A00 |
US $43.06 |
||
|
31080
|
31080
31080-88M00 Pipe Assy-Oil Charging8905--01 ~ ; GA15#.AT.F4 |
31080-88M00 |
US $63.36 |
||
| replacement | |||||
|
31080
|
31080
31080-88M01 Pipe Assy-Oil Charging8905--01 ~ ; GA15#.AT.F4 |
31080-88M01 |
US $57.89 |
||
|
31080
|
31080
31098-51E01 HOSE-BREATHER8809--01 ~ 8905--01; AT.F4 |
31098-51E01 |
US $10.80 |
||
|
31080E
|
31080E
31098-51E01 HOSE-BREATHER8809--01 ~ 8905--01; AT.F4 |
31098-51E01 |
US $10.80 |
||
|
31084
|
31084
31084-21X01 Seal-O Ring8809--01 ~ 8905--01; AT.F4 |
31084-21X01 |
US $2.45 |
||
|
31084
|
31084
31084M7500 Seal-O Ring8905--01 ~ ; GA15#.AT CD17.AT |
31084M7500 |
US $1.15 |
||
|
31086
|
31086
31086-77A00 Gauge Assy-Oil Level8809--01 ~ 8905--01; AT.F4; |
31086-77A00 |
US $22.18 |
||
|
31086
|
31086
31086-88M00 Gauge Assy-Oil Level8905--01 ~ ; GA15#.AT.F4 |
31086-88M00 |
US $16.42 |
||
|
31300F
|
31300F
24220-G3100 Clip-Harness8809--01 ~ ; AT.F4 |
24220-G3100 |
US $1.15 |
||
|
31883
|
31883
31883-21X01 Case-Speedometer8809--01 ~ ; RL4F02A; |
31883-21X01 |
US $28.51 |
||
|
31883
|
31883
01111-00741 BOLT-SPEEDOMETER CASE8809--01 ~ ; RL4F02A; |
01111-00741 |
US $2.45 |
||
|
32009P
|
32009P
32009-51A00 Bracket-Switch Connector, 4Th & 5Th8809--01 ~ 8905--01; AT.F4 |
32009-51A00 |
US $6.19 |
||
|
32009P
|
32009P
32009-88M01 Bracket-Switch Connector8905--01 ~ ; GA15#.AT.F4 |
32009-88M01 |
US $6.19 |
||
|
32710M
|
32710M
32710-04E01 SEAL-O RING,SPEEDOMETER PINION8809--01 ~ 8905--01; AT.F4; |
32710-04E01 |
US $2.45 |
||
|
32710M
|
32710M
32710M8000 Seal-O Ring, Speedometer Pinion8905--01 ~ ; GA15#.AT.2WD CD17.AT; |
32710M8000 |
US $2.78 |
||
|
32712M
|
32712M
15046-09400 Pin-Retainer, Speedometer Pinion8809--01 ~ 8905--01; AT.F4; |
15046-09400 |
US $2.02 |
||
|
32712M
|
32712M
3287314600 Pin-Retainer, Speedometer Pinion8905--01 ~ ; GA15#.AT.2WD CD17.AT; |
3287314600 |
US $2.21 |
||
