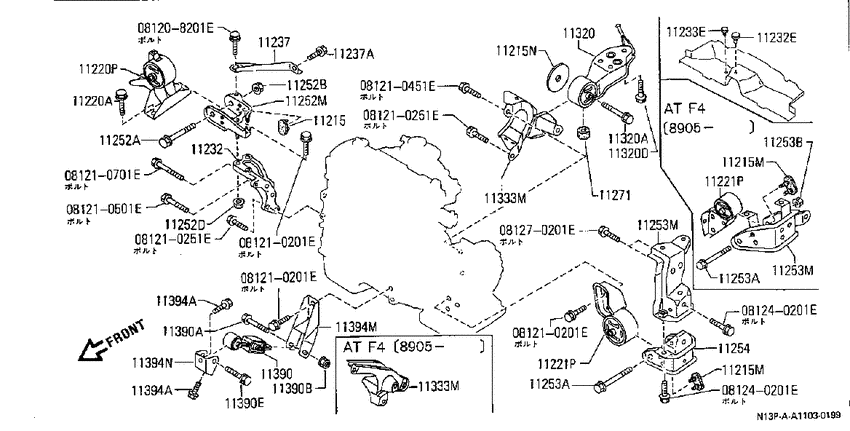

engine & transmission mounting (1988-09-01 ~ ; GA15#.AT.2WD) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- SF
- body
- 3HB
- other
- N#
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210451E
|
081210451E
08121-0451E
Bolt-hexagon
|
08121-0451E |
— | ||
|
081210501E
|
081210501E
08121-0501E
Bolt-hexagon
|
08121-0501E |
— | ||
|
081210701E
|
081210701E
081210701E
Bolt-hexagon
|
081210701E |
— | ||
|
081240201E
|
081240201E
081240201E Bolt-hexagon |
081240201E |
US $1.11 |
||
|
081240201E
|
081240201E
081240201E Bolt-hexagon |
081240201E |
US $1.11 |
||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
11215
|
11215
11215-50A15 Stopper-Engine Mounting8809--01 ~ ; (GA15#+CD17).AT |
11215-50A15 |
US $20.92 |
||
|
11215
|
11215
11215-50A06 Stopper-Engine Mounting8905--01 ~ ; GA15#.AT.F4 |
11215-50A06 |
US $11.81 |
||
|
11215
|
11215
11215-50A15 Stopper-Engine Mounting8809--01 ~ 8905--01; AT.F4; |
11215-50A15 |
US $20.92 |
||
|
11215
|
11215
11215-58A20 Stopper-Engine Mounting, Rear8809--01 ~ 8905--01; AT.F4 |
11215-58A20 |
US $11.09 |
||
|
11215M
|
11215M
11215-50A06 Stopper-Engine Mounting8905--01 ~ ; GA15#.AT.F4 |
11215-50A06 |
US $11.81 |
||
|
11215M
|
11215M
11215-50A15 Stopper-Engine Mounting8809--01 ~ 8905--01; AT.F4; |
11215-50A15 |
US $20.92 |
||
|
11215M
|
11215M
11215-50A06 Stopper-Engine Mounting8905--01 ~ ; GA15#.AT.F4 |
11215-50A06 |
US $11.81 |
||
|
11215M
|
11215M
11215-50A15 Stopper-Engine Mounting8809--01 ~ 8905--01; AT.F4; |
11215-50A15 |
US $20.92 |
||
|
11220A
|
11220A
01125-00651 BOLT8809--01 ~ ; ALL |
01125-00651 |
US $3.46 |
||
|
11220P
|
11220P
11210-77A10 Insulator-Engine Mounting, Rh8905--01 ~ ; GA15#.AT.F4.2WD |
11210-77A10 |
US $133.34 |
||
|
11220P
|
11220P
11210-80A00 Insulator-Engine Mounting, Rh8809--01 ~ 8905--01; GA15#.AT.F4 |
11210-80A00 |
US $133.34 |
||
|
11221P
|
11221P
11220-52A20 Insulator-Engine Mounting, Lh8809--01 ~ 8905--01; GA15#.AT.F4 |
11220-52A20 |
US $106.70 |
||
|
11221P
|
11221P
11220-91A00 Insulator-Engine Mounting, Lh8905--01 ~ ; GA15#.AT.F4 |
11220-91A00 |
US $128.88 |
||
|
11221P
|
11221P
11220-52A20 Insulator-Engine Mounting, Lh8809--01 ~ 8905--01; GA15#.AT.F4 |
11220-52A20 |
US $106.70 |
||
|
11221P
|
11221P
11220-91A00 Insulator-Engine Mounting, Lh8905--01 ~ ; GA15#.AT.F4 |
11220-91A00 |
US $128.88 |
||
|
11232
|
11232
11231-77A00 Bracket-Engine Mounting, Rh8809--01 ~ ; GA15# |
11231-77A00 |
US $84.82 |
||
|
11232
|
11232
01658-00251 PLUG-BLIND,ENGINE MOUNTING8610--01 ~ 8708--01; ALL; |
01658-00251 |
from US $0.50 |
||
|
11232
|
11232
0165801501 PLUG8809--01 ~ ; ALL; |
0165801501 |
US $3.06 |
||
|
11232E
|
11232E
01658-00251 PLUG-BLIND,ENGINE MOUNTING8610--01 ~ 8708--01; ALL; |
01658-00251 |
from US $0.50 |
||
|
11232E
|
11232E
0165801501 PLUG8809--01 ~ ; ALL; |
0165801501 |
US $3.06 |
||
|
11233E
|
11233E
0165801491 PLUG8809--01 ~ 8905--01; AT.F4; |
0165801491 |
US $2.45 |
||
|
11237
|
11237
11237-77A00 Stay-Engine Mounting, Rh8809--01 ~ ; GA15# |
11237-77A00 |
US $41.47 |
||
|
11237
|
11237
01121-03651 BOLT8809--01 ~ ; GA15# |
01121-03651 |
US $2.45 |
||
|
11237A
|
11237A
01121-03651 BOLT8809--01 ~ ; GA15# |
01121-03651 |
US $2.45 |
||
|
11252A
|
11252A
01125-00991 BOLT8809--01 ~ ; ALL |
01125-00991 |
US $4.30 |
||
|
11252B
|
11252B
0122500062 NUT8809--01 ~ ; ALL |
0122500062 |
from US $1.67 |
||
|
11252D
|
11252D
0122500062 NUT8809--01 ~ ; GA15#+CA16D |
0122500062 |
from US $1.67 |
||
|
11252M
|
11252M
11252-77A00 Support-Engine Mounting, Rh8809--01 ~ ; GA15# |
11252-77A00 |
US $82.80 |
||
|
11253A
|
11253A
01125-00631
BOLT
8905--01 ~ ; GA15#.AT.F4 |
01125-00631 |
— | ||
|
11253A
|
11253A
01125-01011 BOLT8809--01 ~ 8905--01; AT.F4 |
01125-01011 |
US $2.21 |
||
|
11253A
|
11253A
01125-01081 BOLT8610--01 ~ 8809--01; ALL; |
01125-01081 |
US $2.45 |
||
|
11253A
|
11253A
01125-00631
BOLT
8905--01 ~ ; GA15#.AT.F4 |
01125-00631 |
— | ||
|
11253A
|
11253A
01125-01011 BOLT8809--01 ~ 8905--01; AT.F4 |
01125-01011 |
US $2.21 |
||
|
11253A
|
11253A
01125-01081 BOLT8610--01 ~ 8809--01; ALL; |
01125-01081 |
US $2.45 |
||
|
11253B
|
11253B
0122500062 NUT8610--01 ~ 8809--01; ALL |
0122500062 |
from US $1.67 |
||
|
11253M
|
11253M
11253-50A16
Bracket-Engine Mounting, Lh
8905--01 ~ ; GA15#.AT.F4 |
11253-50A16 |
— | ||
|
11253M
|
11253M
11253-52A20 Bracket-Engine Mounting, Lh8809--01 ~ 8905--01; AT.F4 |
11253-52A20 |
US $50.69 |
||
|
11253M
|
11253M
11253-50A16
Bracket-Engine Mounting, Lh
8905--01 ~ ; GA15#.AT.F4 |
11253-50A16 |
— | ||
|
11253M
|
11253M
11253-52A20 Bracket-Engine Mounting, Lh8809--01 ~ 8905--01; AT.F4 |
11253-52A20 |
US $50.69 |
||
|
11254
|
11254
11254-52A21 Support-Engine Mounting, Lh8809--01 ~ 8905--01; AT.F4; |
11254-52A21 |
US $191.52 |
||
|
11271
|
11271
11271-52A00
Insulator-Engine Mounting
8905--01 ~ ; GA15#.2WD CA16D.MT |
11271-52A00 |
— | ||
|
11320
|
11320
11320-52A14 Insulator-Engine Mounting, Rear8905--01 ~ ; GA15E.AT.F4 |
11320-52A14 |
US $113.24 |
||
|
11320
|
11320
11320-52A22 Insulator-Engine Mounting, Rear8809--01 ~ 8905--01; GA15E.AT |
11320-52A22 |
US $161.28 |
||
|
11320
|
11320
01125-01011 BOLT8610--01 ~ 8809--01; 2WD |
01125-01011 |
US $2.21 |
||
|
11320
|
11320
01125-01081 BOLT8610--01 ~ 8809--01; 2WD |
01125-01081 |
US $2.45 |
||
|
11320A
|
11320A
01125-01011 BOLT8610--01 ~ 8809--01; 2WD |
01125-01011 |
US $2.21 |
||
|
11320D
|
11320D
01125-01081 BOLT8610--01 ~ 8809--01; 2WD |
01125-01081 |
US $2.45 |
||
|
11333M
|
11333M
11332-52A20 Bracket-Engine Mounting, Rear8809--01 ~ 8908--01; GA15E.AT |
11332-52A20 |
US $213.12 |
||
|
11333M
|
11333M
11332-52A20 Bracket-Engine Mounting, Rear8809--01 ~ 8908--01; GA15E.AT |
11332-52A20 |
US $213.12 |
||
|
11390
|
11390
11350-50A15 Buffer Assy-Engine Mounting8610--01 ~ ; AT |
11350-50A15 |
US $46.72 |
||
|
11390
|
11390
01125-01031 BOLT8610--01 ~ ; ALL |
01125-01031 |
US $3.06 |
||
|
11390
|
11390
0122500062 NUT8610--01 ~ ; ALL |
0122500062 |
from US $1.67 |
||
|
11390
|
11390
01125-00881
BOLT
8610--01 ~ ; ALL |
01125-00881 |
— | ||
|
11390A
|
11390A
01125-01031 BOLT8610--01 ~ ; ALL |
01125-01031 |
US $3.06 |
||
|
11390B
|
11390B
0122500062 NUT8610--01 ~ ; ALL |
0122500062 |
from US $1.67 |
||
|
11390E
|
11390E
01125-00881
BOLT
8610--01 ~ ; ALL |
01125-00881 |
— | ||
|
11394A
|
11394A
01121-01671 BOLT8610--01 ~ ; ALL |
01121-01671 |
US $2.45 |
||
|
11394A
|
11394A
01121-01671 BOLT8610--01 ~ ; ALL |
01121-01671 |
US $2.45 |
||
|
11394M
|
11394M
11356-77A00 Bracket-Buffer, Front8809--01 ~ ; GA15#.2WD |
11356-77A00 |
US $31.82 |
||
|
11394N
|
11394N
11355-50A00 Support-Buffer, Front8610--01 ~ 8809--01; 2WD |
11355-50A00 |
US $12.10 |
