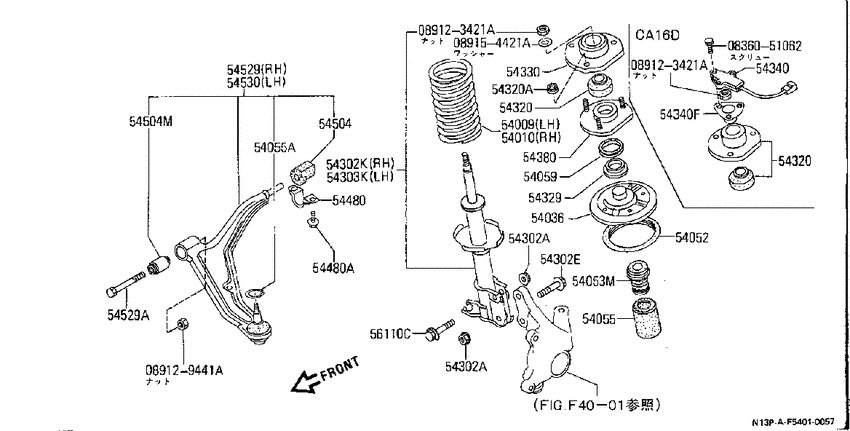

Front suspension (1986-10-01 ~ ; ストラット部品; ALL) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- SF
- body
- 3HB
- other
- N#
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836051062
|
0836051062
08360-51062
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51062 |
— | ||
|
089123421A
|
089123421A
08912-3421A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-3421A |
— | ||
|
089123421A
|
089123421A
08912-3421A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08912-3421A |
— | ||
|
089129441A
|
089129441A
089129441A NUTHEX |
089129441A |
from US $1.02 |
||
|
089154421A
|
089154421A
089154421A Washer-Plain |
089154421A |
from US $0.52 |
||
|
54009
|
54009
54010-53A10 Spring-Front, Lh8809--01 ~ ; GA15#.AT.F4+CD17; ﾋﾟﾝｸ ｷﾐﾄﾞﾘ |
54010-53A10 |
US $124.27 |
||
|
54010
|
54010
54010-53A11 Spring-Front, Lh8809--01 ~ ; GA15#.AT.F4+CD17; ﾋﾟﾝｸ ﾋﾟﾝｸX2 |
54010-53A11 |
US $161.28 |
||
|
54036
|
54036
54036-50A00 Seat-Front Spring8610--01 ~ ; ALL |
54036-50A00 |
US $15.70 |
||
|
54052
|
54052
55040D0100 Seat-Front Spring8610--01 ~ ; ALL |
55040D0100 |
from US $9.84 |
||
|
54053M
|
54053M
54052-50A00 Bumper Assy-Rebound8809--01 ~ ; GA15#.2WD+CD17 |
54052-50A00 |
from US $4.37 |
||
|
54053M
|
54053M
54052-52A00
Bumper Assy-Rebound
8610--01 ~ 8611--01; ALL |
54052-52A00 |
— | ||
|
54055
|
54055
5405501E00 COVER-DUST8610--01 ~ 8809--01; ALL |
5405501E00 |
US $5.04 |
||
|
54055
|
54055
01541-00041 RING-SNAP,DUST COVER8610--01 ~ ; ALL |
01541-00041 |
US $1.58 |
||
|
54055A
|
54055A
01541-00041 RING-SNAP,DUST COVER8610--01 ~ ; ALL |
01541-00041 |
US $1.58 |
||
|
54302A
|
54302A
0122500072 NUT8610--01 ~ ; ALL |
0122500072 |
US $1.05 |
||
|
54302A
|
54302A
0122500072 NUT8610--01 ~ ; ALL |
0122500072 |
US $1.05 |
||
|
54302E
|
54302E
40056-50A00 Bolt8610--01 ~ ; ALL |
40056-50A00 |
US $7.20 |
||
|
54302K
|
54302K
54302-58A25 Strut Kit-Front Suspension, Rh8809--01 ~ 8902--01; GA15E; ｺｸｲﾝNO 54302-58A01 ｱﾂｷﾞ |
54302-58A25 |
US $257.76 |
||
|
54302K
|
54302K
54302-58A26 Strut Kit-Front Suspension, Rh8809--01 ~ 8902--01; GA15E; ｺｸｲﾝNO 54302-58A01 ｶﾔﾊﾞ |
54302-58A26 |
US $329.93 |
||
| replacement | |||||
|
54302K
|
54302K
5430253A28 Strut Kit-Front Suspension, Rh8809--01 ~ 8902--01; GA15E; ｺｸｲﾝNO 54302-58A01 ｶﾔﾊﾞ |
5430253A28 |
US $213.12 |
||
|
54302K
|
54302K
54302-58A85 Strut Kit-Front Suspension, Rh8902--01 ~ ; GA15E; ｺｸｲﾝNO 54302-58A02 ｱﾂｷﾞ |
54302-58A85 |
US $257.76 |
||
|
54302K
|
54302K
54302-58A86 Strut Kit-Front Suspension, Rh8902--01 ~ ; GA15E; ｺｸｲﾝNO 54302-58A02 ｶﾔﾊﾞ |
54302-58A86 |
US $332.76 |
||
| replacement | |||||
|
54302K
|
54302K
5430253A28 Strut Kit-Front Suspension, Rh8902--01 ~ ; GA15E; ｺｸｲﾝNO 54302-58A02 ｶﾔﾊﾞ |
5430253A28 |
US $213.12 |
||
|
54303K
|
54303K
54303-58A25 Strut Kit-Front Suspension, Lh8809--01 ~ 8902--01; GA15E; ｺｸｲﾝNO 54303-58A01 ｱﾂｷﾞ |
54303-58A25 |
US $257.76 |
||
|
54303K
|
54303K
54303-58A26 Strut Kit-Front Suspension, Lh8809--01 ~ 8902--01; GA15E; ｺｸｲﾝNO 54303-58A01 ｶﾔﾊﾞ |
54303-58A26 |
US $329.93 |
||
| replacement | |||||
|
54303K
|
54303K
54303-53A28
Strut kit-front suspension,lh
8809--01 ~ 8902--01; GA15E; ｺｸｲﾝNO 54303-58A01 ｶﾔﾊﾞ |
54303-53A28 |
— | ||
|
54303K
|
54303K
54303-58A85 Strut Kit-Front Suspension, Lh8902--01 ~ ; GA15E; ｺｸｲﾝNO 54303-50A02 ｱﾂｷﾞ |
54303-58A85 |
US $257.76 |
||
|
54303K
|
54303K
54303-58A86 Strut Kit-Front Suspension, Lh8902--01 ~ ; GA15E; ｺｸｲﾝNO 54303-50A02 ｶﾔﾊﾞ |
54303-58A86 |
US $332.76 |
||
| replacement | |||||
|
54303K
|
54303K
54303-53A28
Strut kit-front suspension,lh
8902--01 ~ ; GA15E; ｺｸｲﾝNO 54303-50A02 ｶﾔﾊﾞ |
54303-53A28 |
— | ||
|
54320
|
54320
54320-50A00 Insulator Assy-Strut Mounting8809--01 ~ ; GA15#+CD17 |
54320-50A00 |
US $16.13 |
||
|
54320
|
54320
0122500102 NUT8610--01 ~ ; ALL |
0122500102 |
from US $0.56 |
||
|
54320
|
54320
54320-50A00 Insulator Assy-Strut Mounting8809--01 ~ ; GA15#+CD17 |
54320-50A00 |
US $16.13 |
||
|
54320
|
54320
0122500102 NUT8610--01 ~ ; ALL |
0122500102 |
from US $0.56 |
||
|
54320A
|
54320A
0122500102 NUT8610--01 ~ ; ALL |
0122500102 |
from US $0.56 |
||
|
54329
|
54329
54329-16A00 Seat-Thrust8809--01 ~ ; GA15E+CA16D |
54329-16A00 |
from US $15.41 |
||
|
54330
|
54330
54323-50A00 Cap-Front Strut Insulator8809--01 ~ ; GA15#+CD17 |
54323-50A00 |
US $8.06 |
||
|
54380
|
54380
54322-50A00 Stopper-Insulator8610--01 ~ ; ALL |
54322-50A00 |
US $13.54 |
||
|
54480
|
54480
54576-50A00 Bracket Assy-Tension Rod8610--01 ~ ; ALL |
54576-50A00 |
US $6.24 |
||
|
54480
|
54480
01121-01191 BOLT8610--01 ~ ; ALL |
01121-01191 |
US $4.16 |
||
|
54480A
|
54480A
01121-01191 BOLT8610--01 ~ ; ALL |
01121-01191 |
US $4.16 |
||
|
54504
|
54504
54570-50A10 Bush-Mounting, Tension Rod8610--01 ~ ; ALL; |
54570-50A10 |
US $26.93 |
||
|
54504
|
54504
54560-50A00 Bush Assy-Lower Link8610--01 ~ ; ALL |
54560-50A00 |
US $16.42 |
||
|
54504M
|
54504M
54560-50A00 Bush Assy-Lower Link8610--01 ~ ; ALL |
54560-50A00 |
US $16.42 |
||
|
54529
|
54529
54500-50A00 Arm Assy-Lower, Rh8610--01 ~ ; ALL |
54500-50A00 |
US $210.24 |
||
| replacement | |||||
|
54529
|
54529
54500-65A00
Arm assy-lower,rh
8610--01 ~ ; ALL |
54500-65A00 |
— | ||
|
54529
|
54529
54368-50A00 Bolt8610--01 ~ ; ALL |
54368-50A00 |
US $5.96 |
||
|
54529A
|
54529A
54368-50A00 Bolt8610--01 ~ ; ALL |
54368-50A00 |
US $5.96 |
||
|
54530
|
54530
54501-50A00 Arm Assy-Lower, Lh8610--01 ~ ; ALL |
54501-50A00 |
US $210.24 |
||
| replacement | |||||
|
54530
|
54530
54501-65A00
Arm assy-lower,lh
8610--01 ~ ; ALL |
54501-65A00 |
— | ||
|
56110C
|
56110C
56127-50A00 Bolt8610--01 ~ ; ALL |
56127-50A00 |
US $4.90 |
||
