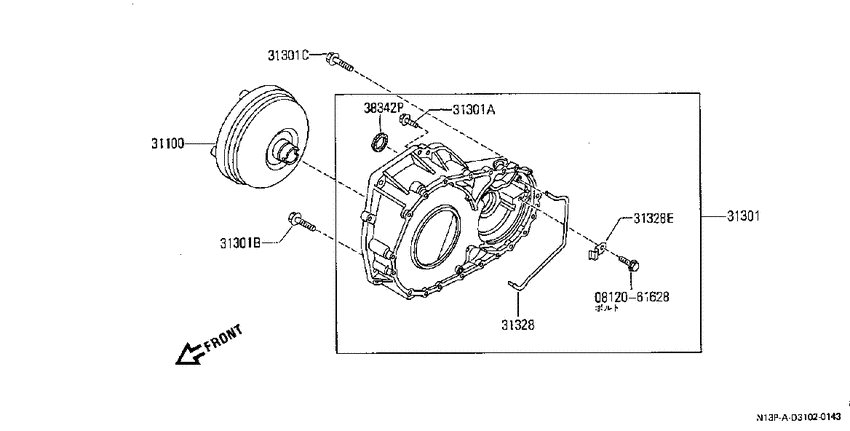

ﾄﾙｸ ｺﾝﾊﾞ-ﾀ- & ｹ-ｽ (1989-05-01 ~ ; "(その1)コンバーター&ハウジング; (GA15E+GA15S).AT.F4) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- SF
- body
- 3HB
- other
- N#
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
31100
|
31100
31100-21X14 Converter Assy-Torque8809--01 ~ 8905--01; GA15#.AT.F4; |
31100-21X14 |
US $1,411.75 |
||
|
31100
|
31100
31100-31X05 Converter Assy-Torque8905--01 ~ 8907--01; GA15#.AT.F4 RL4F03A |
31100-31X05 |
US $1,411.75 |
||
|
31100
|
31100
31100-31X14 Converter Assy-Torque8907--01 ~ 9002--01; GA15#.AT.F4 RL4F03A |
31100-31X14 |
US $1,411.75 |
||
|
31100
|
31100
31100-31X15 Converter Assy-Torque9002--01 ~ ; GA15#.AT.F4 RL4F03A |
31100-31X15 |
US $1,203.60 |
||
|
31301
|
31301
31300-31X00 Housing-Converter8905--01 ~ ; GA15#.AT.F4 RL4F03A |
31300-31X00 |
US $574.90 |
||
|
31301
|
31301
01121-02431 BOLT8809--01 ~ 8905--01; AT.F4; |
01121-02431 |
US $1.73 |
||
|
31301
|
31301
31377-31X01 Bolt8905--01 ~ ; GA15#.AT.F4 RL4F03A |
31377-31X01 |
US $2.45 |
||
|
31301
|
31301
01121-02441 BOLT8809--01 ~ 8905--01; AT.F4; |
01121-02441 |
US $1.73 |
||
|
31301
|
31301
31377-31X02 Bolt8905--01 ~ 9005--01; GA15#.AT.F4 RL4F03A |
31377-31X02 |
US $2.45 |
||
|
31301
|
31301
31377-31X11 Bolt9005--01 ~ ; GA15#.AT.F4 RL4F03A |
31377-31X11 |
US $2.45 |
||
|
31301
|
31301
01121-02461 BOLT8809--01 ~ 8905--01; AT.F4; |
01121-02461 |
US $1.73 |
||
|
31301
|
31301
31377-31X03 Bolt8905--01 ~ ; GA15#.AT.F4 RL4F03A |
31377-31X03 |
US $2.45 |
||
|
31301
|
31301
24210-31X02 Clip8905--01 ~ ; GA15#.AT.F4 RL4F03A; |
24210-31X02 |
US $5.47 |
||
|
31301
|
31301
31377-21X02 Bolt8809--01 ~ 8905--01; AT.F4 |
31377-21X02 |
US $1.73 |
||
|
31301
|
31301
31377-21X03 Bolt8809--01 ~ 8905--01; AT.F4 |
31377-21X03 |
US $1.73 |
||
|
31301A
|
31301A
01121-02431 BOLT8809--01 ~ 8905--01; AT.F4; |
01121-02431 |
US $1.73 |
||
|
31301A
|
31301A
31377-31X01 Bolt8905--01 ~ ; GA15#.AT.F4 RL4F03A |
31377-31X01 |
US $2.45 |
||
|
31301B
|
31301B
01121-02441 BOLT8809--01 ~ 8905--01; AT.F4; |
01121-02441 |
US $1.73 |
||
|
31301B
|
31301B
31377-31X02 Bolt8905--01 ~ 9005--01; GA15#.AT.F4 RL4F03A |
31377-31X02 |
US $2.45 |
||
|
31301B
|
31301B
31377-31X11 Bolt9005--01 ~ ; GA15#.AT.F4 RL4F03A |
31377-31X11 |
US $2.45 |
||
|
31301C
|
31301C
01121-02461 BOLT8809--01 ~ 8905--01; AT.F4; |
01121-02461 |
US $1.73 |
||
|
31301C
|
31301C
31377-31X03 Bolt8905--01 ~ ; GA15#.AT.F4 RL4F03A |
31377-31X03 |
US $2.45 |
||
|
31328
|
31328
31328-21X01 Tube-Lubricant8809--01 ~ 8905--01; AT.F4; |
31328-21X01 |
US $15.55 |
||
|
31328
|
31328
31328-31X01 Tube-Lubricant8905--01 ~ ; GA15#.AT.F4 RL4F03A |
31328-31X01 |
US $14.40 |
||
|
31328
|
31328
31376-31X00 Clip8905--01 ~ ; GA15#.AT.F4 RL4F03A |
31376-31X00 |
US $2.45 |
||
|
31328E
|
31328E
31376-31X00 Clip8905--01 ~ ; GA15#.AT.F4 RL4F03A |
31376-31X00 |
US $2.45 |
||
|
38342P
|
38342P
3834203E00 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE8809--01 ~ 8905--01; (GA15E+GA15S).AT.F4; |
3834203E00 |
US $10.04 |
||
|
38342P
|
38342P
38342-31X00
Seal-Oil, Differential Converter Housing
8905--01 ~ ; (GA15E+GA15S).AT.F4 |
38342-31X00 |
— | ||
| replacement | |||||
|
38342P
|
38342P
383428E000 SEAL-OIL,DIFFERENTIAL CONVERTER HOUSING8905--01 ~ ; (GA15E+GA15S).AT.F4 |
383428E000 |
from US $4.23 |
||
