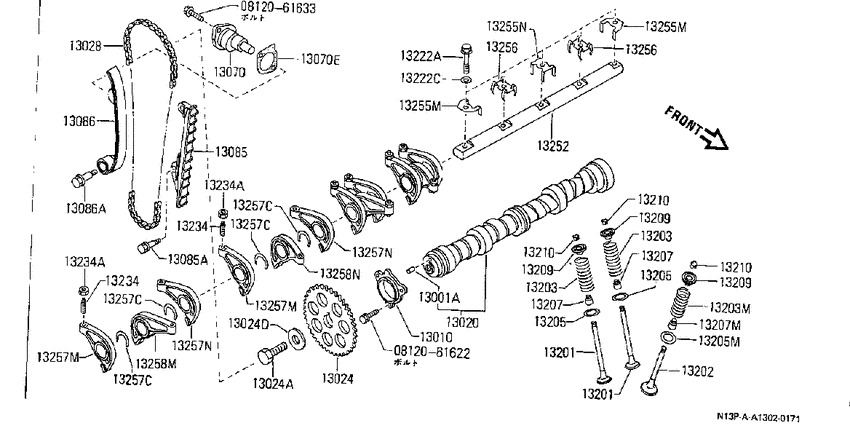

cam shaft & ﾊﾞﾙﾌﾞ ﾒｶﾆｽﾞﾑ (1988-09-01 ~ ; GA15#) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- SF
- body
- 3HB
- other
- N#
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061622
|
0812061622
08120-61622
Bolt-hexagon
|
08120-61622 |
— | ||
|
0812061633
|
0812061633
08120-61633
Bolt-hexagon
|
08120-61633 |
— | ||
| replacement | |||||
|
0812061633
|
0812061633
08120-6161F Bolt-hexagon |
08120-6161F |
from US $2.36 |
||
|
13001A
|
13001A
1303218000 Dowel-Camshaft8809--01 ~ ; GA15#; |
1303218000 |
from US $0.57 |
||
|
13010
|
13010
13010-77A00 Plate-Locating, Camshaft8809--01 ~ ; GA15#; |
13010-77A00 |
US $15.12 |
||
|
13020
|
13020
13020-77A10 Camshaft Assy8809--01 ~ ; GA15# |
13020-77A10 |
US $406.39 |
||
|
13024
|
13024
13024-77A00 Sprocket-Camshaft8809--01 ~ ; GA15#; ﾂﾊﾞｷﾓﾄ ｾｲ |
13024-77A00 |
US $93.52 |
||
|
13024
|
13024
13012-16A01 Bolt-Sprocket, Camshaft8809--01 ~ ; GA15# |
13012-16A01 |
US $3.88 |
||
|
13024
|
13024
13015-16A00 Washer-Plain8809--01 ~ ; GA15# |
13015-16A00 |
US $4.18 |
||
|
13024A
|
13024A
13012-16A01 Bolt-Sprocket, Camshaft8809--01 ~ ; GA15# |
13012-16A01 |
US $3.88 |
||
|
13024D
|
13024D
13015-16A00 Washer-Plain8809--01 ~ ; GA15# |
13015-16A00 |
US $4.18 |
||
|
13028
|
13028
1302877A01 Chain-Timing Camshaft8809--01 ~ ; GA15#; |
1302877A01 |
US $75.74 |
||
|
13070
|
13070
1307077A12 Tensioner Assy-Chain8809--01 ~ ; GA15#; |
1307077A12 |
from US $41.59 |
||
|
13070
|
13070
1307953Y00 Gasket-Chain Tensioner9005--01 ~ ; GA15#; |
1307953Y00 |
from US $0.94 |
||
|
13070
|
13070
13079-77A10 Gasket-Chain Tensioner8809--01 ~ 9005--01; GA15#; |
13079-77A10 |
US $1.73 |
||
|
13070E
|
13070E
1307953Y00 Gasket-Chain Tensioner9005--01 ~ ; GA15#; |
1307953Y00 |
from US $0.94 |
||
|
13070E
|
13070E
13079-77A10 Gasket-Chain Tensioner8809--01 ~ 9005--01; GA15#; |
13079-77A10 |
US $1.73 |
||
|
13085
|
13085
13085-77A03 Guide-Chain, Tension Side8809--01 ~ ; GA15#; |
13085-77A03 |
US $25.20 |
||
| replacement | |||||
|
13085
|
13085
1308577A04 GUIDE CHAIN8809--01 ~ ; GA15#; |
1308577A04 |
US $15.04 |
||
|
13085
|
13085
13075-77A01 Bolt8809--01 ~ ; GA15# |
13075-77A01 |
US $3.46 |
||
|
13085A
|
13085A
13075-77A01 Bolt8809--01 ~ ; GA15# |
13075-77A01 |
US $3.46 |
||
|
13086
|
13086
1309177A01 Guide-Chain, Slack Side8809--01 ~ ; GA15#; |
1309177A01 |
US $18.14 |
||
|
13086
|
13086
13094-77A00 Bolt8809--01 ~ ; GA15# |
13094-77A00 |
US $3.46 |
||
|
13086A
|
13086A
13094-77A00 Bolt8809--01 ~ ; GA15# |
13094-77A00 |
US $3.46 |
||
|
13201
|
13201
13201-77A00 Valve-Intake8809--01 ~ ; GA15# |
13201-77A00 |
US $35.14 |
||
|
13201
|
13201
13201-77A00 Valve-Intake8809--01 ~ ; GA15# |
13201-77A00 |
US $35.14 |
||
|
13202
|
13202
13202-77A00 Valve-Exhaust8809--01 ~ ; GA15# |
13202-77A00 |
US $45.79 |
||
|
13203
|
13203
13203-77A00 Spring-Valve, Outer8809--01 ~ 8809--01; GA15#; NHK ｾﾝﾀｸ ｼﾖｳ |
13203-77A00 |
US $9.36 |
||
|
13203
|
13203
13203-77A01 Spring-Valve, Outer8809--01 ~ 8809--01; GA15#; KHK ｾﾝﾀｸ ｼﾖｳ |
13203-77A01 |
US $9.36 |
||
|
13203
|
13203
13203-84A05 Spring-Valve, Outer8809--01 ~ ; GA15#; NHK ｾﾝﾀｸ ｼﾖｳ |
13203-84A05 |
US $9.36 |
||
|
13203
|
13203
13203-84A06 Spring-Valve, Outer8809--01 ~ ; GA15#; KHK ｾﾝﾀｸ ｼﾖｳ |
13203-84A06 |
US $9.36 |
||
|
13203
|
13203
13203-77A10 Spring-Valve, Outer8809--01 ~ ; GA15#; NHK ｾﾝﾀｸ ｼﾖｳ |
13203-77A10 |
US $5.04 |
||
|
13203
|
13203
13203-77A11 Spring-Valve, Outer8809--01 ~ ; GA15#; KHK ｾﾝﾀｸ ｼﾖｳ |
13203-77A11 |
US $5.04 |
||
|
13203
|
13203
13203-77A00 Spring-Valve, Outer8809--01 ~ 8809--01; GA15#; NHK ｾﾝﾀｸ ｼﾖｳ |
13203-77A00 |
US $9.36 |
||
|
13203
|
13203
13203-77A01 Spring-Valve, Outer8809--01 ~ 8809--01; GA15#; KHK ｾﾝﾀｸ ｼﾖｳ |
13203-77A01 |
US $9.36 |
||
|
13203
|
13203
13203-84A05 Spring-Valve, Outer8809--01 ~ ; GA15#; NHK ｾﾝﾀｸ ｼﾖｳ |
13203-84A05 |
US $9.36 |
||
|
13203
|
13203
13203-84A06 Spring-Valve, Outer8809--01 ~ ; GA15#; KHK ｾﾝﾀｸ ｼﾖｳ |
13203-84A06 |
US $9.36 |
||
|
13203
|
13203
13203-77A10 Spring-Valve, Outer8809--01 ~ ; GA15#; NHK ｾﾝﾀｸ ｼﾖｳ |
13203-77A10 |
US $5.04 |
||
|
13203
|
13203
13203-77A11 Spring-Valve, Outer8809--01 ~ ; GA15#; KHK ｾﾝﾀｸ ｼﾖｳ |
13203-77A11 |
US $5.04 |
||
|
13203M
|
13203M
13203-77A10 Spring-Valve, Outer8809--01 ~ ; GA15#; NHK ｾﾝﾀｸ ｼﾖｳ |
13203-77A10 |
US $5.04 |
||
|
13203M
|
13203M
13203-77A11 Spring-Valve, Outer8809--01 ~ ; GA15#; KHK ｾﾝﾀｸ ｼﾖｳ |
13203-77A11 |
US $5.04 |
||
|
13205
|
13205
13205-77A00 Seat-Valve Spring, Outer8809--01 ~ ; GA15#; |
13205-77A00 |
US $1.87 |
||
|
13205
|
13205
13205-77A10 Seat-Valve Spring, Outer8809--01 ~ ; GA15#; |
13205-77A10 |
US $1.87 |
||
|
13205
|
13205
13205-77A00 Seat-Valve Spring, Outer8809--01 ~ ; GA15#; |
13205-77A00 |
US $1.87 |
||
|
13205
|
13205
13205-77A10 Seat-Valve Spring, Outer8809--01 ~ ; GA15#; |
13205-77A10 |
US $1.87 |
||
|
13205M
|
13205M
13205-77A10 Seat-Valve Spring, Outer8809--01 ~ ; GA15#; |
13205-77A10 |
US $1.87 |
||
|
13207
|
13207
1320784A00 Seal-Oil, Valve9004--01 ~ ; GA15#; ｾﾝﾀｸ ｼﾖｳ ｷ-ﾊﾟ- |
1320784A00 |
US $3.89 |
||
|
13207
|
13207
13207-D4200 Seal-Oil, Valve8809--01 ~ 9004--01; GA15#; ｷ-ﾊﾟ- ｾﾝﾀｸ ｼﾖｳ |
13207-D4200 |
US $4.75 |
||
|
13207
|
13207
13207-D4201 Seal-Oil, Valve8809--01 ~ ; GA15#; NOK ｾﾝﾀｸ ｼﾖｳ |
13207-D4201 |
from US $4.33 |
||
| replacement | |||||
|
13207
|
13207
1320784A00 Seal-Oil, Valve8809--01 ~ ; GA15#; NOK ｾﾝﾀｸ ｼﾖｳ |
1320784A00 |
US $3.89 |
||
|
13207
|
13207
13207-77A00 Seal-Oil, Valve8809--01 ~ ; GA15#; NOK ｾﾝﾀｸ ｼﾖｳ |
13207-77A00 |
US $5.18 |
||
|
13207
|
13207
13207-77A10 Seal-Oil, Valve8809--01 ~ ; GA15#; ｷ-ﾊﾟ- ｾﾝﾀｸ ｼﾖｳ |
13207-77A10 |
US $5.18 |
||
|
13207
|
13207
1320784A00 Seal-Oil, Valve9004--01 ~ ; GA15#; ｾﾝﾀｸ ｼﾖｳ ｷ-ﾊﾟ- |
1320784A00 |
US $3.89 |
||
|
13207
|
13207
13207-D4200 Seal-Oil, Valve8809--01 ~ 9004--01; GA15#; ｷ-ﾊﾟ- ｾﾝﾀｸ ｼﾖｳ |
13207-D4200 |
US $4.75 |
||
|
13207
|
13207
13207-D4201 Seal-Oil, Valve8809--01 ~ ; GA15#; NOK ｾﾝﾀｸ ｼﾖｳ |
13207-D4201 |
from US $4.33 |
||
| replacement | |||||
|
13207
|
13207
1320784A00 Seal-Oil, Valve8809--01 ~ ; GA15#; NOK ｾﾝﾀｸ ｼﾖｳ |
1320784A00 |
US $3.89 |
||
|
13207
|
13207
13207-77A00 Seal-Oil, Valve8809--01 ~ ; GA15#; NOK ｾﾝﾀｸ ｼﾖｳ |
13207-77A00 |
US $5.18 |
||
|
13207
|
13207
13207-77A10 Seal-Oil, Valve8809--01 ~ ; GA15#; ｷ-ﾊﾟ- ｾﾝﾀｸ ｼﾖｳ |
13207-77A10 |
US $5.18 |
||
|
13207M
|
13207M
13207-77A00 Seal-Oil, Valve8809--01 ~ ; GA15#; NOK ｾﾝﾀｸ ｼﾖｳ |
13207-77A00 |
US $5.18 |
||
|
13207M
|
13207M
13207-77A10 Seal-Oil, Valve8809--01 ~ ; GA15#; ｷ-ﾊﾟ- ｾﾝﾀｸ ｼﾖｳ |
13207-77A10 |
US $5.18 |
||
|
13209
|
13209
13209-77A01 Retainer-valve spring8809--01 ~ ; GA15#; |
13209-77A01 |
US $5.04 |
||
|
13209
|
13209
13209-77A01 Retainer-valve spring8809--01 ~ ; GA15#; |
13209-77A01 |
US $5.04 |
||
|
13209
|
13209
13209-77A01 Retainer-valve spring8809--01 ~ ; GA15#; |
13209-77A01 |
US $5.04 |
||
|
13210
|
13210
13210D4200 Collet-Valve Spring8809--01 ~ ; GA15# |
13210D4200 |
from US $0.81 |
||
|
13210
|
13210
13210D4200 Collet-Valve Spring8809--01 ~ ; GA15# |
13210D4200 |
from US $0.81 |
||
|
13210
|
13210
13210D4200 Collet-Valve Spring8809--01 ~ ; GA15# |
13210D4200 |
from US $0.81 |
||
|
13222A
|
13222A
13058-77A01 Bolt-Rocker Shaft8809--01 ~ ; GA15#; M10X34 |
13058-77A01 |
US $2.45 |
||
|
13222C
|
13222C
0131101151 WASHER-PLAIN8809--01 ~ ; GA15#; |
0131101151 |
US $2.45 |
||
|
13234
|
13234
13287-01B00 Screw-Adjust, Valve Rocker8809--01 ~ ; GA15# |
13287-01B00 |
US $3.46 |
||
|
13234
|
13234
01211-00491 NUT-LOCK,ROCKER PIVOT SCREW8809--01 ~ ; GA15#; |
01211-00491 |
US $1.73 |
||
|
13234
|
13234
13287-01B00 Screw-Adjust, Valve Rocker8809--01 ~ ; GA15# |
13287-01B00 |
US $3.46 |
||
|
13234
|
13234
01211-00491 NUT-LOCK,ROCKER PIVOT SCREW8809--01 ~ ; GA15#; |
01211-00491 |
US $1.73 |
||
|
13234A
|
13234A
01211-00491 NUT-LOCK,ROCKER PIVOT SCREW8809--01 ~ ; GA15#; |
01211-00491 |
US $1.73 |
||
|
13234A
|
13234A
01211-00491 NUT-LOCK,ROCKER PIVOT SCREW8809--01 ~ ; GA15#; |
01211-00491 |
US $1.73 |
||
|
13252
|
13252
13252-77A03 Shaft-Rocker8809--01 ~ ; GA15#; |
13252-77A03 |
US $62.21 |
||
|
13255M
|
13255M
13255-77A01 Retainer-Rocker Shaft8809--01 ~ ; GA15#; |
13255-77A01 |
US $1.87 |
||
|
13255M
|
13255M
13255-77A01 Retainer-Rocker Shaft8809--01 ~ ; GA15#; |
13255-77A01 |
US $1.87 |
||
|
13255N
|
13255N
1326077A01 Retainer-Rocker Shaft, Center8809--01 ~ ; GA15#; |
1326077A01 |
US $1.87 |
||
|
13256
|
13256
13256-77A01 Spring-Rocker8809--01 ~ ; GA15#; |
13256-77A01 |
US $5.04 |
||
|
13256
|
13256
13256-77A01 Spring-Rocker8809--01 ~ ; GA15#; |
13256-77A01 |
US $5.04 |
||
|
13257C
|
13257C
13297-77A01 Spacer-Rocker Shaft8809--01 ~ ; GA15#; |
13297-77A01 |
US $1.87 |
||
|
13257C
|
13257C
13297-77A01 Spacer-Rocker Shaft8809--01 ~ ; GA15#; |
13297-77A01 |
US $1.87 |
||
|
13257C
|
13257C
13297-77A01 Spacer-Rocker Shaft8809--01 ~ ; GA15#; |
13297-77A01 |
US $1.87 |
||
|
13257C
|
13257C
13297-77A01 Spacer-Rocker Shaft8809--01 ~ ; GA15#; |
13297-77A01 |
US $1.87 |
||
|
13257M
|
13257M
13258-77A00 Rocker-Valve8809--01 ~ ; GA15#; |
13258-77A00 |
US $33.84 |
||
|
13257M
|
13257M
13258-77A00 Rocker-Valve8809--01 ~ ; GA15#; |
13258-77A00 |
US $33.84 |
||
|
13257N
|
13257N
13258-77A01 Rocker-Valve8809--01 ~ ; GA15#; I32 |
13258-77A01 |
US $33.84 |
||
|
13257N
|
13257N
13258-77A01 Rocker-Valve8809--01 ~ ; GA15#; I32 |
13258-77A01 |
US $33.84 |
||
|
13258M
|
13258M
13258-77A12 Rocker-Valve8809--01 ~ ; GA15#; E31 ｴｷｿﾞ-ｽﾄ #2,#4 |
13258-77A12 |
US $33.84 |
||
|
13258N
|
13258N
13258-77A13 Rocker-Valve8809--01 ~ ; GA15#; E ｴｷｿﾞ-ｽﾄ #1,#3 |
13258-77A13 |
US $33.84 |
||
