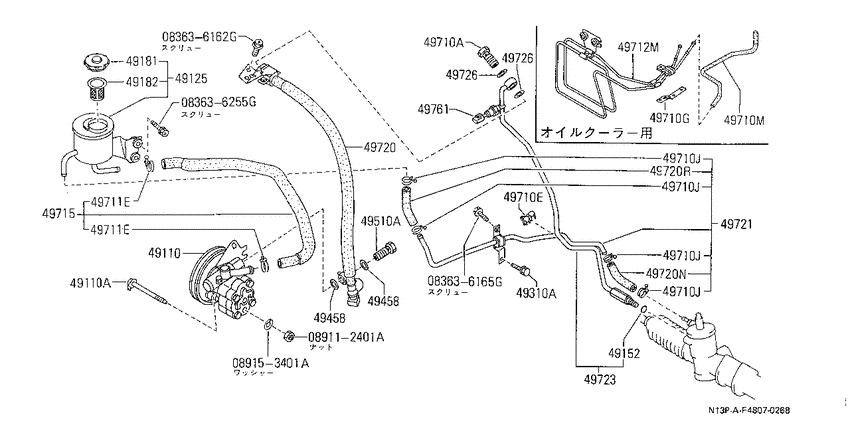

power steering control (1988-09-01 ~ ; パイピング部品; GA15#) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- SF
- body
- 3HB
- other
- N#
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636255G
|
083636255G
08363-6255G
SCREWMACHINE
|
08363-6255G |
— | ||
|
089112401A
|
089112401A
089112401A Nut |
089112401A |
US $2.21 |
||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
49110
|
49110
49110-77A00 Pump Assy-Power Steering8809--01 ~ ; GA15S.(F+X+FL+GF+SL+SF)+GA15E |
49110-77A00 |
US $1,353.70 |
||
|
49110
|
49110
49149-77A00 Bolt8809--01 ~ ; GA15S.(F+X+FL+GF+SL+SF) +GA15E |
49149-77A00 |
US $4.32 |
||
|
49110
|
49110
4959150L27 Seal Kit-Power Steering Pump8809--01 ~ ; GA15S.(F+X+FL+GF+SL+SF) +GA15E |
4959150L27 |
US $15.25 |
||
|
49110A
|
49110A
49149-77A00 Bolt8809--01 ~ ; GA15S.(F+X+FL+GF+SL+SF) +GA15E |
49149-77A00 |
US $4.32 |
||
|
49152
|
49152
4974501E00 SEAL-O RING8809--01 ~ ; GA15#.AT.F4 |
4974501E00 |
US $2.78 |
||
|
49181
|
49181
49181-W1700
Cap Assy-Pump
8610--01 ~ 8711--01; (F5+AT).2WD *F4; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49181-W1700 |
— | ||
| replacement | |||||
|
49181
|
49181
49181W1705 Cap Assy-Pump8610--01 ~ 8711--01; (F5+AT).2WD *F4; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49181W1705 |
from US $14.42 |
||
|
49182
|
49182
49182-42L00 Filter Assy-Pump8610--01 ~ 8711--01; *F4; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49182-42L00 |
US $5.55 |
||
|
49310A
|
49310A
01466-00121 SCREW8809--01 ~ ; 5GA15#.AT.F4 GA15S.4WD+CA16D *GA15S.(L+FC); ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
01466-00121 |
US $1.73 |
||
|
49458
|
49458
49726Y0100 Washer-Copper8809--01 ~ ; GA15# |
49726Y0100 |
from US $1.72 |
||
|
49458
|
49458
49726Y0100 Washer-Copper8809--01 ~ ; GA15# |
49726Y0100 |
from US $1.72 |
||
|
49510A
|
49510A
0161900011 BOLT8809--01 ~ ; GA15# |
0161900011 |
from US $3.76 |
||
|
49710A
|
49710A
49738-V5000 Bolt-Connector8809--01 ~ ; 4GA15#.AT.F4+CD17 GA15S.4WD+CA16D GA15S.(L+FC) |
49738-V5000 |
US $5.47 |
||
| replacement | |||||
|
49710A
|
49710A
49738V500A Bolt8809--01 ~ ; 4GA15#.AT.F4+CD17 GA15S.4WD+CA16D GA15S.(L+FC) |
49738V500A |
US $5.33 |
||
|
49710E
|
49710E
49791-50A00 Clamp8809--01 ~ ; 5GA15#.AT.F4 GA15S.4WD+CA16D *GA15S.(L+FC); ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49791-50A00 |
US $5.18 |
||
|
49710J
|
49710J
01555-00211
CLAMP-HOSE
8610--01 ~ 8704--01; F5+AT *F4; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
01555-00211 |
— | ||
| replacement | |||||
|
49710J
|
49710J
0155500811 CLAMP-HOSE8610--01 ~ 8704--01; F5+AT *F4; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500811 |
US $3.06 |
||
|
49710J
|
49710J
0155500691 CLAMP8809--01 ~ ; 4GA15#.AT.F4+CD17 GA15S +CA16D GA15S.(L+FC); |
0155500691 |
from US $2.11 |
||
|
49710J
|
49710J
01555-00211
CLAMP-HOSE
8610--01 ~ 8704--01; F5+AT *F4; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
01555-00211 |
— | ||
| replacement | |||||
|
49710J
|
49710J
0155500811 CLAMP-HOSE8610--01 ~ 8704--01; F5+AT *F4; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500811 |
US $3.06 |
||
|
49710J
|
49710J
0155500691 CLAMP8809--01 ~ ; 4GA15#.AT.F4+CD17 GA15S +CA16D GA15S.(L+FC); |
0155500691 |
from US $2.11 |
||
|
49710J
|
49710J
01555-00211
CLAMP-HOSE
8610--01 ~ 8704--01; F5+AT *F4; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
01555-00211 |
— | ||
| replacement | |||||
|
49710J
|
49710J
0155500811 CLAMP-HOSE8610--01 ~ 8704--01; F5+AT *F4; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500811 |
US $3.06 |
||
|
49710J
|
49710J
0155500691 CLAMP8809--01 ~ ; 4GA15#.AT.F4+CD17 GA15S +CA16D GA15S.(L+FC); |
0155500691 |
from US $2.11 |
||
|
49710J
|
49710J
01555-00211
CLAMP-HOSE
8610--01 ~ 8704--01; F5+AT *F4; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
01555-00211 |
— | ||
| replacement | |||||
|
49710J
|
49710J
0155500811 CLAMP-HOSE8610--01 ~ 8704--01; F5+AT *F4; ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
0155500811 |
US $3.06 |
||
|
49710J
|
49710J
0155500691 CLAMP8809--01 ~ ; 4GA15#.AT.F4+CD17 GA15S +CA16D GA15S.(L+FC); |
0155500691 |
from US $2.11 |
||
|
49711E
|
49711E
01555-00241 CLIP8809--01 ~ ; 4GA15#.AT.F4+CD17 GA15S.4WD+CA16D GA15S.(L+FC); |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
49711E
|
49711E
0155500861 CLIP8809--01 ~ ; 4GA15#.AT.F4+CD17 GA15S.4WD+CA16D GA15S.(L+FC); |
0155500861 |
US $2.45 |
||
|
49711E
|
49711E
01555-00241 CLIP8809--01 ~ ; 4GA15#.AT.F4+CD17 GA15S.4WD+CA16D GA15S.(L+FC); |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
49711E
|
49711E
0155500861 CLIP8809--01 ~ ; 4GA15#.AT.F4+CD17 GA15S.4WD+CA16D GA15S.(L+FC); |
0155500861 |
US $2.45 |
||
|
49715
|
49715
49717-77A00 Hose-Pump To Reservoir Tank8809--01 ~ ; 5GA15#.(F+X+GT+FL+GF+SL+SF) *GA15S.(L+FC); ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49717-77A00 |
US $78.05 |
||
|
49720
|
49720
49720-88M00 Hose Assy-Pressure, Power Steering8809--01 ~ ; 5GA15#.(F+X+GT+FL+GF+SL+SF) *GA15S.(L+FC); ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49720-88M00 |
US $283.68 |
||
|
49720
|
49720
4972577A00 Hose-Return, Power Steering8905--01 ~ ; GA15#.AT.F4 |
4972577A00 |
US $36.43 |
||
|
49720
|
49720
4972577A10 Hose-Return, Power Steering8809--01 ~ 8905--01; GA15#.AT.F4; |
4972577A10 |
US $14.11 |
||
|
49720
|
49720
49725-55M00 Hose-Return Power Steering8809--01 ~ ; GA15#.2WD GA15S.MT.4WD |
49725-55M00 |
US $25.92 |
||
|
49720N
|
49720N
4972577A00 Hose-Return, Power Steering8905--01 ~ ; GA15#.AT.F4 |
4972577A00 |
US $36.43 |
||
|
49720N
|
49720N
4972577A10 Hose-Return, Power Steering8809--01 ~ 8905--01; GA15#.AT.F4; |
4972577A10 |
US $14.11 |
||
|
49720R
|
49720R
49725-55M00 Hose-Return Power Steering8809--01 ~ ; GA15#.2WD GA15S.MT.4WD |
49725-55M00 |
US $25.92 |
||
|
49721
|
49721
49721-77A00 Hose Assy-Power Steering8905--01 ~ ; GA15#.AT.F4 |
49721-77A00 |
US $72.72 |
||
|
49721
|
49721
49721-77A10 Hose Assy-Power Steering8809--01 ~ 8905--01; GA15#.AT.F4 |
49721-77A10 |
US $56.02 |
||
|
49723
|
49723
49713-88M10 Hose Assy-Power Steering8809--01 ~ ; GA15#.AT.F4 |
49713-88M10 |
US $139.25 |
||
|
49726
|
49726
4972650W00 Seal-O Ring8809--01 ~ ; EGA15#.AT.F4+CD17 GA15S.4WD+CA16D GA15S.(L+FC+X) 2WD.GA15E; DUMMY |
4972650W00 |
from US $1.94 |
||
|
49726
|
49726
4972650W00 Seal-O Ring8809--01 ~ ; EGA15#.AT.F4+CD17 GA15S.4WD+CA16D GA15S.(L+FC+X) 2WD.GA15E; DUMMY |
4972650W00 |
from US $1.94 |
||
|
49761
|
49761
49761V5400 Switch-Pressure, Power Steering8809--01 ~ ; GA15# |
49761V5400 |
US $59.04 |
||
