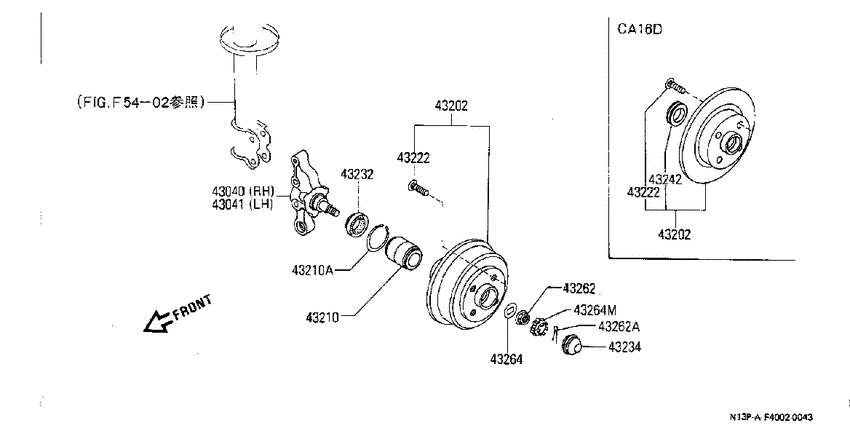

Rear axle (1986-10-01 ~ ; 2WD) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- SF
- body
- 3HB
- other
- N#
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43040
|
43040
43040-50A05 Spindle-Rear Housing, Rh8809--01 ~ ; GA15#.2WD+CD17; |
43040-50A05 |
US $208.80 |
||
|
43041
|
43041
43041-50A05 Spindle-Rear Housing, Lh8809--01 ~ ; GA15#.2WD+CD17; |
43041-50A05 |
US $208.80 |
||
|
43202
|
43202
43202-50A12 Hub Assy-Rear8809--01 ~ ; GA15#.2WD+CD17; ﾄﾞﾗﾑ ﾂｷ |
43202-50A12 |
US $270.72 |
||
|
43202
|
43202
43202-50A12 Hub Assy-Rear8809--01 ~ ; GA15#.2WD+CD17; ﾄﾞﾗﾑ ﾂｷ |
43202-50A12 |
US $270.72 |
||
|
43210
|
43210
43210-50A00 Bearing-Rear Axle, Inner8809--01 ~ ; GA15#.2WD+CD17; ｾﾝﾀｸ ｼﾖｳ NSK |
43210-50A00 |
US $105.41 |
||
|
43210
|
43210
4321050A05 Bearing-Rear Axle, Inner8809--01 ~ ; GA15#.2WD+CD17; ｾﾝﾀｸ ｼﾖｳ NTN |
4321050A05 |
US $105.41 |
||
|
43210
|
43210
4021450A10 Ring-Snap8809--01 ~ ; GA15#.2WD+CD17 |
4021450A10 |
US $7.06 |
||
|
43210A
|
43210A
4021450A10 Ring-Snap8809--01 ~ ; GA15#.2WD+CD17 |
4021450A10 |
US $7.06 |
||
|
43222
|
43222
4322250A00 Bolt-Hub8610--01 ~ 8809--01; 2WD |
4322250A00 |
from US $3.46 |
||
|
43222
|
43222
4322250A00 Bolt-Hub8610--01 ~ 8809--01; 2WD |
4322250A00 |
from US $3.46 |
||
|
43232
|
43232
43232-50A00 Seal-Grease, Rear Hub8610--01 ~ 8809--01; 2WD; ｾﾝﾀｸ ｼﾖｳ ｷ-ﾊﾟ- |
43232-50A00 |
US $9.65 |
||
|
43232
|
43232
43232-50A10 Seal-Grease, Rear Hub8610--01 ~ 8809--01; 2WD; ｾﾝﾀｸ ｼﾖｳ ﾆﾎﾝｵｲﾙｼ-ﾙ |
43232-50A10 |
US $9.65 |
||
|
43234
|
43234
43234-50A05
Cap-Hub, Rear Wheel
8610--01 ~ 8809--01; 2WD |
43234-50A05 |
— | ||
| replacement | |||||
|
43234
|
43234
43234-50A06 Cap-Hub, Rear Wheel8610--01 ~ 8809--01; 2WD |
43234-50A06 |
from US $7.59 |
||
|
43262
|
43262
4326250A05 Nut-Lock, Rear Wheel Bearing8610--01 ~ 8809--01; 2WD; |
4326250A05 |
US $6.05 |
||
|
43262
|
43262
01531-00021 PIN-COTTER8610--01 ~ 8809--01; 2WD |
01531-00021 |
US $1.73 |
||
|
43262A
|
43262A
01531-00021 PIN-COTTER8610--01 ~ 8809--01; 2WD |
01531-00021 |
US $1.73 |
||
|
43264
|
43264
43264-50A00 Washer-Rear Wheel Bearing8610--01 ~ 8809--01; 2WD |
43264-50A00 |
US $6.05 |
||
|
43264
|
43264
43263-50A05 Cap-Adjust8610--01 ~ 8809--01; 2WD |
43263-50A05 |
US $3.46 |
||
|
43264M
|
43264M
43263-50A05 Cap-Adjust8610--01 ~ 8809--01; 2WD |
43263-50A05 |
US $3.46 |
||
