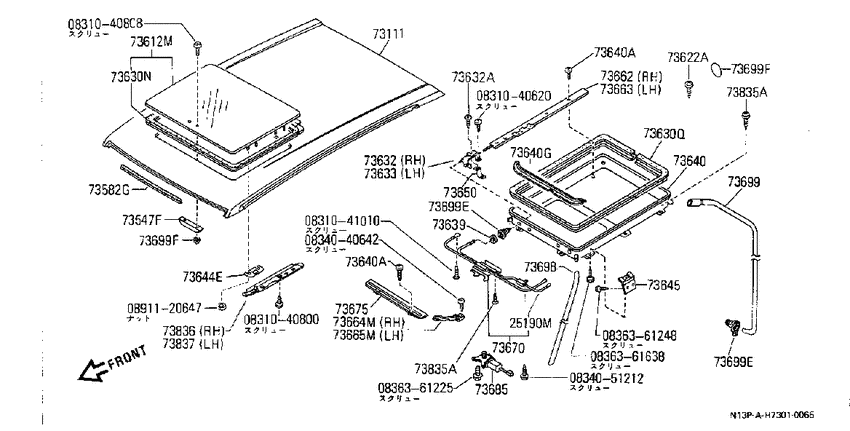

Roof panel (1986-10-01 ~ ; サンルーフ; *ALL) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- GA15E
- drive
- 2WD
- transmission
- AT
- grade
- SF
- body
- 3HB
- other
- N#
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831040620
|
0831040620
08310-40620
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-40620 |
— | ||
|
0831041010
|
0831041010
08310-41010
New Genuine Part
|
08310-41010 |
— | ||
|
0834040642
|
0834040642
0834040642
ｽｸﾘﾕ-,ﾏｼﾝ
|
0834040642 |
— | ||
|
0834051212
|
0834051212
08340-51212
ｽｸﾘﾕ-,ﾏｼﾝ
|
08340-51212 |
— | ||
|
0836361225
|
0836361225
08363-61225
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61225 |
— | ||
|
0836361248
|
0836361248
08363-61248
Bolt
|
08363-61248 |
— | ||
|
0836361638
|
0836361638
08363-61638
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61638 |
— | ||
| replacement | |||||
|
0836361638
|
0836361638
083636161G Bolt |
083636161G |
US $2.36 |
||
|
0891120647
|
0891120647
08911-20647
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-20647 |
— | ||
|
25190M
|
25190M
91378-50A10 Switch-Sunroof8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
91378-50A10 |
US $81.36 |
||
|
73111
|
73111
73100-76M35
Roof
8809--01 ~ ; $*P#.3HB.(X+GT) *N#.3HB.(SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73100-76M35 |
— | ||
|
73111
|
73111
73112-76M30 Roof8610--01 ~ ; 3HB |
73112-76M30 |
US $754.73 |
||
|
73547F
|
73547F
73688-50A10 Knob-Finisher Sunroof8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); (K,G) ｻﾝﾙ-ﾌ ﾖｳ |
73688-50A10 |
US $6.91 |
||
|
73547F
|
73547F
73688-D4011 Knob-Sub Lock8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); (B) ｻﾝﾙ-ﾌ ﾖｳ |
73688-D4011 |
US $8.21 |
||
|
73582G
|
73582G
73690-D4010 Washer8809--01 ~ 8903--01; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73690-D4010 |
US $23.04 |
||
|
73582G
|
73582G
9127871L00 Cover-Flange8903--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
9127871L00 |
US $25.49 |
||
|
73612M
|
73612M
73610-50A10 Glass-Sunroof8809--01 ~ 8901--01; $*P#.3HB.(X+GT) *N#.3HB.(SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ[D608] |
73610-50A10 |
US $907.66 |
||
|
73612M
|
73612M
91210-50A20 Glass-Sunroof8901--01 ~ ; $*P#.3HB.(X+GT) *N#.3HB.(SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ[D608] |
91210-50A20 |
US $907.66 |
||
|
73622A
|
73622A
01451-00711 SCREW8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
01451-00711 |
US $1.73 |
||
|
73630N
|
73630N
73630-50A10 Weatherstrip-Sunroof, Lid8809--01 ~ 8901--01; $*P#.3HB.(X+GT) *N#.3HB.(SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73630-50A10 |
US $197.28 |
||
|
73630N
|
73630N
91246-50A20 Weatherstrip-Sunroof, Lid8901--01 ~ ; $*P#.3HB.(X+GT) *N#.3HB.(SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
91246-50A20 |
US $152.64 |
||
|
73630Q
|
73630Q
73639-50A10 Weatherstrip-Sunroof, Frame8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73639-50A10 |
US $74.16 |
||
|
73632
|
73632
73632-31M60 Cover-Guide Rail, Rh8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73632-31M60 |
US $10.08 |
||
|
73632
|
73632
01451-00721 SCREW8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
01451-00721 |
US $1.73 |
||
|
73632A
|
73632A
01451-00721 SCREW8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
01451-00721 |
US $1.73 |
||
|
73633
|
73633
73633-31M60
Cover-Guide Rail, Lh
8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73633-31M60 |
— | ||
|
73639
|
73639
73690-31M60 Washer8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73690-31M60 |
US $3.17 |
||
|
73640
|
73640
73640-50M35 Frame Assy-Sunroof8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73640-50M35 |
US $572.06 |
||
|
73640
|
73640
01451-00671 SCREW8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS) |
01451-00671 |
US $1.73 |
||
|
73640
|
73640
73606-50A10 Drain Rubber8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌﾖｳ |
73606-50A10 |
US $16.27 |
||
|
73640A
|
73640A
01451-00671 SCREW8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS) |
01451-00671 |
US $1.73 |
||
|
73640A
|
73640A
01451-00671 SCREW8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS) |
01451-00671 |
US $1.73 |
||
|
73640G
|
73640G
73606-50A10 Drain Rubber8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌﾖｳ |
73606-50A10 |
US $16.27 |
||
|
73644E
|
73644E
73626-01F00 Shim-Lid8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73626-01F00 |
US $4.61 |
||
|
73645
|
73645
76892-50M10 Bracket-Frame, Sunroof8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
76892-50M10 |
US $13.82 |
||
|
73650
|
73650
73650-31M60 Cover-Guide Rail, Lower8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73650-31M60 |
US $5.18 |
||
|
73662
|
73662
73660-50A10 Rail Assy-Guide, Rh8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73660-50A10 |
US $195.84 |
||
|
73663
|
73663
73661-50A10 Rail Assy-Guide, Lh8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73661-50A10 |
US $195.84 |
||
|
73664M
|
73664M
73676-31M60 Bracket Assy-Guide, Rh8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73676-31M60 |
US $40.90 |
||
|
73665M
|
73665M
73677-31M60 Bracket Assy-Guide, Lh8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73677-31M60 |
US $40.90 |
||
|
73670
|
73670
91370-50A10 Bracket Assy-Motor8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ ｶﾞｲﾄﾞ ﾜｲﾔ- |
91370-50A10 |
US $121.54 |
||
|
73670
|
73670
91372-50A10 Bracket Assy-Motor8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ ﾓ-ﾀ- ﾌﾞﾗｹﾂﾄ |
91372-50A10 |
US $121.54 |
||
|
73675
|
73675
73675-50A10 Deflector-Sunroof8809--01 ~ 8811--01; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73675-50A10 |
US $131.90 |
||
|
73675
|
73675
91280-50A00 Deflector-Sunroof8811--01 ~ ; 2*3HB.(F+X+SL+SF) *3HB.E15E.2WD *3HB.CA16D; ｻﾝﾙ-ﾌ ﾖｳ |
91280-50A00 |
US $134.50 |
||
|
73685
|
73685
91295-50A10 Motor Assy-Sunroof8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
91295-50A10 |
US $386.57 |
||
|
73699
|
73699
73699-03M60 Hose-Drain, Rear8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73699-03M60 |
US $15.70 |
||
|
73699
|
73699
73690-50A10 Grommet8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ ﾊﾟｲﾌﾟ ﾖｳ |
73690-50A10 |
US $3.17 |
||
|
73699
|
73699
7481601E10 PLUG-FRONT FLOOR8610--01 ~ ; ALL |
7481601E10 |
from US $7.35 |
||
|
73699
|
73699
74816-01E11 PLUG8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ ﾌﾛｱ ｻｲﾄﾞ ﾖｳ |
74816-01E11 |
US $11.81 |
||
|
73699
|
73699
64894-W0500 Plug-Hole8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
64894-W0500 |
US $0.86 |
||
|
73699
|
73699
73674-50A10 Plug-Knob, Sunroof Finisher8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); (G,K) ｻﾝﾙ-ﾌ ﾖｳ |
73674-50A10 |
US $1.87 |
||
|
73699
|
73699
73674-50A11 Plug-Knob, Sunroof Finisher8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); (A,C) ｻﾝﾙ-ﾌ ﾖｳ |
73674-50A11 |
US $0.86 |
||
|
73699
|
73699
73674-D4011 Plug8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); (B) ｻﾝﾙ-ﾌ ﾖｳ |
73674-D4011 |
US $2.02 |
||
|
73699E
|
73699E
73690-50A10 Grommet8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ ﾊﾟｲﾌﾟ ﾖｳ |
73690-50A10 |
US $3.17 |
||
|
73699E
|
73699E
7481601E10 PLUG-FRONT FLOOR8610--01 ~ ; ALL |
7481601E10 |
from US $7.35 |
||
|
73699E
|
73699E
74816-01E11 PLUG8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ ﾌﾛｱ ｻｲﾄﾞ ﾖｳ |
74816-01E11 |
US $11.81 |
||
|
73699E
|
73699E
73690-50A10 Grommet8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ ﾊﾟｲﾌﾟ ﾖｳ |
73690-50A10 |
US $3.17 |
||
|
73699E
|
73699E
7481601E10 PLUG-FRONT FLOOR8610--01 ~ ; ALL |
7481601E10 |
from US $7.35 |
||
|
73699E
|
73699E
74816-01E11 PLUG8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ ﾌﾛｱ ｻｲﾄﾞ ﾖｳ |
74816-01E11 |
US $11.81 |
||
|
73699F
|
73699F
64894-W0500 Plug-Hole8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
64894-W0500 |
US $0.86 |
||
|
73699F
|
73699F
73674-50A10 Plug-Knob, Sunroof Finisher8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); (G,K) ｻﾝﾙ-ﾌ ﾖｳ |
73674-50A10 |
US $1.87 |
||
|
73699F
|
73699F
73674-50A11 Plug-Knob, Sunroof Finisher8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); (A,C) ｻﾝﾙ-ﾌ ﾖｳ |
73674-50A11 |
US $0.86 |
||
|
73699F
|
73699F
73674-D4011 Plug8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); (B) ｻﾝﾙ-ﾌ ﾖｳ |
73674-D4011 |
US $2.02 |
||
|
73699F
|
73699F
64894-W0500 Plug-Hole8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
64894-W0500 |
US $0.86 |
||
|
73699F
|
73699F
73674-50A10 Plug-Knob, Sunroof Finisher8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); (G,K) ｻﾝﾙ-ﾌ ﾖｳ |
73674-50A10 |
US $1.87 |
||
|
73699F
|
73699F
73674-50A11 Plug-Knob, Sunroof Finisher8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); (A,C) ｻﾝﾙ-ﾌ ﾖｳ |
73674-50A11 |
US $0.86 |
||
|
73699F
|
73699F
73674-D4011 Plug8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); (B) ｻﾝﾙ-ﾌ ﾖｳ |
73674-D4011 |
US $2.02 |
||
|
73835A
|
73835A
01461-00041 SCREW8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
01461-00041 |
US $1.73 |
||
|
73835A
|
73835A
01461-00041 SCREW8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
01461-00041 |
US $1.73 |
||
|
73836
|
73836
73683-50A10 Finisher Assy-Roof, Rh8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73683-50A10 |
US $15.70 |
||
|
73837
|
73837
73684-50A10 Finisher Assy-Roof, Lh8809--01 ~ ; #*P#.(X+GT) *N#.(GF+SF+SSS); ｻﾝﾙ-ﾌ ﾖｳ |
73684-50A10 |
US $15.70 |
||
