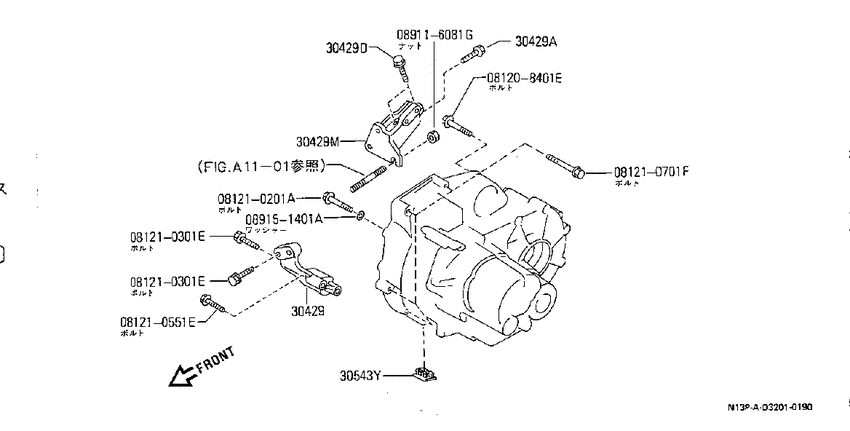

Transmission & transaxle assembly (1988-09-01 ~ ; トランスミッション フィックス; GA15S.4WD.MT) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- GA15S
- drive
- 4WD
- transmission
- MT
- grade
- X
- body
- S
- other
- P#
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208401E
|
081208401E
08120-8401E
Bolt-hexagon
|
08120-8401E |
— | ||
|
081210201A
|
081210201A
08121-0201A
Bolt-hexagon
|
08121-0201A |
— | ||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
081210551E
|
081210551E
081210551E
Bolt-hexagon
|
081210551E |
— | ||
|
081210701F
|
081210701F
08121-0701F Bolt-hexagon |
08121-0701F |
US $2.45 |
||
|
089116081G
|
089116081G
08911-6081G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6081G |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
30429
|
30429
30431-83A00 Gusset-Transmission To Engine8809--01 ~ ; GA15S.F5.4WD; ﾌﾛﾝﾄ ﾖｳ |
30431-83A00 |
US $46.80 |
||
| replacement | |||||
|
30429
|
30429
30431-4M700 Gusset-Transmission To Engine8809--01 ~ ; GA15S.F5.4WD; ﾌﾛﾝﾄ ﾖｳ |
30431-4M700 |
US $46.80 |
||
|
30429
|
30429
01121-03911 BOLT-GUSSET8809--01 ~ ; GA15S.F5.4WD |
01121-03911 |
US $2.45 |
||
|
30429
|
30429
01121-03831 BOLT-GUSSET8809--01 ~ ; GA15S.F5.4WD |
01121-03831 |
US $4.18 |
||
|
30429
|
30429
30441-83A02 Gusset-Transmission To Engine8809--01 ~ ; GA15S.F5.4WD; ﾄﾗﾝｽﾌｱ- ﾖｳ |
30441-83A02 |
US $31.10 |
||
|
30429A
|
30429A
01121-03911 BOLT-GUSSET8809--01 ~ ; GA15S.F5.4WD |
01121-03911 |
US $2.45 |
||
|
30429D
|
30429D
01121-03831 BOLT-GUSSET8809--01 ~ ; GA15S.F5.4WD |
01121-03831 |
US $4.18 |
||
|
30429M
|
30429M
30441-83A02 Gusset-Transmission To Engine8809--01 ~ ; GA15S.F5.4WD; ﾄﾗﾝｽﾌｱ- ﾖｳ |
30441-83A02 |
US $31.10 |
||
|
30543Y
|
30543Y
30543-06R00 Grommet-Clutch Housing8809--01 ~ ; GA15S.F5.4WD |
30543-06R00 |
US $6.34 |
||
