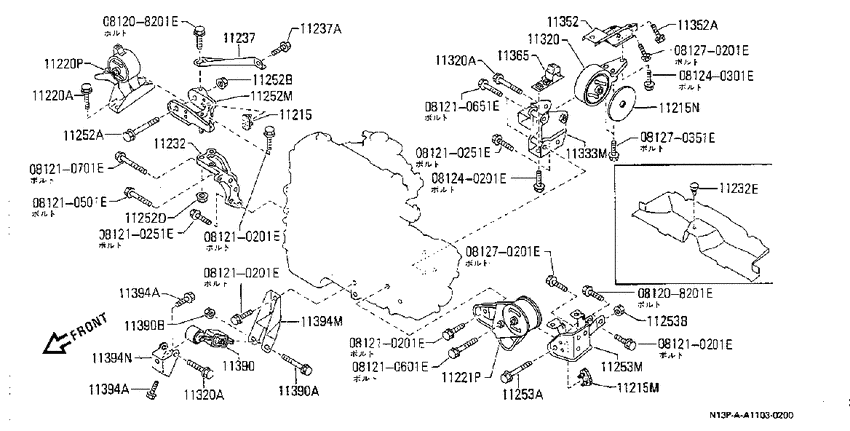

engine & transmission mounting (1988-09-01 ~ ; GA15S.4WD) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- GA15S
- drive
- 4WD
- transmission
- AT
- grade
- X
- body
- S
- other
- P#
- transmission/shift type
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210501E
|
081210501E
08121-0501E
Bolt-hexagon
|
08121-0501E |
— | ||
|
081210601E
|
081210601E
08121-0601E
Bolt-hexagon
|
08121-0601E |
— | ||
| replacement | |||||
|
081210601E
|
081210601E
08121-0602E Bolt-hexagon |
08121-0602E |
US $3.06 |
||
|
081210651E
|
081210651E
08121-0651E
Bolt-hexagon
|
08121-0651E |
— | ||
|
081210701E
|
081210701E
081210701E
Bolt-hexagon
|
081210701E |
— | ||
|
081240201E
|
081240201E
081240201E Bolt-hexagon |
081240201E |
US $1.11 |
||
|
081240301E
|
081240301E
08124-0301E
Bolt-hexagon
|
08124-0301E |
— | ||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
081270351E
|
081270351E
08127-0351E
Bolt-hexagon
|
08127-0351E |
— | ||
|
11215
|
11215
11215-50A15 Stopper-Engine Mounting8809--01 ~ ; (GA15#+CD17).AT |
11215-50A15 |
US $20.92 |
||
|
11215
|
11215
11215-50A06 Stopper-Engine Mounting8610--01 ~ 8809--01; 4E15#.MT.2WD E15S.AT.2WD CA16D.MT+4WD |
11215-50A06 |
US $11.81 |
||
|
11215
|
11215
11215-70A01 Stopper-Engine Mounting, Rear8809--01 ~ ; GA15S.4WD |
11215-70A01 |
US $12.38 |
||
| replacement | |||||
|
11215
|
11215
11215-65E20
Stopper-engine mounting,rear
8809--01 ~ ; GA15S.4WD |
11215-65E20 |
— | ||
|
11215M
|
11215M
11215-50A06 Stopper-Engine Mounting8610--01 ~ 8809--01; 4E15#.MT.2WD E15S.AT.2WD CA16D.MT+4WD |
11215-50A06 |
US $11.81 |
||
|
11215N
|
11215N
11215-70A01 Stopper-Engine Mounting, Rear8809--01 ~ ; GA15S.4WD |
11215-70A01 |
US $12.38 |
||
| replacement | |||||
|
11215N
|
11215N
11215-65E20
Stopper-engine mounting,rear
8809--01 ~ ; GA15S.4WD |
11215-65E20 |
— | ||
|
11220A
|
11220A
01125-00651 BOLT8809--01 ~ ; ALL |
01125-00651 |
US $3.46 |
||
|
11220P
|
11220P
11210-83A10 Insulator-Engine Mounting, Rh8809--01 ~ ; GA15S.AT.F3.4WD |
11210-83A10 |
US $133.34 |
||
|
11221P
|
11221P
11220-70A11 Insulator-Engine Mounting, Lh8809--01 ~ ; GA15S.AT.F3.4WD |
11220-70A11 |
US $128.88 |
||
|
11232
|
11232
11231-77A00 Bracket-Engine Mounting, Rh8809--01 ~ ; GA15# |
11231-77A00 |
US $84.82 |
||
|
11232
|
11232
01658-00251 PLUG-BLIND,ENGINE MOUNTING8610--01 ~ 8708--01; ALL; |
01658-00251 |
from US $0.50 |
||
|
11232
|
11232
0165801501 PLUG8809--01 ~ ; ALL; |
0165801501 |
US $3.06 |
||
|
11232E
|
11232E
01658-00251 PLUG-BLIND,ENGINE MOUNTING8610--01 ~ 8708--01; ALL; |
01658-00251 |
from US $0.50 |
||
|
11232E
|
11232E
0165801501 PLUG8809--01 ~ ; ALL; |
0165801501 |
US $3.06 |
||
|
11237
|
11237
11237-77A00 Stay-Engine Mounting, Rh8809--01 ~ ; GA15# |
11237-77A00 |
US $41.47 |
||
|
11237
|
11237
01121-03651 BOLT8809--01 ~ ; GA15# |
01121-03651 |
US $2.45 |
||
|
11237A
|
11237A
01121-03651 BOLT8809--01 ~ ; GA15# |
01121-03651 |
US $2.45 |
||
|
11252A
|
11252A
01125-00991 BOLT8809--01 ~ ; ALL |
01125-00991 |
US $4.30 |
||
|
11252B
|
11252B
0122500062 NUT8809--01 ~ ; ALL |
0122500062 |
from US $1.67 |
||
|
11252D
|
11252D
0122500062 NUT8809--01 ~ ; GA15#+CA16D |
0122500062 |
from US $1.67 |
||
|
11252M
|
11252M
11252-77A00 Support-Engine Mounting, Rh8809--01 ~ ; GA15# |
11252-77A00 |
US $82.80 |
||
|
11253A
|
11253A
01125-00631
BOLT
8809--01 ~ ; ,(GA15#+CA16D).MT GA15S.AT.F3 CD17 |
01125-00631 |
— | ||
|
11253A
|
11253A
01125-01081 BOLT8610--01 ~ 8809--01; ALL; |
01125-01081 |
US $2.45 |
||
|
11253B
|
11253B
0122500062 NUT8610--01 ~ 8809--01; ALL |
0122500062 |
from US $1.67 |
||
|
11253M
|
11253M
11253-50A16
Bracket-Engine Mounting, Lh
8809--01 ~ ; AT.F3 |
11253-50A16 |
— | ||
|
11320
|
11320
11320-70A15 Insulator-Engine Mounting, Rear8809--01 ~ ; GA15S.AT.F3.4WD |
11320-70A15 |
US $130.18 |
||
|
11320
|
11320
01125-01031 BOLT8701--01 ~ 8809--01; 4WD |
01125-01031 |
US $3.06 |
||
|
11320A
|
11320A
01125-01031 BOLT8701--01 ~ 8809--01; 4WD |
01125-01031 |
US $3.06 |
||
|
11320A
|
11320A
01125-01031 BOLT8701--01 ~ 8809--01; 4WD |
01125-01031 |
US $3.06 |
||
|
11333M
|
11333M
11332-70A02 Bracket-Engine Mounting, Rear8809--01 ~ ; GA15S.4WD |
11332-70A02 |
US $174.24 |
||
|
11352
|
11352
11352-70A01 Support-Engine Mounting, Rear8809--01 ~ ; GA15S.4WD |
11352-70A01 |
US $68.11 |
||
|
11352
|
11352
01125-00651 BOLT8809--01 ~ ; GA15S.4WD |
01125-00651 |
US $3.46 |
||
|
11352A
|
11352A
01125-00651 BOLT8809--01 ~ ; GA15S.4WD |
01125-00651 |
US $3.46 |
||
|
11365
|
11365
11365-70A00 Arrester-Torque8809--01 ~ ; GA15S.4WD |
11365-70A00 |
US $44.06 |
||
|
11390
|
11390
11350-50A15 Buffer Assy-Engine Mounting8610--01 ~ ; AT |
11350-50A15 |
US $46.72 |
||
|
11390
|
11390
01125-01031 BOLT8610--01 ~ ; ALL |
01125-01031 |
US $3.06 |
||
|
11390
|
11390
0122500062 NUT8610--01 ~ ; ALL |
0122500062 |
from US $1.67 |
||
|
11390
|
11390
01125-00881
BOLT
8610--01 ~ ; ALL |
01125-00881 |
— | ||
|
11390A
|
11390A
01125-01031 BOLT8610--01 ~ ; ALL |
01125-01031 |
US $3.06 |
||
|
11390B
|
11390B
0122500062 NUT8610--01 ~ ; ALL |
0122500062 |
from US $1.67 |
||
|
11394A
|
11394A
01121-01671 BOLT8610--01 ~ ; ALL |
01121-01671 |
US $2.45 |
||
|
11394A
|
11394A
01121-01671 BOLT8610--01 ~ ; ALL |
01121-01671 |
US $2.45 |
||
|
11394M
|
11394M
11356-83A00 Bracket-Buffer, Front8809--01 ~ ; GA15S.4WD |
11356-83A00 |
US $31.82 |
||
|
11394N
|
11394N
11355-70A00 Support-Buffer, Front8809--01 ~ ; GA15S.4WD |
11355-70A00 |
US $15.55 |
||
