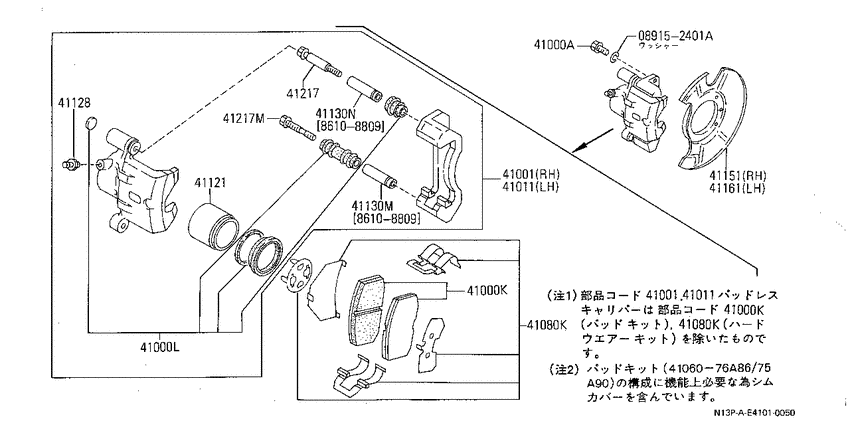

Front brake (1988-09-01 ~ ; GA15S.4WD) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- GA15S
- drive
- 4WD
- transmission
- AT
- grade
- X
- body
- S
- other
- P#
- transmission/shift type
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
41000A
|
41000A
41250-01A00 Bolt8610--01 ~ ; ALL |
41250-01A00 |
from US $2.11 |
||
|
41000K
|
41000K
AY040-NS803 Pad Kit-Disc Brake8809--01 ~ ; GA15S.4WD+CA16D; ｼﾑ ｶﾊﾞ- ﾂｷ |
AY040-NS803 |
US $142.56 |
||
|
41000L
|
41000L
AY600NS034 Seal Kit-Disc Brake8809--01 ~ ; GA15S.4WD+CA16D |
AY600NS034 |
US $50.54 |
||
|
41001
|
41001
41001-76A00 Caliper Assy-Front Rh, W/o Pads Or Shims8809--01 ~ ; GA15S.4WD+CA16D; |
41001-76A00 |
US $335.59 |
||
| replacement | |||||
|
41001
|
41001
D1001-76A00
Caliper assy-front rh,w/o pads or shims
8809--01 ~ ; GA15S.4WD+CA16D; |
D1001-76A00 |
— | ||
|
41011
|
41011
41011-76A00 Caliper Assy-Front Lh, W/o Pads Or Shims8809--01 ~ ; GA15S.4WD+CA16D; |
41011-76A00 |
US $335.59 |
||
| replacement | |||||
|
41011
|
41011
D1011-76A00
Caliper assy-front lh,w/o pads or shims
8809--01 ~ ; GA15S.4WD+CA16D; |
D1011-76A00 |
— | ||
|
41011
|
41011
41011-76A00 Caliper Assy-Front Lh, W/o Pads Or Shims8809--01 ~ ; GA15S.4WD+CA16D; |
41011-76A00 |
US $335.59 |
||
| replacement | |||||
|
41011
|
41011
D1011-76A00
Caliper assy-front lh,w/o pads or shims
8809--01 ~ ; GA15S.4WD+CA16D; |
D1011-76A00 |
— | ||
|
41080K
|
41080K
41080-76A25 Hardware Kit-Front Disc Brake Pad8809--01 ~ ; GA15S.4WD+CA16D; |
41080-76A25 |
US $35.42 |
||
|
41080K
|
41080K
41080-76A25 Hardware Kit-Front Disc Brake Pad8809--01 ~ ; GA15S.4WD+CA16D; |
41080-76A25 |
US $35.42 |
||
|
41121
|
41121
41121-05A10 Piston-Cylinder8809--01 ~ ; GA15S.4WD+CA16D |
41121-05A10 |
US $50.69 |
||
|
41128
|
41128
41128-U3400
Screw-Bleeder
8809--01 ~ ; GA15S.4WD+CA16D |
41128-U3400 |
— | ||
| replacement | |||||
|
41128
|
41128
4112880Z0A Screw-Bleeder8809--01 ~ ; GA15S.4WD+CA16D |
4112880Z0A |
US $7.35 |
||
|
41151
|
41151
41150-70A00 Plate-Baffle, Rh8809--01 ~ ; GA15S.4WD |
41150-70A00 |
US $41.04 |
||
|
41161
|
41161
41160-70A00 Plate-Baffle, Lh8809--01 ~ ; GA15S.4WD |
41160-70A00 |
US $41.04 |
||
|
41217
|
41217
41140-D4401 Pin8809--01 ~ ; GA15S.4WD+CA16D |
41140-D4401 |
from US $7.84 |
||
|
41217
|
41217
44140V6701 Pin-Lock8809--01 ~ ; GA15S.4WD+CA16D |
44140V6701 |
US $9.69 |
||
|
41217M
|
41217M
44140V6701 Pin-Lock8809--01 ~ ; GA15S.4WD+CA16D |
44140V6701 |
US $9.69 |
||
