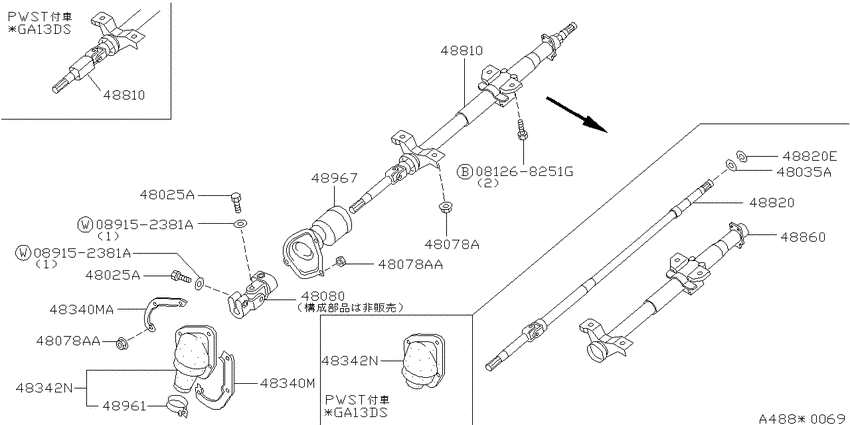

Steering column (1990-08-01 ~ 1992-08-01; チルト無し; [4S.2WD.GA15DS.(M1+K1) +3HB.2WD.GA15DS +5HB.GA15DS +GA13DS +GA15DS.J1J +GA16DE +SR18DE +CD17) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- GA16DE
- drive
- 2WD
- transmission
- AT
- grade
- X1R
- body
- 3HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268251G
|
081268251G
08126-8251G Bolt-hexagon |
08126-8251G |
US $3.06 |
||
|
089152381A
|
089152381A
089152381A
Washer
|
089152381A |
— | ||
|
089152381A
|
089152381A
089152381A
Washer
|
089152381A |
— | ||
|
48025A
|
48025A
48935-F6100
Bolt
9008--01 ~ 9208--01; 2WD |
48935-F6100 |
— | ||
| replacement | |||||
|
48025A
|
48025A
48935F610A BOLTHEX SPECIA9008--01 ~ 9208--01; 2WD |
48935F610A |
US $2.21 |
||
|
48025A
|
48025A
48935-F6100
Bolt
9008--01 ~ 9208--01; 2WD |
48935-F6100 |
— | ||
| replacement | |||||
|
48025A
|
48025A
48935F610A BOLTHEX SPECIA9008--01 ~ 9208--01; 2WD |
48935F610A |
US $2.21 |
||
|
48035A
|
48035A
48021-54Y10 Seal-O Ring9008--01 ~ 9208--01; -GA13DS +GA15DS +GA16DE +SR18DE +SR20DET +CD17 |
48021-54Y10 |
US $2.59 |
||
|
48078A
|
48078A
0122500481
NUT
9008--01 ~ 9208--01; -GA13DS +GA15DS +GA16DE +SR18DE +SR20DET +CD17 |
0122500481 |
— | ||
|
48078A
|
48078A
0122500371 NUT9008--01 ~ 9208--01; 2WD |
0122500371 |
US $1.73 |
||
|
48078AA
|
48078AA
0122500371 NUT9008--01 ~ 9208--01; 2WD |
0122500371 |
US $1.73 |
||
|
48078AA
|
48078AA
0122500371 NUT9008--01 ~ 9208--01; 2WD |
0122500371 |
US $1.73 |
||
|
48080
|
48080
48080-0M000 Joint Assy-Steering, Lower9405--01 ~ ; =(4S+3HB).2WD.GA15DS +5HB.GA15DS +GA13DS +GA16DE +SR18DE +CD17 |
48080-0M000 |
US $165.60 |
||
| replacement | |||||
|
48080
|
48080
48080-0M00A
Joint Assy-Steering Column, Lower
9405--01 ~ ; =(4S+3HB).2WD.GA15DS +5HB.GA15DS +GA13DS +GA16DE +SR18DE +CD17 |
48080-0M00A |
— | ||
|
48080
|
48080
48080-65Y00 Joint Assy-Steering, Lower9008--01 ~ 9208--01; 2WD.GA15DS +GA16DE +SR18DE +CD17 |
48080-65Y00 |
US $136.66 |
||
| replacement | |||||
|
48080
|
48080
48080-0M00A
Joint Assy-Steering Column, Lower
9008--01 ~ 9208--01; 2WD.GA15DS +GA16DE +SR18DE +CD17 |
48080-0M00A |
— | ||
|
48340M
|
48340M
48958-50Y00 Bracket Assy-Jacket Tube9008--01 ~ 9208--01; 2WD |
48958-50Y00 |
US $90 |
||
|
48340M
|
48340M
48958-50Y01 Bracket Assy-Jacket Tube9008--01 ~ 9208--01; 2WD |
48958-50Y01 |
US $59.76 |
||
|
48340MA
|
48340MA
48958-50Y01 Bracket Assy-Jacket Tube9008--01 ~ 9208--01; 2WD |
48958-50Y01 |
US $59.76 |
||
|
48342N
|
48342N
48950-50Y00 Cover-Column Hole9008--01 ~ 9208--01; 2WD.GA15DS +GA16DE +SR18DE +CD17 |
48950-50Y00 |
US $75.02 |
||
|
48342N
|
48342N
48950-50Y00 Cover-Column Hole9008--01 ~ 9208--01; 2WD.GA15DS +GA16DE +SR18DE +CD17 |
48950-50Y00 |
US $75.02 |
||
|
48810
|
48810
48810-54Y10 Column Assy-Steering, Upper9008--01 ~ 9208--01; 2WD.GA15DS +GA16DE +CD17 |
48810-54Y10 |
US $1,060.58 |
||
|
48810
|
48810
48810-55Y10 Column Assy-Steering, Upper9208--01 ~ ; :*(4S+3HB).2WD.GA15DS +*5HB.GA15DS +*GA13DS +*GA16DE +*CD17; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
48810-55Y10 |
US $532.42 |
||
|
48810
|
48810
48810-54Y10 Column Assy-Steering, Upper9008--01 ~ 9208--01; 2WD.GA15DS +GA16DE +CD17 |
48810-54Y10 |
US $1,060.58 |
||
|
48810
|
48810
48810-55Y10 Column Assy-Steering, Upper9208--01 ~ ; :*(4S+3HB).2WD.GA15DS +*5HB.GA15DS +*GA13DS +*GA16DE +*CD17; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
48810-55Y10 |
US $532.42 |
||
|
48820
|
48820
48820-54Y11 Shaft Assy-Steering Column, Upper9008--01 ~ 9208--01; 2WD.GA15DS +GA16DE +CD17 |
48820-54Y11 |
US $376.66 |
||
|
48820
|
48820
01541-00021 RING-SNAP9008--01 ~ 9208--01; -GA13DS +GA15DS +GA16DE +SR18DE +SR20DET +CD17 |
01541-00021 |
US $1.73 |
||
|
48820E
|
48820E
01541-00021 RING-SNAP9008--01 ~ 9208--01; -GA13DS +GA15DS +GA16DE +SR18DE +SR20DET +CD17 |
01541-00021 |
US $1.73 |
||
|
48860
|
48860
48860-54Y10 Tube Assy-Jacket, Upper9008--01 ~ 9208--01; 2WD.GA15DS +GA16DE +SR18DE +CD17 |
48860-54Y10 |
US $257.76 |
||
|
48860
|
48860
48860-55Y10 Tube Assy-Jacket, Upper9208--01 ~ ; C*(4S+3HB).2WD.GA15DS +*5HB.GA15DS +*GA13DS +*GA16DE +*SR18DE +*CD17; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
48860-55Y10 |
US $285.12 |
||
|
48961
|
48961
48963-50Y00 Clamp-Steering Column, Lower9008--01 ~ 9208--01; %GA15DS +GA16DE +SR18DE +SR20DET +CD17 |
48963-50Y00 |
US $6.19 |
||
|
48967
|
48967
48981-50Y00 Cover-Joint, Upper9008--01 ~ 9208--01; 2WD |
48981-50Y00 |
US $119.81 |
||
