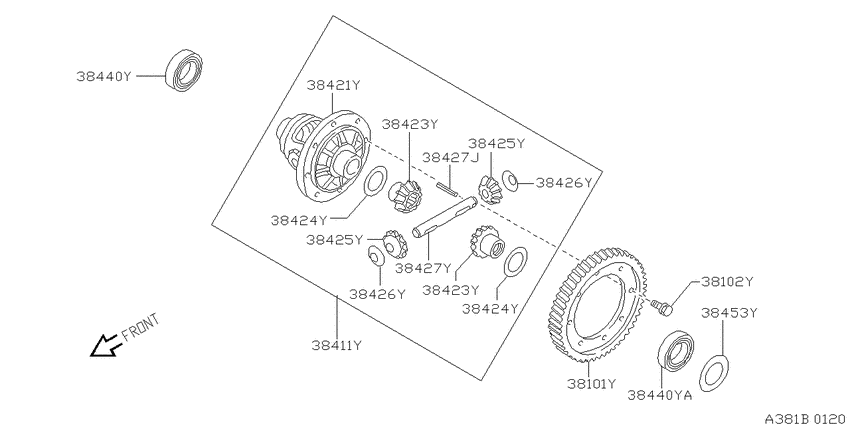

Front final drive (1990-08-01 ~ 1992-08-01; 4WD.GA15DS.AT) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- GA15DS
- drive
- 4WD
- transmission
- AT
- grade
- K1
- body
- 4S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38101Y
|
38101Y
38101-31X05 Gear-Final Drive9008--01 ~ 9208--01; 4WD.GA15DS.AT |
38101-31X05 |
US $138.96 |
||
|
38102Y
|
38102Y
38102-M8001 Bolt-Drive Gear9008--01 ~ 9208--01; 4WD.GA15DS.AT |
38102-M8001 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-31X20 Case Compl-Differential9008--01 ~ 9111--01; 4WD.GA15DS.AT |
38411-31X20 |
US $927.48 |
||
|
38411Y
|
38411Y
38411-31X21 Case Compl-Differential9111--01 ~ 9208--01; 4WD.GA15DS.AT |
38411-31X21 |
US $927.48 |
||
|
38421Y
|
38421Y
38421-31X20 Case-Differential9008--01 ~ 9208--01; 4WD.GA15DS.AT |
38421-31X20 |
US $623.04 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9008--01 ~ 9208--01; 4WD.GA15DS.AT |
38423-31X02 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9008--01 ~ 9208--01; 4WD.GA15DS.AT |
38423-31X02 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9008--01 ~ 9208--01; 4WD.GA15DS.AT |
38425-31X02 |
US $57.74 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9008--01 ~ 9208--01; 4WD.GA15DS.AT |
38425-31X02 |
US $57.74 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9008--01 ~ 9208--01; 4WD.GA15DS.AT |
38426-31X02 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9008--01 ~ 9208--01; 4WD.GA15DS.AT |
38426-31X02 |
US $4.18 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-31X02 Shaft-Pinion Mate9008--01 ~ 9111--01; 4WD.GA15DS.AT |
38427-31X02 |
US $74.30 |
||
|
38427Y
|
38427Y
38427-31X03 Shaft-Pinion Mate9111--01 ~ 9208--01; 4WD.GA15DS.AT |
38427-31X03 |
US $74.30 |
||
|
38440Y
|
38440Y
38440-06R10 Bearing-Differential Side9008--01 ~ 9208--01; 4WD.GA15DS.AT |
38440-06R10 |
US $91.58 |
||
|
38440Y
|
38440Y
31408-31X04 Bearing-Differential Side9008--01 ~ 9009--01; 4WD.GA15DS.AT |
31408-31X04 |
US $46.80 |
||
| replacement | |||||
|
38440Y
|
38440Y
31408-31X23 Bearing-Differential Side9008--01 ~ 9009--01; 4WD.GA15DS.AT |
31408-31X23 |
US $42.48 |
||
|
38440Y
|
38440Y
31408-31X07 Bearing-Differential Side9009--01 ~ 9208--01; 4WD.GA15DS.AT |
31408-31X07 |
US $46.80 |
||
| replacement | |||||
|
38440Y
|
38440Y
31408-31X23 Bearing-Differential Side9009--01 ~ 9208--01; 4WD.GA15DS.AT |
31408-31X23 |
US $42.48 |
||
|
38440YA
|
38440YA
31408-31X04 Bearing-Differential Side9008--01 ~ 9009--01; 4WD.GA15DS.AT |
31408-31X04 |
US $46.80 |
||
| replacement | |||||
|
38440YA
|
38440YA
31408-31X23 Bearing-Differential Side9008--01 ~ 9009--01; 4WD.GA15DS.AT |
31408-31X23 |
US $42.48 |
||
|
38440YA
|
38440YA
31408-31X07 Bearing-Differential Side9009--01 ~ 9208--01; 4WD.GA15DS.AT |
31408-31X07 |
US $46.80 |
||
| replacement | |||||
|
38440YA
|
38440YA
31408-31X23 Bearing-Differential Side9009--01 ~ 9208--01; 4WD.GA15DS.AT |
31408-31X23 |
US $42.48 |
||
|
38453Y
|
38453Y
31499-21X07 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.40 |
31499-21X07 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X08 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.44 |
31499-21X08 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X09 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.48 |
31499-21X09 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X10 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.52 |
31499-21X10 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X11 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.56 |
31499-21X11 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X12 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.60 |
31499-21X12 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X13 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.64 |
31499-21X13 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X14 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.68 |
31499-21X14 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X15 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.72 |
31499-21X15 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X16 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.76 |
31499-21X16 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X17 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.80 |
31499-21X17 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X18 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.84 |
31499-21X18 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X19 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.88 |
31499-21X19 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X20 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=0.92 |
31499-21X20 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X21 Shim-Adjust, Output Shaft9008--01 ~ 9208--01; 4WD.GA15DS.AT; ｾﾝﾀｸ T=1.44 |
31499-21X21 |
US $8.06 |
||
