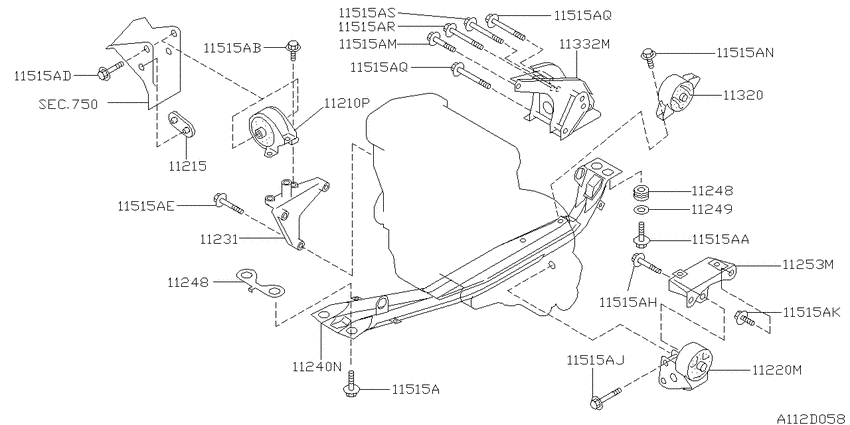

Engine & transmission mounting (1990-08-01 ~ 1992-08-01; SR18DE.AT) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 2WD
- transmission
- AT
- grade
- GTI
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11210P
|
11210P
11210-58Y20
Insulator Assy-Engine Mounting, Front Rh
9008--01 ~ 9208--01; SR18DE.AT |
11210-58Y20 |
— | ||
|
11215
|
11215
11215-50Y10 Stopper-Engine Mounting9008--01 ~ 9208--01; SR18DE.AT |
11215-50Y10 |
US $13.59 |
||
|
11215
|
11215
1121550A00 Stopper-Engine Mounting9208--01 ~ ; SR18DE.AT |
1121550A00 |
US $11.38 |
||
|
11220M
|
11220M
11220-0M810 Insulator Assy-Engine Mounting, Front Lh9404--01 ~ ; SR18DE.AT |
11220-0M810 |
US $95.04 |
||
|
11220M
|
11220M
11220-58Y10 Insulator Assy-Engine Mounting, Front Lh9008--01 ~ 9208--01; SR18DE.AT |
11220-58Y10 |
US $78.48 |
||
|
11220M
|
11220M
11220-58Y11 Insulator Assy-Engine Mounting, Front Lh9208--01 ~ 9404--01; SR18DE.AT |
11220-58Y11 |
US $94.03 |
||
|
11231
|
11231
11231-58Y20 Bracket-Engine Mounting9008--01 ~ 9208--01; SR18DE.AT |
11231-58Y20 |
US $80.35 |
||
|
11231
|
11231
11231-58Y20 Bracket-Engine Mounting9208--01 ~ ; SR18DE.AT |
11231-58Y20 |
US $80.35 |
||
|
11240N
|
11240N
11240-50Y11 Member Assy-Front, Center9008--01 ~ 9208--01; SR18DE.AT |
11240-50Y11 |
US $175.68 |
||
|
11248
|
11248
11248-50Y05 Pad-Engine Mounting Member9008--01 ~ 9208--01; SR18DE.AT; ﾘﾔ ﾖｳ ｷﾇｺﾞﾑ |
11248-50Y05 |
from US $5.46 |
||
|
11248
|
11248
1124862C01 Pad-Engine Mounting Member9008--01 ~ 9208--01; SR18DE.AT; ﾌﾛﾝﾄ ﾖｳ ﾔﾏｶﾜ |
1124862C01 |
US $8.35 |
||
|
11248
|
11248
11248-50Y05 Pad-Engine Mounting Member9208--01 ~ ; SR18DE.AT |
11248-50Y05 |
from US $5.46 |
||
|
11248
|
11248
11248-50Y05 Pad-Engine Mounting Member9008--01 ~ 9208--01; SR18DE.AT; ﾘﾔ ﾖｳ ｷﾇｺﾞﾑ |
11248-50Y05 |
from US $5.46 |
||
|
11248
|
11248
1124862C01 Pad-Engine Mounting Member9008--01 ~ 9208--01; SR18DE.AT; ﾌﾛﾝﾄ ﾖｳ ﾔﾏｶﾜ |
1124862C01 |
US $8.35 |
||
|
11248
|
11248
11248-50Y05 Pad-Engine Mounting Member9208--01 ~ ; SR18DE.AT |
11248-50Y05 |
from US $5.46 |
||
|
11249
|
11249
11249-50Y00 Collar-Engine Mounting9008--01 ~ 9208--01; SR18DE.AT |
11249-50Y00 |
from US $1.67 |
||
|
11249
|
11249
11249-50Y00 Collar-Engine Mounting9208--01 ~ ; SR18DE.AT |
11249-50Y00 |
from US $1.67 |
||
|
11253M
|
11253M
11253-50Y11 Bracket-Engine Mounting, Lh9008--01 ~ 9208--01; SR18DE.AT |
11253-50Y11 |
US $50.40 |
||
|
11320
|
11320
11320-0M812 Insulator-Engine Mounting, Rear9409--01 ~ ; SR18DE.AT |
11320-0M812 |
US $142.13 |
||
|
11320
|
11320
11320-50Y10
Insulator-Engine Mounting, Rear
9008--01 ~ 9208--01; SR18DE.AT |
11320-50Y10 |
— | ||
| replacement | |||||
|
11320
|
11320
11320-50Y11 Insulator-Engine Mounting, Rear9008--01 ~ 9208--01; SR18DE.AT |
11320-50Y11 |
from US $65.98 |
||
|
11320
|
11320
11320-50Y11 Insulator-Engine Mounting, Rear9405--01 ~ 9409--01; SR18DE.AT |
11320-50Y11 |
from US $65.98 |
||
|
11332M
|
11332M
11332-0M810 Bracket-Engine Mounting, Rear9409--01 ~ ; SR18DE.AT |
11332-0M810 |
US $96.91 |
||
|
11332M
|
11332M
11332-58Y10 Bracket-Engine Mounting, Rear9008--01 ~ 9208--01; SR18DE.AT |
11332-58Y10 |
US $80.35 |
||
|
11515A
|
11515A
01125-01961 BOLT9008--01 ~ 9201--01; SR18DE.AT |
01125-01961 |
US $3.46 |
||
|
11515A
|
11515A
01125-02751 BOLT9201--01 ~ 9208--01; SR18DE.AT |
01125-02751 |
US $2.45 |
||
|
11515A
|
11515A
01125-01911 BOLT9008--01 ~ 9201--01; SR18DE.AT |
01125-01911 |
US $2.45 |
||
|
11515A
|
11515A
01125-02761 BOLT9201--01 ~ 9208--01; SR18DE.AT |
01125-02761 |
US $2.45 |
||
|
11515A
|
11515A
01125-01821 BOLT9008--01 ~ 9201--01; SR18DE.AT |
01125-01821 |
US $4.18 |
||
|
11515A
|
11515A
01125-02851 BOLT9202--01 ~ 9208--01; SR18DE.AT |
01125-02851 |
US $2.45 |
||
|
11515A
|
11515A
01125-01991 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01991 |
US $3.46 |
||
|
11515A
|
11515A
01125-01871 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01871 |
US $2.45 |
||
| replacement | |||||
|
11515A
|
11515A
01125-03051
Bolt
9008--01 ~ 9208--01; SR18DE.AT |
01125-03051 |
— | ||
|
11515A
|
11515A
01125-01931 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01931 |
US $2.45 |
||
|
11515A
|
11515A
01125-01861 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01861 |
US $2.45 |
||
|
11515A
|
11515A
0112501951 BOLT9008--01 ~ 9208--01; SR18DE.AT |
0112501951 |
US $3.46 |
||
|
11515A
|
11515A
01125-01991 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01991 |
US $3.46 |
||
|
11515A
|
11515A
01125-01941 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01941 |
US $4.18 |
||
|
11515A
|
11515A
01125-01881 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01881 |
US $2.45 |
||
|
11515A
|
11515A
01125-01791 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01791 |
US $2.45 |
||
|
11515A
|
11515A
01125-01921 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01921 |
US $4.18 |
||
|
11515AA
|
11515AA
01125-01911 BOLT9008--01 ~ 9201--01; SR18DE.AT |
01125-01911 |
US $2.45 |
||
|
11515AA
|
11515AA
01125-02761 BOLT9201--01 ~ 9208--01; SR18DE.AT |
01125-02761 |
US $2.45 |
||
|
11515AB
|
11515AB
01125-01821 BOLT9008--01 ~ 9201--01; SR18DE.AT |
01125-01821 |
US $4.18 |
||
|
11515AB
|
11515AB
01125-02851 BOLT9202--01 ~ 9208--01; SR18DE.AT |
01125-02851 |
US $2.45 |
||
|
11515AD
|
11515AD
01125-01991 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01991 |
US $3.46 |
||
|
11515AE
|
11515AE
01125-01871 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01871 |
US $2.45 |
||
| replacement | |||||
|
11515AE
|
11515AE
01125-03051
Bolt
9008--01 ~ 9208--01; SR18DE.AT |
01125-03051 |
— | ||
|
11515AH
|
11515AH
01125-01931 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01931 |
US $2.45 |
||
|
11515AJ
|
11515AJ
01125-01861 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01861 |
US $2.45 |
||
|
11515AK
|
11515AK
0112501951 BOLT9008--01 ~ 9208--01; SR18DE.AT |
0112501951 |
US $3.46 |
||
|
11515AM
|
11515AM
01125-01991 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01991 |
US $3.46 |
||
|
11515AN
|
11515AN
01125-01941 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01941 |
US $4.18 |
||
|
11515AQ
|
11515AQ
01125-01881 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01881 |
US $2.45 |
||
|
11515AQ
|
11515AQ
01125-01881 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01881 |
US $2.45 |
||
|
11515AR
|
11515AR
01125-01791 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01791 |
US $2.45 |
||
|
11515AS
|
11515AS
01125-01921 BOLT9008--01 ~ 9208--01; SR18DE.AT |
01125-01921 |
US $4.18 |
||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
