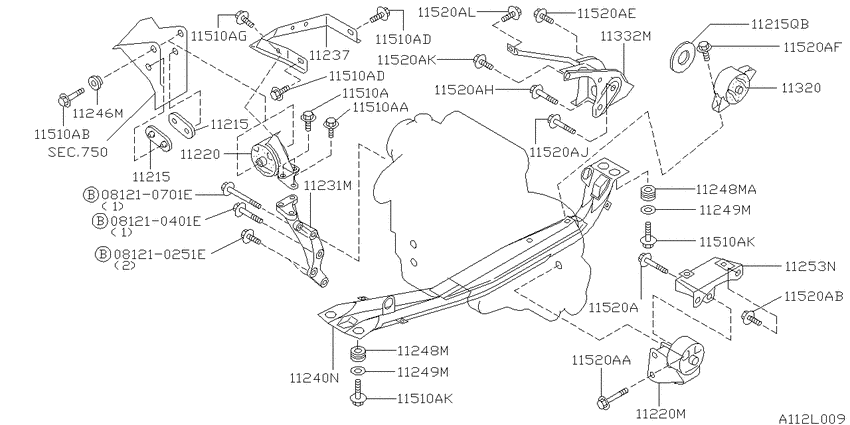

Engine & transmission mounting (1992-08-01 ~ ; 0(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- GA13DS
- drive
- 2WD
- transmission
- AT
- grade
- V1
- body
- 3HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210401E
|
081210401E
081210401E Bolt-hexagon |
081210401E |
US $1.11 |
||
|
081210701E
|
081210701E
081210701E
Bolt-hexagon
|
081210701E |
— | ||
|
11215
|
11215
11215-50Y10 Stopper-Engine Mounting9008--01 ~ 9208--01; GA13DS.AT +2WD.GA15DS.AT |
11215-50Y10 |
US $13.59 |
||
|
11215
|
11215
1121550A00 Stopper-Engine Mounting9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
1121550A00 |
US $11.38 |
||
|
11215
|
11215
11215-50Y10 Stopper-Engine Mounting9008--01 ~ 9208--01; GA13DS.AT +2WD.GA15DS.AT |
11215-50Y10 |
US $13.59 |
||
|
11215
|
11215
1121550A00 Stopper-Engine Mounting9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
1121550A00 |
US $11.38 |
||
|
11215QB
|
11215QB
1121550A00 Stopper-Engine Mounting9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
1121550A00 |
US $11.38 |
||
|
11220
|
11220
11210-0M000 Insulator Assy-Engine Mounting, Front Rh9403--01 ~ ; 0(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT |
11210-0M000 |
from US $86.54 |
||
|
11220
|
11220
11210-50Y00
Insulator Assy-Engine Mounting, Front Rh
9208--01 ~ 9403--01; 0(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT |
11210-50Y00 |
— | ||
| replacements | |||||
|
11220
|
11220
11210-0M000 Insulator Assy-Engine Mounting, Front Rh9208--01 ~ 9403--01; 0(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT |
11210-0M000 |
from US $86.54 |
||
|
11220
|
11220
11210-0M010 Insulator Assy-Engine Mounting, Front Rh9208--01 ~ 9403--01; 0(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT |
11210-0M010 |
US $94.96 |
||
|
11220
|
11220
11220-0M010 Insulator Assy-Engine Mounting, Front Lh9403--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11220-0M010 |
from US $83.86 |
||
|
11220
|
11220
11220-50Y10 Insulator Assy-Engine Mounting, Front Lh9008--01 ~ 9208--01; #GA13DS.AT +2WD.GA15DS.AT +GA16DE.AT |
11220-50Y10 |
US $78.48 |
||
|
11220
|
11220
11220-50Y11
Insulator Assy-Engine Mounting, Front Lh
9208--01 ~ 9403--01; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11220-50Y11 |
— | ||
| replacement | |||||
|
11220
|
11220
11220-0M010 Insulator Assy-Engine Mounting, Front Lh9208--01 ~ 9403--01; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11220-0M010 |
from US $83.86 |
||
|
11220M
|
11220M
11220-0M010 Insulator Assy-Engine Mounting, Front Lh9403--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11220-0M010 |
from US $83.86 |
||
|
11220M
|
11220M
11220-50Y10 Insulator Assy-Engine Mounting, Front Lh9008--01 ~ 9208--01; #GA13DS.AT +2WD.GA15DS.AT +GA16DE.AT |
11220-50Y10 |
US $78.48 |
||
|
11220M
|
11220M
11220-50Y11
Insulator Assy-Engine Mounting, Front Lh
9208--01 ~ 9403--01; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11220-50Y11 |
— | ||
| replacement | |||||
|
11220M
|
11220M
11220-0M010 Insulator Assy-Engine Mounting, Front Lh9208--01 ~ 9403--01; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11220-0M010 |
from US $83.86 |
||
|
11231M
|
11231M
11231-50Y00 Bracket-Engine Mounting9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11231-50Y00 |
US $80.50 |
||
|
11237
|
11237
11237-50Y00 Stay-Engine Mounting, Rh9008--01 ~ 9208--01; GA13DS.AT +2WD.GA15DS.AT |
11237-50Y00 |
US $44.35 |
||
|
11240N
|
11240N
11240-50Y10 Member Assy-Front, Center9008--01 ~ 9208--01; GA13DS.AT +2WD.GA15DS.AT |
11240-50Y10 |
US $105.84 |
||
|
11246M
|
11246M
11246-50Y03 Damper Assy-Mass9311--01 ~ 9402--01; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11246-50Y03 |
US $46.85 |
||
|
11246M
|
11246M
11246-50Y20
Damper Assy-Mass
9008--01 ~ 9208--01; #GA13DS.AT +2WD.GA15DS.AT +GA16DE.AT |
11246-50Y20 |
— | ||
| replacement | |||||
|
11246M
|
11246M
11246-50Y03 Damper Assy-Mass9008--01 ~ 9208--01; #GA13DS.AT +2WD.GA15DS.AT +GA16DE.AT |
11246-50Y03 |
US $46.85 |
||
|
11248M
|
11248M
11248-0M900 Pad-Engine Mounting Member9409--01 ~ ; 0(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT |
11248-0M900 |
from US $6.70 |
||
|
11248M
|
11248M
11248-50Y00 Pad-Engine Mounting Member9208--01 ~ 9409--01; 0(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT |
11248-50Y00 |
from US $4.20 |
||
|
11248M
|
11248M
11248-50Y05 Pad-Engine Mounting Member9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11248-50Y05 |
from US $5.27 |
||
|
11248MA
|
11248MA
11248-50Y05 Pad-Engine Mounting Member9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11248-50Y05 |
from US $5.27 |
||
|
11249M
|
11249M
11249-50Y00 Collar-Engine Mounting9208--01 ~ ; 0(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT |
11249-50Y00 |
from US $1.67 |
||
|
11249M
|
11249M
11249-50Y00 Collar-Engine Mounting9208--01 ~ ; 0(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT |
11249-50Y00 |
from US $1.67 |
||
|
11253N
|
11253N
11253-50Y11 Bracket-Engine Mounting, Lh9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11253-50Y11 |
US $50.40 |
||
|
11320
|
11320
11320-50Y10
Insulator-Engine Mounting, Rear
9008--01 ~ 9208--01; #GA13DS.AT +2WD.GA15DS.AT +GA16DE.AT |
11320-50Y10 |
— | ||
| replacement | |||||
|
11320
|
11320
11320-50Y11 Insulator-Engine Mounting, Rear9008--01 ~ 9208--01; #GA13DS.AT +2WD.GA15DS.AT +GA16DE.AT |
11320-50Y11 |
from US $65.98 |
||
|
11320
|
11320
11320-50Y11 Insulator-Engine Mounting, Rear9405--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11320-50Y11 |
from US $65.98 |
||
|
11332M
|
11332M
11332-50Y11 Bracket-Engine Mounting, Rear9008--01 ~ 9208--01; #GA13DS.AT +2WD.GA15DS.AT +GA16DE.AT |
11332-50Y11 |
US $97.49 |
||
| replacement | |||||
|
11332M
|
11332M
11332-0M010 Bracket-Engine Mounting, Rear9008--01 ~ 9208--01; #GA13DS.AT +2WD.GA15DS.AT +GA16DE.AT |
11332-0M010 |
US $97.49 |
||
|
11510A
|
11510A
01125-02991 BOLT9208--01 ~ ; 0(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT |
01125-02991 |
US $4.18 |
||
|
11510A
|
11510A
01125-01801 BOLT9208--01 ~ ; 0(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT |
01125-01801 |
US $4.18 |
||
|
11510A
|
11510A
01125-01991 BOLT9402--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01991 |
US $3.46 |
||
|
11510A
|
11510A
01125-02321 BOLT9208--01 ~ 9402--01; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-02321 |
US $2.45 |
||
|
11510A
|
11510A
01125-01801 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01801 |
US $4.18 |
||
|
11510A
|
11510A
01125-01801 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01801 |
US $4.18 |
||
|
11510A
|
11510A
01125-02761 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-02761 |
US $2.45 |
||
|
11510AA
|
11510AA
01125-01801 BOLT9208--01 ~ ; 0(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT |
01125-01801 |
US $4.18 |
||
|
11510AB
|
11510AB
01125-01991 BOLT9402--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01991 |
US $3.46 |
||
|
11510AB
|
11510AB
01125-02321 BOLT9208--01 ~ 9402--01; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-02321 |
US $2.45 |
||
|
11510AD
|
11510AD
01125-01801 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01801 |
US $4.18 |
||
|
11510AD
|
11510AD
01125-01801 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01801 |
US $4.18 |
||
|
11510AG
|
11510AG
01125-01801 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01801 |
US $4.18 |
||
|
11510AK
|
11510AK
01125-02761 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-02761 |
US $2.45 |
||
|
11510AK
|
11510AK
01125-02761 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-02761 |
US $2.45 |
||
|
11520A
|
11520A
01125-01931 BOLT9208--01 ~ 9412--01; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01931 |
US $2.45 |
||
|
11520A
|
11520A
11298-0M000 Bolt9412--01 ~ 9501--01; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
11298-0M000 |
US $3.46 |
||
|
11520A
|
11520A
01125-01861 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01861 |
US $2.45 |
||
|
11520A
|
11520A
0112501951 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
0112501951 |
US $3.46 |
||
|
11520A
|
11520A
01125-01991 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01991 |
US $3.46 |
||
|
11520A
|
11520A
01125-01941 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01941 |
US $4.18 |
||
|
11520A
|
11520A
01125-01851 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01851 |
US $4.18 |
||
|
11520A
|
11520A
01125-01791 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01791 |
US $2.45 |
||
|
11520A
|
11520A
01125-01851 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01851 |
US $4.18 |
||
|
11520A
|
11520A
01125-01811 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01811 |
US $3.46 |
||
|
11520AA
|
11520AA
01125-01861 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01861 |
US $2.45 |
||
|
11520AB
|
11520AB
0112501951 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
0112501951 |
US $3.46 |
||
|
11520AE
|
11520AE
01125-01991 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01991 |
US $3.46 |
||
|
11520AF
|
11520AF
01125-01941 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01941 |
US $4.18 |
||
|
11520AH
|
11520AH
01125-01851 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01851 |
US $4.18 |
||
|
11520AJ
|
11520AJ
01125-01791 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01791 |
US $2.45 |
||
|
11520AK
|
11520AK
01125-01851 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01851 |
US $4.18 |
||
|
11520AL
|
11520AL
01125-01811 BOLT9208--01 ~ ; ;(4S+3HB).2WD.GA15DS.AT +5HB.GA15DS.AT +GA13DS.AT +GA16DE.AT |
01125-01811 |
US $3.46 |
||
|
