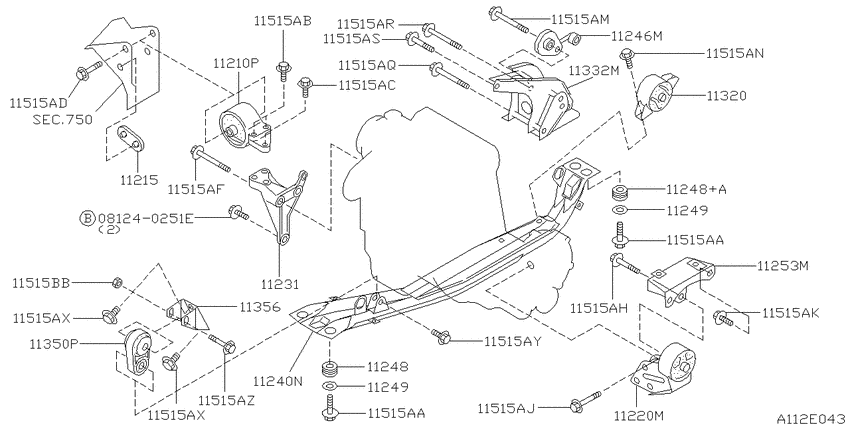

Engine & transmission mounting (1990-08-01 ~ 1992-08-01; CD17.MT) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- CD17
- drive
- 2WD
- transmission
- MT
- grade
- K1
- body
- 4S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081240251E
|
081240251E
081240251E
Bolt-hexagon
|
081240251E |
— | ||
|
11210P
|
11210P
11210-59Y15 Insulator Assy-Engine Mounting, Front Rh9201--01 ~ 9208--01; CD17.MT |
11210-59Y15 |
US $117.36 |
||
|
11210P
|
11210P
11210-59Y20
Insulator Assy-Engine Mounting, Front Rh
9008--01 ~ 9208--01; CD17.MT |
11210-59Y20 |
— | ||
|
11215
|
11215
11215-50Y10 Stopper-Engine Mounting9008--01 ~ 9208--01; CD17.MT |
11215-50Y10 |
US $13.59 |
||
|
11220M
|
11220M
11220-59Y00 Insulator Assy-Engine Mounting, Front Lh9008--01 ~ 9208--01; CD17.MT |
11220-59Y00 |
US $59.33 |
||
|
11220M
|
11220M
11220-62C05 Insulator Assy-Engine Mounting, Front Lh9110--01 ~ 9208--01; *CD17.MT; ﾋﾞｽｶｽ LSD |
11220-62C05 |
US $94.03 |
||
|
11231
|
11231
11231-59Y00 Bracket-Engine Mounting9008--01 ~ 9208--01; CD17.MT |
11231-59Y00 |
US $81.36 |
||
|
11240N
|
11240N
11240-50Y00 Member Assy-Front, Center9008--01 ~ 9208--01; CD17.MT |
11240-50Y00 |
US $127.01 |
||
|
11246M
|
11246M
11246-50Y05
Damper Assy-Mass
9008--01 ~ 9208--01; CD17.MT |
11246-50Y05 |
— | ||
|
11248
|
11248
11248-50Y00 Pad-Engine Mounting Member9008--01 ~ 9208--01; CD17.MT |
11248-50Y00 |
from US $4.20 |
||
|
11248
|
11248
11248-50Y05 Pad-Engine Mounting Member9008--01 ~ 9208--01; CD17.MT |
11248-50Y05 |
from US $5.46 |
||
|
11248+A
|
11248+A
11248-50Y05 Pad-Engine Mounting Member9008--01 ~ 9208--01; CD17.MT |
11248-50Y05 |
from US $5.46 |
||
|
11249
|
11249
11249-50Y00 Collar-Engine Mounting9008--01 ~ 9208--01; CD17.MT |
11249-50Y00 |
from US $1.67 |
||
|
11249
|
11249
11249-50Y00 Collar-Engine Mounting9008--01 ~ 9208--01; CD17.MT |
11249-50Y00 |
from US $1.67 |
||
|
11253M
|
11253M
11253-50Y01 Bracket-Engine Mounting, Lh9008--01 ~ 9208--01; CD17.MT |
11253-50Y01 |
US $72.43 |
||
|
11320
|
11320
11320-59Y00
Insulator-Engine Mounting, Rear
9008--01 ~ 9010--01; CD17.MT |
11320-59Y00 |
— | ||
| replacement | |||||
|
11320
|
11320
11320-0M002 Insulator-Engine Mounting, Rear9008--01 ~ 9010--01; CD17.MT |
11320-0M002 |
from US $83.64 |
||
|
11320
|
11320
11320-59Y10 Insulator-Engine Mounting, Rear9010--01 ~ 9208--01; CD17.MT |
11320-59Y10 |
US $103.54 |
||
|
11332M
|
11332M
11332-56C00 Bracket-Engine Mounting, Rear9110--01 ~ 9208--01; *CD17.MT; ﾋﾞｽｶｽ LSD |
11332-56C00 |
US $97.49 |
||
|
11332M
|
11332M
11332-59Y00 Bracket-Engine Mounting, Rear9008--01 ~ 9208--01; CD17.MT |
11332-59Y00 |
US $96.91 |
||
|
11350P
|
11350P
11350-50Y00 Bracket Assy-Engine Mounting, Rear9008--01 ~ 9208--01; CD17.MT |
11350-50Y00 |
US $38.18 |
||
|
11356
|
11356
11356-59Y00 Stopper-Engine Mounting, Rear9008--01 ~ 9208--01; CD17.MT |
11356-59Y00 |
US $12.38 |
||
|
11515AA
|
11515AA
01125-01911 BOLT9008--01 ~ 9201--01; CD17.MT |
01125-01911 |
US $2.45 |
||
|
11515AA
|
11515AA
01125-02761 BOLT9201--01 ~ 9208--01; CD17.MT |
01125-02761 |
US $2.45 |
||
|
11515AA
|
11515AA
01125-01911 BOLT9008--01 ~ 9201--01; CD17.MT |
01125-01911 |
US $2.45 |
||
|
11515AA
|
11515AA
01125-02761 BOLT9201--01 ~ 9208--01; CD17.MT |
01125-02761 |
US $2.45 |
||
|
11515AB
|
11515AB
01125-01851 BOLT9008--01 ~ 9201--01; CD17.MT |
01125-01851 |
US $4.18 |
||
|
11515AB
|
11515AB
01125-02831 BOLT9201--01 ~ 9208--01; CD17.MT |
01125-02831 |
US $2.45 |
||
|
11515AC
|
11515AC
01125-01831 BOLT9008--01 ~ 9201--01; CD17.MT |
01125-01831 |
US $4.18 |
||
|
11515AC
|
11515AC
01125-02841 BOLT9201--01 ~ 9208--01; CD17.MT |
01125-02841 |
US $2.45 |
||
|
11515AD
|
11515AD
01125-01991 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-01991 |
US $3.46 |
||
|
11515AF
|
11515AF
01125-01981 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-01981 |
US $2.45 |
||
|
11515AH
|
11515AH
01125-01931 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-01931 |
US $2.45 |
||
|
11515AJ
|
11515AJ
01125-01871 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-01871 |
US $2.45 |
||
| replacement | |||||
|
11515AJ
|
11515AJ
01125-03051
Bolt
9008--01 ~ 9208--01; CD17.MT |
01125-03051 |
— | ||
|
11515AJ
|
11515AJ
01125-01881 BOLT9110--01 ~ 9208--01; *CD17.MT; ﾋﾞｽｶｽ LSD |
01125-01881 |
US $2.45 |
||
|
11515AK
|
11515AK
0112501951 BOLT9008--01 ~ 9208--01; CD17.MT |
0112501951 |
US $3.46 |
||
|
11515AM
|
11515AM
01125-02011 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-02011 |
US $9.36 |
||
|
11515AN
|
11515AN
01125-01941 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-01941 |
US $4.18 |
||
|
11515AQ
|
11515AQ
01125-01861 BOLT9110--01 ~ 9208--01; *CD17.MT; ﾋﾞｽｶｽ LSD |
01125-01861 |
US $2.45 |
||
|
11515AQ
|
11515AQ
01125-01881 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-01881 |
US $2.45 |
||
|
11515AR
|
11515AR
01125-01791 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-01791 |
US $2.45 |
||
|
11515AS
|
11515AS
01125-01901 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-01901 |
US $4.18 |
||
|
11515AX
|
11515AX
01125-01811 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-01811 |
US $3.46 |
||
|
11515AX
|
11515AX
01125-01811 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-01811 |
US $3.46 |
||
|
11515AY
|
11515AY
01125-01971 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-01971 |
US $3.46 |
||
| replacement | |||||
|
11515AY
|
11515AY
01125-03081 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-03081 |
US $3.46 |
||
|
11515AZ
|
11515AZ
01125-01981 BOLT9008--01 ~ 9208--01; CD17.MT |
01125-01981 |
US $2.45 |
||
|
11515BB
|
11515BB
0122500062 NUT9008--01 ~ 9208--01; CD17.MT |
0122500062 |
from US $1.67 |
||
|
