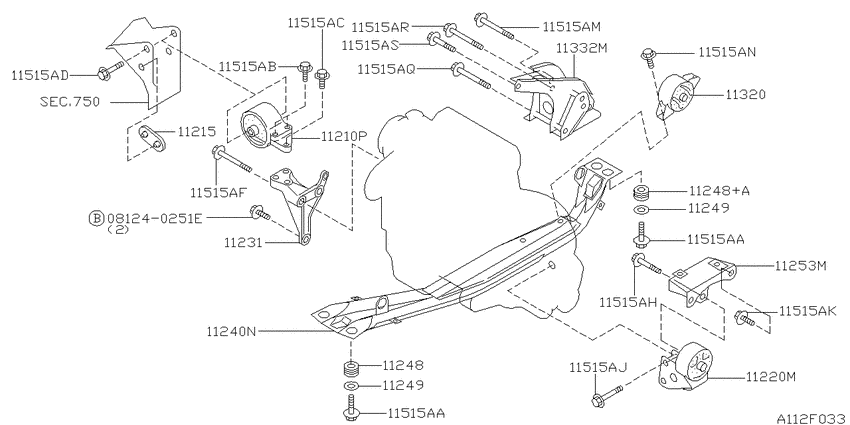

Engine & transmission mounting (1990-08-01 ~ 1992-08-01; CD17.AT) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- CD17
- drive
- 2WD
- transmission
- AT
- grade
- K1
- body
- 4S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081240251E
|
081240251E
081240251E
Bolt-hexagon
|
081240251E |
— | ||
|
11210P
|
11210P
11210-59Y15 Insulator Assy-Engine Mounting, Front Rh9201--01 ~ 9208--01; CD17.AT |
11210-59Y15 |
US $117.36 |
||
|
11210P
|
11210P
11210-59Y20
Insulator Assy-Engine Mounting, Front Rh
9008--01 ~ 9201--01; CD17.AT |
11210-59Y20 |
— | ||
|
11215
|
11215
11215-50Y10 Stopper-Engine Mounting9008--01 ~ 9208--01; CD17.AT |
11215-50Y10 |
US $13.59 |
||
|
11220M
|
11220M
11220-58Y10 Insulator Assy-Engine Mounting, Front Lh9008--01 ~ 9208--01; CD17.AT |
11220-58Y10 |
US $78.48 |
||
|
11231
|
11231
11231-59Y00 Bracket-Engine Mounting9008--01 ~ 9208--01; CD17.AT |
11231-59Y00 |
US $81.36 |
||
|
11240N
|
11240N
11240-50Y10 Member Assy-Front, Center9008--01 ~ 9208--01; CD17.AT |
11240-50Y10 |
US $105.84 |
||
|
11248
|
11248
11248-50Y00 Pad-Engine Mounting Member9008--01 ~ 9208--01; CD17.AT |
11248-50Y00 |
from US $4.20 |
||
|
11248
|
11248
11248-50Y05 Pad-Engine Mounting Member9008--01 ~ 9208--01; CD17.AT |
11248-50Y05 |
from US $5.46 |
||
|
11248+A
|
11248+A
11248-50Y05 Pad-Engine Mounting Member9008--01 ~ 9208--01; CD17.AT |
11248-50Y05 |
from US $5.46 |
||
|
11249
|
11249
11249-50Y00 Collar-Engine Mounting9008--01 ~ 9208--01; CD17.AT |
11249-50Y00 |
from US $1.67 |
||
|
11249
|
11249
11249-50Y00 Collar-Engine Mounting9008--01 ~ 9208--01; CD17.AT |
11249-50Y00 |
from US $1.67 |
||
|
11253M
|
11253M
11253-50Y11 Bracket-Engine Mounting, Lh9008--01 ~ 9208--01; CD17.AT |
11253-50Y11 |
US $50.40 |
||
|
11320
|
11320
11320-50Y10
Insulator-Engine Mounting, Rear
9008--01 ~ 9208--01; CD17.AT |
11320-50Y10 |
— | ||
| replacement | |||||
|
11320
|
11320
11320-50Y11 Insulator-Engine Mounting, Rear9008--01 ~ 9208--01; CD17.AT |
11320-50Y11 |
from US $65.98 |
||
|
11332M
|
11332M
11332-56C10 Bracket-Engine Mounting, Rear9110--01 ~ 9208--01; *CD17.AT; ﾋﾞｽｶｽ LSD |
11332-56C10 |
US $106.42 |
||
|
11332M
|
11332M
11332-59Y10 Bracket-Engine Mounting, Rear9008--01 ~ 9208--01; CD17.AT |
11332-59Y10 |
US $106.42 |
||
|
11515AA
|
11515AA
01125-01911 BOLT9008--01 ~ 9201--01; CD17.AT |
01125-01911 |
US $2.45 |
||
|
11515AA
|
11515AA
01125-02761 BOLT9201--01 ~ 9208--01; CD17.AT |
01125-02761 |
US $2.45 |
||
|
11515AA
|
11515AA
01125-01911 BOLT9008--01 ~ 9201--01; CD17.AT |
01125-01911 |
US $2.45 |
||
|
11515AA
|
11515AA
01125-02761 BOLT9201--01 ~ 9208--01; CD17.AT |
01125-02761 |
US $2.45 |
||
|
11515AB
|
11515AB
01125-01851 BOLT9008--01 ~ 9111--01; CD17.AT |
01125-01851 |
US $4.18 |
||
|
11515AB
|
11515AB
01125-02831 BOLT9111--01 ~ 9208--01; CD17.AT |
01125-02831 |
US $2.45 |
||
|
11515AC
|
11515AC
01125-01831 BOLT9008--01 ~ 9111--01; CD17.AT |
01125-01831 |
US $4.18 |
||
|
11515AC
|
11515AC
01125-02841 BOLT9111--01 ~ 9208--01; CD17.AT |
01125-02841 |
US $2.45 |
||
|
11515AD
|
11515AD
01125-01991 BOLT9008--01 ~ 9208--01; CD17.AT |
01125-01991 |
US $3.46 |
||
|
11515AF
|
11515AF
01125-01981 BOLT9008--01 ~ 9208--01; CD17.AT |
01125-01981 |
US $2.45 |
||
|
11515AH
|
11515AH
01125-01931 BOLT9008--01 ~ 9208--01; CD17.AT |
01125-01931 |
US $2.45 |
||
|
11515AJ
|
11515AJ
01125-01861 BOLT9008--01 ~ 9208--01; CD17.AT |
01125-01861 |
US $2.45 |
||
|
11515AK
|
11515AK
0112501951 BOLT9008--01 ~ 9208--01; CD17.AT |
0112501951 |
US $3.46 |
||
|
11515AM
|
11515AM
01125-01991 BOLT9008--01 ~ 9208--01; CD17.AT |
01125-01991 |
US $3.46 |
||
|
11515AN
|
11515AN
01125-01941 BOLT9008--01 ~ 9208--01; CD17.AT |
01125-01941 |
US $4.18 |
||
|
11515AQ
|
11515AQ
01125-01861 BOLT9110--01 ~ 9208--01; *CD17.AT; ﾋﾞｽｶｽ LSD |
01125-01861 |
US $2.45 |
||
|
11515AQ
|
11515AQ
01125-01881 BOLT9008--01 ~ 9208--01; CD17.AT |
01125-01881 |
US $2.45 |
||
|
11515AR
|
11515AR
01125-01791 BOLT9008--01 ~ 9208--01; CD17.AT |
01125-01791 |
US $2.45 |
||
|
11515AS
|
11515AS
01125-01891 BOLT9105--01 ~ 9208--01; CD17.AT |
01125-01891 |
US $4.18 |
||
|
11515AS
|
11515AS
01125-01901 BOLT9008--01 ~ 9105--01; CD17.AT |
01125-01901 |
US $4.18 |
||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
