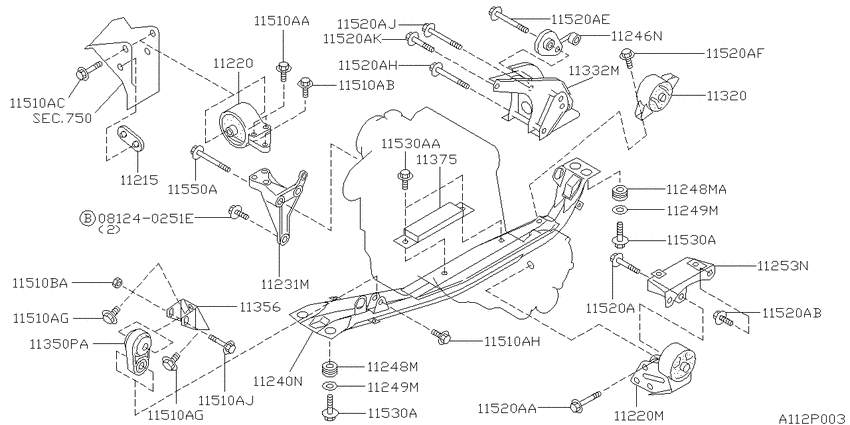

Engine & transmission mounting (1992-08-01 ~ ; CD17.MT) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- CD17
- drive
- 2WD
- transmission
- MT
- grade
- J1J
- body
- 4S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081240251E
|
081240251E
081240251E
Bolt-hexagon
|
081240251E |
— | ||
|
11215
|
11215
11215-50Y10 Stopper-Engine Mounting9208--01 ~ ; CD17.MT |
11215-50Y10 |
US $13.59 |
||
|
11220
|
11220
11210-59Y15 Insulator Assy-Engine Mounting, Front Rh9208--01 ~ ; CD17.MT |
11210-59Y15 |
US $117.36 |
||
|
11220
|
11220
11220-0M900 Insulator Assy-Engine Mounting, Front Lh9404--01 ~ ; *CD17.MT; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
11220-0M900 |
US $93.89 |
||
|
11220
|
11220
11220-59Y00 Insulator Assy-Engine Mounting, Front Lh9208--01 ~ ; CD17.MT |
11220-59Y00 |
US $59.33 |
||
|
11220
|
11220
11220-62C05 Insulator Assy-Engine Mounting, Front Lh9208--01 ~ 9403--01; *CD17.MT; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
11220-62C05 |
US $94.03 |
||
|
11220M
|
11220M
11220-0M900 Insulator Assy-Engine Mounting, Front Lh9404--01 ~ ; *CD17.MT; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
11220-0M900 |
US $93.89 |
||
|
11220M
|
11220M
11220-59Y00 Insulator Assy-Engine Mounting, Front Lh9208--01 ~ ; CD17.MT |
11220-59Y00 |
US $59.33 |
||
|
11220M
|
11220M
11220-62C05 Insulator Assy-Engine Mounting, Front Lh9208--01 ~ 9403--01; *CD17.MT; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
11220-62C05 |
US $94.03 |
||
|
11231M
|
11231M
11231-59Y00 Bracket-Engine Mounting9208--01 ~ ; CD17.MT |
11231-59Y00 |
US $81.36 |
||
|
11240N
|
11240N
11240-0M310 Member Assy-Engine Mounting9409--01 ~ ; CD17.MT |
11240-0M310 |
US $154.08 |
||
|
11240N
|
11240N
11240-50Y00 Member Assy-Front, Center9208--01 ~ 9409--01; CD17.MT |
11240-50Y00 |
US $127.01 |
||
|
11246N
|
11246N
11246-50Y05
Damper Assy-Mass
9208--01 ~ 9310--01; CD17.MT |
11246-50Y05 |
— | ||
|
11246N
|
11246N
11246-70N00 Damper Assy9310--01 ~ ; CD17.MT |
11246-70N00 |
US $135.65 |
||
|
11248M
|
11248M
11248-0M900 Pad-Engine Mounting Member9409--01 ~ 9501--01; CD17.MT |
11248-0M900 |
from US $7.31 |
||
|
11248M
|
11248M
11248-50Y00 Pad-Engine Mounting Member9208--01 ~ 9409--01; CD17.MT |
11248-50Y00 |
from US $4.20 |
||
|
11248M
|
11248M
11248-50Y05 Pad-Engine Mounting Member9208--01 ~ ; CD17.MT |
11248-50Y05 |
from US $5.46 |
||
|
11248MA
|
11248MA
11248-50Y05 Pad-Engine Mounting Member9208--01 ~ ; CD17.MT |
11248-50Y05 |
from US $5.46 |
||
|
11249M
|
11249M
11249-50Y00 Collar-Engine Mounting9208--01 ~ ; CD17.MT |
11249-50Y00 |
from US $1.67 |
||
|
11249M
|
11249M
11249-50Y00 Collar-Engine Mounting9208--01 ~ ; CD17.MT |
11249-50Y00 |
from US $1.67 |
||
|
11253N
|
11253N
11253-50Y01 Bracket-Engine Mounting, Lh9208--01 ~ ; CD17.MT |
11253-50Y01 |
US $72.43 |
||
|
11320
|
11320
11320-0M900 Insulator-Engine Mounting, Rear9404--01 ~ 9405--01; CD17.MT |
11320-0M900 |
US $103.54 |
||
|
11320
|
11320
11320-0M902 Insulator-Engine Mounting, Rear9405--01 ~ ; CD17.MT |
11320-0M902 |
US $95.04 |
||
|
11320
|
11320
11320-59Y10 Insulator-Engine Mounting, Rear9208--01 ~ 9404--01; CD17.MT |
11320-59Y10 |
US $103.54 |
||
|
11332M
|
11332M
11332-56C00 Bracket-Engine Mounting, Rear9208--01 ~ ; *CD17.MT; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
11332-56C00 |
US $97.49 |
||
|
11332M
|
11332M
11332-59Y00 Bracket-Engine Mounting, Rear9208--01 ~ ; CD17.MT |
11332-59Y00 |
US $96.91 |
||
|
11350PA
|
11350PA
11350-50Y00 Bracket Assy-Engine Mounting, Rear9208--01 ~ ; CD17.MT |
11350-50Y00 |
US $38.18 |
||
|
11356
|
11356
11356-59Y00 Stopper-Engine Mounting, Rear9208--01 ~ ; CD17.MT |
11356-59Y00 |
US $12.38 |
||
|
11375
|
11375
11375-0M805 Damper Assy-Dynamic9409--01 ~ ; CD17.MT |
11375-0M805 |
US $135.65 |
||
|
11510AA
|
11510AA
01125-02831 BOLT9208--01 ~ ; CD17.MT |
01125-02831 |
US $2.45 |
||
|
11510AB
|
11510AB
01125-02991 BOLT9208--01 ~ ; CD17.MT |
01125-02991 |
US $4.18 |
||
|
11510AC
|
11510AC
01125-01991 BOLT9208--01 ~ ; CD17.MT |
01125-01991 |
US $3.46 |
||
|
11510AG
|
11510AG
01125-01811 BOLT9208--01 ~ ; CD17.MT |
01125-01811 |
US $3.46 |
||
|
11510AG
|
11510AG
01125-01811 BOLT9208--01 ~ ; CD17.MT |
01125-01811 |
US $3.46 |
||
|
11510AH
|
11510AH
01125-01971 BOLT9208--01 ~ ; CD17.MT |
01125-01971 |
US $3.46 |
||
| replacement | |||||
|
11510AH
|
11510AH
01125-03081 BOLT9208--01 ~ ; CD17.MT |
01125-03081 |
US $3.46 |
||
|
11510AJ
|
11510AJ
01125-01981 BOLT9208--01 ~ ; CD17.MT |
01125-01981 |
US $2.45 |
||
|
11510BA
|
11510BA
0122500062 NUT9208--01 ~ ; CD17.MT |
0122500062 |
from US $1.67 |
||
|
11520A
|
11520A
01125-01931 BOLT9208--01 ~ 9412--01; CD17.MT |
01125-01931 |
US $2.45 |
||
|
11520A
|
11520A
11298-0M000 Bolt9412--01 ~ 9501--01; CD17.MT |
11298-0M000 |
US $3.46 |
||
|
11520A
|
11520A
01125-01871 BOLT9208--01 ~ ; CD17.MT |
01125-01871 |
US $2.45 |
||
| replacement | |||||
|
11520A
|
11520A
01125-03051
Bolt
9208--01 ~ ; CD17.MT |
01125-03051 |
— | ||
|
11520A
|
11520A
01125-01881 BOLT9208--01 ~ ; *CD17.MT; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
01125-01881 |
US $2.45 |
||
|
11520A
|
11520A
0112501951 BOLT9208--01 ~ ; CD17.MT |
0112501951 |
US $3.46 |
||
|
11520A
|
11520A
01125-02011 BOLT9208--01 ~ ; CD17.MT |
01125-02011 |
US $9.36 |
||
|
11520A
|
11520A
01125-01941 BOLT9208--01 ~ ; CD17.MT |
01125-01941 |
US $4.18 |
||
|
11520A
|
11520A
01125-01861 BOLT9208--01 ~ ; *CD17.MT; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
01125-01861 |
US $2.45 |
||
|
11520A
|
11520A
01125-01881 BOLT9208--01 ~ ; CD17.MT |
01125-01881 |
US $2.45 |
||
|
11520A
|
11520A
01125-01791 BOLT9208--01 ~ ; CD17.MT |
01125-01791 |
US $2.45 |
||
|
11520A
|
11520A
01125-01901 BOLT9208--01 ~ ; CD17.MT |
01125-01901 |
US $4.18 |
||
|
11520AA
|
11520AA
01125-01871 BOLT9208--01 ~ ; CD17.MT |
01125-01871 |
US $2.45 |
||
| replacement | |||||
|
11520AA
|
11520AA
01125-03051
Bolt
9208--01 ~ ; CD17.MT |
01125-03051 |
— | ||
|
11520AA
|
11520AA
01125-01881 BOLT9208--01 ~ ; *CD17.MT; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
01125-01881 |
US $2.45 |
||
|
11520AB
|
11520AB
0112501951 BOLT9208--01 ~ ; CD17.MT |
0112501951 |
US $3.46 |
||
|
11520AE
|
11520AE
01125-02011 BOLT9208--01 ~ ; CD17.MT |
01125-02011 |
US $9.36 |
||
|
11520AF
|
11520AF
01125-01941 BOLT9208--01 ~ ; CD17.MT |
01125-01941 |
US $4.18 |
||
|
11520AH
|
11520AH
01125-01861 BOLT9208--01 ~ ; *CD17.MT; ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
01125-01861 |
US $2.45 |
||
|
11520AH
|
11520AH
01125-01881 BOLT9208--01 ~ ; CD17.MT |
01125-01881 |
US $2.45 |
||
|
11520AJ
|
11520AJ
01125-01791 BOLT9208--01 ~ ; CD17.MT |
01125-01791 |
US $2.45 |
||
|
11520AK
|
11520AK
01125-01901 BOLT9208--01 ~ ; CD17.MT |
01125-01901 |
US $4.18 |
||
|
11530A
|
11530A
01125-02761 BOLT9208--01 ~ ; CD17.MT |
01125-02761 |
US $2.45 |
||
|
11530A
|
11530A
01125-01941 BOLT9208--01 ~ ; CD17.MT |
01125-01941 |
US $4.18 |
||
|
11530A
|
11530A
01125-02761 BOLT9208--01 ~ ; CD17.MT |
01125-02761 |
US $2.45 |
||
|
11530A
|
11530A
01125-01941 BOLT9208--01 ~ ; CD17.MT |
01125-01941 |
US $4.18 |
||
|
11530AA
|
11530AA
01125-01941 BOLT9208--01 ~ ; CD17.MT |
01125-01941 |
US $4.18 |
||
|
11550A
|
11550A
01125-01981 BOLT9208--01 ~ ; CD17.MT |
01125-01981 |
US $2.45 |
||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
