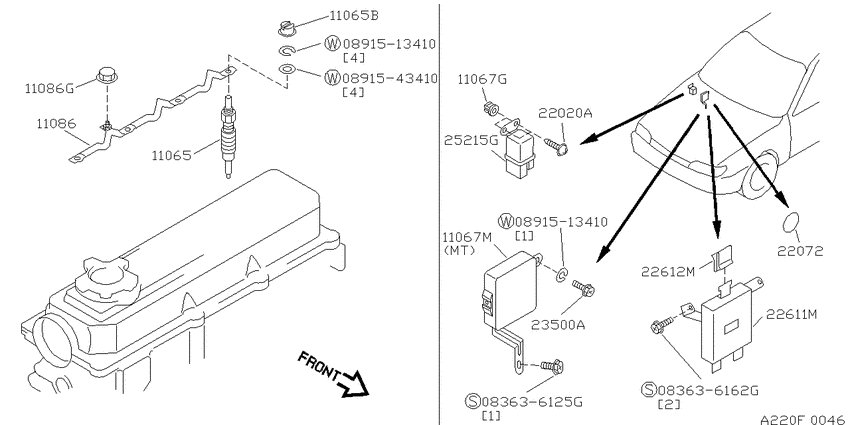

Ignition System (1992-08-01 ~ ; CD17) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- CD17
- drive
- 2WD
- transmission
- MT
- grade
- J1J
- body
- 4S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G
SCREWMACHINE
|
083606125G |
— | ||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
0891513410
|
0891513410
0891513410
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
0891513410 |
— | ||
|
0891513410
|
0891513410
0891513410
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
0891513410 |
— | ||
|
0891543410
|
0891543410
08915-43410
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43410 |
— | ||
|
11065
|
11065
11065-G5501 Plug-Glow9208--01 ~ ; CD17; [B512] |
11065-G5501 |
US $126.68 |
||
|
11065
|
11065
11066V7205 Nut9208--01 ~ ; CD17 |
11066V7205 |
from US $1.48 |
||
|
11065B
|
11065B
11066V7205 Nut9208--01 ~ ; CD17 |
11066V7205 |
from US $1.48 |
||
|
11067G
|
11067G
0128100441
GROMMET-SCREW
9208--01 ~ ; CD17 |
0128100441 |
— | ||
| replacement | |||||
|
11067G
|
11067G
0128100801 GROMMET-SCREW9208--01 ~ ; CD17 |
0128100801 |
from US $1.07 |
||
|
11086
|
11086
11086-54A01 Cable Assy9208--01 ~ ; CD17 |
11086-54A01 |
US $26.50 |
||
|
11086
|
11086
11066-V7202 Nut9208--01 ~ ; CD17 |
11066-V7202 |
US $3.46 |
||
|
11086G
|
11086G
11066-V7202 Nut9208--01 ~ ; CD17 |
11066-V7202 |
US $3.46 |
||
|
22020A
|
22020A
0146600071 SCREW9208--01 ~ ; CD17 |
0146600071 |
US $2.21 |
||
|
22072
|
22072
64891W5000 Plug-Rubber9208--01 ~ ; CD17 |
64891W5000 |
from US $0.82 |
||
|
22611M
|
22611M
23710-56C00 Engine Control Module9208--01 ~ 9406--01; CD17.MT |
23710-56C00 |
US $794.38 |
||
|
22611M
|
22611M
23710-56C01 Engine Control Module9406--01 ~ ; CD17.MT |
23710-56C01 |
US $952.97 |
||
|
22612M
|
22612M
23714-86E00
BRACKET-CONTROL UNIT
9208--01 ~ ; CD17 |
23714-86E00 |
— | ||
| replacement | |||||
|
22612M
|
22612M
23714-86E0B Bracket-Cont Unit9208--01 ~ ; CD17 |
23714-86E0B |
US $5.68 |
||
|
25215G
|
25215G
25230-80A00 Relay Assy-Glow Plug9208--01 ~ ; CD17 |
25230-80A00 |
US $53.42 |
||
