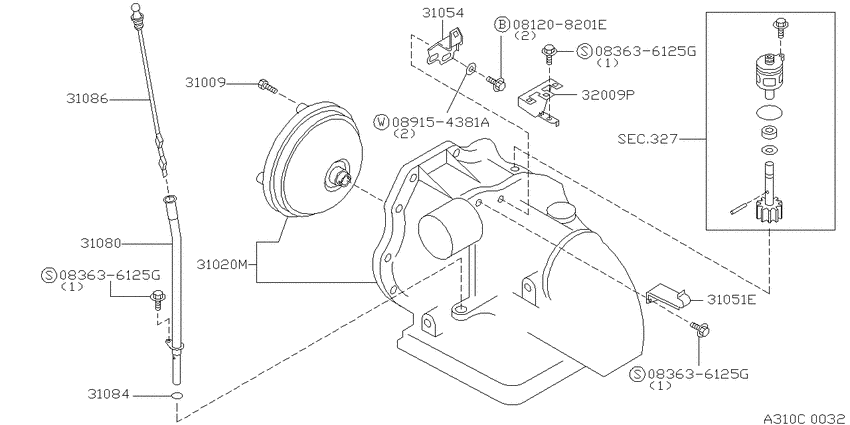

Auto transmission,transaxle & fitting (1992-08-01 ~ ; ｱｯｾﾝﾌﾞﾘｰ & ﾌｨｯﾃｨﾝｸﾞ ﾊﾟｰﾂ; CD17.AT) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- CD17
- drive
- 2WD
- transmission
- AT
- grade
- J1J
- body
- 4S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G SCREWMACHINE |
083606125G |
US $0.57 |
||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G SCREWMACHINE |
083606125G |
US $0.57 |
||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G SCREWMACHINE |
083606125G |
US $0.57 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
31009
|
31009
3100921X00 Bolt-Self Lock9208--01 ~ ; CD17.AT |
3100921X00 |
from US $4.85 |
||
|
31020M
|
31020M
31020-32X66 Transaxle Assy-Automatic9208--01 ~ 9403--01; CD17.J1J.AT; RL4F03A |
31020-32X66 |
US $4,704 |
||
|
31020M
|
31020M
31020-32X68 Transaxle Assy-Automatic9208--01 ~ 9403--01; *CD17.J1J.AT; RL4F03V ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31020-32X68 |
US $4,704 |
||
|
31020M
|
31020M
31020-34X66 Transaxle Assy-Automatic9403--01 ~ ; CD17.J1J.AT; RL4F03A |
31020-34X66 |
US $4,368 |
||
|
31020M
|
31020M
31020-34X67 Transaxle Assy-Automatic9403--01 ~ ; *CD17.J1J.AT; RL4F03V ﾉﾝｽﾘﾂﾌﾟ ﾃﾞﾌ ｼﾖｳ |
31020-34X67 |
US $4,704 |
||
|
31051E
|
31051E
24210-59Y01 Clip-Throttle Wire9208--01 ~ 9312--01; CD17.AT |
24210-59Y01 |
US $4.18 |
||
|
31051E
|
31051E
24210-59Y02 Clip-Throttle Wire9312--01 ~ ; CD17.AT |
24210-59Y02 |
US $4.18 |
||
|
31054
|
31054
31054-59Y00 Bracket-Auto Transmission Throttle Wire9208--01 ~ 9403--01; CD17.AT |
31054-59Y00 |
US $13.68 |
||
|
31054
|
31054
31054-59Y10 Bracket-Auto Transmission Throttle Wire9403--01 ~ ; CD17.AT |
31054-59Y10 |
US $14.98 |
||
|
31080
|
31080
31080-88M00 Pipe Assy-Oil Charging9208--01 ~ 9412--01; CD17.AT |
31080-88M00 |
US $63.36 |
||
| replacement | |||||
|
31080
|
31080
31080-88M01 Pipe Assy-Oil Charging9208--01 ~ 9412--01; CD17.AT |
31080-88M01 |
US $57.89 |
||
|
31080
|
31080
31080-88M01 Pipe Assy-Oil Charging9412--01 ~ 9501--01; CD17.AT |
31080-88M01 |
US $57.89 |
||
|
31084
|
31084
31084M7500 Seal-O Ring9208--01 ~ ; CD17.AT |
31084M7500 |
US $1.15 |
||
|
31086
|
31086
31086-85Y00 Gauge Assy-Oil Level9208--01 ~ ; CD17.AT |
31086-85Y00 |
US $20.02 |
||
| replacement | |||||
|
31086
|
31086
31086-85Y05
Gauge assy-oil level
9208--01 ~ ; CD17.AT |
31086-85Y05 |
— | ||
|
32009P
|
32009P
32009-54J01 Bracket-Switch Connector9208--01 ~ ; CD17.AT |
32009-54J01 |
US $6.19 |
||
