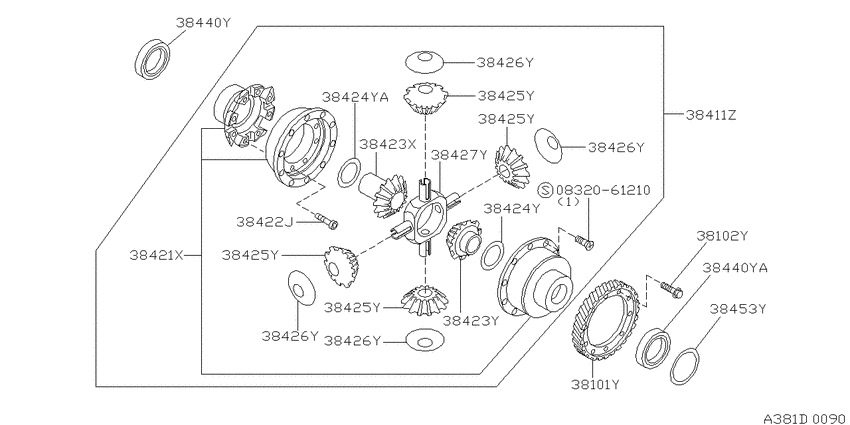

Front final drive (1996-05-01 ~ 1997-09-01; $ビスカス タイプ (RS5F32V); 5HB.SR18DE.MT) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 4WD
- transmission
- MT
- grade
- S/RV
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0832061210
|
0832061210
08320-61210
New Genuine Part
|
08320-61210 |
— | ||
|
38101Y
|
38101Y
38101-60Y07 Gear-Final Drive9501--01 ~ 9605--01; SR18DE.MT |
38101-60Y07 |
US $167.04 |
||
|
38101Y
|
38101Y
38101-65J67 Gear-Final Drive9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38101-65J67 |
US $180 |
||
|
38102Y
|
38102Y
38102-31X60 Bolt-Drive Gear9501--01 ~ 9709--01; SR18DE.MT |
38102-31X60 |
US $2.45 |
||
|
38411Z
|
38411Z
38411-70E03 CASE COMPL-DIFFERENTIAL,VISCOUS9501--01 ~ 9605--01; SR18DE.MT |
38411-70E03 |
US $1,610 |
||
|
38411Z
|
38411Z
38711-80E06 CASE COMPL-DIFFERENTIAL,VISCOUS9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38711-80E06 |
US $1,736 |
||
|
38421X
|
38421X
38720-80E06 CASE ASSY-DIFFERENTIAL,VISCOUS9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38720-80E06 |
US $1,243.25 |
||
|
38422J
|
38422J
38734-56E00 BOLT-COUPLING,DIFFERENTIAL CASE9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38734-56E00 |
US $4.32 |
||
|
38423X
|
38423X
38723-56E01 GEAR-SIDE9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38723-56E01 |
US $38.88 |
||
|
38423Y
|
38423Y
38729-56E01 GEAR-SIDE9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38729-56E01 |
US $108.72 |
||
|
38424Y
|
38424Y
38424-56E00 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.63 |
38424-56E00 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E01 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.72 |
38424-56E01 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E02 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.81 |
38424-56E02 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E03 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.90 |
38424-56E03 |
US $5.04 |
||
|
38424Y
|
38424Y
38424-56E04 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.98 |
38424-56E04 |
US $6.19 |
||
|
38424Y
|
38424Y
38424-56E05 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=1.08 |
38424-56E05 |
US $6.19 |
||
|
38424Y
|
38424Y
38424-56E06 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=1.17 |
38424-56E06 |
US $6.19 |
||
|
38424Y
|
38424Y
38424-56E07 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=1.26 |
38424-56E07 |
US $6.19 |
||
|
38424Y
|
38424Y
38424-56E08 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=1.35 |
38424-56E08 |
US $6.19 |
||
|
38424Y
|
38424Y
38724-56E00 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.75-0.80 |
38724-56E00 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E01 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.80-0.85 |
38724-56E01 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E02 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.85-0.90 |
38724-56E02 |
US $4.03 |
||
|
38424Y
|
38424Y
38724-56E03 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.90-0.95 |
38724-56E03 |
US $4.03 |
||
|
38424YA
|
38424YA
38724-56E00 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.75-0.80 |
38724-56E00 |
US $4.03 |
||
|
38424YA
|
38424YA
38724-56E01 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.80-0.85 |
38724-56E01 |
US $4.03 |
||
|
38424YA
|
38424YA
38724-56E02 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.85-0.90 |
38724-56E02 |
US $4.03 |
||
|
38424YA
|
38424YA
38724-56E03 WASHER-THRUST,SIDE GEAR9605--01 ~ 9709--01; 5HB.SR18DE.MT; ｾﾝﾀｸ T=0.90-0.95 |
38724-56E03 |
US $4.03 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38725-56E01 |
US $54 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38725-56E01 |
US $54 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38725-56E01 |
US $54 |
||
|
38425Y
|
38425Y
38725-56E01 PINION-MATE9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38725-56E01 |
US $54 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38426-03E00 |
US $4.18 |
||
|
38427Y
|
38427Y
38727-80E00 SHAFT-PINION MATE9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38727-80E00 |
US $82.51 |
||
|
38440Y
|
38440Y
38440-06R10 Bearing-Differential Side9605--01 ~ 9709--01; 5HB.SR18DE.MT |
38440-06R10 |
US $91.58 |
||
|
38440Y
|
38440Y
38440-D2100 Bearing-Counter Shaft, Lh9501--01 ~ 9605--01; SR18DE.MT |
38440-D2100 |
US $35.14 |
||
|
38440Y
|
38440Y
31408-31X08 Bearing-Differential Side9501--01 ~ 9709--01; SR18DE.MT |
31408-31X08 |
from US $90.41 |
||
|
38440YA
|
38440YA
31408-31X08 Bearing-Differential Side9501--01 ~ 9709--01; SR18DE.MT |
31408-31X08 |
from US $90.41 |
||
|
38453Y
|
38453Y
31439-31X00 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.28 |
31439-31X00 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X01 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.32 |
31439-31X01 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X02 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.36 |
31439-31X02 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X03 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.40 |
31439-31X03 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X04 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.44 |
31439-31X04 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X05 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.48 |
31439-31X05 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X06 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.52 |
31439-31X06 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X07 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.56 |
31439-31X07 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X08 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.60 |
31439-31X08 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X09 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.64 |
31439-31X09 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X10 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.68 |
31439-31X10 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X11 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.72 |
31439-31X11 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X12 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.76 |
31439-31X12 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X13 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.80 |
31439-31X13 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X14 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.84 |
31439-31X14 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X15 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.88 |
31439-31X15 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X16 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.92 |
31439-31X16 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X17 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=0.96 |
31439-31X17 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X18 Shim-Adjust, Side Bearing9501--01 ~ 9709--01; SR18DE.MT; ｾﾝﾀｸ T=1.44 |
31439-31X18 |
US $7.20 |
