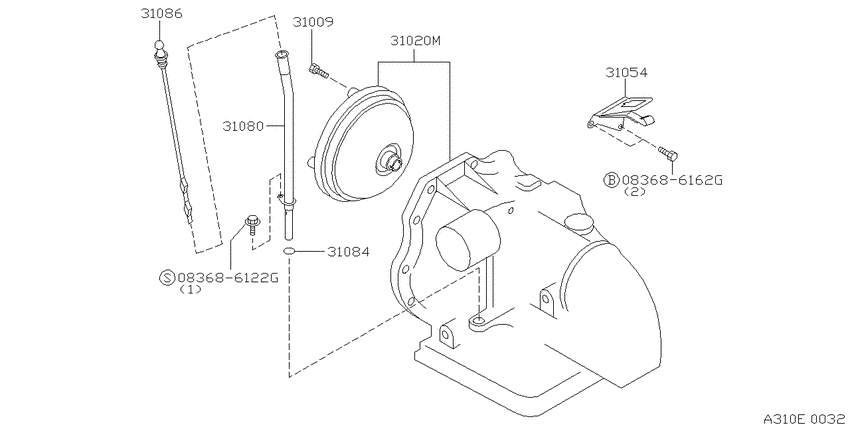

Auto transmission,transaxle & fitting (1996-05-01 ~ 1999-10-01; ｱｯｾﾝﾌﾞﾘ- & ｵｲﾙﾁｬ-ｼﾞﾝｸﾞﾊﾟ-ﾂ; 5HB.SR18DE.AT) Diagram Nissan PULSAR/LANGLEY/LIBERTA VILLA
- Year
- 1996 - 1999
- Sales region
- Japan
- Engine
- SR18DE
- drive
- 4WD.PUL
- transmission
- AT
- grade
- S/RV
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083686122G
|
083686122G
083686122G
SCRHEX HDPP W
|
083686122G |
— | ||
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
31009
|
31009
3100921X00 Bolt-Self Lock9501--01 ~ 9605--01; (4WD.PUL+4WD.LUC).AT |
3100921X00 |
from US $4.85 |
||
|
31020M
|
31020M
31020-34X08 Transaxle Assy-Automatic9501--01 ~ 9605--01; (4WD.PUL+4WD.LUC).AT |
31020-34X08 |
US $4,368 |
||
|
31020M
|
31020M
31020-35X07 Transaxle Assy-Automatic9709--01 ~ 9904--01; *5HB.SR18DE.AT; ｴｱﾛｽﾎﾟｰﾂ2.0 ｼﾖｳ |
31020-35X07 |
US $4,368 |
||
|
31020M
|
31020M
31020-35X20 Transaxle Assy-Automatic9605--01 ~ 9904--01; 5HB.SR18DE.AT |
31020-35X20 |
US $4,368 |
||
|
31020M
|
31020M
31020-36X69 Transaxle Assy-Automatic9904--01 ~ 9910--01; *5HB.SR18DE.AT; ｴｱﾛｽﾎﾟｰﾂ2.0 ｼﾖｳ |
31020-36X69 |
US $4,368 |
||
|
31020M
|
31020M
31020-36X70 Transaxle Assy-Automatic9904--01 ~ 9910--01; 5HB.SR18DE.AT |
31020-36X70 |
US $4,368 |
||
|
31054
|
31054
31054-0E000 BRACKET-AUTO TRANSMISSION THROTTLE WIRE9501--01 ~ 9605--01; SR18DE.AT |
31054-0E000 |
US $16.70 |
||
|
31054
|
31054
31054-2J301 Bracket-Auto Transmission Throttle Wire9605--01 ~ 9904--01; 5HB.SR18DE.AT |
31054-2J301 |
US $14.40 |
||
|
31054
|
31054
310542J305 Bracket-Auto Transmission Throttle Wire9904--01 ~ 9910--01; 5HB.SR18DE.AT |
310542J305 |
US $24.77 |
||
|
31054
|
31054
31054-2J311 Bracket-Auto Transmission Throttle Wire9709--01 ~ 9904--01; *5HB.SR18DE.AT; ｴｱﾛｽﾎﾟｰﾂ2.0 ｼﾖｳ |
31054-2J311 |
US $24.77 |
||
|
31054
|
31054
31054-2J315 Bracket-Auto Transmission Throttle Wire9904--01 ~ 9910--01; *5HB.SR18DE.AT; ｴｱﾛｽﾎﾟｰﾂ2.0 ｼﾖｳ |
31054-2J315 |
US $24.77 |
||
|
31080
|
31080
31080-1M501 Pipe Assy-Oil Charging9501--01 ~ 9605--01; (4WD.PUL+4WD.LUC).AT |
31080-1M501 |
US $59.18 |
||
|
31080
|
31080
31080-2J306 Pipe Assy-Oil Charging9605--01 ~ 9910--01; 5HB.SR18DE.AT |
31080-2J306 |
US $59.04 |
||
|
31084
|
31084
31084M7500 Seal-O Ring9501--01 ~ 9605--01; (4WD.PUL+4WD.LUC).AT |
31084M7500 |
US $1.15 |
||
|
31086
|
31086
31086-0M901 Gauge Assy-Oil Level9501--01 ~ 9605--01; (4WD.PUL+4WD.LUC).AT |
31086-0M901 |
US $16.85 |
||
|
31086
|
31086
31086-1N000 Gauge Assy-Oil Level9709--01 ~ 9910--01; *5HB.SR18DE.AT; ｴｱﾛｽﾎﾟｰﾂ2.0 ｼﾖｳ |
31086-1N000 |
US $20.16 |
