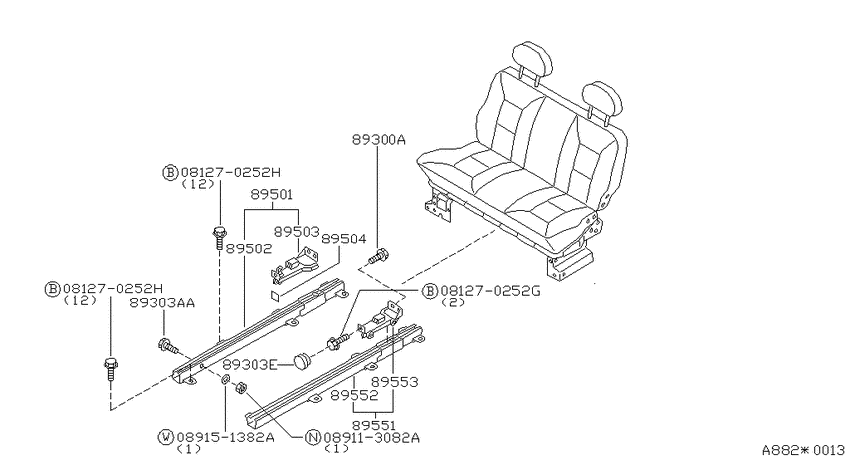

3rd seat (1992-04-01 ~ ; RAIL; FED.W +CAL.W) Diagram Nissan QUEST
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- drive
- 2WD
- transmission
- AT
- body
- CAL.W
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081270252G
|
081270252G
08127-0252G Bolt-hexagon |
08127-0252G |
US $3.06 |
||
|
081270252H
|
081270252H
081270252H
Bolt-hexagon
|
081270252H |
— | ||
|
081270252H
|
081270252H
081270252H
Bolt-hexagon
|
081270252H |
— | ||
|
089113082A
|
089113082A
089113082A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089113082A |
— | ||
|
089151382A
|
089151382A
08915-1382A
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-1382A |
— | ||
|
89300A
|
89300A
01121-0001U
Bolt
1992-04-01 ~ 1995-10-01; FED.W +CAL.W; , |
01121-0001U |
— | ||
|
89300A
|
89300A
01125-0009U
Bolt
1995-10-01 ~ ; FED.W +CAL.W; , |
01125-0009U |
— | ||
|
89300A
|
89300A
88323-0B000
Bolt
1992-04-01 ~ ; FED.W +CAL.W; , |
88323-0B000 |
— | ||
|
89300A
|
89300A
01125-0008U
Screw
1995-09-01 ~ ; FED.W +CAL.W; , |
01125-0008U |
— | ||
|
89300A
|
89300A
87454-0B010
Bolt
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
87454-0B010 |
— | ||
|
89300A
|
89300A
01121-0008U
Bolt
1995-09-01 ~ 1995-10-01; *FED.W +*CAL.W; , |
01121-0008U |
— | ||
|
89300A
|
89300A
01125-0009U
Bolt
1995-10-01 ~ 1997-09-01; *FED.W +*CAL.W; , |
01125-0009U |
— | ||
|
89300A
|
89300A
87454-0B060
Bolt
1992-04-01 ~ 1993-11-01; FED.W +CAL.W; , |
87454-0B060 |
— | ||
|
89300A
|
89300A
01125-0007U
Bolt
1995-09-01 ~ ; FED.W +CAL.W; , |
01125-0007U |
— | ||
|
89300A
|
89300A
87454-0B070
Bolt
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
87454-0B070 |
— | ||
|
89303AA
|
89303AA
89505-0B100
Screw
1992-04-01 ~ ; FED.W +CAL.W; , |
89505-0B100 |
— | ||
|
89303E
|
89303E
86906-0B000
Grommet
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
86906-0B000 |
— | ||
|
89303E
|
89303E
86906-0B001
Grommet
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
86906-0B001 |
— | ||
|
89303E
|
89303E
86906-0B002
Grommet
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
86906-0B002 |
— | ||
|
89303E
|
89303E
86906-1B000
Grommet
1995-09-01 ~ ; FED.W +CAL.W; , |
86906-1B000 |
— | ||
|
89303E
|
89303E
86906-1B003
Grommet
1995-09-01 ~ ; FED.W +CAL.W; , |
86906-1B003 |
— | ||
|
89501
|
89501
89501-0B100
Slide assy-3rd,rh
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
89501-0B100 |
— | ||
|
89501
|
89501
89501-1B000
Slide assy-3rd,rh
1995-09-01 ~ ; FED.W +CAL.W; , |
89501-1B000 |
— | ||
|
89501
|
89501
89501-0B100
Slide assy-3rd,rh
1992-04-01 ~ 1993-11-01; *FED.W.XE +*CAL.W.XE; F/5 PASSENGER |
89501-0B100 |
— | ||
|
89502
|
89502
89502-0B100
Rail assy-rh
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
89502-0B100 |
— | ||
|
89502
|
89502
89502-1B000
Rail assy-rh
1995-09-01 ~ ; FED.W +CAL.W; , |
89502-1B000 |
— | ||
|
89502
|
89502
89502-0B100
Rail assy-rh
1992-04-01 ~ 1993-11-01; *FED.W.XE +*CAL.W.XE; F/5 PASSENGER |
89502-0B100 |
— | ||
|
89503
|
89503
89503-0B100
Roller assy-rh
1992-04-01 ~ ; FED.W +CAL.W; , |
89503-0B100 |
— | ||
|
89503
|
89503
89503-0B100
Roller assy-rh
1992-04-01 ~ 1993-11-01; *FED.W.XE +*CAL.W.XE; F/5 PASSENGER |
89503-0B100 |
— | ||
|
89504
|
89504
89504-0B100
Sweeper
1992-04-01 ~ ; FED.W +CAL.W; , |
89504-0B100 |
— | ||
|
89504
|
89504
89504-0B100
Sweeper
1992-04-01 ~ 1993-11-01; *FED.W.XE +*CAL.W.XE; RH & LH |
89504-0B100 |
— | ||
|
89551
|
89551
89551-0B100
Slide assy-3rd,lh
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
89551-0B100 |
— | ||
|
89551
|
89551
89551-6B700
Slide assy-3rd,lh
1997-09-01 ~ ; FED.W +CAL.W; , |
89551-6B700 |
— | ||
|
89551
|
89551
89551-0B100
Slide assy-3rd,lh
1992-04-01 ~ 1993-11-01; *FED.W.XE +*CAL.W.XE; F/5 PASSENGER |
89551-0B100 |
— | ||
|
89552
|
89552
89552-0B100
Rail assy-lh
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
89552-0B100 |
— | ||
|
89552
|
89552
89552-1B000
Rail assy-lh
1995-09-01 ~ ; FED.W +CAL.W; , |
89552-1B000 |
— | ||
| replacement | |||||
|
89552
|
89552
89552-6B700
Rail assy-lh
1995-09-01 ~ ; FED.W +CAL.W; , |
89552-6B700 |
— | ||
|
89552
|
89552
89552-0B100
Rail assy-lh
1992-04-01 ~ 1993-11-01; *FED.W.XE +*CAL.W.XE; F/5 PASSENGER |
89552-0B100 |
— | ||
|
89553
|
89553
89553-0B100
Roller assy-lh
1992-04-01 ~ ; FED.W +CAL.W; , |
89553-0B100 |
— | ||
|
89553
|
89553
89553-0B100
Roller assy-lh
1992-04-01 ~ 1993-11-01; *FED.W.XE +*CAL.W.XE; F/5 PASSENGER |
89553-0B100 |
— | ||
