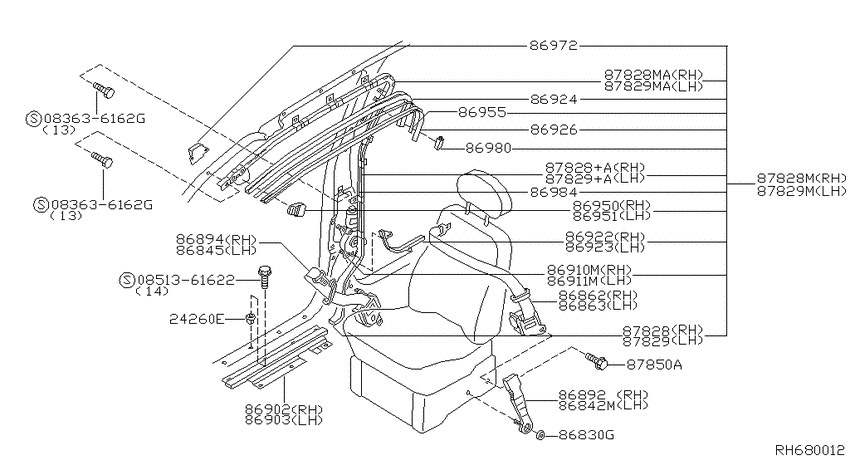

Front seat belt (1992-04-01 ~ 1995-09-01; FED.W +CAL.W) Diagram Nissan QUEST
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- drive
- 2WD
- transmission
- AT
- body
- CAL.W
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
0851361622
|
0851361622
08513-61622
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-61622 |
— | ||
|
24260E
|
24260E
01281-00601
GROMMET-SCREW
1992-04-01 ~ ; FED.W +CAL.W; , |
01281-00601 |
— | ||
| replacement | |||||
|
24260E
|
24260E
0128101231 GROMMET-SCREW1992-04-01 ~ ; FED.W +CAL.W; , |
0128101231 |
from US $2.24 |
||
|
86830G
|
86830G
86906-0B000
Grommet
1992-04-01 ~ ; FED.W +CAL.W; , |
86906-0B000 |
— | ||
|
86830G
|
86830G
86906-0B001
Grommet
1992-04-01 ~ ; FED.W +CAL.W; , |
86906-0B001 |
— | ||
|
86830G
|
86830G
86906-0B002
Grommet
1992-04-01 ~ ; FED.W +CAL.W; , |
86906-0B002 |
— | ||
|
86830G
|
86830G
86906-1B000
Grommet
1995-09-01 ~ ; FED.W +CAL.W; , |
86906-1B000 |
— | ||
|
86830G
|
86830G
86906-1B003
Grommet
1995-09-01 ~ ; FED.W +CAL.W; , |
86906-1B003 |
— | ||
|
86842M
|
86842M
86832-0B025
Belt assy-front seat buckle
1992-04-01 ~ ; FED.W +CAL.W; , |
86832-0B025 |
— | ||
|
86842M
|
86842M
86832-0B026
Belt assy-front seat buckle
1992-04-01 ~ ; FED.W +CAL.W; , |
86832-0B026 |
— | ||
|
86842M
|
86842M
86832-0B027
Belt assy-front seat buckle
1992-04-01 ~ ; FED.W +CAL.W; , |
86832-0B027 |
— | ||
|
86845
|
86845
86835-0B025
Belt assy-front seat tongue,lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86835-0B025 |
— | ||
|
86845
|
86845
86835-0B026
Belt assy-front seat tongue,lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86835-0B026 |
— | ||
|
86845
|
86845
86835-0B027
Belt assy-front seat tongue,lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86835-0B027 |
— | ||
|
86845
|
86845
86845-1B025
Belt assy-front seat tongue,lh
1995-09-01 ~ ; FED.W +CAL.W; , |
86845-1B025 |
— | ||
|
86845
|
86845
86845-1B027
Belt assy-front seat tongue,lh
1995-09-01 ~ ; FED.W +CAL.W; , |
86845-1B027 |
— | ||
|
86845
|
86845
86845-1B028
Belt assy-front seat tongue,lh
1995-09-01 ~ ; FED.W +CAL.W; , |
86845-1B028 |
— | ||
|
86862
|
86862
86862-0B025
Belt set-shoulder,passive rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86862-0B025 |
— | ||
|
86862
|
86862
86862-0B026
Belt set-shoulder,passive rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86862-0B026 |
— | ||
|
86862
|
86862
86862-0B027
Belt set-shoulder,passive rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86862-0B027 |
— | ||
|
86863
|
86863
86863-0B025
Belt set-shoulder,passive lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86863-0B025 |
— | ||
|
86863
|
86863
86863-0B026
Belt set-shoulder,passive lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86863-0B026 |
— | ||
|
86863
|
86863
86863-0B027
Belt set-shoulder,passive lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86863-0B027 |
— | ||
|
86892
|
86892
86822-0B025
Belt assy-buckle,passive rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86822-0B025 |
— | ||
|
86892
|
86892
86822-0B026
Belt assy-buckle,passive rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86822-0B026 |
— | ||
|
86892
|
86892
86822-0B027
Belt assy-buckle,passive rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86822-0B027 |
— | ||
|
86894
|
86894
86824-0B025
Belt assy-tongue,passive rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86824-0B025 |
— | ||
| replacement | |||||
|
86894
|
86894
86824-0B725
Belt assy-tongue,passive rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86824-0B725 |
— | ||
|
86894
|
86894
86824-0B026
Belt assy-tongue,passive rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86824-0B026 |
— | ||
| replacement | |||||
|
86894
|
86894
86824-0B726
Belt assy-tongue,passive rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86824-0B726 |
— | ||
|
86894
|
86894
86824-0B027
Belt assy-tongue,passive rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86824-0B027 |
— | ||
| replacement | |||||
|
86894
|
86894
86824-0B727
Belt assy-tongue,passive rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86824-0B727 |
— | ||
|
86902
|
86902
86902-0B000
Lower tape guide-passive.rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86902-0B000 |
— | ||
|
86903
|
86903
86903-0B000
Lower tape guide-passive,lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86903-0B000 |
— | ||
|
86910M
|
86910M
86910-0B000
Motor assy-passive,rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86910-0B000 |
— | ||
|
86911M
|
86911M
86911-0B000
Motor assy-passive,lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86911-0B000 |
— | ||
|
86922
|
86922
86922-0B000
Guide assy-motor passive,rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86922-0B000 |
— | ||
|
86923
|
86923
86923-0B000
Guide assy-motor passive,lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86923-0B000 |
— | ||
|
86924
|
86924
86924-0B000
Seal-inboard dust
1992-04-01 ~ ; FED.W +CAL.W; RH |
86924-0B000 |
— | ||
|
86924
|
86924
86925-0B000
Seal-inboard dust
1992-04-01 ~ ; FED.W +CAL.W; LH |
86925-0B000 |
— | ||
|
86926
|
86926
86926-0B000
Seal-outboard dust
1992-04-01 ~ ; FED.W +CAL.W; RH |
86926-0B000 |
— | ||
|
86926
|
86926
86927-0B000
Seal-outboard dust
1992-04-01 ~ ; FED.W +CAL.W; LH |
86927-0B000 |
— | ||
|
86950
|
86950
86950-0B025
Buckle assy-passive belt,rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86950-0B025 |
— | ||
|
86951
|
86951
86951-0B025
Buckle assy-passive belt,lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86951-0B025 |
— | ||
|
86955
|
86955
86955-0B000
Tape-drive
1992-04-01 ~ ; FED.W +CAL.W; , |
86955-0B000 |
— | ||
|
86972
|
86972
86972-0B000
Lockout assy-passive
1992-04-01 ~ ; FED.W +CAL.W; RH |
86972-0B000 |
— | ||
|
86972
|
86972
86973-0B000
Lockout assy-passive
1992-04-01 ~ ; FED.W +CAL.W; LH |
86973-0B000 |
— | ||
|
86980
|
86980
86980-0B000
Switch assy-passive
1992-04-01 ~ ; FED.W +CAL.W; , |
86980-0B000 |
— | ||
|
86984
|
86984
86984-0B000
Wire assy-jumper
1992-04-01 ~ ; FED.W +CAL.W; , |
86984-0B000 |
— | ||
|
87828
|
87828
86908-0B000
Guide assy-shoulder belt,rh
1992-04-01 ~ ; FED.W +CAL.W; LWR |
86908-0B000 |
— | ||
|
87828
|
87828
86904-0B000
Guide assy-shoulder belt,rh
1992-04-01 ~ ; FED.W +CAL.W; UPR |
86904-0B000 |
— | ||
|
87828
|
87828
86900-0B025
Guide rail assy-passive,front rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86900-0B025 |
— | ||
|
87828
|
87828
86920-0B025
Guide rail assy-passive,front rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86920-0B025 |
— | ||
|
87828+A
|
87828+A
86904-0B000
Guide assy-shoulder belt,rh
1992-04-01 ~ ; FED.W +CAL.W; UPR |
86904-0B000 |
— | ||
|
87828M
|
87828M
86900-0B025
Guide rail assy-passive,front rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86900-0B025 |
— | ||
|
87828M
|
87828M
86920-0B025
Guide rail assy-passive,front rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86920-0B025 |
— | ||
|
87828MA
|
87828MA
86920-0B025
Guide rail assy-passive,front rh
1992-04-01 ~ ; FED.W +CAL.W; , |
86920-0B025 |
— | ||
|
87829
|
87829
86909-0B000
Guide assy-shoulder belt,lh
1992-04-01 ~ ; FED.W +CAL.W; LWR |
86909-0B000 |
— | ||
|
87829
|
87829
86905-0B000
Guide assy-shoulder belt,lh
1992-04-01 ~ ; FED.W +CAL.W; UPR |
86905-0B000 |
— | ||
|
87829
|
87829
86901-0B025
Guide rail assy-passive,front lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86901-0B025 |
— | ||
|
87829
|
87829
86921-0B025
Guide rail assy-passive,front lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86921-0B025 |
— | ||
|
87829+A
|
87829+A
86905-0B000
Guide assy-shoulder belt,lh
1992-04-01 ~ ; FED.W +CAL.W; UPR |
86905-0B000 |
— | ||
|
87829M
|
87829M
86901-0B025
Guide rail assy-passive,front lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86901-0B025 |
— | ||
|
87829M
|
87829M
86921-0B025
Guide rail assy-passive,front lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86921-0B025 |
— | ||
|
87829MA
|
87829MA
86921-0B025
Guide rail assy-passive,front lh
1992-04-01 ~ ; FED.W +CAL.W; , |
86921-0B025 |
— | ||
|
87850A
|
87850A
87850-85E00 ﾎﾞﾙﾄ1992-04-01 ~ ; FED.W +CAL.W; , |
87850-85E00 |
US $4.18 |
||
