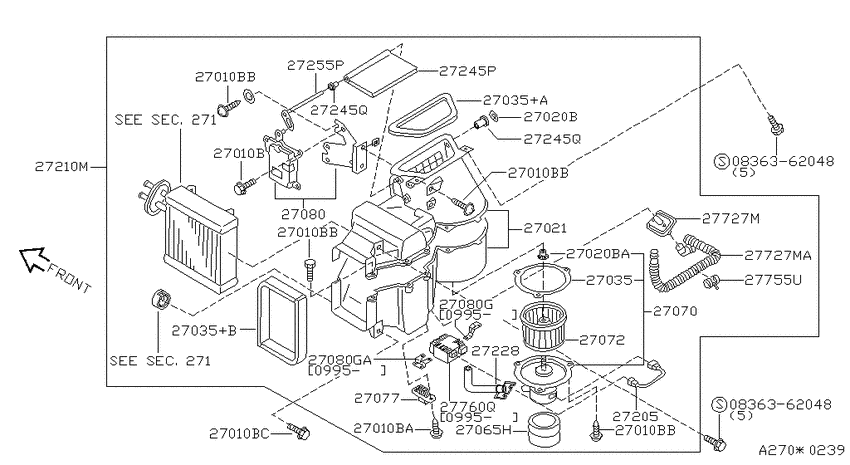

Heater & blower unit (1992-04-01 ~ ; BLOWER AND COOLER-FRONT; FED.W +CAL.W) Diagram Nissan QUEST
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- drive
- 2WD
- transmission
- AT
- body
- CAL.W
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836362048
|
0836362048
08363-62048
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62048 |
— | ||
|
0836362048
|
0836362048
08363-62048
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62048 |
— | ||
|
27010B
|
27010B
25149-0B003
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
25149-0B003 |
— | ||
|
27010B
|
27010B
25149-0B001
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
25149-0B001 |
— | ||
|
27010B
|
27010B
25149-0B002
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
25149-0B002 |
— | ||
|
27010B
|
27010B
01456-00421 SCREW1997-09-01 ~ ; FED.W +CAL.W; , |
01456-00421 |
from US $0.57 |
||
|
27010BA
|
27010BA
25149-0B001
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
25149-0B001 |
— | ||
|
27010BB
|
27010BB
25149-0B002
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
25149-0B002 |
— | ||
|
27010BB
|
27010BB
25149-0B002
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
25149-0B002 |
— | ||
|
27010BB
|
27010BB
25149-0B002
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
25149-0B002 |
— | ||
|
27010BB
|
27010BB
25149-0B002
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
25149-0B002 |
— | ||
|
27010BC
|
27010BC
01456-00421 SCREW1997-09-01 ~ ; FED.W +CAL.W; , |
01456-00421 |
from US $0.57 |
||
|
27020B
|
27020B
68191-0B000
Nut
1995-09-01 ~ ; FED.W +CAL.W; , |
68191-0B000 |
— | ||
|
27020B
|
27020B
68191-0B010
Nut
1992-04-01 ~ ; FED.W +CAL.W; , |
68191-0B010 |
— | ||
|
27020BA
|
27020BA
68191-0B010
Nut
1992-04-01 ~ ; FED.W +CAL.W; , |
68191-0B010 |
— | ||
|
27021
|
27021
27235-0B025
Case-Blower
1997-09-01 ~ ; FED.W +CAL.W; , |
27235-0B025 |
— | ||
|
27021
|
27021
27235-1B025
Case-Blower
1995-09-01 ~ 1997-09-01; FED.W +CAL.W; F/FRONT |
27235-1B025 |
— | ||
|
27035
|
27035
27233-0B000
Seal-Blower
1992-04-01 ~ 1995-08-01; FED.W +CAL.W; F/FRONT |
27233-0B000 |
— | ||
|
27035
|
27035
27233-0B700
Seal-Blower
1995-08-01 ~ ; FED.W +CAL.W; , |
27233-0B700 |
— | ||
|
27035
|
27035
27287-0B002
Seal-Blower
1997-09-01 ~ ; FED.W +CAL.W; , |
27287-0B002 |
— | ||
|
27035
|
27035
27287-0B001
Seal-Blower
1997-09-01 ~ ; FED.W +CAL.W; , |
27287-0B001 |
— | ||
|
27035
|
27035
28982-0B001
Grommet-Rubber
1997-09-01 ~ ; FED.W +CAL.W; , |
28982-0B001 |
— | ||
|
27035
|
27035
27418-0B000
Seal
1992-04-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; F/RR HEATER & RR COOLER |
27418-0B000 |
— | ||
|
27035
|
27035
65564-0B000
Seal
1995-09-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; F/RR HEATER RR COOLER |
65564-0B000 |
— | ||
|
27035
|
27035
74862-0B000
Seal
1992-04-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; F/RR HEATER & RR COOLER |
74862-0B000 |
— | ||
|
27035
|
27035
74863-0B000
Seal
1992-04-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; F/RR HEATER & RR COOLER |
74863-0B000 |
— | ||
|
27035
|
27035
27471-0B000
Seal
1992-04-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; F/RR HEATER & RR COOLER |
27471-0B000 |
— | ||
|
27035+A
|
27035+A
27287-0B002
Seal-Blower
1997-09-01 ~ ; FED.W +CAL.W; , |
27287-0B002 |
— | ||
|
27035+B
|
27035+B
27287-0B001
Seal-Blower
1997-09-01 ~ ; FED.W +CAL.W; , |
27287-0B001 |
— | ||
|
27065H
|
27065H
27227-0B000
Cover-Heater Blower
1995-09-01 ~ ; FED.W +CAL.W; , |
27227-0B000 |
— | ||
|
27070
|
27070
27220-0B025
Motor & Fan Assy-Blower
1993-02-01 ~ 1994-03-01; FED.W +CAL.W; F/FRONT |
27220-0B025 |
— | ||
|
27070
|
27070
27220-0B725
Motor & Fan Assy-Blower
1994-03-01 ~ 1994-10-01; FED.W +CAL.W; F/FRONT |
27220-0B725 |
— | ||
|
27070
|
27070
27220-0B726
Motor & Fan Assy-Blower
1995-09-01 ~ 1996-02-01; FED.W.XE +CAL.W.XE; F/FRONT |
27220-0B726 |
— | ||
|
27070
|
27070
27220-1B025
Motor & Fan Assy-Blower
1996-02-01 ~ 1997-09-01; FED.W.XE +CAL.W.XE; F/FRONT |
27220-1B025 |
— | ||
|
27070
|
27070
27226-0B025
Motor & Fan Assy-Blower
1992-04-01 ~ 1993-02-01; FED.W +CAL.W; F/FRONT |
27226-0B025 |
— | ||
|
27072
|
27072
27230-0B000
Fan Assy-Blower
1992-04-01 ~ ; FED.W +CAL.W; , |
27230-0B000 |
— | ||
|
27077
|
27077
27150-0B000
Resistance-Electric
1992-04-01 ~ 1993-07-01; FED.W +CAL.W; F/REAR |
27150-0B000 |
— | ||
|
27077
|
27077
27150-0B001
Resistance-Electric
1997-09-01 ~ ; *FED.W.XE +*CAL.W.XE; F/RR HEATER&RR COOLER |
27150-0B001 |
— | ||
|
27077
|
27077
27150-0B002
Resistance-Electric
1993-07-01 ~ 1997-09-01; FED.W +CAL.W; F/REAR |
27150-0B002 |
— | ||
|
27080
|
27080
27740-0B000
Actuator-Air Intake Box
1995-09-01 ~ ; FED.W +CAL.W; , |
27740-0B000 |
— | ||
|
27080
|
27080
27750-0B001
Bracket-Actuator
1997-09-01 ~ ; FED.W +CAL.W; , |
27750-0B001 |
— | ||
|
27080
|
27080
27750-1B020
Bracket-Actuator
1995-09-01 ~ 1997-09-01; FED.W +CAL.W; F/RH |
27750-1B020 |
— | ||
|
27080
|
27080
27750-1B021
Bracket-Actuator
1995-09-01 ~ 1997-09-01; FED.W +CAL.W; F/LH |
27750-1B021 |
— | ||
|
27080
|
27080
27421-0B000
Bracket-Actuator
1995-09-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; , |
27421-0B000 |
— | ||
|
27080G
|
27080G
27750-0B001
Bracket-Actuator
1997-09-01 ~ ; FED.W +CAL.W; , |
27750-0B001 |
— | ||
|
27080G
|
27080G
27750-1B020
Bracket-Actuator
1995-09-01 ~ 1997-09-01; FED.W +CAL.W; F/RH |
27750-1B020 |
— | ||
|
27080G
|
27080G
27750-1B021
Bracket-Actuator
1995-09-01 ~ 1997-09-01; FED.W +CAL.W; F/LH |
27750-1B021 |
— | ||
|
27080G
|
27080G
27421-0B000
Bracket-Actuator
1995-09-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; , |
27421-0B000 |
— | ||
|
27080GA
|
27080GA
27750-1B021
Bracket-Actuator
1995-09-01 ~ 1997-09-01; FED.W +CAL.W; F/LH |
27750-1B021 |
— | ||
|
27210M
|
27210M
27210-0B000
Blower & Cooling Unit Assy-Front
1992-04-01 ~ 1992-09-01; FED.W +CAL.W; , |
27210-0B000 |
— | ||
|
27210M
|
27210M
27210-0B001
Blower & Cooling Unit Assy-Front
1992-09-01 ~ 1996-02-01; FED.W +CAL.W; , |
27210-0B001 |
— | ||
|
27210M
|
27210M
27210-1B000
Blower & Cooling Unit Assy-Front
1996-02-01 ~ ; FED.W +CAL.W; , |
27210-1B000 |
— | ||
|
27228
|
27228
27228-0B000
Hose-Motor Cooling
1995-09-01 ~ ; FED.W +CAL.W; , |
27228-0B000 |
— | ||
|
27228
|
27228
27228-1B710
Hose-Motor Cooling
1995-02-01 ~ ; FED.W +CAL.W; , |
27228-1B710 |
— | ||
|
27245P
|
27245P
27240-0B000
Door-Intake Blower, Front
1997-09-01 ~ ; FED.W +CAL.W; , |
27240-0B000 |
— | ||
|
27245Q
|
27245Q
80410-0B000
Bush-Door Hinge
1997-09-01 ~ ; FED.W +CAL.W; , |
80410-0B000 |
— | ||
|
27245Q
|
27245Q
80410-0B000
Bush-Door Hinge
1997-09-01 ~ ; FED.W +CAL.W; , |
80410-0B000 |
— | ||
|
27255P
|
27255P
27255-0B000
Shaft-Door, Intake Blower
1997-09-01 ~ ; FED.W +CAL.W; , |
27255-0B000 |
— |
