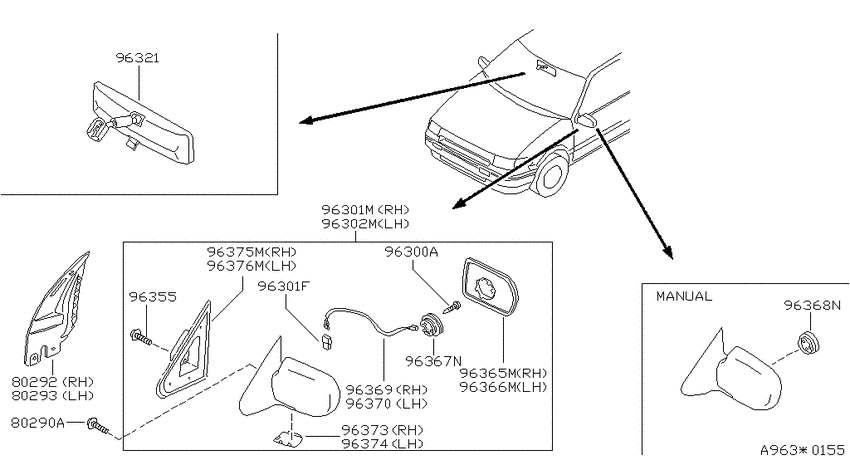

Rear view mirror (1992-04-01 ~ ; FED.W +CAL.W) Diagram Nissan QUEST
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- drive
- 2WD
- transmission
- AT
- body
- CAL.W
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836361638
|
0836361638
08363-61638
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61638 |
— | ||
| replacement | |||||
|
0836361638
|
0836361638
083636161G Bolt |
083636161G |
US $2.36 |
||
|
80290A
|
80290A
01454-00011 SCREW1992-04-01 ~ ; FED.W +CAL.W; , |
01454-00011 |
US $1.93 |
||
|
80292
|
80292
80292-0B000
Cover-front door corner,inner rh
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
80292-0B000 |
— | ||
|
80292
|
80292
80292-1B000
Cover-front door corner,inner rh
1995-09-01 ~ ; FED.W +CAL.W; , |
80292-1B000 |
— | ||
|
80293
|
80293
80293-0B000
Cover-front door corner,inner lh
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
80293-0B000 |
— | ||
|
80293
|
80293
80293-1B000
Cover-front door corner,inner lh
1995-09-01 ~ ; FED.W +CAL.W; , |
80293-1B000 |
— | ||
|
96300A
|
96300A
96309-0B000
Screw
1997-09-01 ~ ; FED.W +CAL.W; , |
96309-0B000 |
— | ||
|
96301F
|
96301F
24342-71L20
Housing-connector,male
1992-04-01 ~ 1995-09-01; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIRROR-SAIL MOUNT,ELEC |
24342-71L20 |
— | ||
|
96301F
|
96301F
24342-71L22
Housing-connector,male
1997-09-01 ~ ; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIRROR-SAIL MOUNT,ELEC |
24342-71L22 |
— | ||
|
96301M
|
96301M
96301-0B025
Mirror assy-door,rh
1992-04-01 ~ 1995-09-01; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIRROR-SAIL MOUNT,ELEC |
96301-0B025 |
— | ||
|
96301M
|
96301M
96301-0B026
Mirror assy-door,rh
1992-04-01 ~ 1995-09-01; FED.W.XE +CAL.W.XE; , |
96301-0B026 |
— | ||
|
96301M
|
96301M
96301-1B025
Mirror assy-door,rh
1995-09-01 ~ ; FED.W.XE +CAL.W.XE; , |
96301-1B025 |
— | ||
|
96301M
|
96301M
96301-1B325
Mirror assy-door,rh
1995-09-01 ~ ; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIRROR-SAIL MOUNT,ELEC |
96301-1B325 |
— | ||
|
96302M
|
96302M
96302-0B025
Mirror assy-door,lh
1992-04-01 ~ 1995-01-01; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIRROR-SAIL MOUNT,ELEC |
96302-0B025 |
— | ||
|
96302M
|
96302M
96302-0B026
Mirror assy-door,lh
1992-04-01 ~ 1995-01-01; FED.W.XE +CAL.W.XE; , |
96302-0B026 |
— | ||
|
96302M
|
96302M
96302-0B725
Mirror assy-door,lh
1995-01-01 ~ 1995-09-01; *FED.W.XE +*CAL.W.XE; , |
96302-0B725 |
— | ||
|
96302M
|
96302M
96302-0B726
Mirror assy-door,lh
1995-01-01 ~ 1995-09-01; FED.W.XE +CAL.W.XE; , |
96302-0B726 |
— | ||
|
96302M
|
96302M
96302-1B025
Mirror assy-door,lh
1995-09-01 ~ ; FED.W.XE +CAL.W.XE; , |
96302-1B025 |
— | ||
|
96302M
|
96302M
96302-1B325
Mirror assy-door,lh
1995-09-01 ~ ; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIRROR-SAIL MOUNT,ELEC |
96302-1B325 |
— | ||
|
96321
|
96321
96321-0B000
Mirror assy-inside
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
96321-0B000 |
— | ||
|
96321
|
96321
96321-1B000
Mirror assy-inside
1995-09-01 ~ ; FED.W +CAL.W; , |
96321-1B000 |
— | ||
|
96355
|
96355
24228-0B700
Screw
1995-09-01 ~ ; FED.W +CAL.W; , |
24228-0B700 |
— | ||
|
96365M
|
96365M
96365-0B000
Glass-mirror,rh
1995-09-01 ~ ; FED.W.XE +CAL.W.XE; , |
96365-0B000 |
— | ||
|
96365M
|
96365M
96365-1B000
Glass-mirror,rh
1997-09-01 ~ ; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIROOR-SAIL MOUNT,ELEC |
96365-1B000 |
— | ||
|
96366M
|
96366M
96366-0B000
Glass-mirror,lh
1995-09-01 ~ ; FED.W.XE +CAL.W.XE; , |
96366-0B000 |
— | ||
|
96366M
|
96366M
96366-1B000
Glass-mirror,lh
1995-09-01 ~ ; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIRROR-SAIL MOUNT,ELEC |
96366-1B000 |
— | ||
|
96367N
|
96367N
96367-0B000
Actuator assy-mirror,power
1995-09-01 ~ ; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIRROR-SAIL MOUNT,ELEC |
96367-0B000 |
— | ||
|
96368N
|
96368N
96368-0B000
Actuator assy-mirror,manual
1995-09-01 ~ ; FED.W.XE +CAL.W.XE; , |
96368-0B000 |
— | ||
|
96369
|
96369
96369-0B000
Harness-door mirror,rh
1992-04-01 ~ 1995-09-01; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIRROR-SAIL MOUNT,ELEC |
96369-0B000 |
— | ||
|
96369
|
96369
96369-1B000
Harness-door mirror,rh
1995-09-01 ~ ; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIRROR-SAIL MOUNT,ELEC |
96369-1B000 |
— | ||
|
96370
|
96370
96370-0B000
Harness-door mirror,lh
1992-04-01 ~ 1995-09-01; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIRROR-SAIL MOUNT,ELEC |
96370-0B000 |
— | ||
|
96370
|
96370
96370-1B000
Harness-door mirror,lh
1995-09-01 ~ ; *FED.W.XE +*CAL.W.XE; F/OUTSIDE MIRROR-SAIL MOUNT,ELEC |
96370-1B000 |
— | ||
|
96373
|
96373
96373-0B000
Cover-mirror body,rh
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
96373-0B000 |
— | ||
|
96373
|
96373
96373-1B100
Cover-mirror body,rh
1995-09-01 ~ ; FED.W +CAL.W; , |
96373-1B100 |
— | ||
|
96374
|
96374
96374-0B000
Cover-mirror body,lh
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
96374-0B000 |
— | ||
|
96374
|
96374
96374-1B100
Cover-mirror body,lh
1995-09-01 ~ ; FED.W +CAL.W; , |
96374-1B100 |
— | ||
|
96375M
|
96375M
96375-0B000
Gasket-door mirror,rh
1992-04-01 ~ ; FED.W +CAL.W; , |
96375-0B000 |
— | ||
|
96376M
|
96376M
96376-0B000
Gasket-door mirror,lh
1992-04-01 ~ ; FED.W +CAL.W; , |
96376-0B000 |
— | ||
