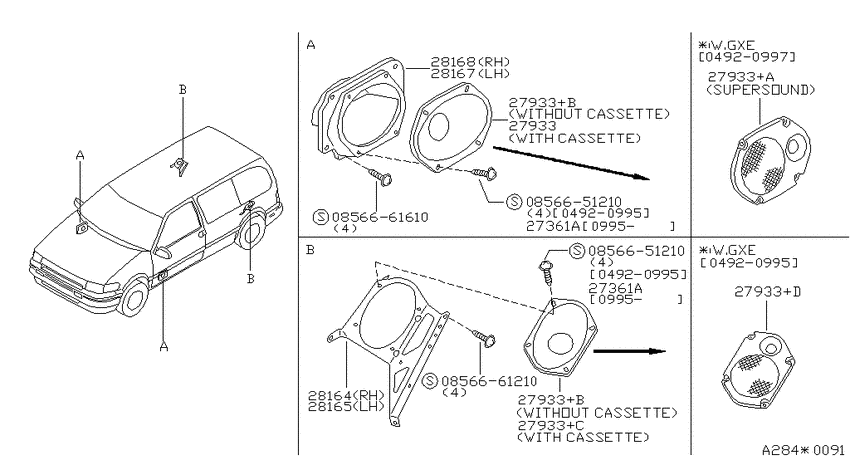

Speaker (1992-04-01 ~ ; FRONT AND REAR SPEAKER; FED.W +CAL.W) Diagram Nissan QUEST
- Year
- 1992 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- drive
- 2WD
- transmission
- AT
- body
- CAL.W
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0856651210
|
0856651210
08566-51210
Screw-tapping
|
08566-51210 |
— | ||
|
0856651210
|
0856651210
08566-51210
Screw-tapping
|
08566-51210 |
— | ||
|
0856661210
|
0856661210
08566-61210
SCREWTAPPING
|
08566-61210 |
— | ||
|
0856661610
|
0856661610
08566-61610
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08566-61610 |
— | ||
|
27361A
|
27361A
0145100581 SCREW1995-09-01 ~ ; FED.W +CAL.W; , |
0145100581 |
from US $1.67 |
||
|
27361A
|
27361A
0145100581 SCREW1995-09-01 ~ ; FED.W +CAL.W; , |
0145100581 |
from US $1.67 |
||
|
27933
|
27933
28148-0B000
Speaker Unit
1995-09-01 ~ 1997-09-01; *FED.W.XE +*CAL.W.XE; F/AM/FM 4SPK |
28148-0B000 |
— | ||
|
27933
|
27933
28148-0B010
Speaker Unit
1993-11-01 ~ ; FED.W +CAL.W; , |
28148-0B010 |
— | ||
|
27933
|
27933
28148-0B000
Speaker Unit
1992-04-01 ~ 1993-11-01; *FED.W.XE +*CAL.W.XE; FR & RR (W/O CASSETTE) |
28148-0B000 |
— | ||
|
27933
|
27933
28138-0B010
Speaker Unit
1993-11-01 ~ ; FED.W +CAL.W; , |
28138-0B010 |
— | ||
|
27933+B
|
27933+B
28148-0B000
Speaker Unit
1992-04-01 ~ 1993-11-01; *FED.W.XE +*CAL.W.XE; FR & RR (W/O CASSETTE) |
28148-0B000 |
— | ||
|
27933+B
|
27933+B
28148-0B000
Speaker Unit
1992-04-01 ~ 1993-11-01; *FED.W.XE +*CAL.W.XE; FR & RR (W/O CASSETTE) |
28148-0B000 |
— | ||
|
27933+C
|
27933+C
28138-0B010
Speaker Unit
1993-11-01 ~ ; FED.W +CAL.W; , |
28138-0B010 |
— | ||
|
28164
|
28164
28164-0B000
Bracket-Rear Speaker, Rh
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
28164-0B000 |
— | ||
|
28164
|
28164
28164-1B000
Bracket-Rear Speaker, Rh
1995-09-01 ~ ; FED.W +CAL.W; , |
28164-1B000 |
— | ||
|
28165
|
28165
28165-0B000
Bracket-Rear Speaker, Lh
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
28165-0B000 |
— | ||
|
28165
|
28165
28165-1B000
Bracket-Rear Speaker, Lh
1995-09-01 ~ ; FED.W +CAL.W; , |
28165-1B000 |
— | ||
|
28167
|
28167
28167-0B000
Bracket-Front Speaker, Lh
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
28167-0B000 |
— | ||
|
28167
|
28167
28167-1B000
Bracket-Front Speaker, Lh
1995-09-01 ~ ; FED.W +CAL.W; , |
28167-1B000 |
— | ||
|
28168
|
28168
28166-0B000
Bracket-Speaker, Rh
1992-04-01 ~ 1995-09-01; FED.W +CAL.W; , |
28166-0B000 |
— | ||
|
28168
|
28168
28166-1B000
Bracket-Speaker, Rh
1995-09-01 ~ ; FED.W +CAL.W; , |
28166-1B000 |
— |
